Crown (Middleby) | SKU: EPXN-3

Crown (Middleby) EPXN-3 Steamers (Countertop & Floor)

Name: Crown (Middleby) EPXN-3 Steamers (Countertop & Floor)
Brand: Crown (Middleby)
SKU: EPXN-3
Price: 10304.00 USD
Availability: InStock

$10,304.00

Expected delivery date of , to your door

if ordered within hours and minutes

Not Shipping to ?

More Delivery Options

Documents

Cutsheet Crown steam group letter Middleby financial flyer Installation & operation Parts list Warranty sheet

Description

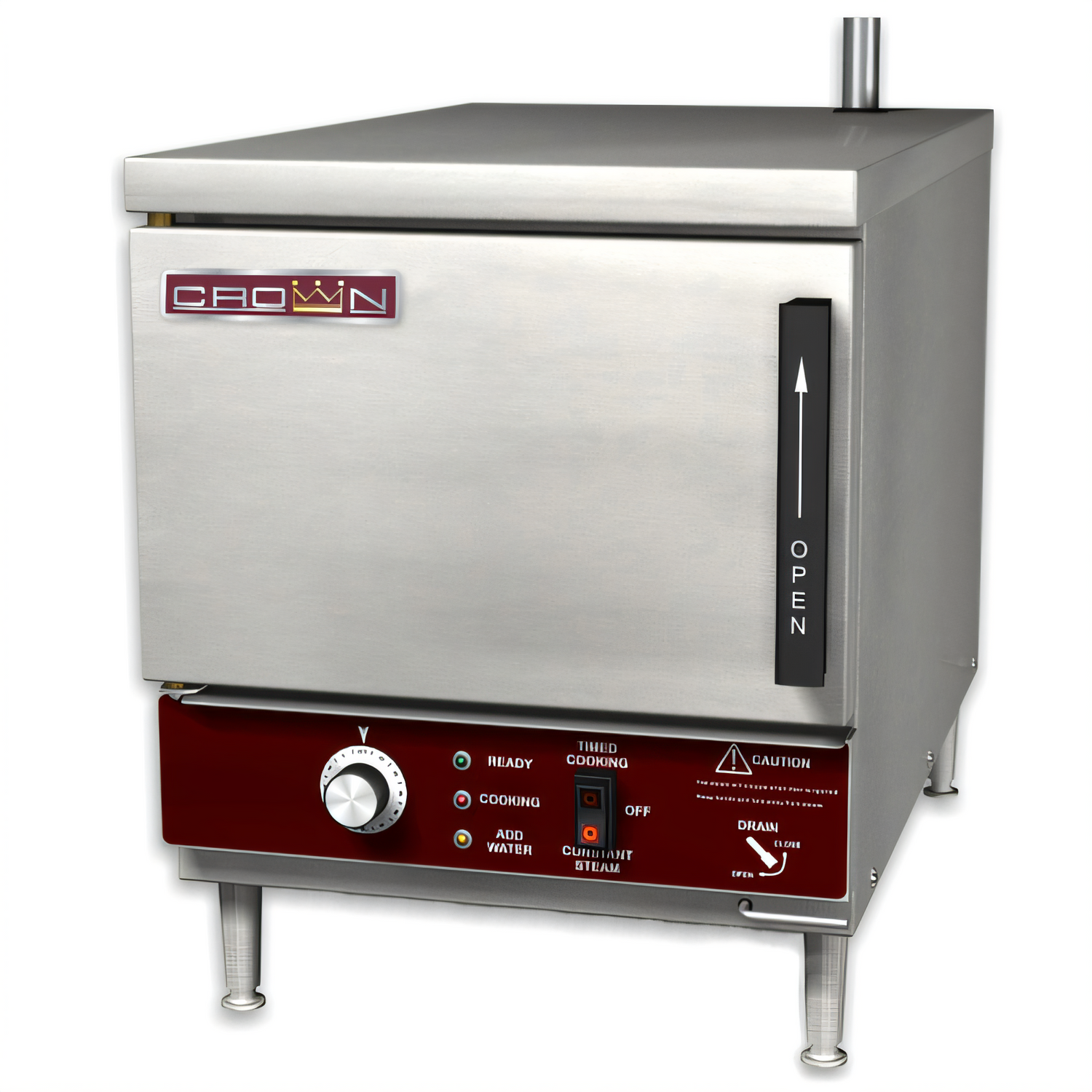

Crown EPXN-3 “EZ-Steam” Countertop Convection Steamer

3-Pan • Boilerless • Manual-Fill • ENERGY STAR®

Built for busy commercial kitchens that need reliable, high-volume steaming without plumbing, the Crown EPXN-3 delivers fast heat-up, intuitive electromechanical controls and legendary Middleby durability in a compact 18 in. footprint.

Key advantages

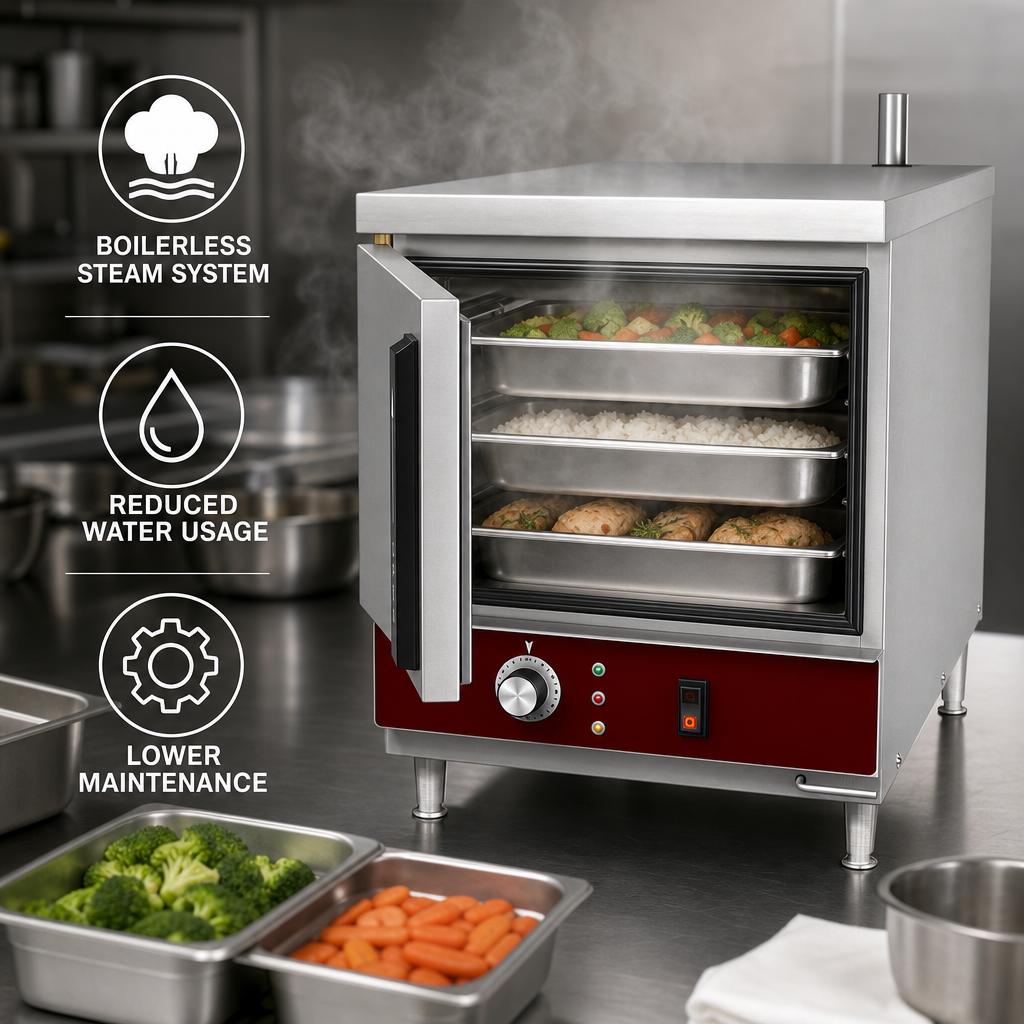

Boilerless, connection-less design – just add water manually; no water or drain lines to install.
True convection steam evenly surrounds food for superior texture, colour and nutrient retention.
Holds three full-size 12 × 20 in. pans (2.5 in. deep) in a single compartment.
Selectable Timed or Constant Steam cooking modes with a 60-minute timer and loud end-of-cycle buzzer.
Low-water indicator light with audible alarm plus door interlock switch for operator safety.
Rugged 316 SS cooking chamber with coved corners and removable pan supports for rapid clean-up.
Positive-lock, spring-release door maintains a tight seal yet opens with one hand.
Energy-efficient 9 kW heating block (field-convertible to 6 kW, single phase) – ENERGY STAR® certified.
Includes a 16 oz. bottle of QuickClean™ descaling treatment to keep the steamer performing like new.

Built to last

Heavy-gauge 304 SS exterior resists dents and corrosion.
Removable stainless-steel steam diffuser plate prevents food debris from entering the reservoir.
4 in. adjustable legs simplify countertop installation and leveling.
cCSAus & NSF listed for commercial use.

Technical specifications

Model	EPXN-3
Capacity	3 × GN 1/1 (12 × 20 in.) pans, 2.5 in. deep Also accepts: 6 × 1 in., 2 × 4 in. or 1 × 6 in. pans
Cooking Chamber	316 stainless steel, coved corners
Exterior	304 stainless steel, satin finish
Heating power	9 kW (convertible to 6 kW single phase)
Electrical	208 / 240 V, 3-ph standard • field-convertible to 1-ph Other voltages available—see factory options.

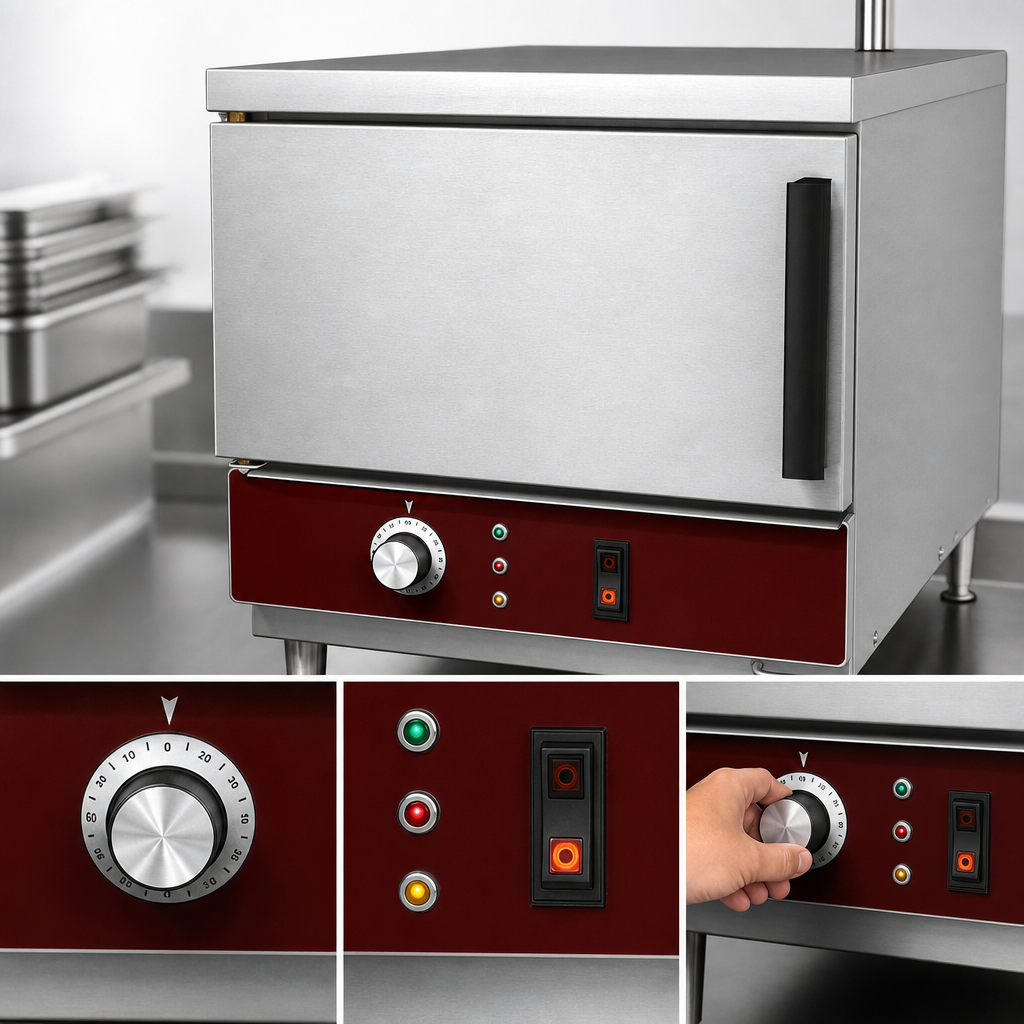

Controls	Electromechanical: rocker mode switch, 60-min timer, indicator lights
Dimensions (W × D × H)	18 1⁄8 × 29 × 18-1⁄8 in. (460 × 737 × 460 mm)
Shipping weight	161 lb (73 kg)
Certifications	ENERGY STAR®, NSF, cCSAus

Ideal applications

Restaurants & quick-serve concepts
Cafeterias, K-12 & university foodservice
Healthcare & senior-living kitchens
C-stores, commissaries & ghost kitchens

Water quality matters: For optimal performance and warranty protection, feed the steamer water with < 60 ppm TDS, < 2 grains hardness and pH 6.8–7.3. Treat incoming water if necessary.

Intended for commercial use only. Not for household installation.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF, cCSAus, ENERGY STAR

Height

27.13in

Width

18.12in

Depth

29.0in

Shipping Weight

161.0lbs

Features

connectionless

Capacity per Compartment

2 - 5 pans / trays

Energy Efficiency

ENERGY STAR®

Pan / Tray Size Capacity

12" x 20" pans

Operation

electric operation

Specifications

EZ Steam Convection Steamer, electric, countertop, boilerless, 18-1/8"W, (1) compartment, (3) 12 x 20 pan capacity, manual fill & drain operation, electromechanical controls, removable stainless steel pan supports & steam diffuser plate, indicator lights, 60 minute electric timer, audible alarm, low water indictor light with audible alarm, door interlock switch, positive lock & seal spring release door, includes 16 oz. QuickClean treatment, 316 stainless steel liner, 304 stainless steel exterior, 4" adjustable legs, cCSAus, NSF, ENERGY STAR
