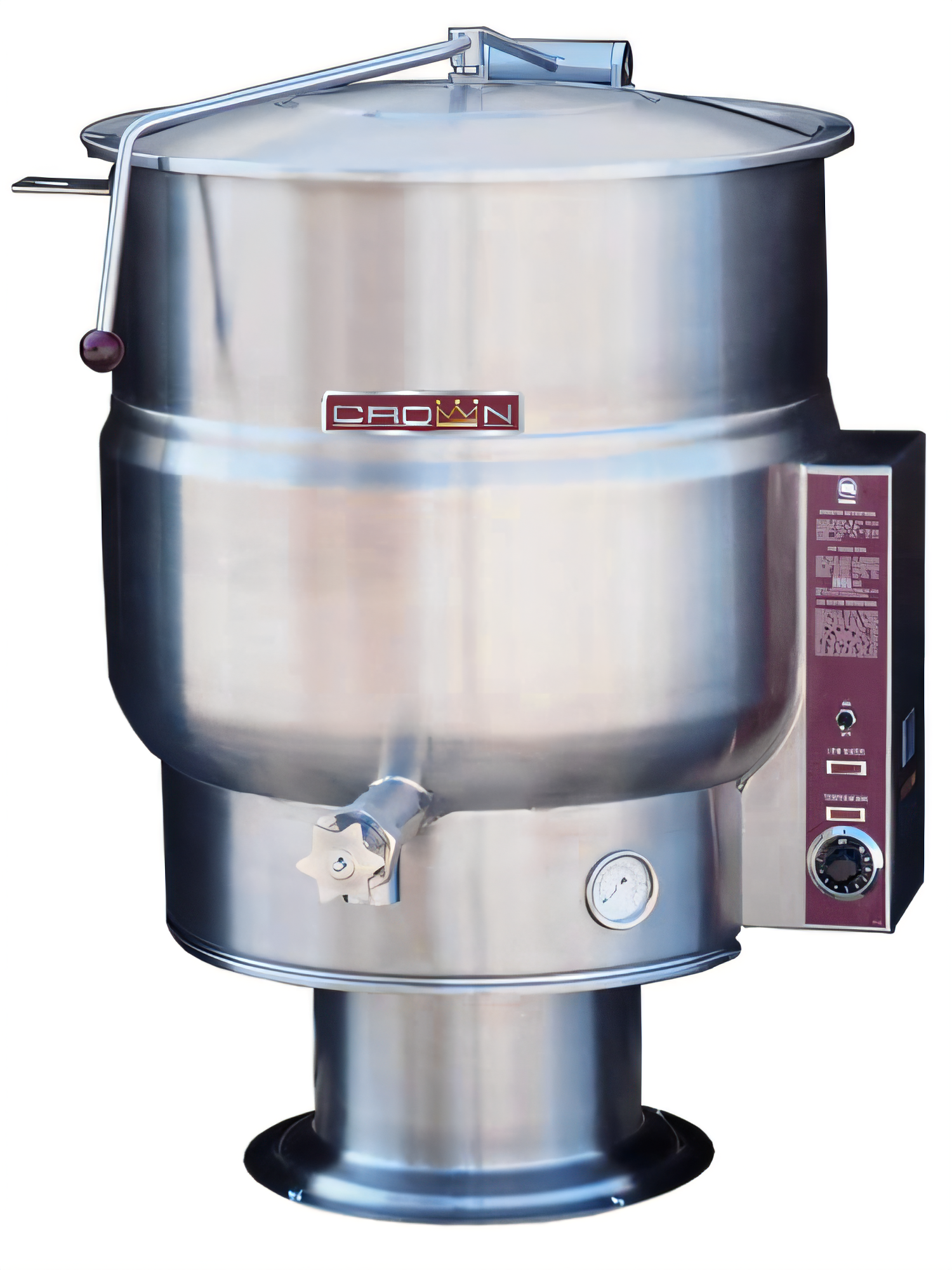

Crown EP-80 80 Gallon Electric 2/3 Jacket Pedestal Steam Kettle
Full-Size, Electric, 2/3 Jacket, Pedestal Base
Experience superior heat circulation and efficient cooking with the Crown EP-80 electric 80 gallon steam kettle, designed for high-volume commercial kitchens.
- 80-gallon capacity ideal for large batch cooking in commercial settings.
- Self-generating electric steam system operates at 50 psi for consistent, powerful heat.
- Durable #4 finish 304 stainless steel construction with a 316 stainless steel interior liner for high acid content cooking.
- Features a 2/3 steam jacket for excellent heat distribution and a hemispherical kettle bottom.
- Equipped with a 2" sanitary draw-off valve, perforated strainer, and spring-assisted hinged cover for convenience.
- Integrally mounted controls for easy operation, including thermostat, pilot lights, and safety features.
Overall Dimensions:
36.75"W x 39.0"D x 45.0"HProduct Weight:

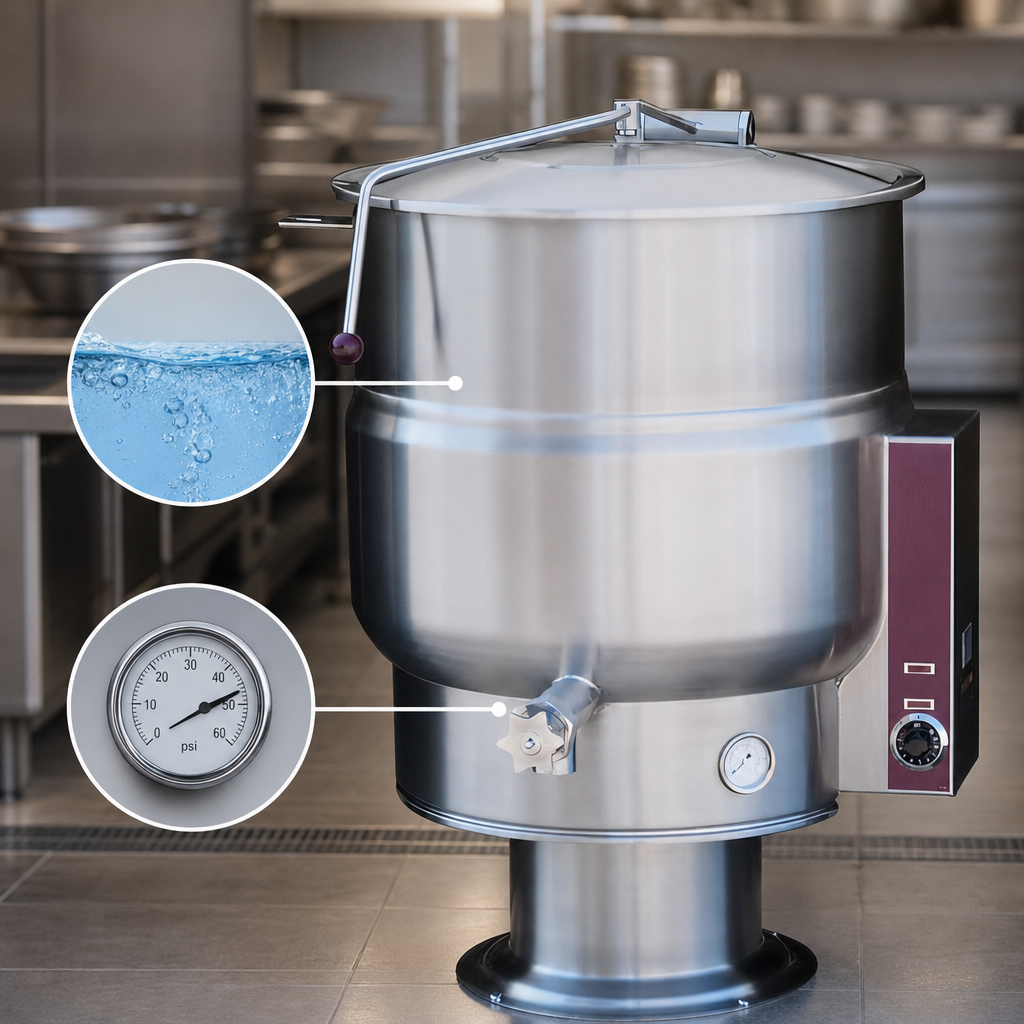

445.0 lbSelf-Generating Electric Steam System
Closed steam system operates at 50 psi, factory sealed with distilled water, eliminating the need for an external steam source.

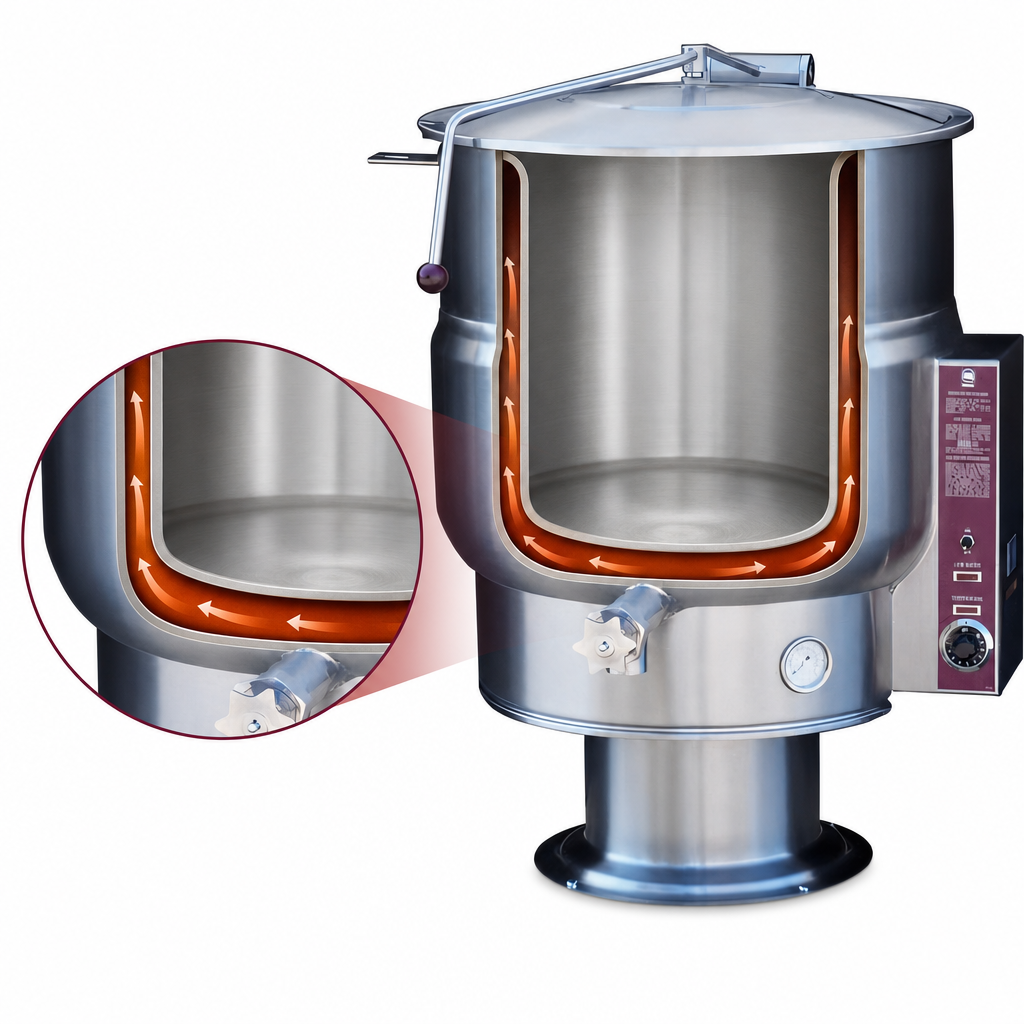

2/3 Steam Jacket
Double wall kettle interior forms a steam jacket around the lower 2/3 of the kettle for efficient and even heat distribution.
Hemispherical Kettle Bottom
Designed for superior heat circulation, ensuring even cooking and preventing scorching.
Durable Stainless Steel Construction
All welded #4 finish 304 stainless steel construction ensures durability and easy cleaning in a commercial kitchen environment.
316 Stainless Steel Interior Liner
Standard 316 stainless steel interior liner is resistant to high acid content, making it suitable for a wide range of recipes.
Integrally Mounted Controls
Features an intuitive control panel with a power switch, thermostat, pilot light, low water light, vacuum/pressure gauge, safety relief valve, and low water shut-off for safe and precise operation.
2" Sanitary Draw-Off Valve
Includes a perforated strainer for easy draining of product and simplifies cleaning procedures.
Spring-Assisted Hinged Cover
A stainless steel domed cover with spring assist is standard on 80-gallon kettles for easy and safe opening and closing.
Removable Heating Elements
Kettle includes removable elements for convenient serviceability and maintenance.
Faucet Bracket
A faucet bracket is a standard inclusion, allowing for easy installation of an optional pantry faucet.
Floor Mounting Pedestal Base
The pedestal base is equipped with four 7/16-inch holes, evenly spaced for secure fastening to the floor.
Certifications & Compliance
Warranty & Protection
Warranty information not specified in provided documents.
