Crown (Middleby) EP-60F Steam Kettles
Description

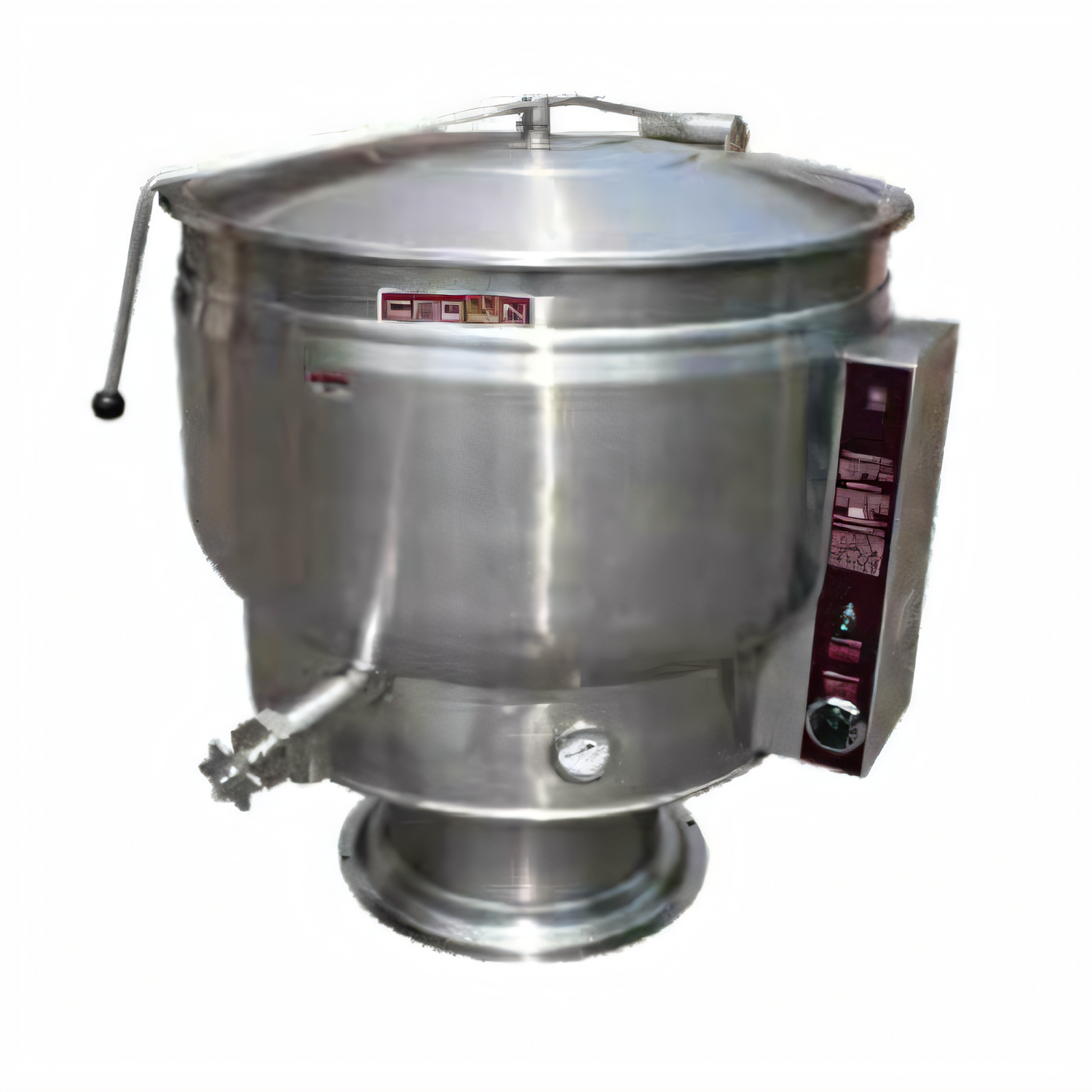

Crown EP-60F | 60 Gallon Full-Jacket Electric Steam Kettle
High-volume, self-generating pedestal kettle for commercial kitchensCook, simmer, and hold up to 60 gallons / 227 litres of soups, sauces, stews and more with the precision and consistency only a full-jacket steam kettle can deliver. Designed and built in Canada by Crown (a Middleby brand), the EP-60F gives you all-stainless durability, rapid heat-up, and worry-free controls in one compact stationary unit.
Why You’ll Love It

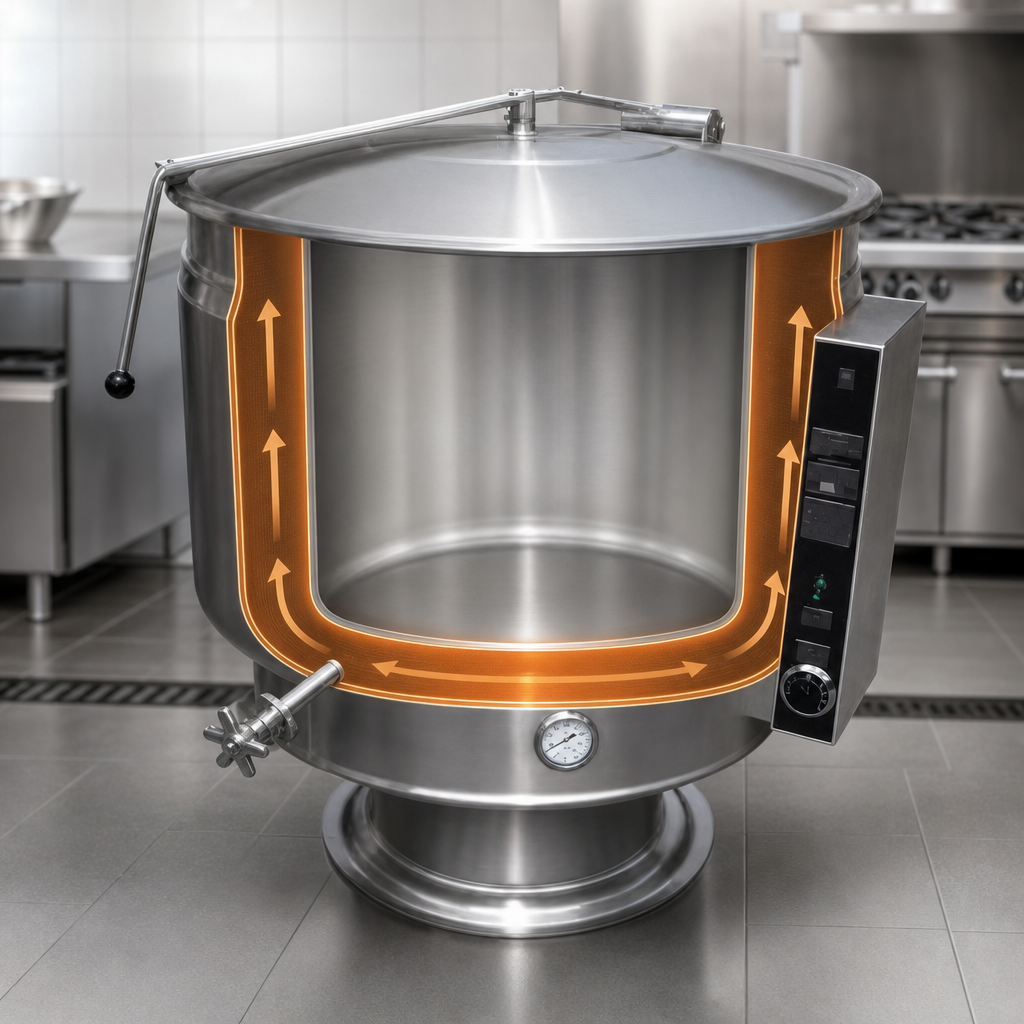

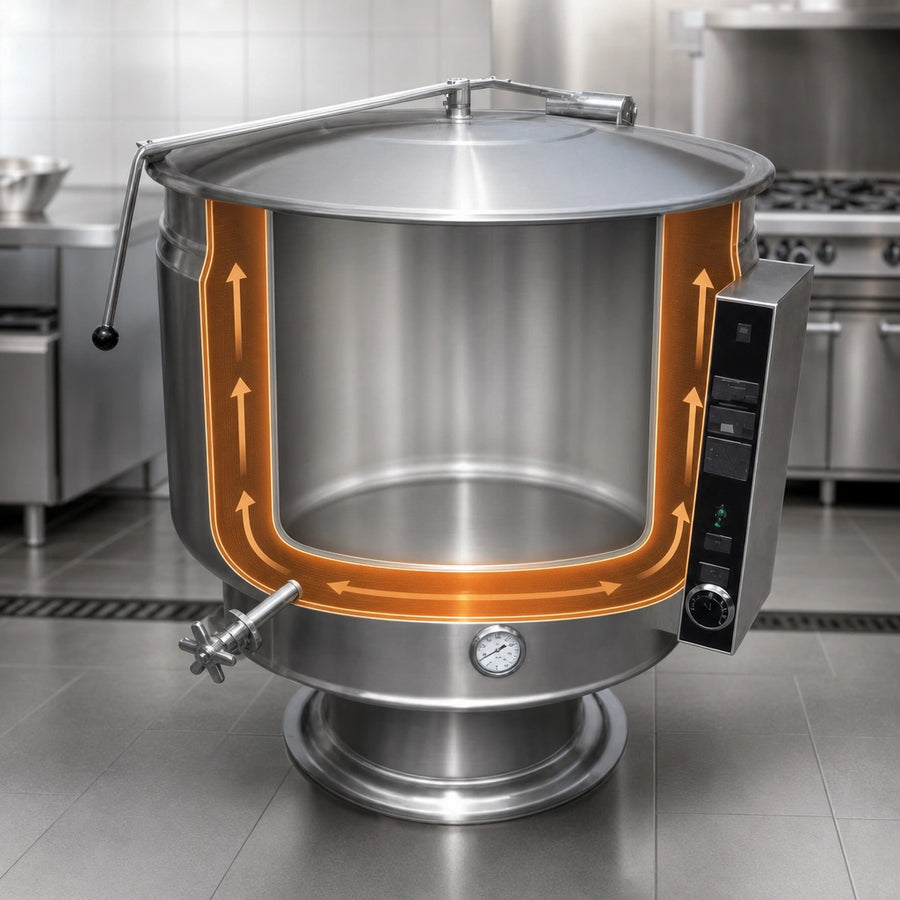

- Full steam jacket surrounds the entire kettle for even 360° heating and zero hot spots.
- Self-contained, closed system – uses factory-sealed distilled water; no external boiler connection required.
- 24 kW stainless heating elements (removable) bring large batches up to temp fast; 33 kW field-upgrade available.

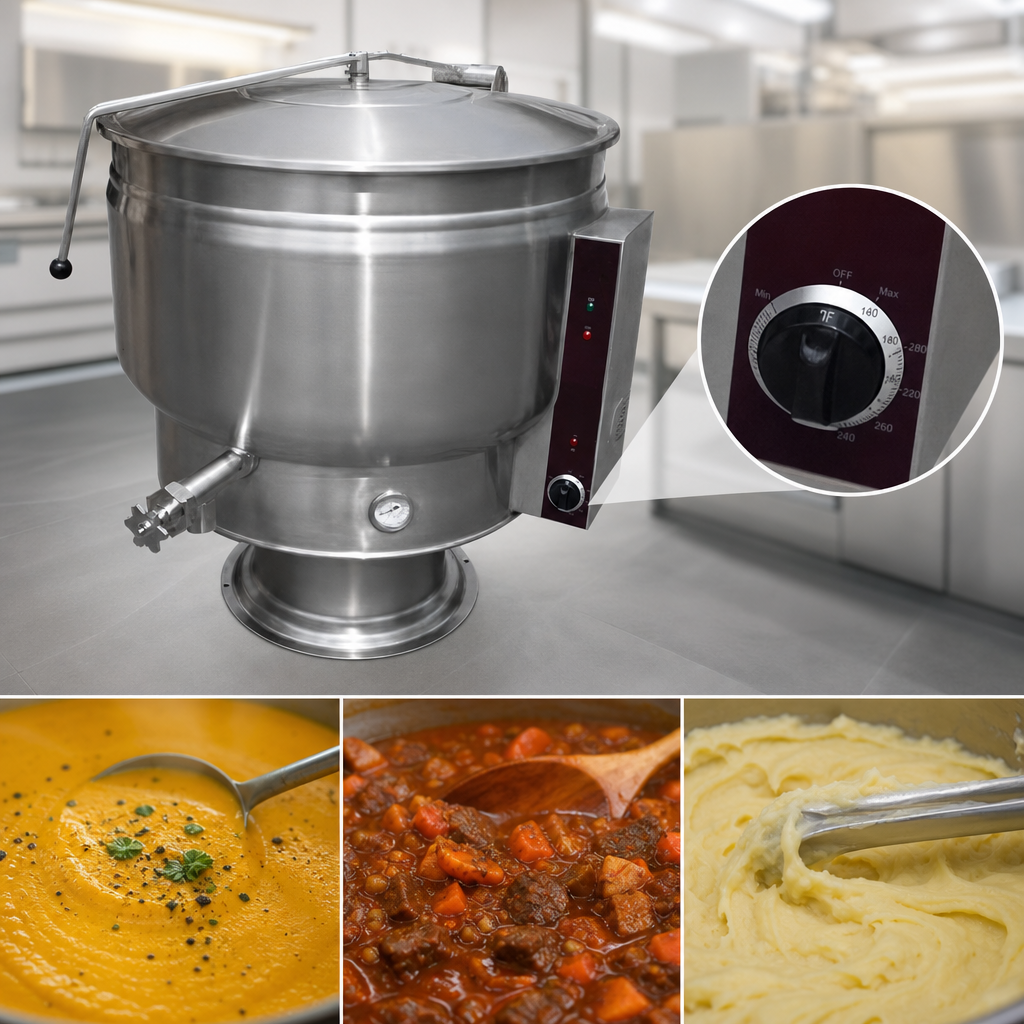

- Accurate thermostatic control 165 °F – 285 °F (74 °C – 140 °C) with visible pilot & low-water lights.
- 2 inch draw-off valve with included perforated strainer for easy product transfer and stock clarification.
- Spring-assist domed cover reduces operator fatigue and stays exactly where you leave it.
- Built-in faucet bracket for kettle filler or pantry faucet (faucet sold separately).
- Safety first: low-water cut-off, 50 psi safety relief valve, vacuum/pressure gauge & cCSAus/NSF approvals.
- 316 SS interior liner resists acidic ingredients; all-welded 304 SS exterior with hygienic #4 finish.
- Pedestal base with four 7/16" anchoring holes keeps the kettle rock-solid on the kitchen floor.
At-a-Glance Specs
| Capacity | 60 gal / 227 L |
|---|---|
| Heating System | Self-generating closed steam jacket, 24 kW (33 kW optional) |
| Voltage (3 Ø) | 208 V, 220 V, 240 V, 380/220 V, 415/240 V, 480 V, 600 V |
| Amps @ 24 kW | 208 V – 91.6 A | 240 V – 79.4 A | 480 V – 39.7 A |
| Temperature Range | 165 °F – 285 °F (74 °C – 140 °C) |
| Operating Pressure | Max 50 psi (345 kPa) |
| Exterior Dimensions | Ø 29.5" (749 mm) | Height (lid closed) 42" (1067 mm) |
| Height – Lid Open | 75" (1905 mm) |
| Shipping Weight | 460 lb / 209 kg |
| Certifications | cCSAus, NSF, ASME, National Board Registered |
What’s Included
- Perforated stainless steel strainer for 2" draw-off
- Spring-assisted hinged cover
- Faucet mounting bracket
- Integrated control panel with power switch, thermostat dial, pilot light & low-water light
- Vacuum/pressure gauge & 50 psi safety relief valve
Minimum 3" (76 mm) clearance required at sides and back. Electrical characteristics must be confirmed from the unit’s data plate prior to installation. Intended for commercial use only.
