Crown (Middleby) EP-40F Steam Kettles
Description

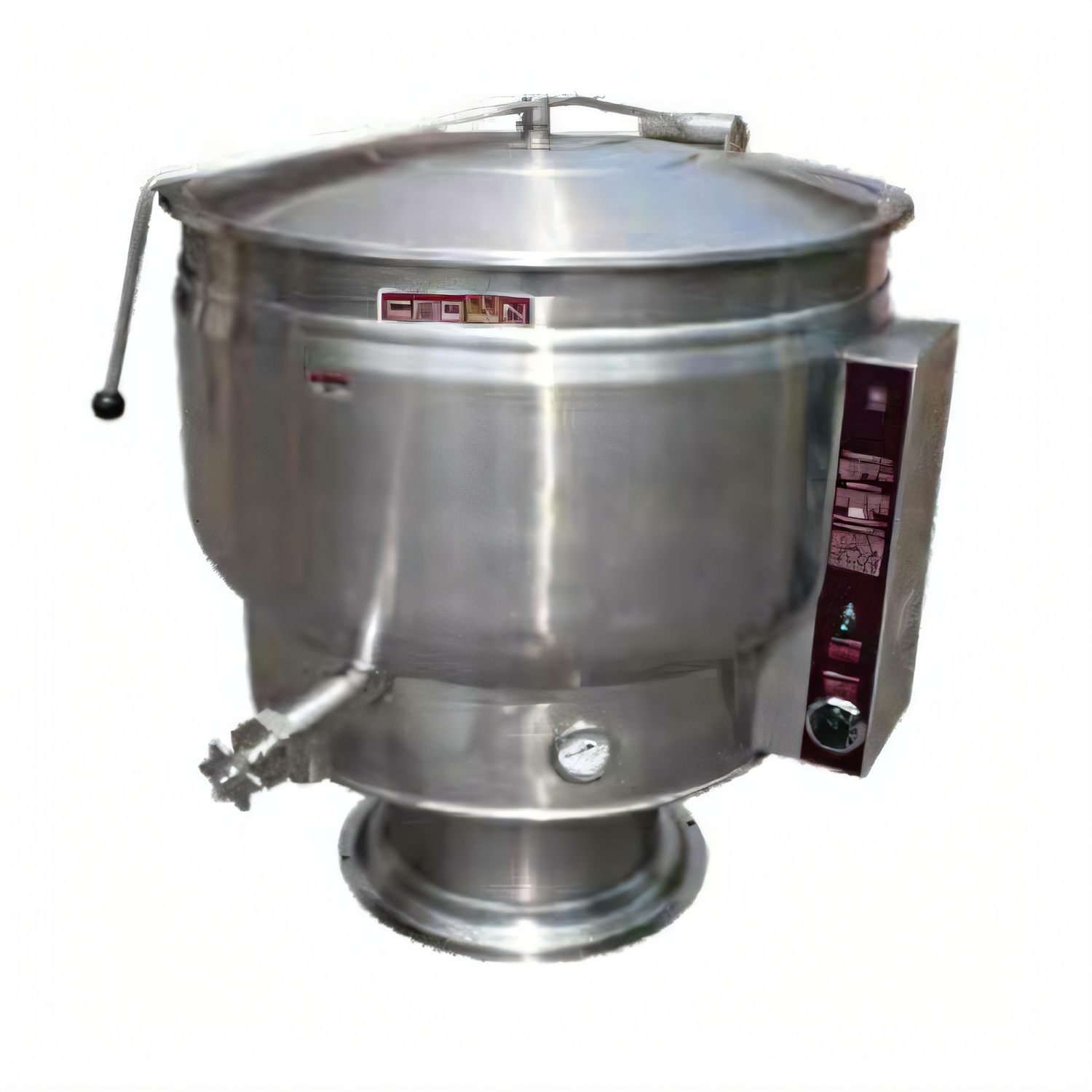

Crown EP-40F 40 Gallon Electric Full-Jacket Stationary Steam Kettle
High-volume, self-contained steam cooking on a compact pedestal baseEngineered for demanding commercial kitchens, the Crown EP-40F delivers rapid, even heat, rock-solid durability and simple one-hand operation. A full 100 % steam jacket surrounds the kettle with gentle, uniform heat, while its 316 stainless interior stands up to acidic recipes day after day. Just set the thermostat, lock the counter-balanced cover and let 40 gallons of perfectly-heated product work for you.
Why chefs choose the EP-40F
- 40 gal / 152 L capacity – ideal for stocks, soups, sauces & bulk vegetables
- Self-generating closed steam system with removable electric elements (18 kW standard)

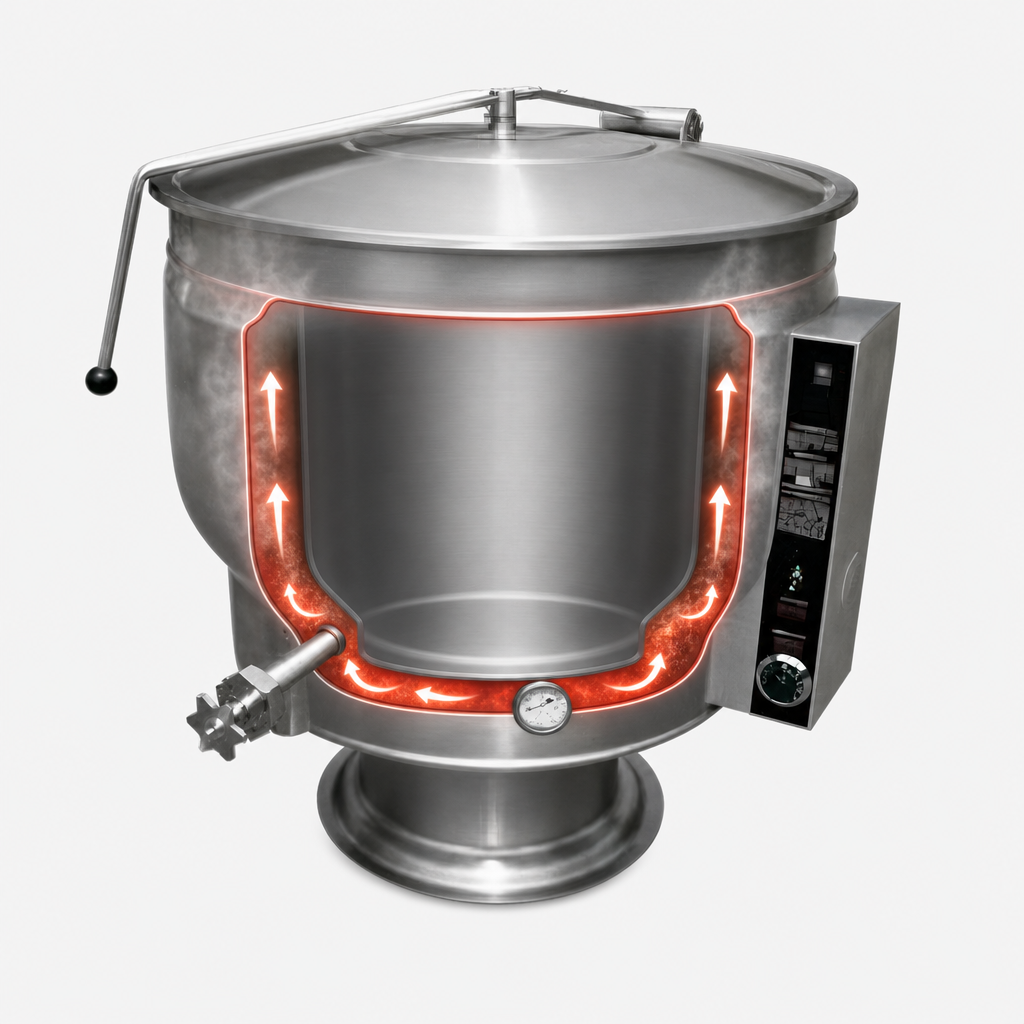

- Full jacket design cooks from side + bottom for faster, more consistent results
- 316 SS sanitary liner inside a heavy-gauge 304 SS exterior – corrosion-resistant & easy to clean

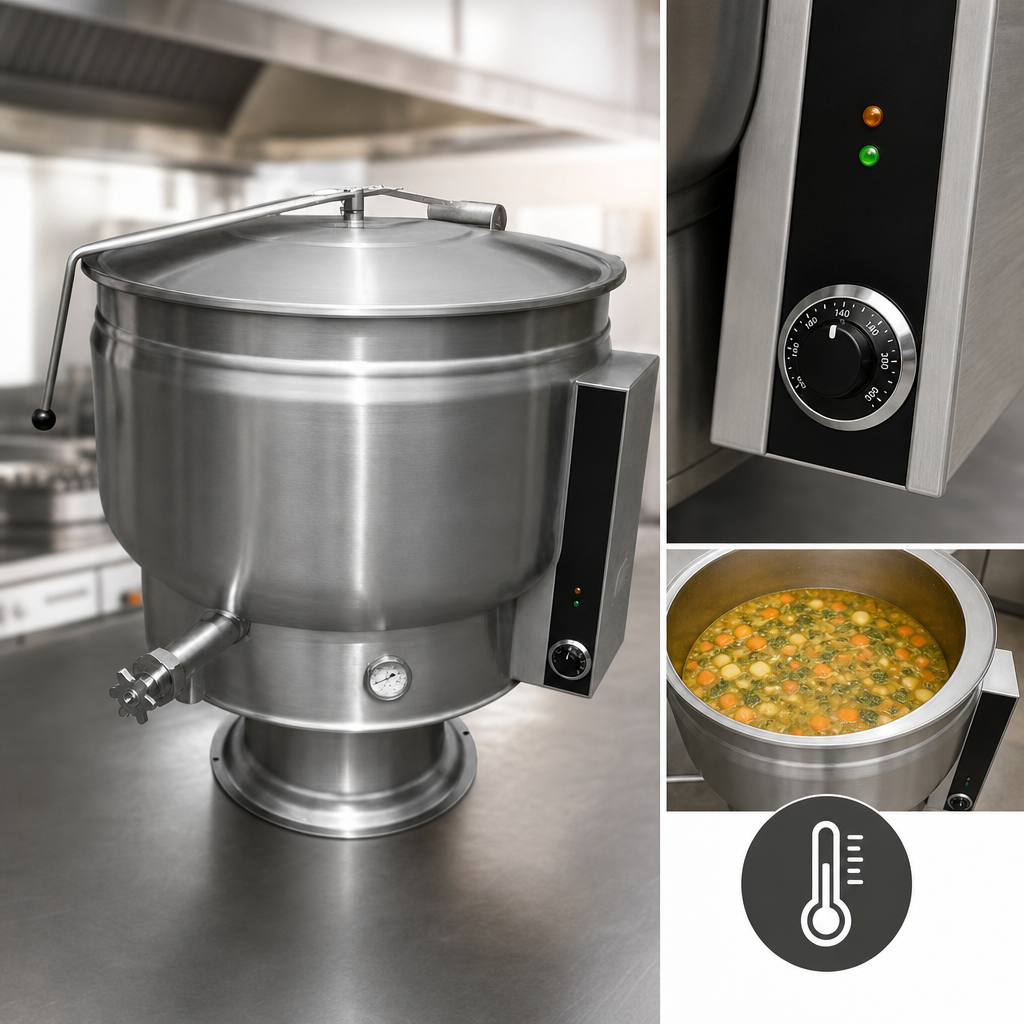

- Integrated control panel with power switch, thermostat (165–285 °F), pilot & low-water lights
- Factory-sealed distilled-water jacket, ASME code stamped & National Board registered to 50 psi
- 2" draw-off valve with included perforated strainer for quick, clog-free draining
- Counter-balanced hinged stainless cover – lift with one hand, stays where you leave it
- Built-in faucet bracket for optional kettle filler or pantry faucet (accessory)
- Low-water shut-off, safety relief valve & pressure gauge for worry-free, unattended cooking
- Compact pedestal base with four anchor points keeps the kettle fixed and level
- cCSAus & NSF listed – compliant for all commercial foodservice operations
Technical Specifications
| Model | EP-40F (stationary pedestal) |
|---|---|
| Capacity | 40 gal / 152 L |
| Jacket Coverage | Full (side & bottom) |
| Heat Input | 18 kW standard | 24 kW or 33 kW optional |
| Electrical (3-phase) | 208, 220, 240, 380/220, 415/240, 480 or 600 V 208 V/3 Ø @ 66.6 A | 240 V/3 Ø @ 57.7 A (18 kW) |
| Operating Temp. | 165 °F – 285 °F (74 °C – 140 °C) |
| Working Pressure | Max 50 psi (345 kPa) |
| Exterior Dimensions | Diameter 26" | Height (lid closed) 38" | Max height (lid open) 65" |
| Shipping Weight | ≈ 420 lb / 191 kg |
| Clearances | 3" (76 mm) sides & rear |
| Certifications | ASME, cCSAus, NSF |
Need a specific voltage, faucet kit or etched gallon markings? Factory options are available – ask your sales representative for details.
