Crown (Middleby) | SKU:
EP-30F
Crown (Middleby) EP-30F Steam Kettles
$30,061.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Crown (Middleby) EP-30F Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Crown (Middleby) EP-30F Steam Kettles
$30,061.00
Unit price
/
Unavailable
Description

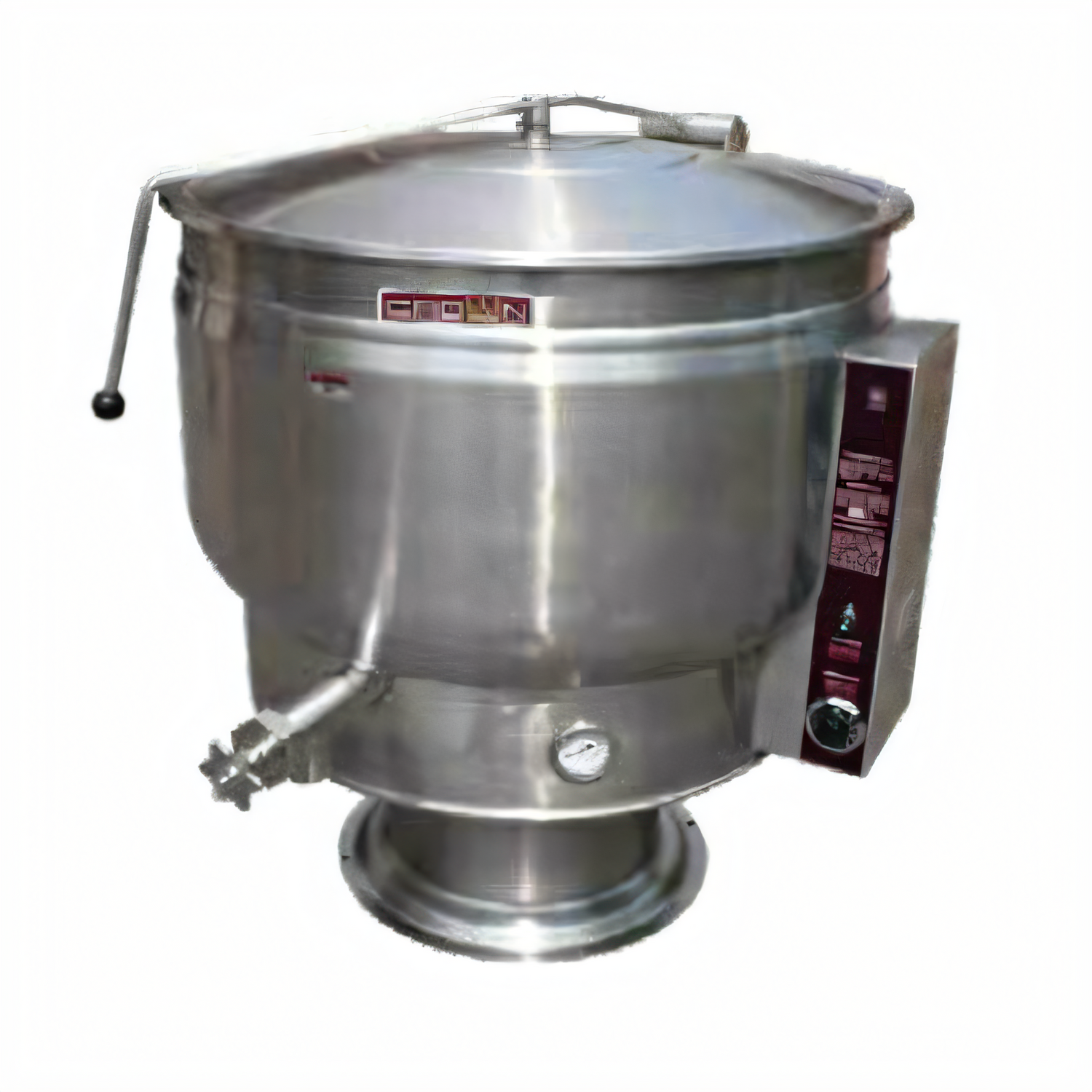

Crown EP-30F 30-Gallon Electric Full-Jacket Stationary Steam Kettle
Reliable, self-contained steam for high-volume productionTake control of batch-cooking with Crown’s EP-30F. The 30-gallon (114 L) capacity and full-jacket design deliver rapid, even heating without the cost, space or maintenance of an external boiler—perfect for simmering sauces, soups, stocks, pasta, oatmeal and more.
Key standard features
- Self-generating 18 kW electric steam system (24 kW & 33 kW upgrades available)
- Full 316 SS interior liner—resists acidic recipes & harsh cleaners

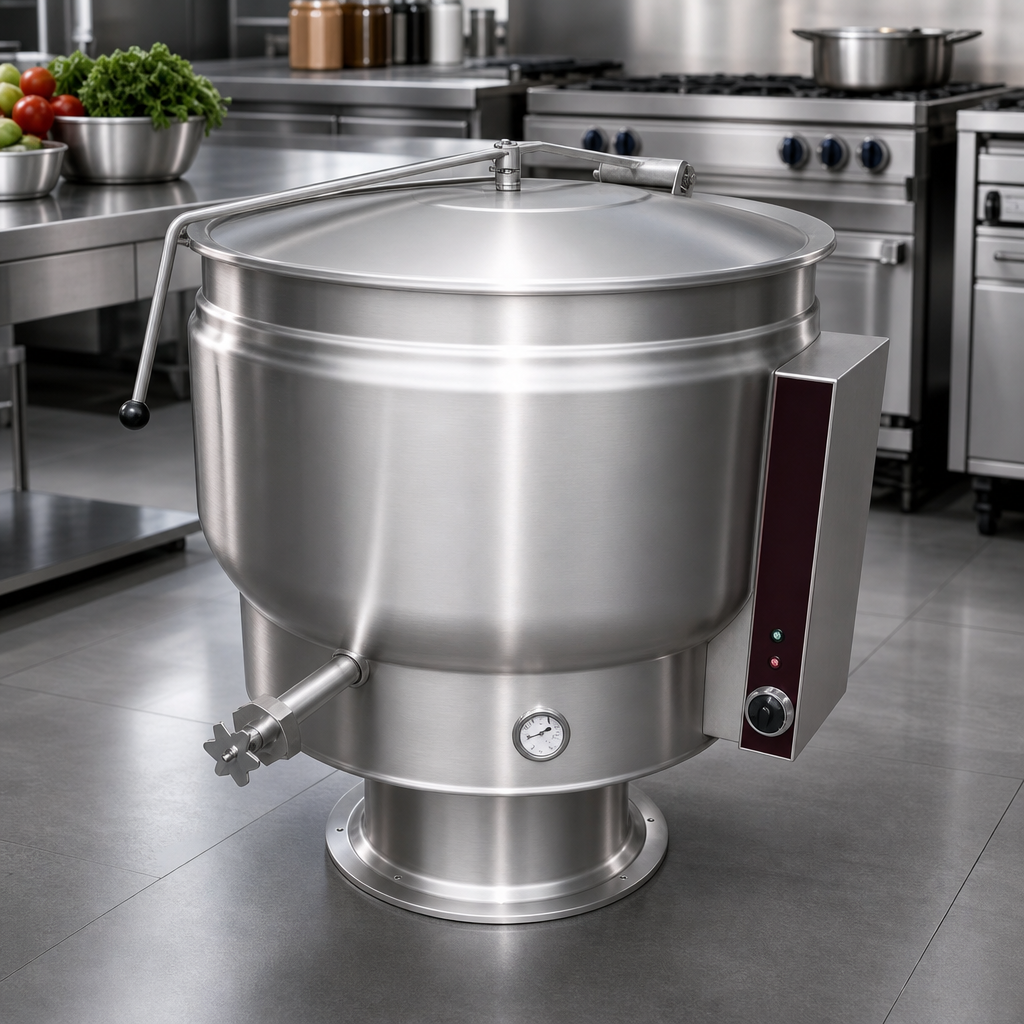

- All-welded 304 SS exterior with sanitary #4 finish
- 2" sanitary draw-off valve with included perforated strainer
- Counter-balanced, spring-assist domed cover retains heat & improves safety

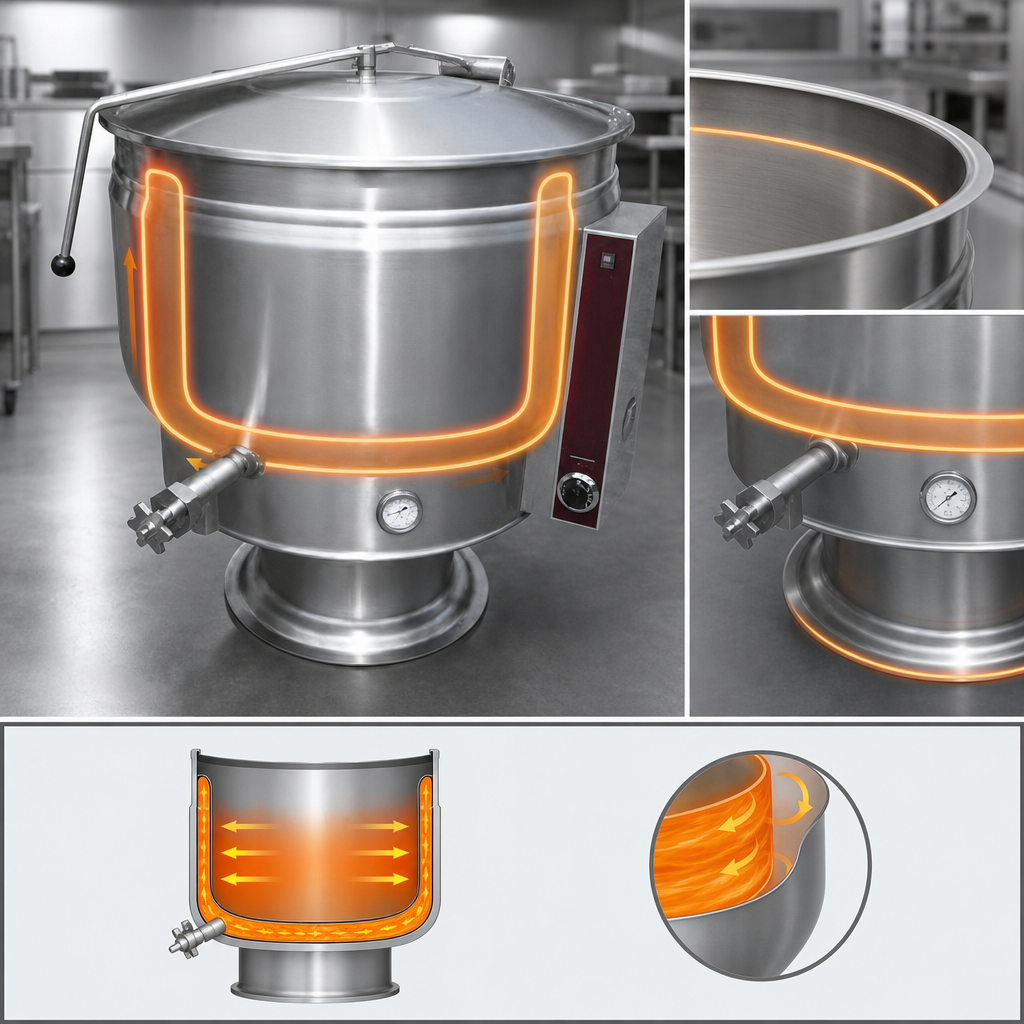

- Factory-sealed jacket filled with distilled water—no field charging required
- Hemispherical bottom for superior heat transfer & easy cleaning
- Pedestal base with four 7⁄16" anchor holes for rock-solid floor mounting
- Integrated faucet bracket—ready for optional kettle filler or pantry faucet
Built-in controls & safety
- On/off power switch & adjustable thermostat (165 – 285 °F / 74 – 140 °C)
- Temperature pilot light plus low-water indicator light
- Low-water cut-off protects heating elements from dry-firing
- Vacuum/pressure gauge (0-50 psi) monitors jacket status at a glance
- ASME-code 50 psi safety relief valve
Technical specifications
| Capacity | 30 gal / 114 L |
|---|---|
| Jacket type | Full, factory-sealed |
| Heating power | 18 kW standard | 24 kW or 33 kW optional |
| Voltage options | 208, 220, 240, 380/220, 415/240, 480 or 600 V, 3-phase |
| Operating temp. | 165 – 285 °F (74 – 140 °C) |
| Max jacket pressure | 50 psi (345 kPa) |
| Interior material | 316 stainless steel |
| Exterior material | 304 stainless steel |
| Draw-off valve | 2" with perforated strainer (included) |
| Dimensions (Ø × H) | 24" diameter × 38" kettle height, 63.5" overall height |
| Shipping weight | ≈ 375 lb / 170 kg |
| Clearance required | 3" (76 mm) sides & back |
| Certifications | ASME code stamped, National Board registered, cCSAus, NSF |
Popular factory options (sold separately)
- 3" draw-off valve & strainer (TVS-3)
- Etched gallon or litre markings
- Single or double pantry faucets / kettle fillers
- Lift-off or two-piece hinged covers
- Graduated measuring strip, basket kits & heat shield
Financing available through Middleby Equipment Financing—ask your rep for details.
Important: This equipment is intended for commercial use only and must be installed in accordance with local electrical codes by a qualified professional.
Features & Specs
Features & Specs
Manufacturer
Crown (Middleby)
Certifications
NSF, cCSAus
Height
33.5in
Width
27.75in
Depth
35.0in
Shipping Weight
375.0lbs
Kettle Liner
316 stainless steel
Base
pedestal base
Capacity
30 - 45 gallon
Kettle Jacket
full jacket
Specifications
Stationary Kettle, electric, 30 gallon capacity, full jacket, thermostatic control, 2" draw-off, includes: perforated strainer, counter balanced hinged cover & faucet bracket, power switch, thermostat, pilot light, low water light, pressure gauge, safety relief valve, low water shut off, 316 stainless steel interior liner, 304 stainless steel construction, pedestal base, cCSAus, NSF
