Crown (Middleby) EP-25 Steam Kettles
Crown (Middleby) EP-25 Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Crown (Middleby) EP-25 Steam Kettles
Description

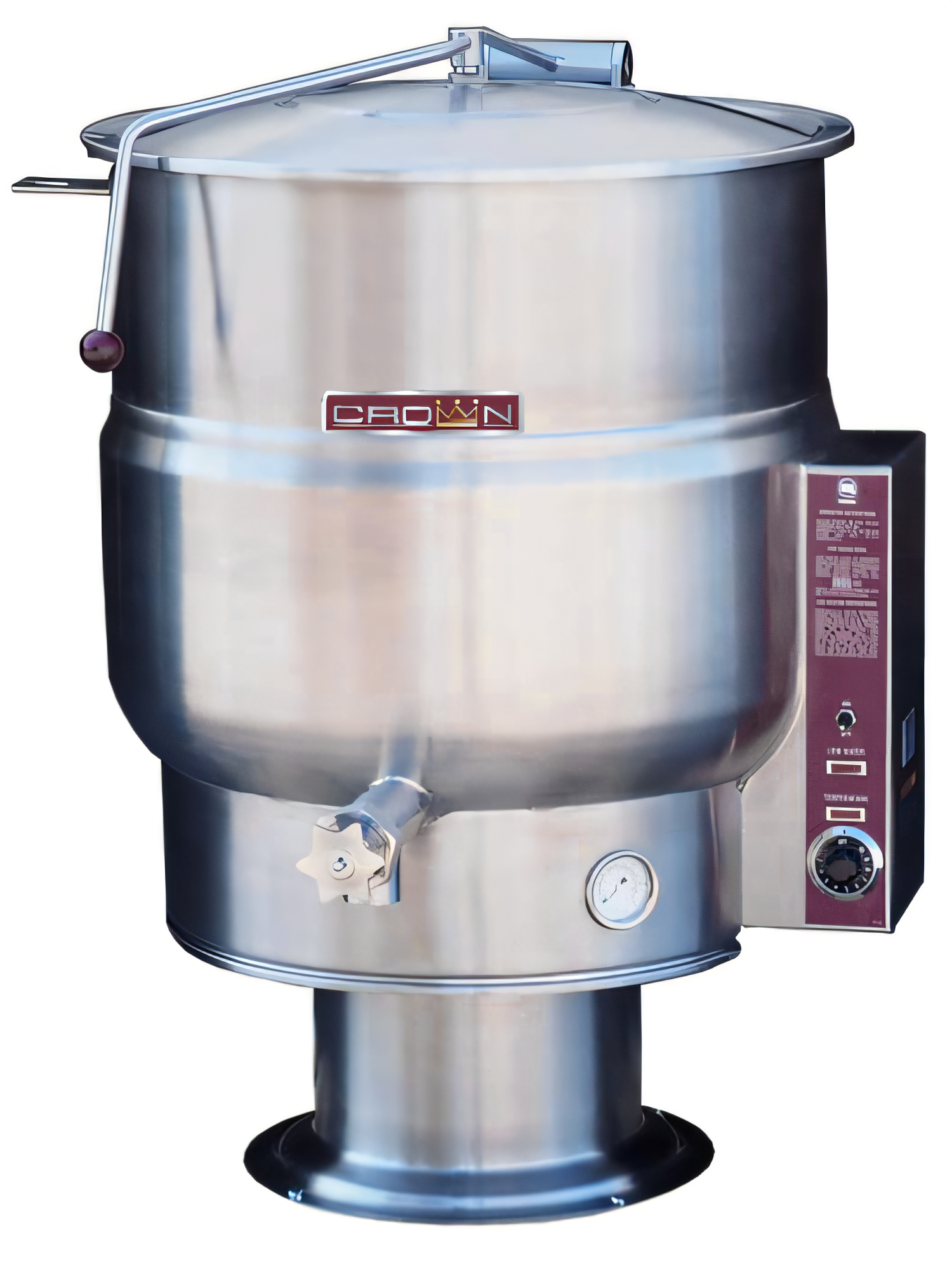

Crown EP-25 Electric Pedestal Kettle – 25 gal (95 L)
2/3-Jacket • 12 kW • 2″ Draw-Off Valve • 316/304 Stainless SteelBuilt for demanding production kitchens, the Crown EP-25 is a self-contained 25-gallon stationary kettle that delivers fast, even steam heat without the cost or complexity of an external boiler. Its acid-resistant 316 stainless liner, spring-assisted cover and sanitary 2″ draw-off valve make high-volume soups, sauces and stocks easier than ever.

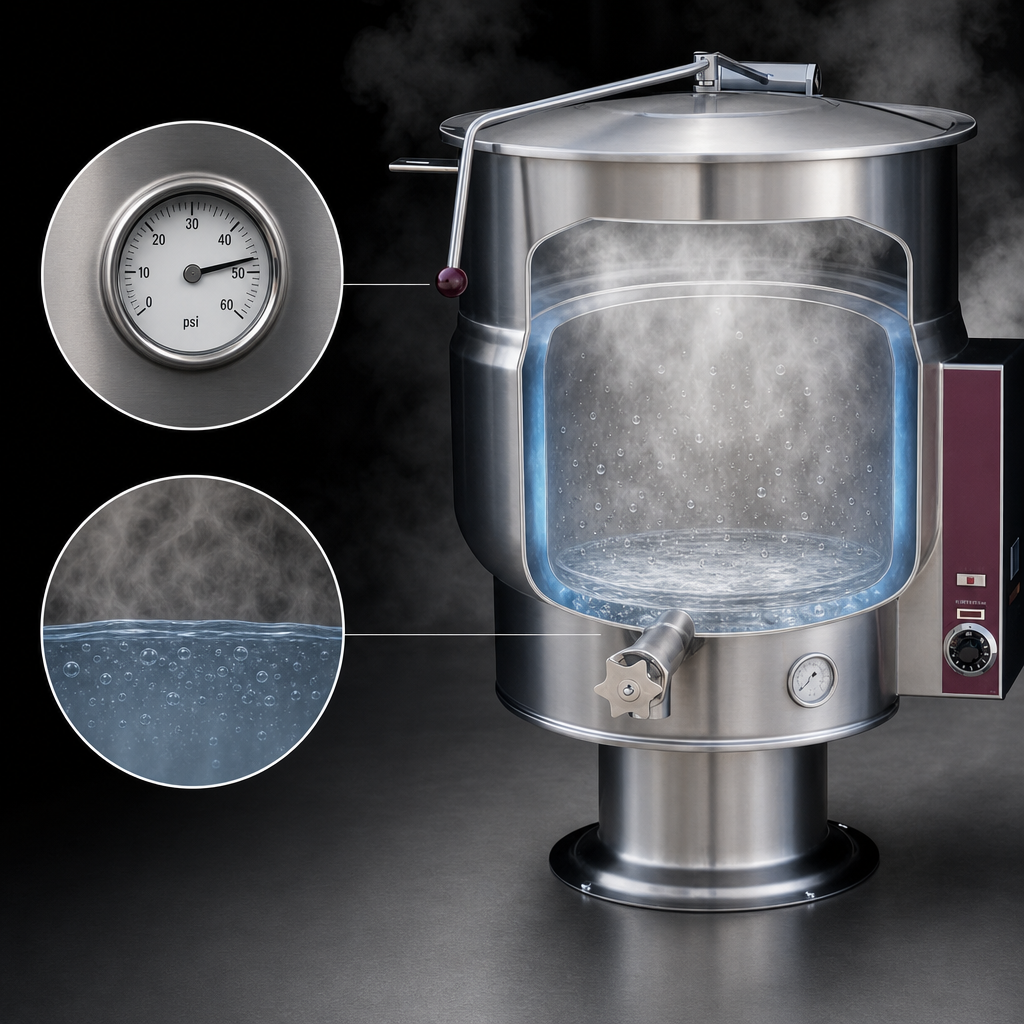

- Self-generating closed steam jacket (2/3 coverage) operates at 50 psi for rapid, uniform cooking.
- High-efficiency 12 kW removable heating elements; choose 208–240 V single-phase or 208–600 V three-phase.
- Precise thermostatic control 165-285 °F (74-140 °C) with pilot light, low-water light, pressure gauge & automatic low-water shut-off.

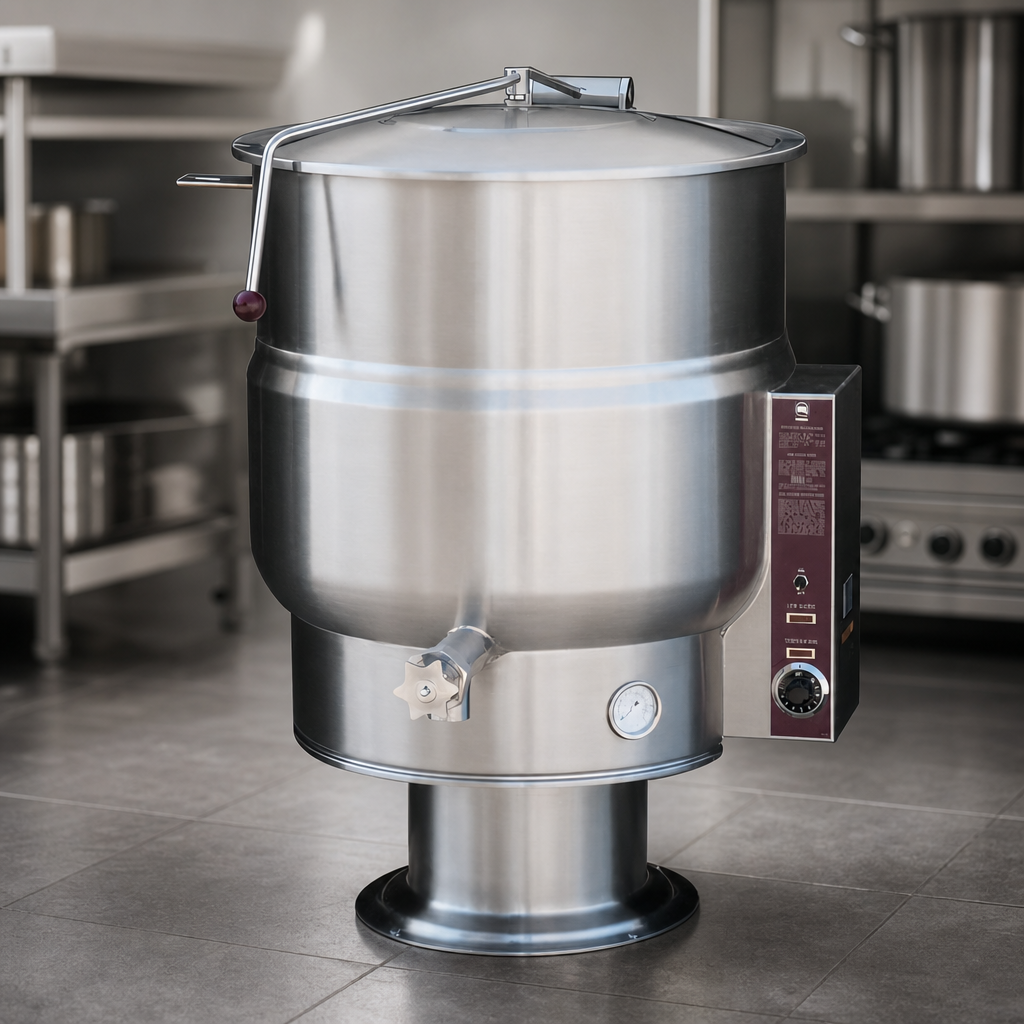

- Food-safe construction: 316 SS interior liner handles high-acid recipes; exterior is all-welded 304 SS #4 finish.
- Standard 2″ sanitary draw-off valve with included perforated strainer for clean portioning and broth recovery.
- Spring-assisted domed stainless cover reduces operator fatigue and helps retain heat & flavor.
- Integrated faucet bracket keeps rinse/fill water handy (faucet options sold separately).
- Heavy-duty pedestal base with four 7/16″ anchor holes for secure floor mounting.
- ASME code-stamped, National Board registered, cCSAus & NSF listed for commercial use.
Technical Specifications
| Capacity | 25 gal / 95 L |
|---|---|
| Jacket Coverage | 2/3 (self-contained, distilled water sealed at factory) |
| Steam Pressure | 50 psi (345 kPa) maximum |
| Temperature Range | 165 °F – 285 °F (74 °C – 140 °C) |
| Heating Elements | 12 kW removable stainless elements |
| Electrical Options |
• 208, 220 or 240 V 1-ph • 208 – 600 V 3-ph |
| Draw-Off Valve | 2″ sanitary, with perforated strainer (included) |
| Interior / Exterior | 316 SS liner / 304 SS #4 finish shell |
| Overall Dimensions (W × D × H) | 21.25″ × 25.25″ × 37.25″ (540 × 641 × 946 mm) |
| Shipping Weight | 200 lb (91 kg) |
| Certifications | ASME, cCSAus, NSF, National Board |
| Warranty | 1 year parts & labor |
Popular Factory Options (extra cost)
- Etched gallon or litre markings
- 3″ draw-off valve
- Single or double pantry faucet assemblies
- Graduated measuring strip or kettle heat shield
Intended for commercial kitchens only. Always install according to local electrical & plumbing codes and anchor the pedestal to a suitable floor surface.
