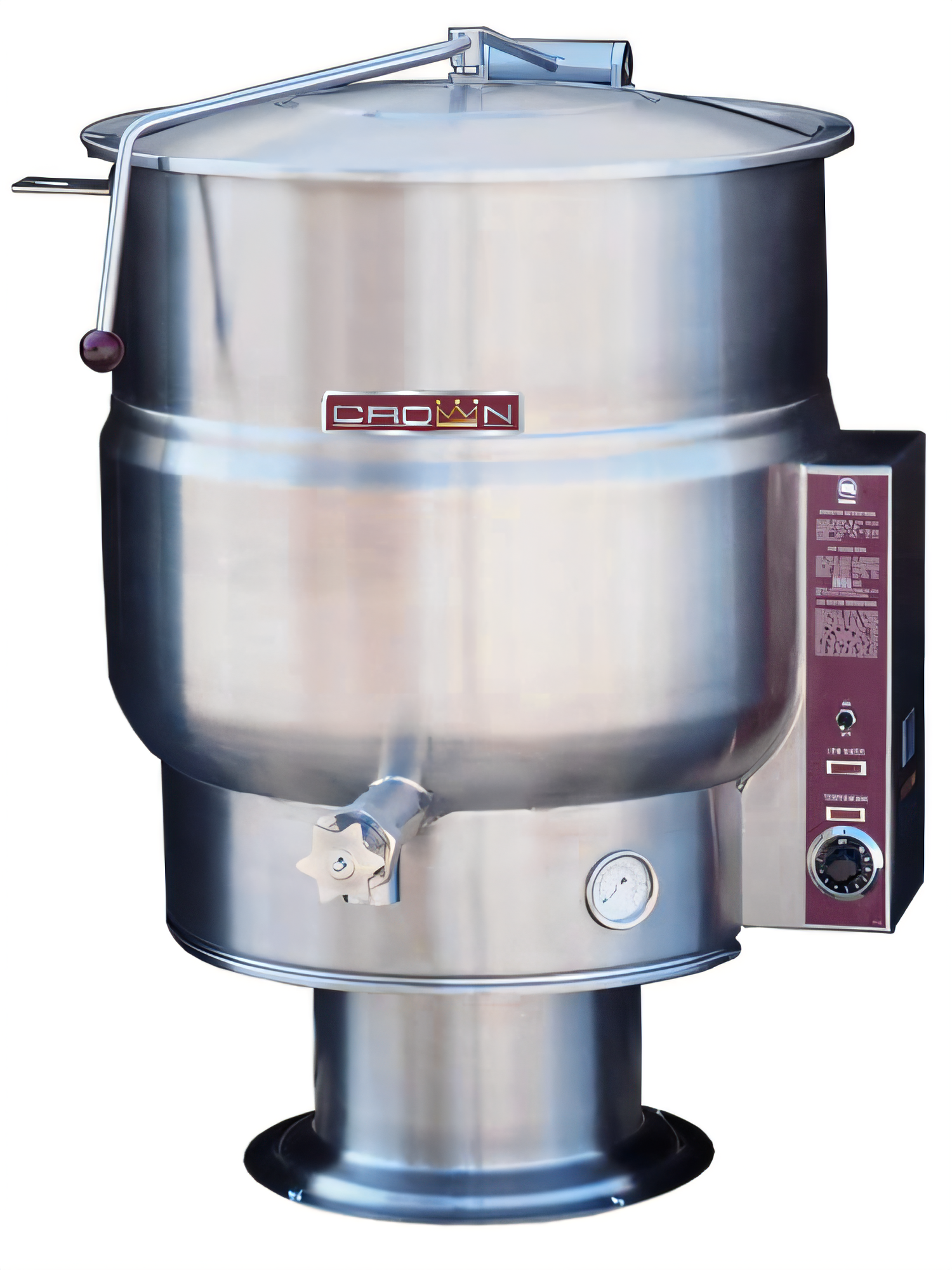

Crown EP-20 20 Gallon Electric Stationary Kettle with 2/3 Steam Jacket and Pedestal Base

SKU: EP-20
$21,444.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment Crown (Middleby) New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles

Crown EP-20 20 Gallon Electric Stationary Kettle with 2/3 Steam Jacket and Pedestal Base

20 Gallon, Electric, Pedestal Base, 2/3 Steam Jacket

The Crown EP-20 electric stationary kettle provides efficient and reliable cooking for high-acid food production with its durable 316 stainless steel interior and self-generating steam system.

  • 20-gallon (76-liter) capacity ideal for various commercial kitchen applications.
  • Durable #4 finish 304 stainless steel construction with a 316 stainless steel interior liner for high-acid content cooking.
  • Self-generating closed steam system operating at 50 psi for consistent heat.
  • Equipped with integral controls including a power switch, thermostatic temperature control, pilot light, low water light, and vacuum/pressure gauge.
  • Convenient 2-inch sanitary draw-off valve with perforated strainer and a spring-assisted hinged cover.
  • Floor-standing pedestal base design for secure installation.

Overall Dimensions:

23.75"W x 32.0"D x 38.0"H

Product Weight:

196.0 lb

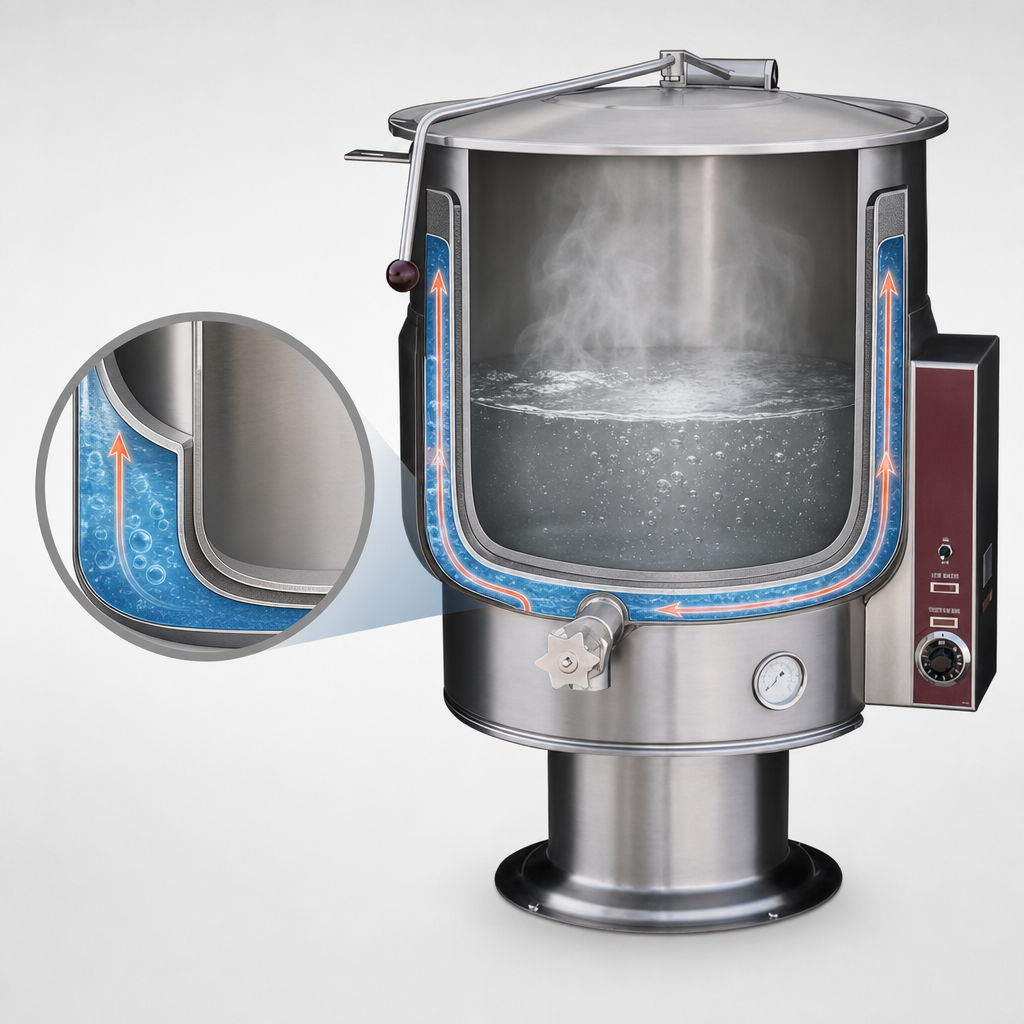

Self-Generating Steam System

Double-wall kettle interior forms a steam jacket around the lower 2/3 of the kettle, containing factory-sealed distilled water for efficient 50 psi operation.

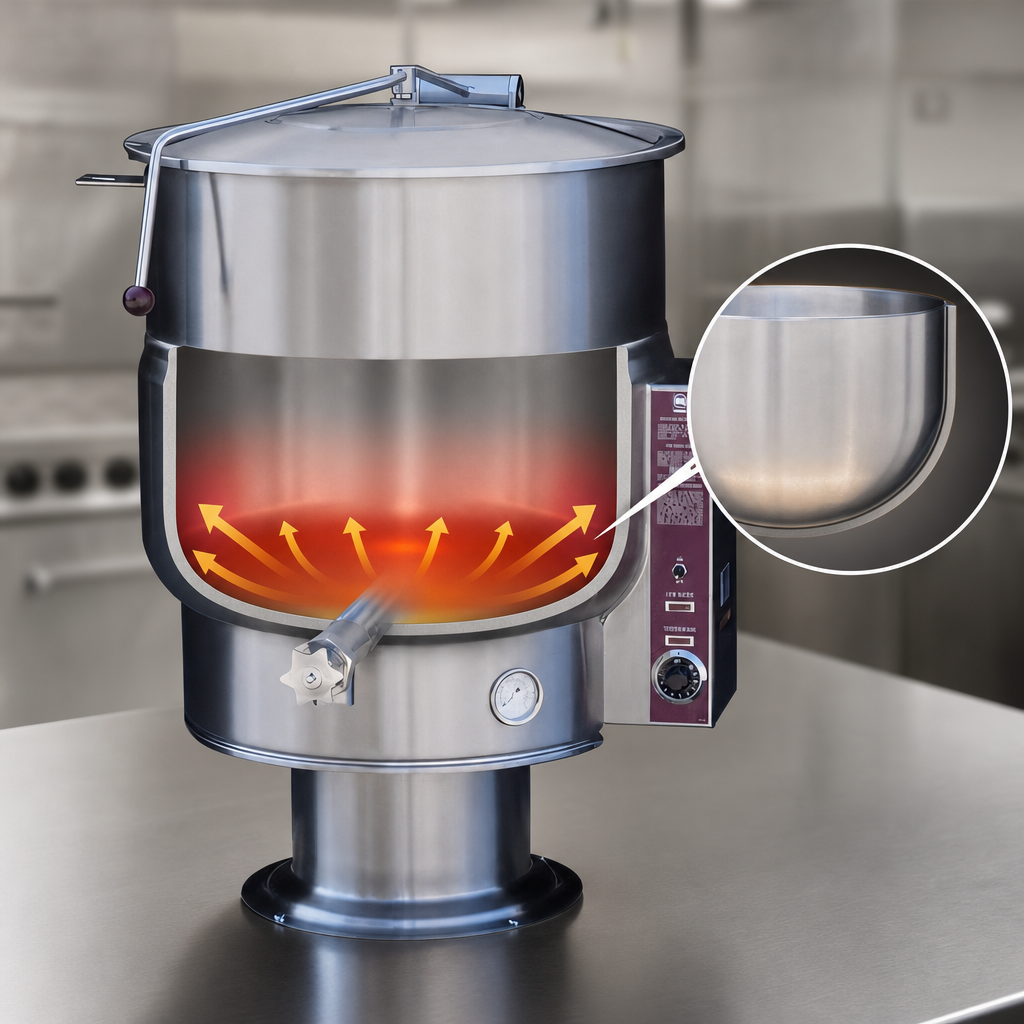

Hemispherical Kettle Bottom

Designed for superior heat circulation and even cooking, preventing hot spots and ensuring consistent results.

Durable Stainless Steel Construction

All-welded #4 finish 304 stainless steel exterior with a 316 stainless steel interior liner, specifically chosen for its resistance to corrosion from high-acid food products.

Integral Controls

Includes a power switch, precise thermostat for temperature regulation, pilot lights, a low water light indicator, a vacuum/pressure gauge, a safety relief valve, and low water shut-off for safe and reliable operation.

Sanitary Draw-Off Valve

Features a 2-inch (50 mm) sanitary draw-off valve for easy and quick dispensing of cooked product.

Spring-Assisted Hinged Cover

Comes standard with a spring-assisted hinged stainless steel domed cover (yoke type hinges for 20-gallon models) for convenient and safe access to the kettle interior.

Perforated Strainer Included

A perforated strainer is included with the draw-off valve to prevent solid food particles from clogging the drain.

Faucet Bracket Standard

A faucet bracket is included as a standard feature, allowing for easy installation of a pantry faucet.

Removable Elements

Standard design incorporates removable heating elements for easier maintenance and serviceability.

Pedestal Base Design

Features a floor-mounted pedestal base with four 7/16-inch holes, allowing for secure and stable installation of the unit.

Capacity 20 Gallons (76 Liters)
Type Stationary Kettle
Style Pedestal Base
Installation Type Floor Model (With Pedestal Base)
Material 304 Stainless Steel
Interior Finish 316 Stainless Steel
Jacket Type 2/3 Steam Jacket
Steam Pressure 50 psi
Controls Thermostatic, Pilot Light, Low Water Shut-off
Temperature Range 165°F to 285°F
Drain Connection Size 2 Inches
Watts 12 kW
Voltage 208 Volts
Phase 1-Phase
Amps 57.7 Amps
Hertz 50/60 Hz
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 32 Inches
Shipping Height 38 Inches
Shipping Weight 196 lb.
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Crown steam group letter PDF Download PDF Installation & operation manual PDF Download PDF Parts list PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Crown EP-20 has a cooking capacity of 20 gallons (76 liters), making it suitable for various commercial kitchen needs.
The interior liner of the EP-20 kettle is constructed from 316 stainless steel, which is highly resistant to corrosion and ideal for cooking high-acid content foods. The overall exterior construction is #4 finish 304 stainless steel.
The kettle features integrally mounted controls including a power switch, a thermostat for temperature regulation, pilot lights, a low water light, a vacuum/pressure gauge, a safety relief valve, and a low water shut-off for comprehensive monitoring and control.
No, the EP-20 is an electrically heated, self-generating kettle equipped with a closed steam system that operates at 50 psi. It does not require an external steam connection.
The EP-20 operates at a standard 12 kW. It is available in various voltage and phase configurations including 208V, 220V, 240V (1-phase or 3-phase) and 380V, 415V, 480V, 600V (3-phase). Amperage will vary based on the specific voltage and phase configuration chosen.
Standard convenience features include a 2-inch (50 mm) sanitary draw-off valve with a perforated strainer, a spring-assisted hinged stainless steel domed cover, and a faucet bracket for easy accessory installation.
