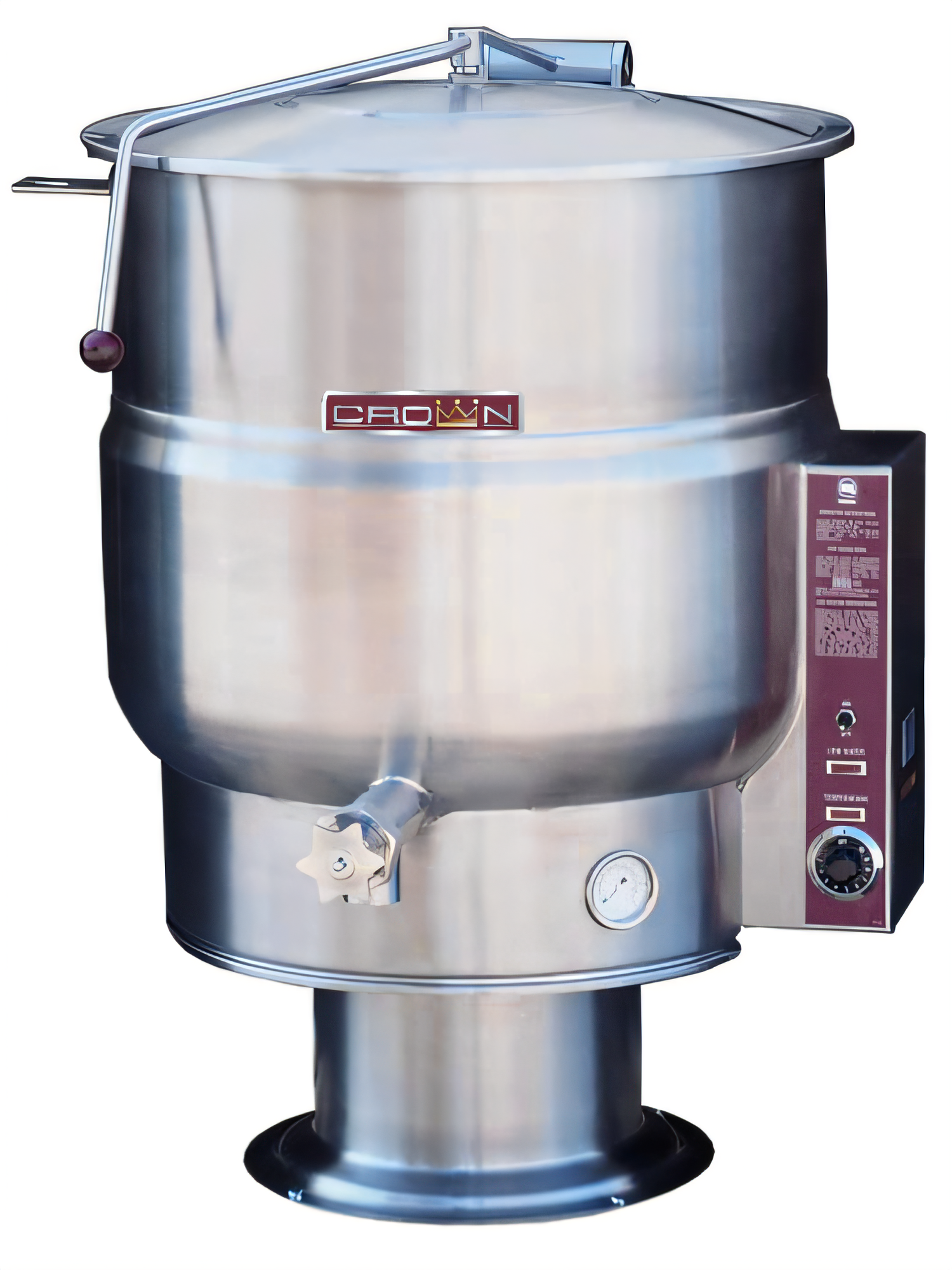

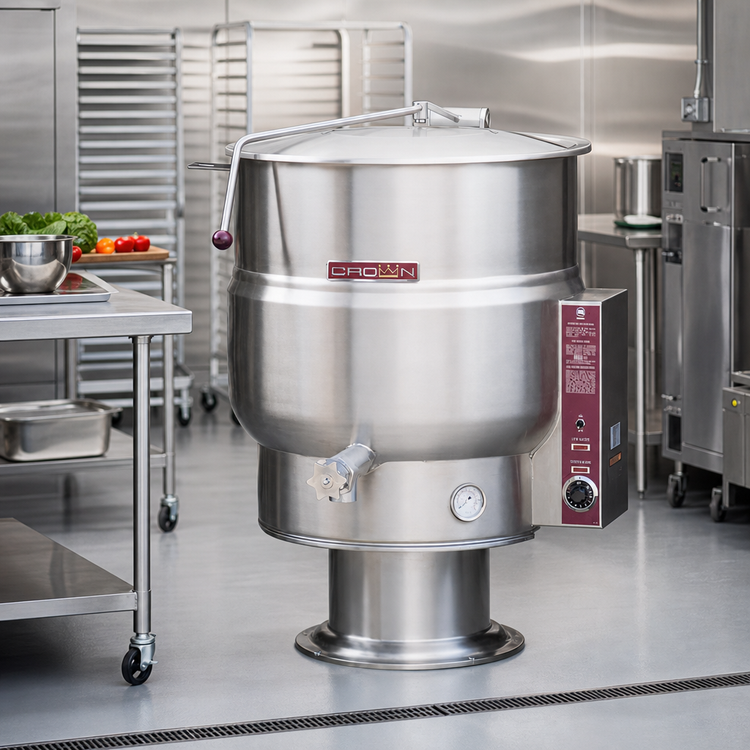

Crown EP-100 100 Gallon Electric 2/3 Jacketed Stationary Pedestal Kettle
Crown EP-100 100 Gallon Electric 2/3 Jacketed Stationary Pedestal Kettle
Full-Size, 316 Stainless Steel Liner, Thermostatic Controls
The Crown EP-100 electric pedestal kettle provides efficient and consistent cooking for high-volume operations with its robust stainless steel construction and self-generating steam system.
- 100-gallon capacity ideal for large-batch cooking in commercial kitchens.
- Self-generating, closed steam system operating at 50 psi for consistent and reliable heating.
- Durable 304 stainless steel construction with a 316 stainless steel interior liner, perfect for high-acid content foods.
- Features a 2/3 steam jacket and hemispherical bottom design for superior heat circulation and even cooking.
- Integrally mounted thermostatic controls offer precise temperature management from 165°F to 285°F.
- Equipped with a 2-inch sanitary draw-off valve including a perforated strainer for easy product dispensing.
- Spring-assisted hinged stainless steel domed cover enhances convenience and safety during operation.
Overall Dimensions:
40.0"W x 42.5"D x 48.0"HProduct Weight:

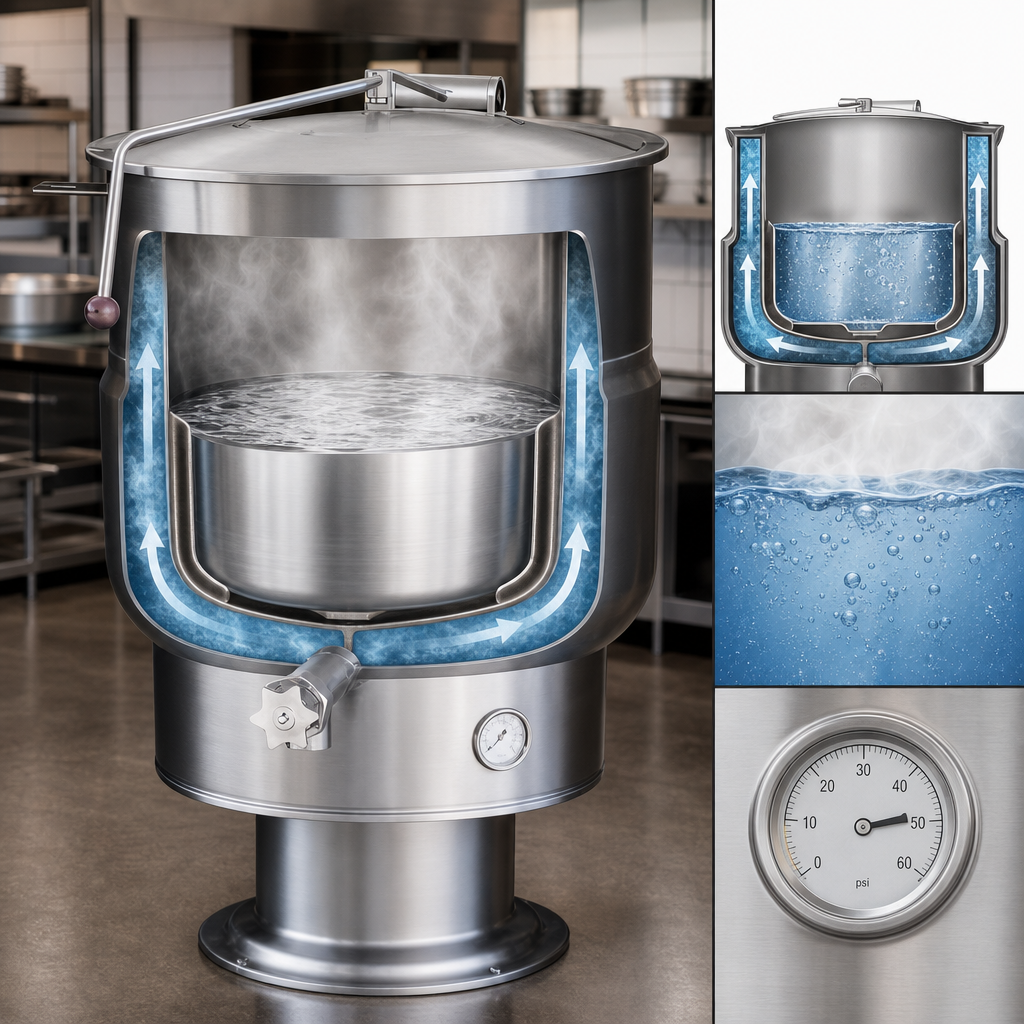

480.0 lbSelf-Generating Steam System
A factory-sealed, double-wall kettle interior forms a steam jacket, containing distilled water that generates steam at 50 psi for efficient and consistent heating without an external steam source.

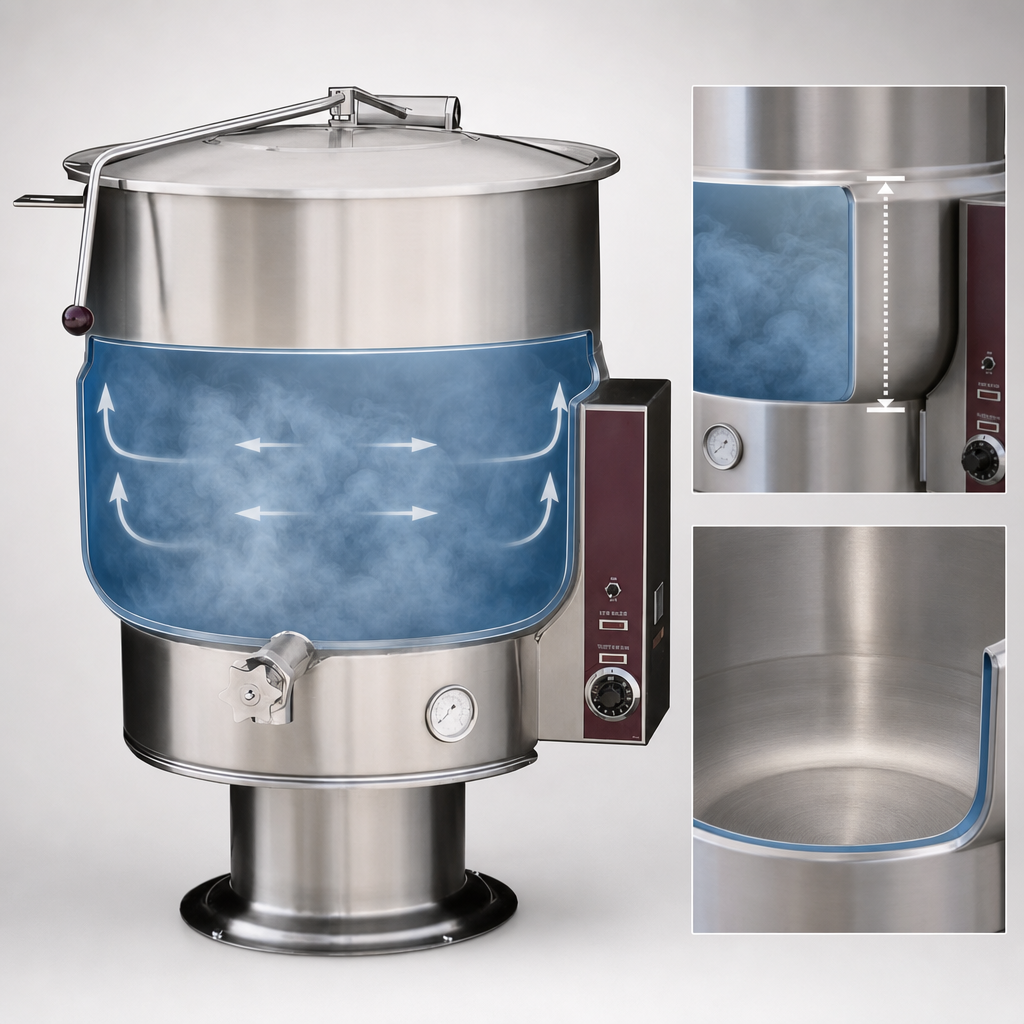

2/3 Steam Jacket
The steam jacket covers the lower two-thirds of the kettle, providing uniform heat distribution for effective cooking.
Hemispherical Kettle Bottom
Designed for superior heat circulation, ensuring even temperature distribution and preventing hot spots.
316 Stainless Steel Interior Liner
The interior liner is made of standard 316 stainless steel, offering excellent corrosion resistance, especially for high-acid content cooking.
304 Stainless Steel Construction
All-welded construction with a #4 finish, utilizing type 304 stainless steel for robust durability and hygiene.
Integrally Mounted Controls
User-friendly controls include a power switch, adjustable thermostat, pilot light, low water light, vacuum/pressure gauge, safety relief valve, and low water shut-off for safe and precise operation.
2-Inch Sanitary Draw-Off Valve
Facilitates easy and sanitary discharge of contents, complete with a perforated strainer to separate solids.
Spring-Assisted Hinged Cover
A durable stainless steel domed cover with a spring-assist mechanism for effortless opening and closing, enhancing user convenience and safety.
Removable Elements
Heating elements are designed to be removable, simplifying maintenance and servicing.
Faucet Bracket
Includes a standard faucet bracket for easy installation of a separate faucet (faucet sold separately).
Pedestal Base
Sturdy pedestal base with four 7/16 inch holes for secure anchoring to the floor, ensuring stability.
