Crown (Middleby) EMT-10-6 Steam Kettles
Description

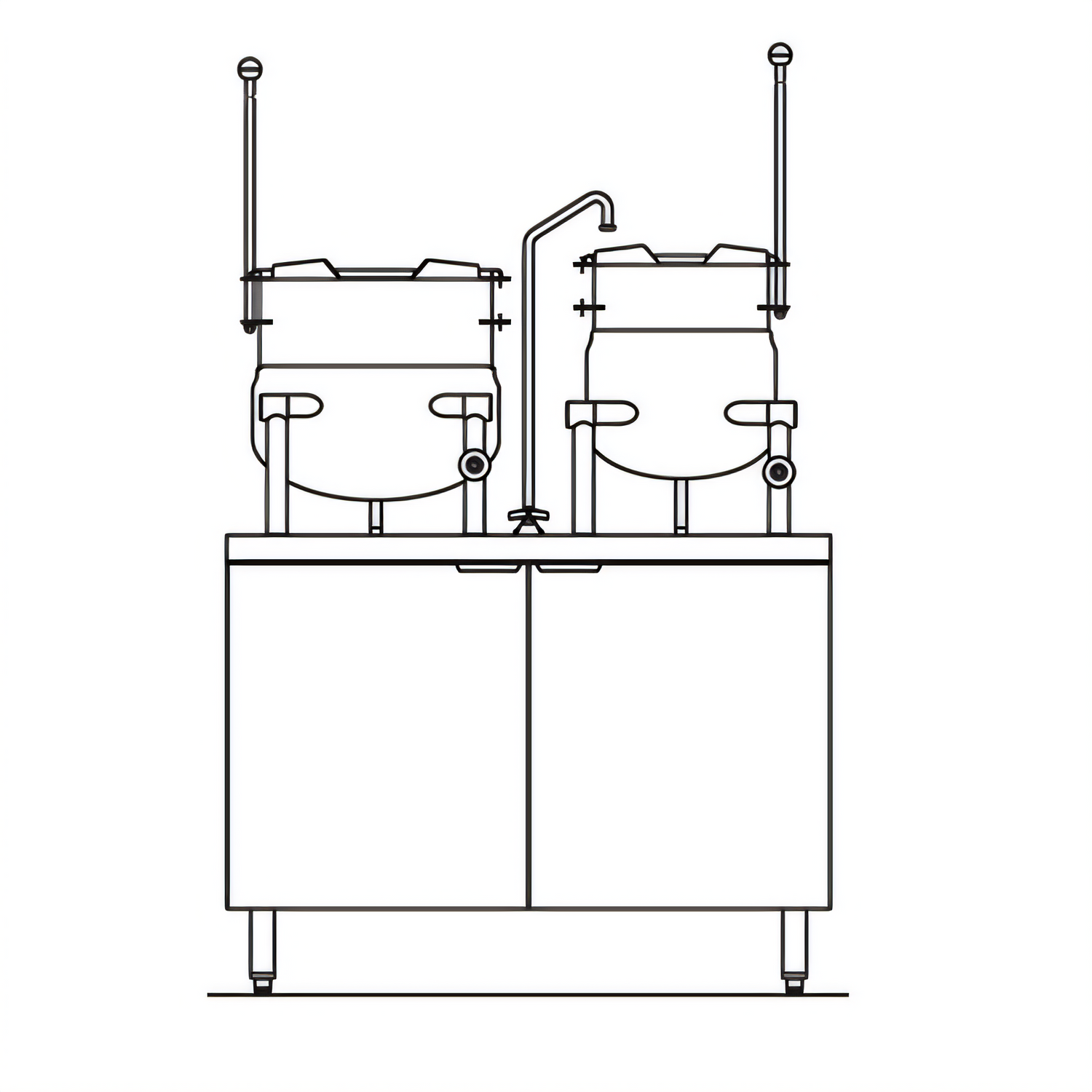

Crown EMT-10-6 Electric Kettle / Cabinet Station
(1) 10 gal + (1) 6 gal Direct-Steam Tilting Kettles on 42 in Cabinet BaseBuilt for high-volume production with small-batch flexibility, the EMT-10-6 combines two hemispheric, 2/3-jacketed tilting kettles with an electrically-heated steam boiler and integrated hand-sink suite—all in a single, space-saving workstation. Perfect for soups, sauces, custards, reductions and more.
Key Performance Benefits
- Separate 10 gal (38 L) & 6 gal (23 L) kettles let you run different recipes simultaneously.
- 24 kW, 15 psi boiler (optional 36/42/48 kW) delivers rapid heat up and consistent steam.
- 2/3 steam jacket & hemispherical bottoms ensure even heating—no hot spots.

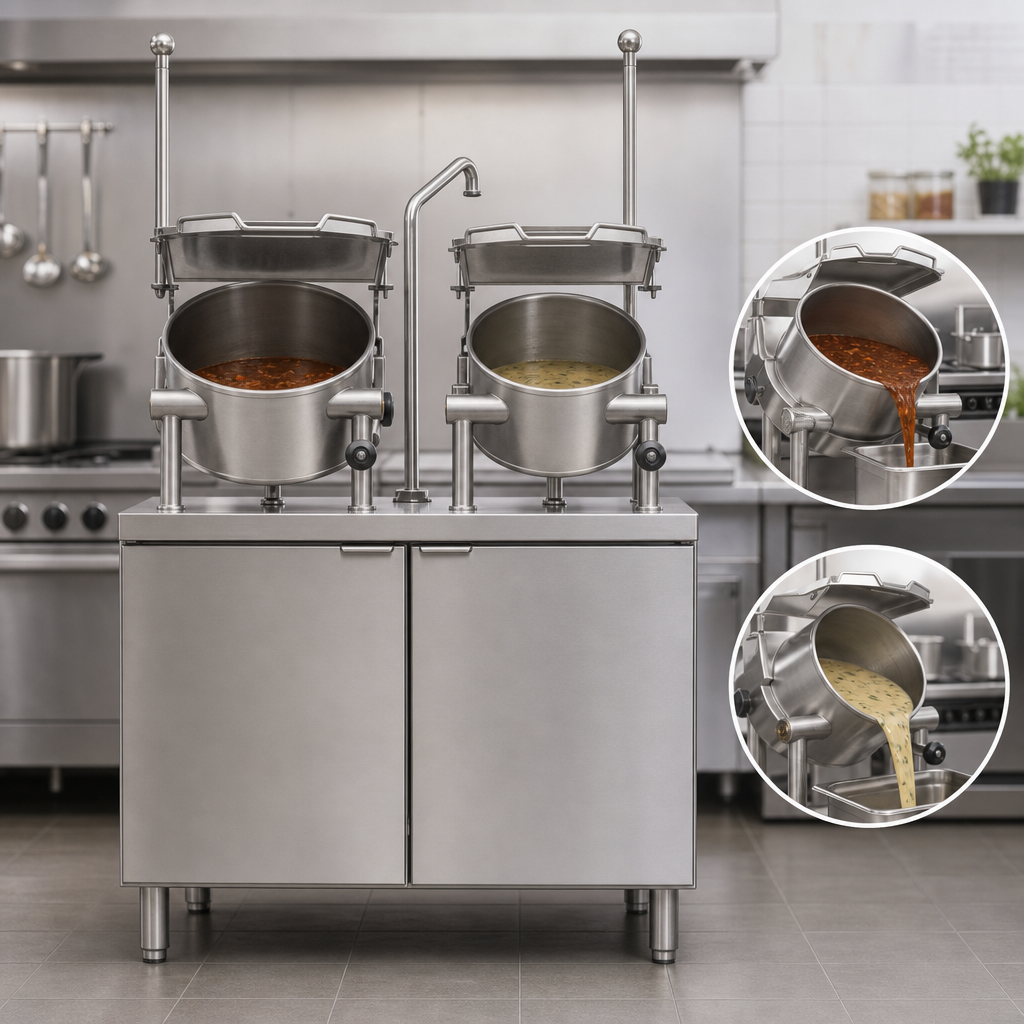

- Precision tilt handles with stay-cool knobs allow a full 90° pour for complete product removal.
- Factory-installed Water Treatment System protects the boiler and preserves warranty.
- CSD-1 compliant boiler controls, automatic blow-down & split water lines for worry-free operation.

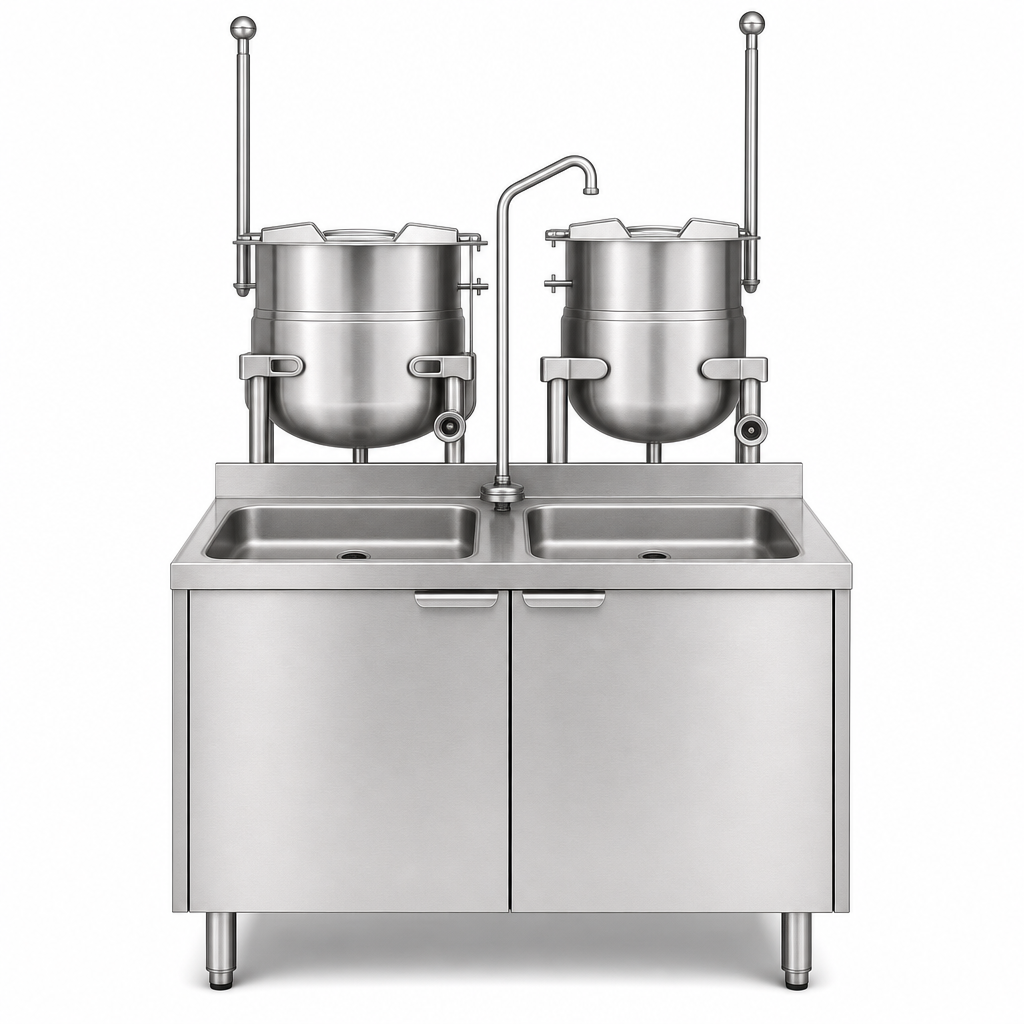

- Dual 3 in (76 mm) deep sinks with drain boards, splash guards, plus hot & cold deck-mount faucet keep your line sanitary.
- 316-grade stainless kettle liners for acidic products; 304-grade exterior resists corrosion & cleans fast.
- 6 in stainless legs with adjustable flanged feet—bolt it down for a rock-solid install.
- cCSAus & NSF listed; 10-year hemisphere warranty on kettles.
Popular Applications

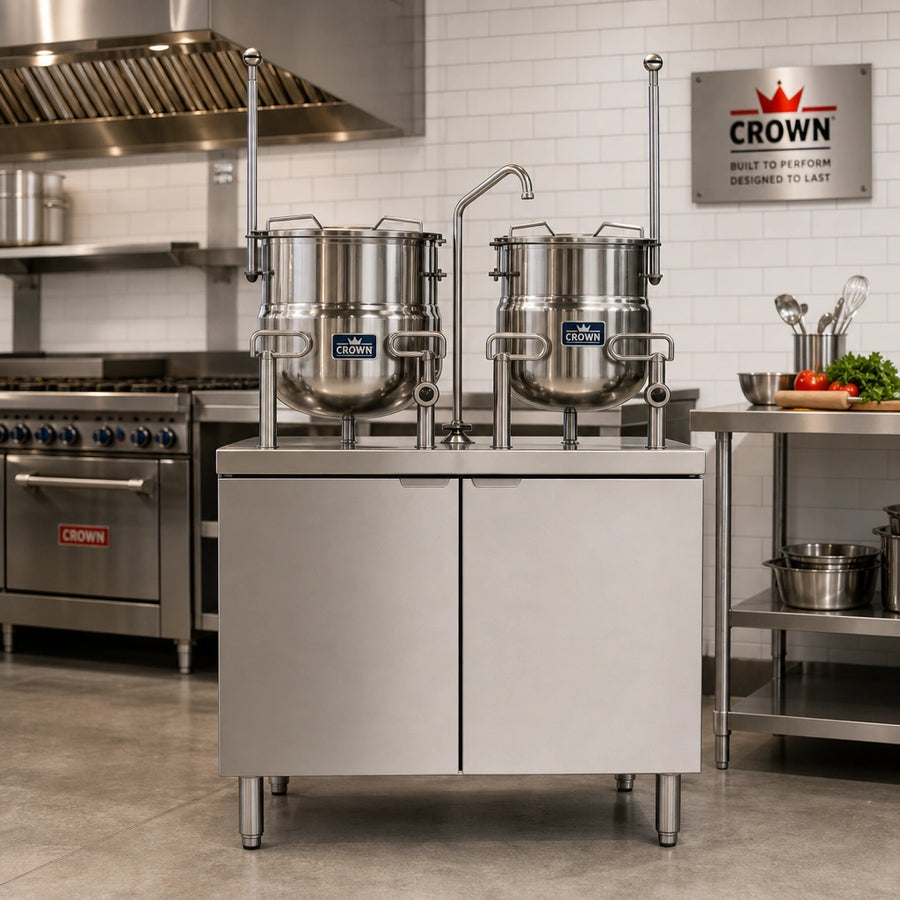

- Commercial & hotel kitchens
- Central production & commissaries
- Catering, ghost and cloud kitchens
- Correctional & healthcare foodservice
- Research & pilot plant labs
Technical Specifications
| Model | EMT-10-6 |
|---|---|
| Kettle Capacities | 10 gal (38 L) & 6 gal (23 L) |
| Jacket Coverage | 2/3 (bottom & sidewall) |
| Boiler Output | 24 kW, 15 psi (standard) – optional 36/42/48 kW* |
| Electrical Options | 208, 220, 240 V (1- or 3-ph) • 380, 415, 480, 575/600 V (3-ph)* 50/60 Hz |
| Amps @ 3-phase / 24 kW | 208 V 66.6 A • 240 V 57.7 A • 480 V 28.9 A |
| Cabinet Width | 42 in (1067 mm) |
| Kettle Construction | 316 SS liner / 304 SS exterior |
| Sink Bowls | (2) 3 in (76 mm) deep with drains & splash guards |
| Water Connections | ½ in NPT boiler feed • ⅜ in O.D. hot & cold faucet • 2 in IPS sink drain |
| Shipping Weight | ≈ 700 lb (317 kg) |
| Certifications | cCSAus, NSF |
*Higher kW and voltage configurations may affect amperage draw—see data plate.
Included in the Box
- Factory-installed safety relief valve & steam trap
- Hot/Cold deck faucet & swing spout
- Magnetic-latch cabinet doors & removable side panels
- Comprehensive Water Treatment System cartridges
- Operator’s manual & warranty registration
Give your kitchen the speed, consistency and durability of a Crown direct-steam workstation—order the EMT-10-6 today and elevate every batch you serve.
