Crown (Middleby) ELTM-80 Steam Kettles

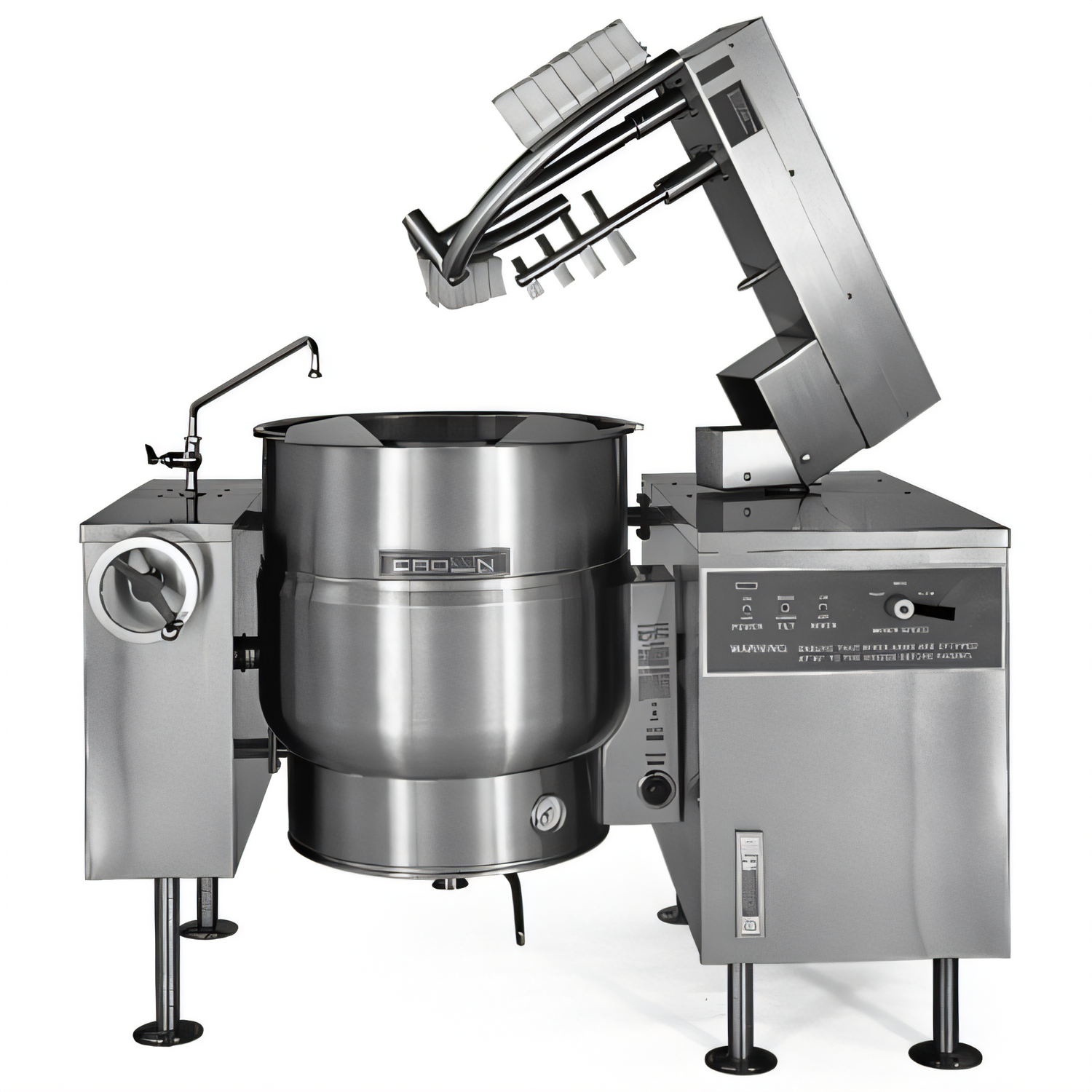

Crown ELTM-80 Electric Leg-Mounted Tilting Mixer Kettle – 80 Gal

Boost batch consistency and kitchen throughput with the ELTM-80 from Crown (Middleby). This self-contained, self-generating steam jacketed kettle delivers 80 gallons of perfectly blended product while its power tilt and tool-free agitators keep clean-up quick and easy.

Why You’ll Love It

• True one-person operation – variable-speed mixing, self-locking power tilt and 140° swing-away bridge mean no manual scraping or heavy lifting.
• Two agitators included – a stainless-steel scraper plus a high-speed mixer, both removable without tools for fast sanitation.

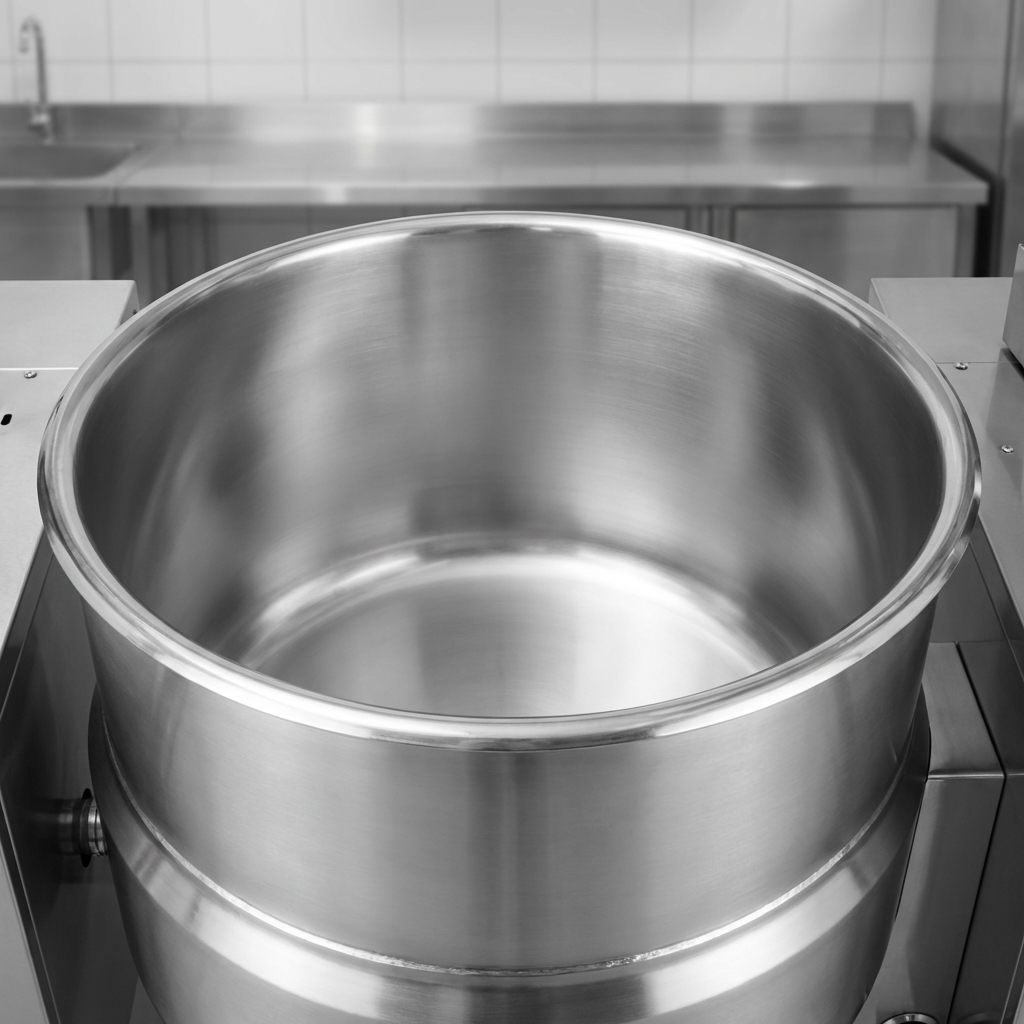

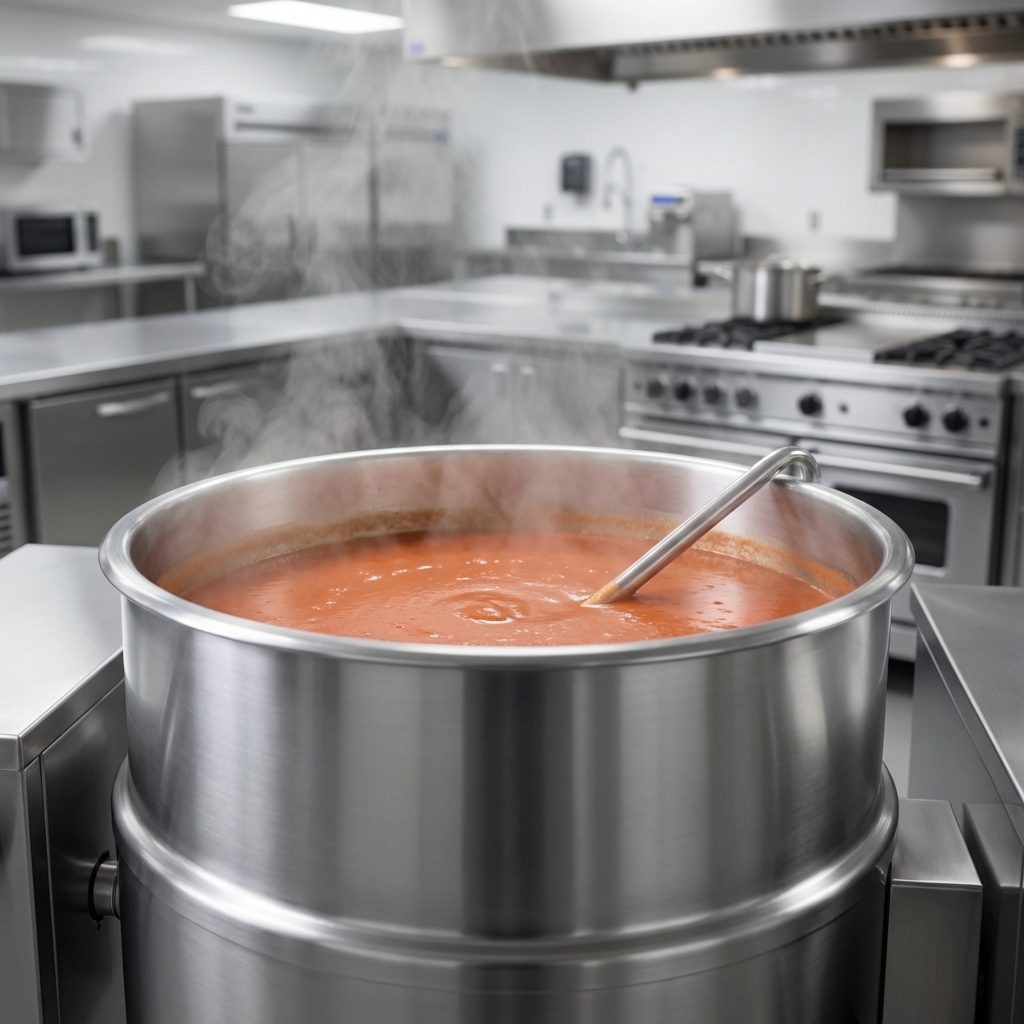

• 316 SS liner + 2/3 jacket – ideal for high-acid recipes and rapid, uniform heat transfer.
• 5 HP hydraulic drive – quiet, dependable power that adjusts from slow fold-in to vigorous vortex at the twist of a dial.
• Built-in safety suite – vacuum/pressure gauge, 50 psi relief valve, low-water shut-off and cCSAus / NSF listings.

Performance & Controls

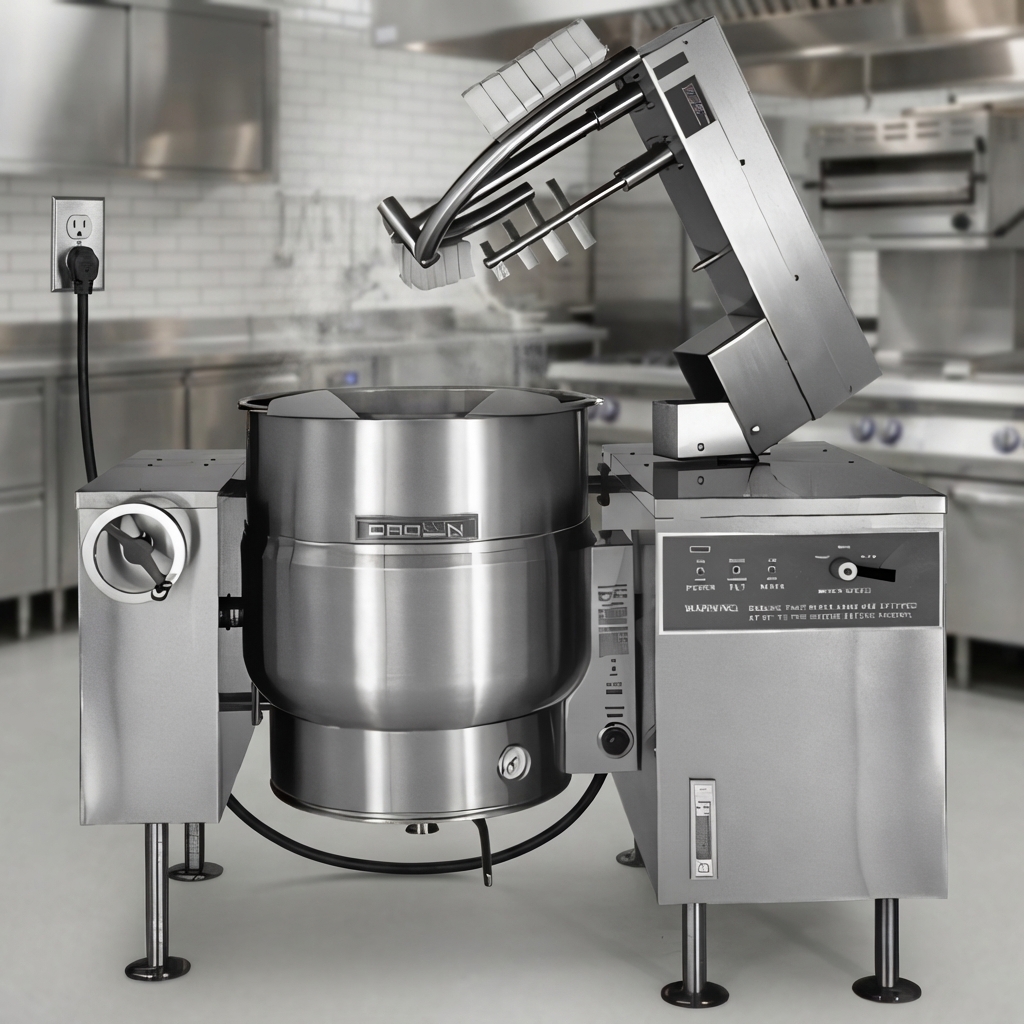

• Self-generating closed steam system – no external boiler required.
• 24 kW standard (33 kW optional) electric elements – removable for service.
• Thermostat range 140 °F – 285 °F (60 °C – 140 °C); max working pressure 50 psi (345 kPa).
• Front console houses main power, mixer lift switch and infinitely variable speed control.
• Power tilt handle delivers a full 90° pour for complete emptying.

Construction Highlights

• 304 stainless-steel exterior with satin finish; hemispherical bottom for maximum heat transfer.
• Stainless-steel tubular legs with four-hole adjustable flanged feet for secure floor mounting.
• Sealed, self-locking tilt mechanism inside a stainless housing – no exposed gears.
• Heavy-duty 10 ga stainless bridge with twin hydraulic motors driving the agitators.

Technical Specifications

Popular Factory Options (sold separately)

• 2" or 3" sanitary butterfly draw-off valve
• Swing-type fill faucet (left or right console)
• Etched gallon or litre interior markings
• Two-piece lift-off cover
• 33 kW high-output elements
• Kettle heat shield & valve strainers

Peace-of-Mind Warranty

10-year hemisphere kettle warranty • 1-year parts & labour on the complete unit.
Service by Crown Steam Group’s nationwide authorized network.
