Crown (Middleby) ELTM-80-2 Steam Kettles
Description

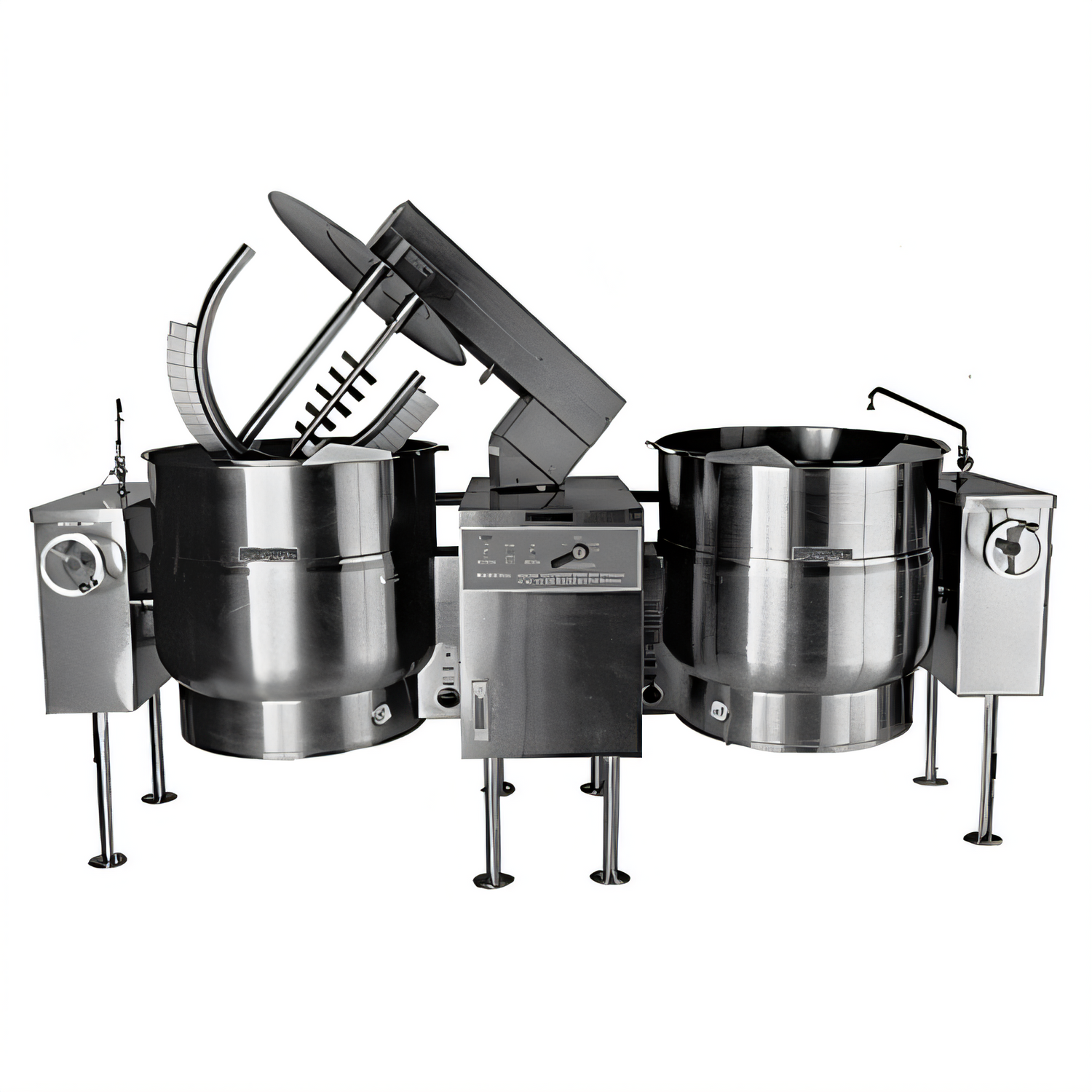

Crown ELTM-80-2 Twin 80-Gallon Electric Tilting Mixer Kettle

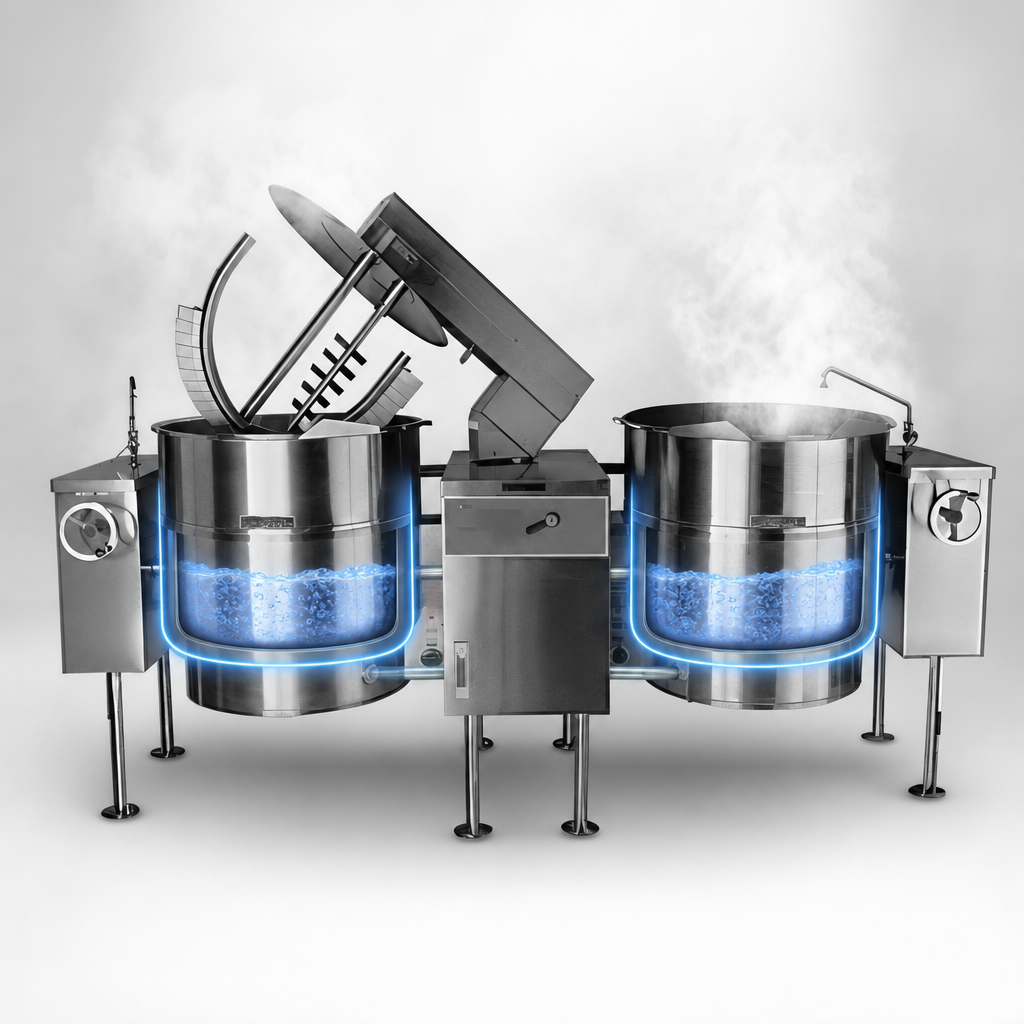

Self-Generating Steam • Variable-Speed Agitation • Heavy-Duty 304/316 Stainless SteelDesigned for high-volume, high-acid production, the ELTM-80-2 combines two 80-gallon (303 L) kettles with an integrated 5 HP variable-speed mixer. From scratch-made soups and sauces to delicate custards and fillings, this all-in-one workhorse delivers consistent results, faster cook times and effortless batch turnover— all on a compact, floor-mounted footprint.
Key Performance Benefits
- 160 gallon (606 L) total capacity – tackle large batches or run two different recipes simultaneously.

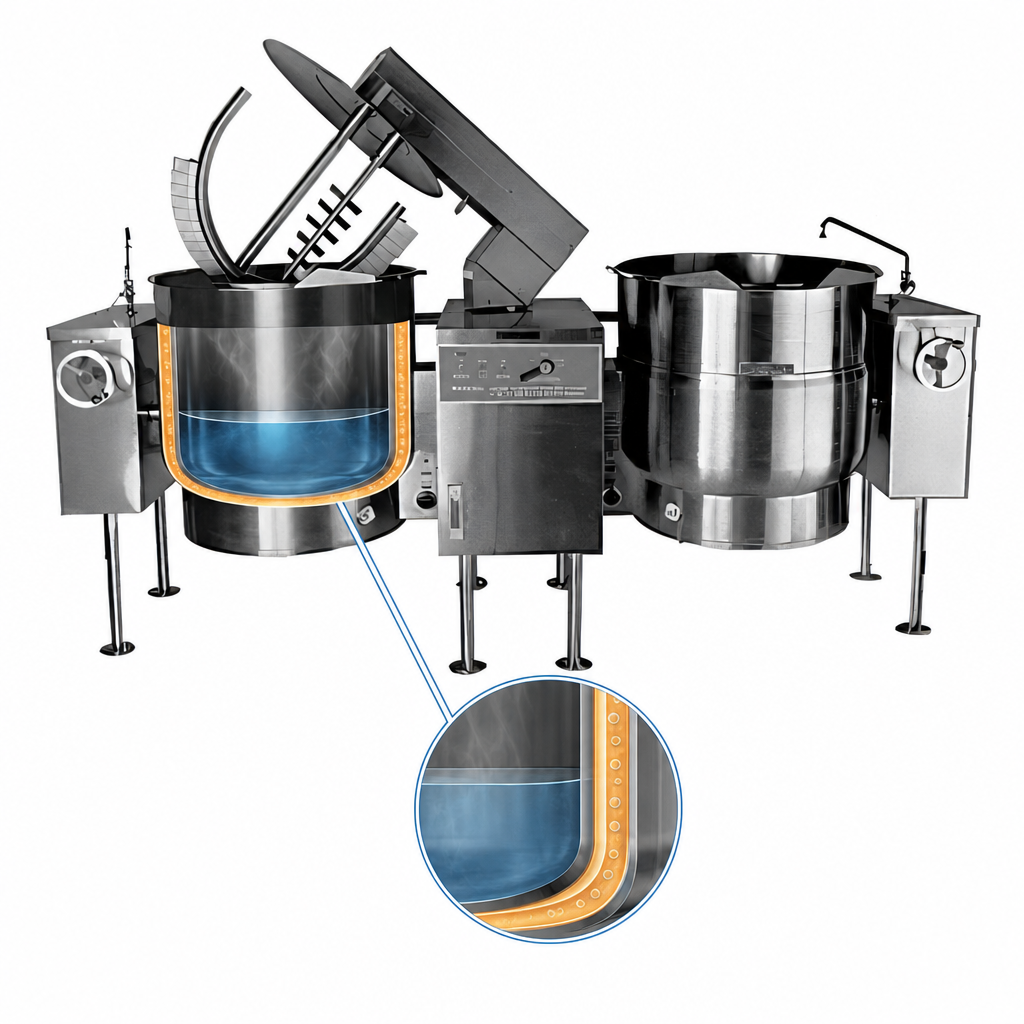

- 2/3 steam jacket with self-contained electric elements for rapid, even heat from 140 °F – 285 °F (60 °C – 140 °C).
- Premium 316 SS kettle liner resists corrosion from acidic products; 304 SS exterior wipes clean fast.
- Pair of removable agitators: primary scraper/agitator for thorough side-wall coverage and a secondary high-speed mixer for perfect emulsions.
- 5 HP hydraulic drive with front-panel variable-speed dial—smoothly adjusts from gentle fold to vigorous blend.
- Power-tilt bridge swings 140° out of the way; kettles tilt a full 90° for complete product evacuation.
- Built-in safety suite: vacuum/pressure gauge, 50 psi relief valve, low-water cut-off and self-locking tilt mechanism.
- Stainless tubular legs with adjustable flanged feet anchor securely to the floor for rock-solid stability.
Technical Specifications
| Model | ELTM-80-2 |
|---|---|
| Individual Kettle Capacity | 80 gal (303 L) each |
| Total Capacity | 160 gal (606 L) |
| Jacket Coverage | 2/3 (hemispheric bottom) |
| Mixer Motor | 5 HP, variable speed, hydraulic drive |
| Agitators Included | 1 × scraper/agitator, 1 × high-speed mixer (tool-free removal) |
| Thermostat Range | 140 °F – 285 °F (60 °C – 140 °C) |
| Maximum Jacket Pressure | 50 psi (345 kPa) |
| Construction | 316 SS liner, 304 SS exterior & bridge |
| Controls (front console) | Main power, mixer lift, variable speed, temperature & status lights |
| Safety Features | Low-water shut-off, pressure/vacuum gauge, 50 psi relief valve, tilt interlock |
| Shipping Weight | 1 850 lb (840 kg) |
Standard Electrical Options
| Voltage (3 Ph, 60 Hz) | kW | Amps |
|---|---|---|
| 208 V | 33 | 197.4 |
| 240 V | 33 | 172.8 |
| 480 V | 33 | 86.4 |
Footprint & Clearances
| Overall Length (B) | 116 in | 2 946 mm |
|---|---|
| Overall Width (G) | 60 in | 1 524 mm |
| Overall Height (E) | 80 in | 2 032 mm |
| Minimum Side Clearance | 3 in | 76 mm |
| Minimum Rear Clearance | 4 in | 102 mm |
Certifications & Warranty
- cCSAus listed for electrical & sanitation.
- NSF certified for foodservice safety.
- 1-year parts & labor warranty.
- 10-year hemisphere kettle body warranty.
