Crown (Middleby) ELTM-60 Steam Kettles
Crown (Middleby) ELTM-60 Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Crown (Middleby) ELTM-60 Steam Kettles
Description

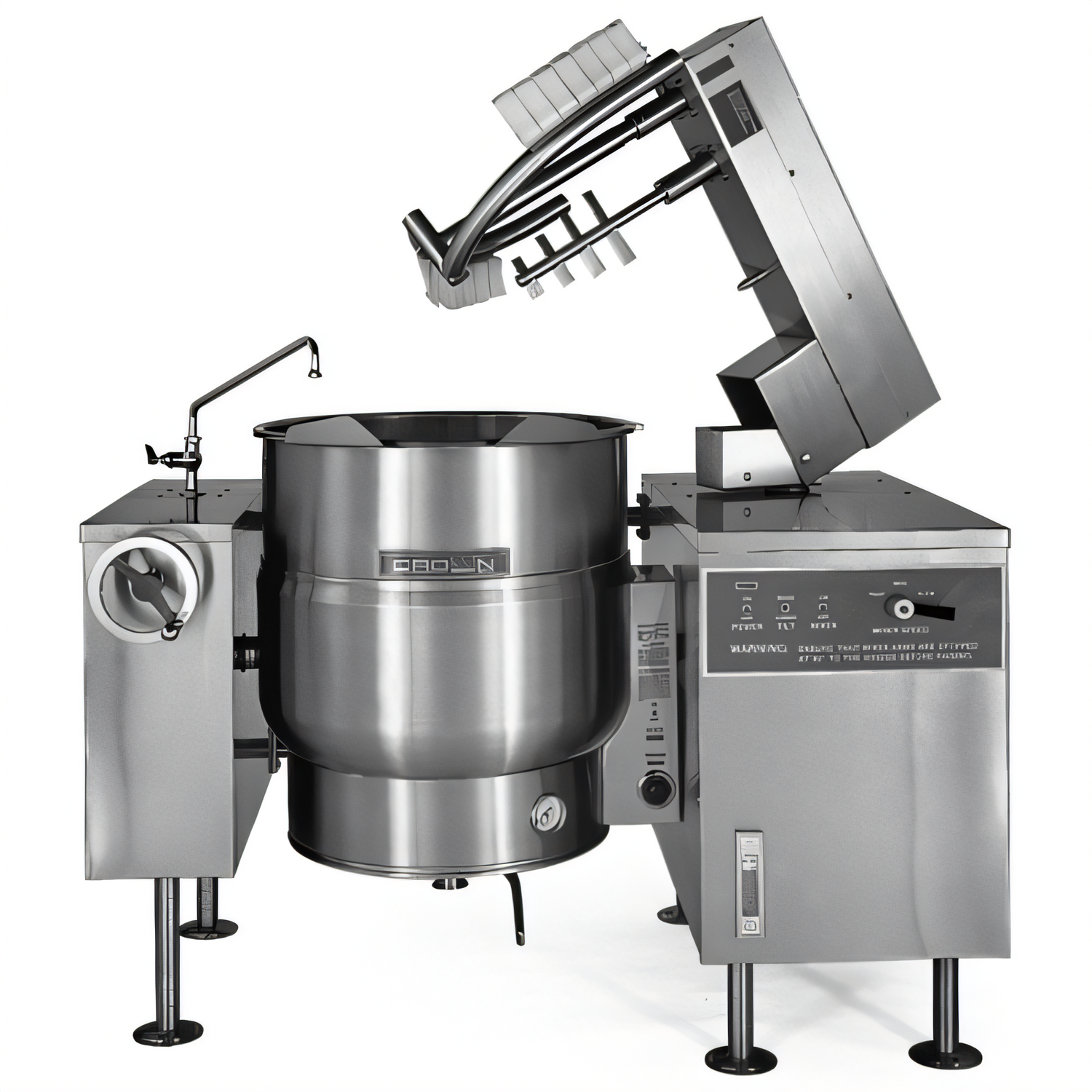

Crown ELTM-60 60-Gallon Electric Tilting Mixer Kettle
5 HP Variable-Speed | 2/3 Steam Jacket | 316/304 Stainless SteelCombine large-volume cooking, even steam heating and high-torque mixing in one rugged, floor-mounted workstation. The Crown ELTM-60 streamlines soup, sauce, confectionery and ready-meal production while protecting your product—and your crew—with industry-leading safety features and stainless durability.
Key Performance Advantages
- 60-gallon (227 L) capacity for high-output kitchens.

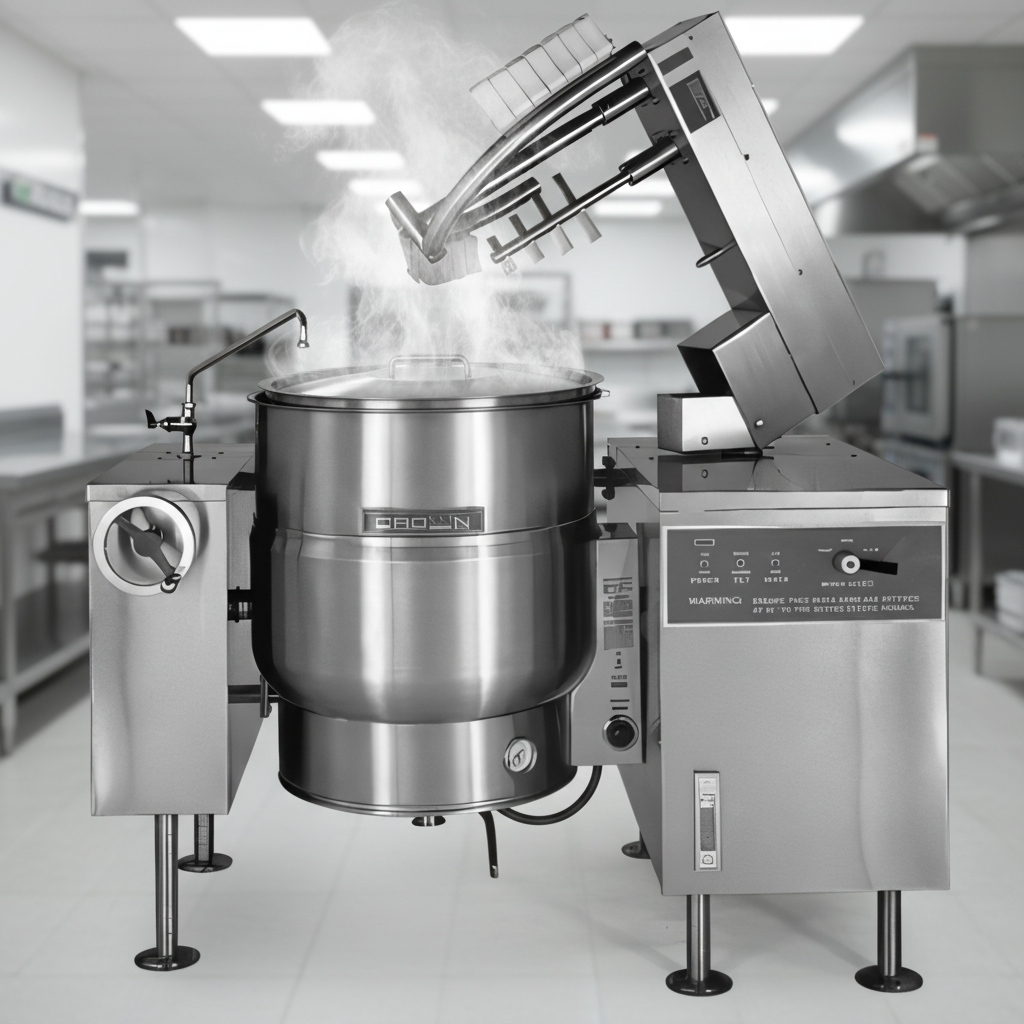

- Self-generating, closed steam system surrounds the lower 2/3 of the kettle for rapid, uniform heat transfer.
- 5 HP hydraulic drive offers smooth, variable-speed mixing from a gentle fold to a vigorous whip.
- Includes two tool-free, removable agitators:

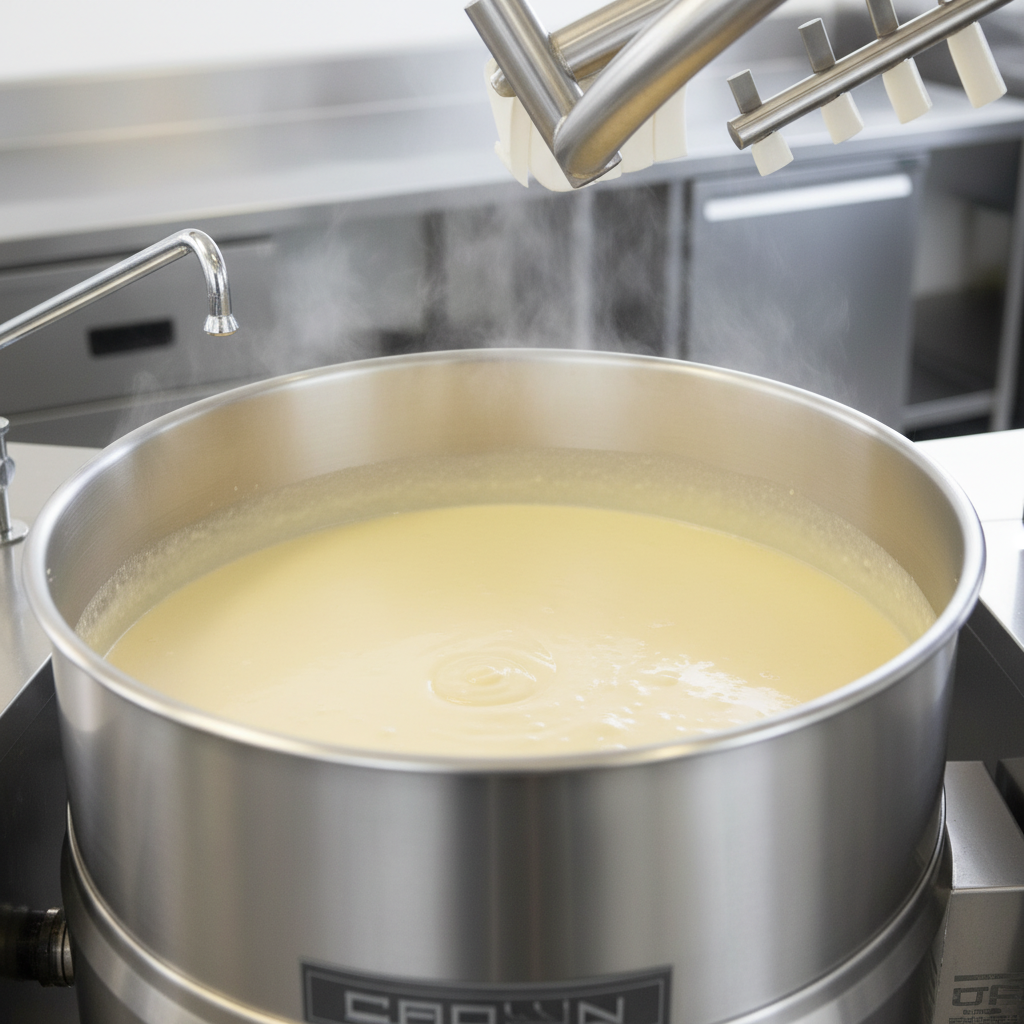

- Primary stainless-steel scraper/agitator to prevent scorching.
- Secondary high-speed mixer for complete product dispersion.

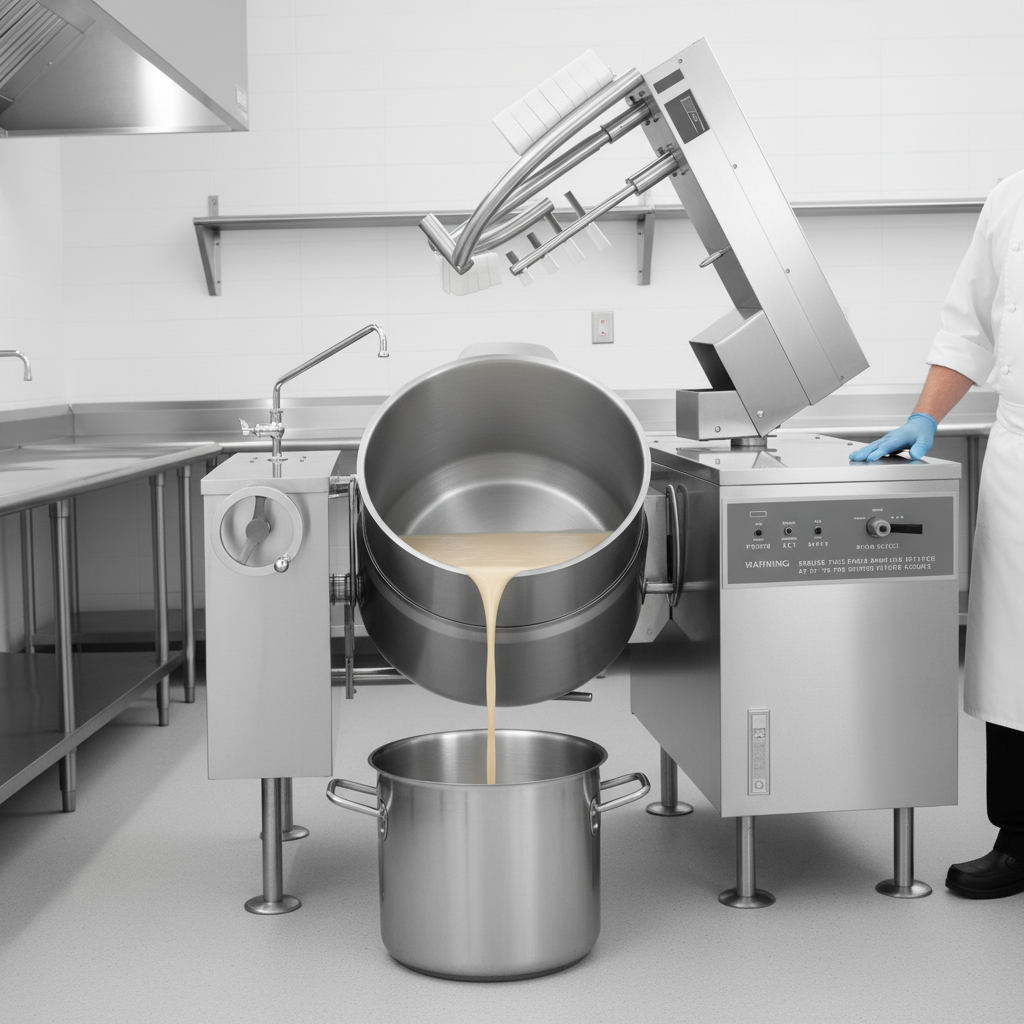

- Power tilt with self-locking worm gear provides controlled, full 90° pour-off.
- Bridge swings 140° clear for hassle-free cleaning and ingredient loading.
- Precise thermostat 140 °F – 285 °F (60 °C – 140 °C) with automatic low-water shut-off.
- Integrated vacuum/pressure gauge and 50 psi relief valve keep operation safe and compliant.
Built for Dependability
- 316 stainless-steel liner resists acidic ingredients such as tomato or citrus.
- 304 stainless-steel exterior and 10-gauge bridge with satin finish—tough, sanitary and easy to clean.
- Hemispherical bottom maximises surface area for faster heat-up and complete emptying.
- Stainless tubular legs with four-hole flanged feet bolt securely to the floor.
- Front console houses main power, bridge lift and speed controls for intuitive operation.
- cCSAus & NSF certifications for electrical safety and food-contact sanitation.
Specifications
| Model | ELTM-60 |
|---|---|
| Capacity | 60 gal / 227 L |
| Jacket Type | Self-contained, 2/3 jacket |
| Liner Material | 316 stainless steel |
| Exterior Material | 304 stainless steel, satin finish |
| Heating Elements | Electric – 24 kW standard (33 kW optional) |
| Motor | 5 HP hydraulic, variable speed |
| Thermostat Range | 140 °F – 285 °F (60 °C – 140 °C) |
| Max Operating Pressure | 50 psi / 345 kPa |
| Tilt | Electric power tilt, 90° dump |
| Overall Dimensions | 29.5″ W × 58.5″ D × 80″ H (see drawing for full dimensional data) |
| Shipping Weight | 880 lb / 400 kg |
| Electrical | 208, 220, 240, 380, 415, 480 or 600 V, 3-phase |
| Amps @ 208 V (24 kW) | 79.6 A |
| Minimum Clearance | Sides 3″ (76 mm) • Back 4″ (102 mm) |
| Certifications | cCSAus, NSF |
| Warranty | 1-year parts & labor • 10-year hemisphere kettle shell |
Ideal Applications
- Central & school kitchens
- Healthcare & correctional facilities
- Commissaries & ghost kitchens
- Sauce, soup & gravy production
- Confectionery, jams & preserves
Upgrade your throughput, consistency and safety—add the Crown ELTM-60 to your production line today.
Need etched volume markings, butterfly valves or a swing-spout fill faucet? Ask about factory-installed options to tailor the ELTM-60 to your workflow.
