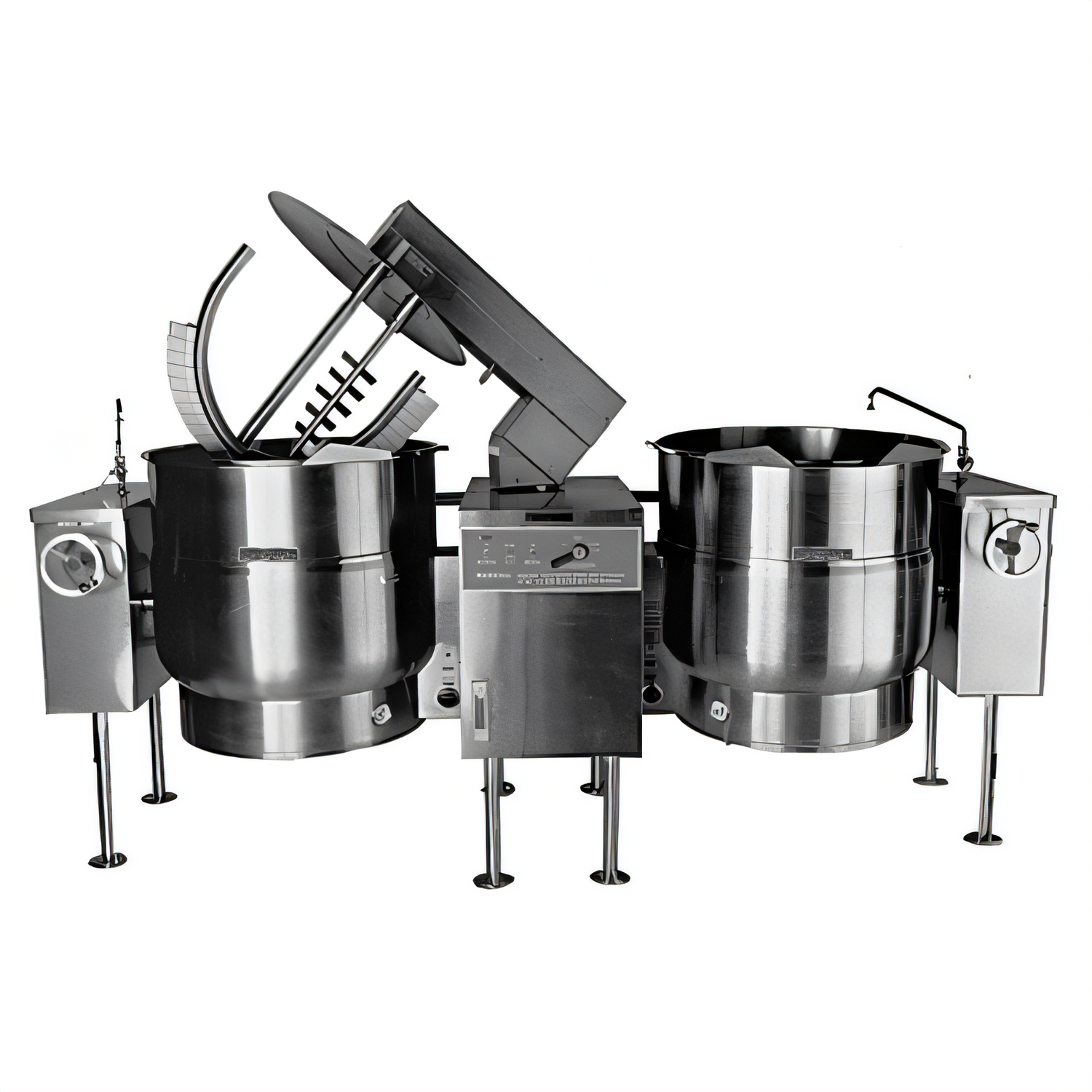

Crown ELTM-60-2 Electric Twin 60-Gallon Tilting Mixer Kettle

Engineered for high-volume, high-acidity, and high-efficiency production, the Crown ELTM-60-2 pairs two 60-gallon (227 L) hemispheric kettles with a powerful integrated mixer to tackle sauces, soups, fillings, and more—then tilts a full 90° for fast, complete emptying.

Why this mixer kettle belongs in your kitchen

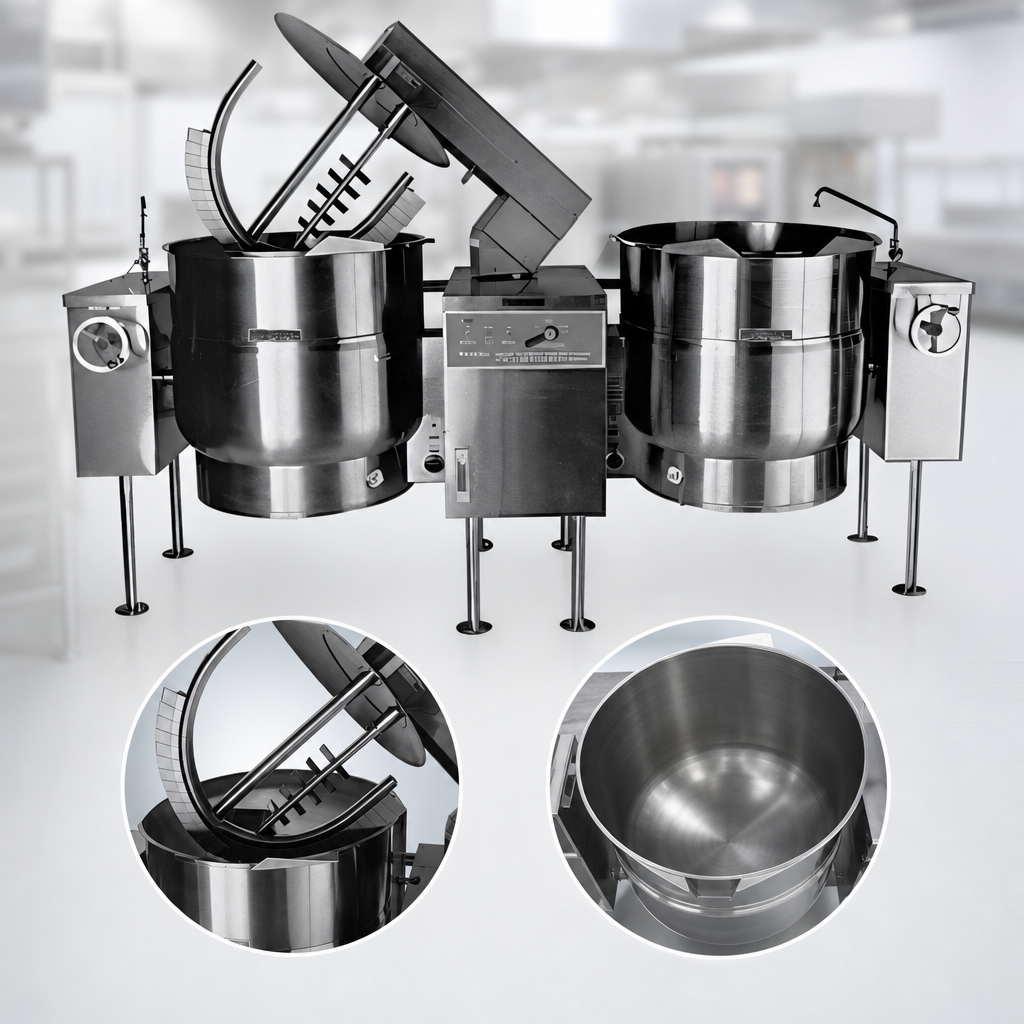

• Massive throughput — Dual 60 gal kettles (total 120 gal / 454 L) process big batches simultaneously.

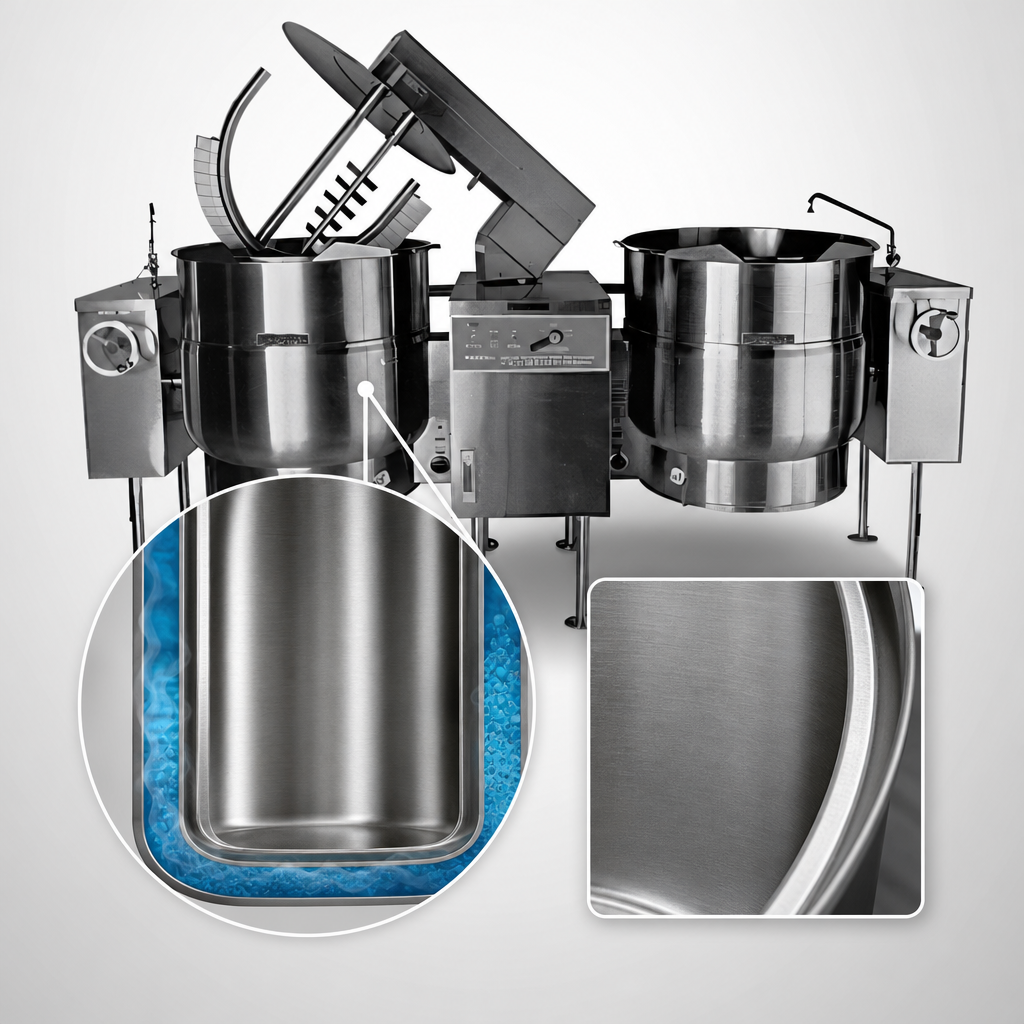

• Built-in steam generator — Closed electric system generates steam inside the 2/3 jacket; no external boiler required.
• Premium materials — 316 SS kettle liner resists acidic recipes; 304 SS exterior & frame for long-term durability.
• 5 HP hydraulic drive — Variable-speed agitator (0–70 rpm) keeps product uniform without scorching.
• Two tool-less agitators — Primary scraper plus high-speed secondary agitator remove easily for cleaning.
• Power tilt & swing-away bridge — Bridge lifts and swivels 140°; kettles tilt 90° with positive stop for safe, effortless pour-off.
• Total control at your fingertips — Thermostat 140–285 °F, vacuum/pressure gauge, low-water cutoff, and pressure relief valve.
• Space-saving leg mount — Stainless tubular legs with flanged, adjustable feet bolt securely to the floor.

Technical specifications

Standard equipment

• Floor-mounted control console with main power, bridge lift, and speed dial
• Vacuum/pressure gauge & 50 psi pressure relief valve
• Low-water shut-off and indicator light
• Electric power-tilt mechanism—self-locking for precise control
• Removable heating elements for easier service

Popular factory-installed options

• Swing-away kettle-fill faucet (left or right console)
• 2" or 3" manual butterfly draw-off valve with strainers
• Etched gallon or litre graduations
• Two-piece lift-off cover
• Higher-voltage motors & heating elements (380–600 V)

Options are quoted at time of order and may affect lead time.
