Crown (Middleby) | SKU:
ELTM-40
Crown (Middleby) ELTM-40 Steam Kettles
$85,217.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Crown (Middleby) ELTM-40 Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Crown (Middleby) ELTM-40 Steam Kettles
$85,217.00
Unit price
/
Unavailable
Description

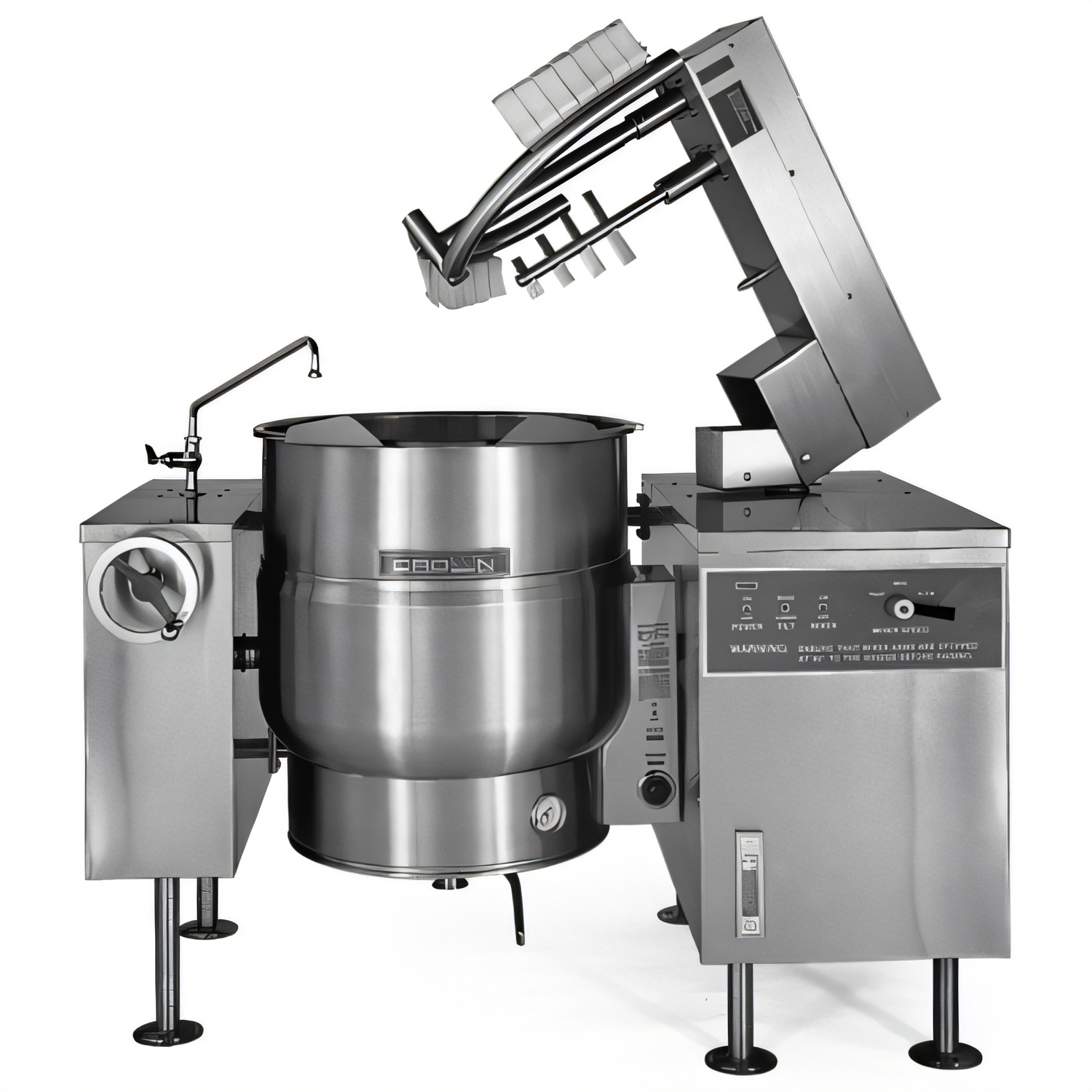

Crown ELTM-40 Electric Tilting Mixer Kettle
40 gal / 152 L • Self-Generating Steam • Variable-Speed AgitationBuilt for high-volume kitchens that refuse to compromise on consistency, the Crown ELTM-40 combines a 40-gallon steam-jacketed kettle with a powerful hydraulic mixer and effortless self-locking tilt. From creamy sauces to rugged chili, you’ll batch, mix, cook and pour—all in one rugged, stainless-steel workhorse.
Why You’ll Love It
- All-in-One Processing – Cook and mix simultaneously with two removable agitators (scraper & high-speed mixer).

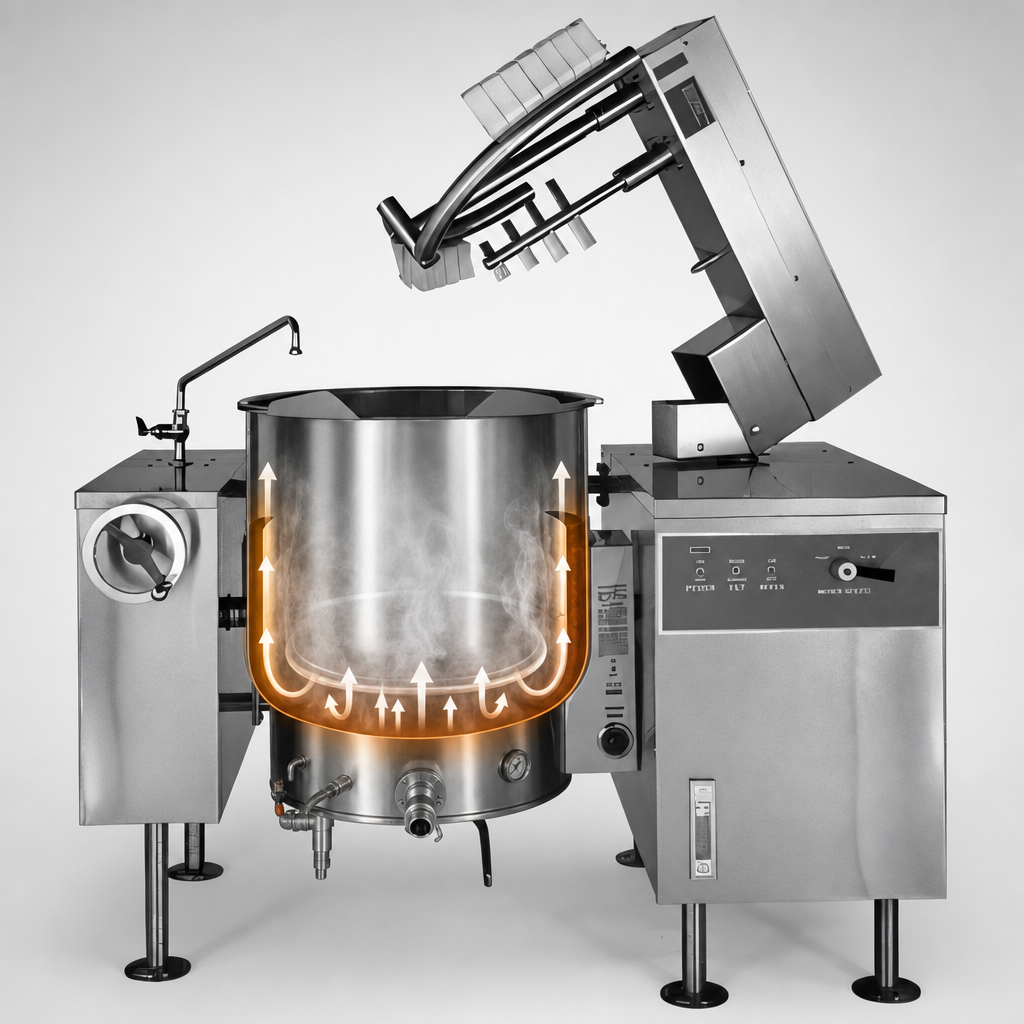

- Rapid, Even Heating – 2/3 steam jacket and hemispheric bottom maximize surface area for faster heat transfer.

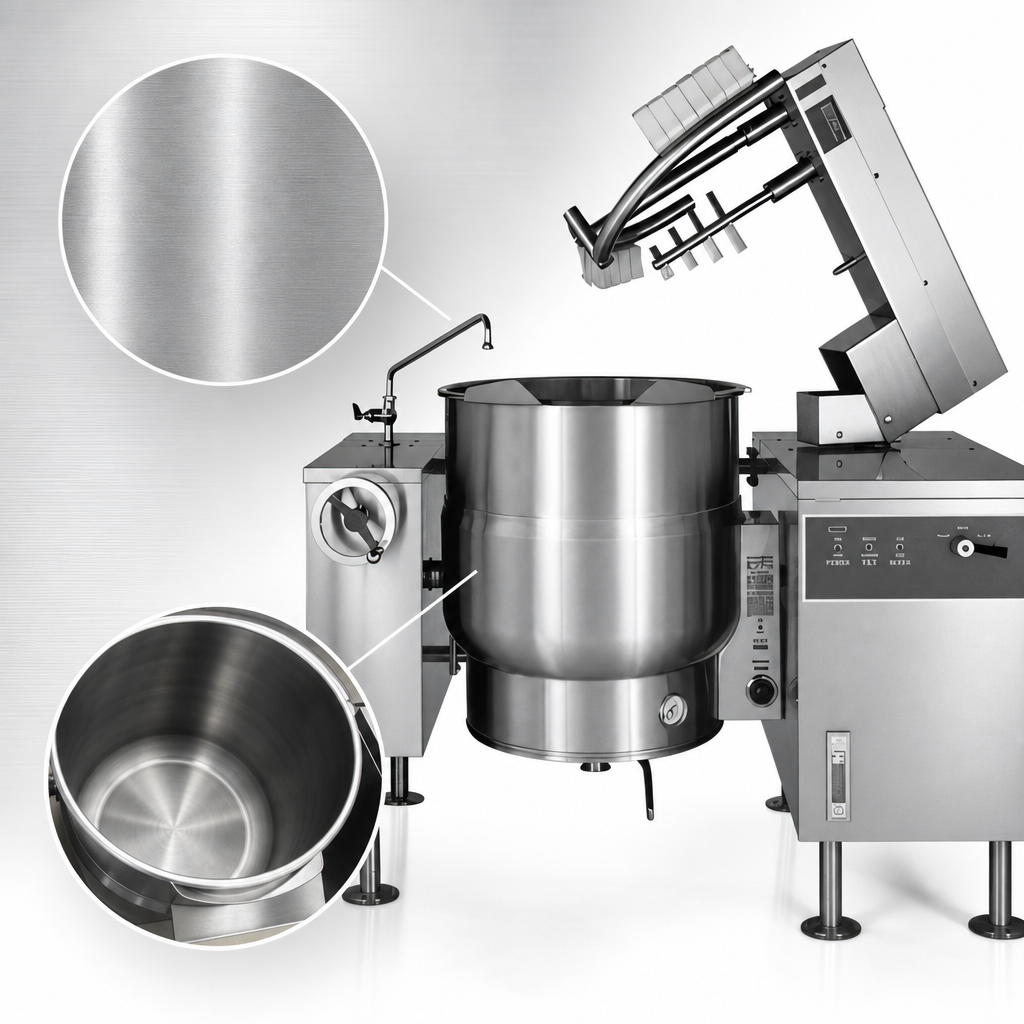

- Rock-Solid Construction – 304 SS exterior, 316 SS liner for acidic products, and tubular legs with flanged floor mounts.
- Precision Control – 5 HP variable-speed drive (infinitely adjustable) plus thermostat range of 140 °F-285 °F.
- Safe, Self-Locking Tilt – Power-tilt mechanism swings the bridge 140° and lets the kettle pour a full 90°.
- Built-In Safety – Vacuum/pressure gauge, 50 psi relief valve & low-water cutoff protect the jacket.
- Certified for the Line – cCSAus & NSF listings meet North-American sanitation and safety standards.
Technical Specifications
| Capacity | 40 gal (152 L) |
|---|---|
| Heating Source | Self-contained electric steam generator, 24 kW standard |
| Jacket Coverage | Lower 2/3 of kettle |
| Operating Pressure | Up to 50 psi (345 kPa) |
| Variable-Speed Motor | 5 HP hydraulic (scraper & high-speed agitator) |
| Electrical | 208/220/240 V, 3 Ø, 60 Hz (79.6/75.3/69 A) Other voltages available—see options |
| Controls | Main power, bridge lift, speed dial, thermostat, vacuum/pressure gauge, indicator light |
| Tilt Mechanism | Power tilt, self-locking, 90° pour angle |
| Exterior Dimensions (W × D × H) | 26 in × 55 in × 62.25 in (660 × 1397 × 1581 mm) |
| Shipping Weight | ≈ 830 lb (377 kg) |
| Clearances | 3 in (76 mm) sides • 4 in (102 mm) rear |
| Certifications | cCSAus, NSF |
| Warranty | 1 yr parts & labor • 10 yr hemispheric kettle shell |
What’s Included
- (1) 40-gal steam-jacketed kettle with 316 SS liner
- (2) Removable agitators (scraper + high-speed)
- Floor-mounted dual console supports
- Vacuum/pressure gauge & 50 psi relief valve
- Low-water cutoff & indicator
- Stainless tubular legs with adjustable flanged feet
Popular Factory Options (sold separately)
- Left or right-mounted swing-fill faucet
- 2″ or 3″ butterfly draw-off valve with strainer
- Etched gallon or litre graduations
- Two-piece lift-off cover
- Higher-output 33 kW elements & alternate voltages
Installation Note: This unit must be hard-wired by a qualified electrician and bolted to a level floor. Follow all local codes for steam-emitting equipment.
Intended for commercial use only. Specifications are subject to change without notice.
Features & Specs
Features & Specs
Manufacturer
Crown (Middleby)
Certifications
NSF, cCSAus
Height
75.63in
Width
62.25in
Depth
38.25in
Shipping Weight
830.0lbs
Jacket
2/3 jacket
Base
double console
Capacity
40 gal
Kettle Liner
316 stainless steel
Type
tilt
Specifications
Tilting Kettle/Mixer, electric, 40 gallon capacity, 2/3 steam jacket, self-locking tilt, 316 stainless steel liner, floor mounted control console supports, includes (2) removable agitators, vacuum/pressure gauge, pressure relief valve, low water shut off, 5 HP variable speed motor, 304 stainless steel construction, stainless steel tubular legs with adjustable flanged feet, cCSAus, NSF
