Crown (Middleby)  |  SKU: ELTM-40-2

Crown (Middleby) ELTM-40-2 Steam Kettles

$122,850.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Crown steam group letter Parts list Middleby financial flyer Installation & operation manual Warranty sheet
Related Searches
Steam Cooking Equipment Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

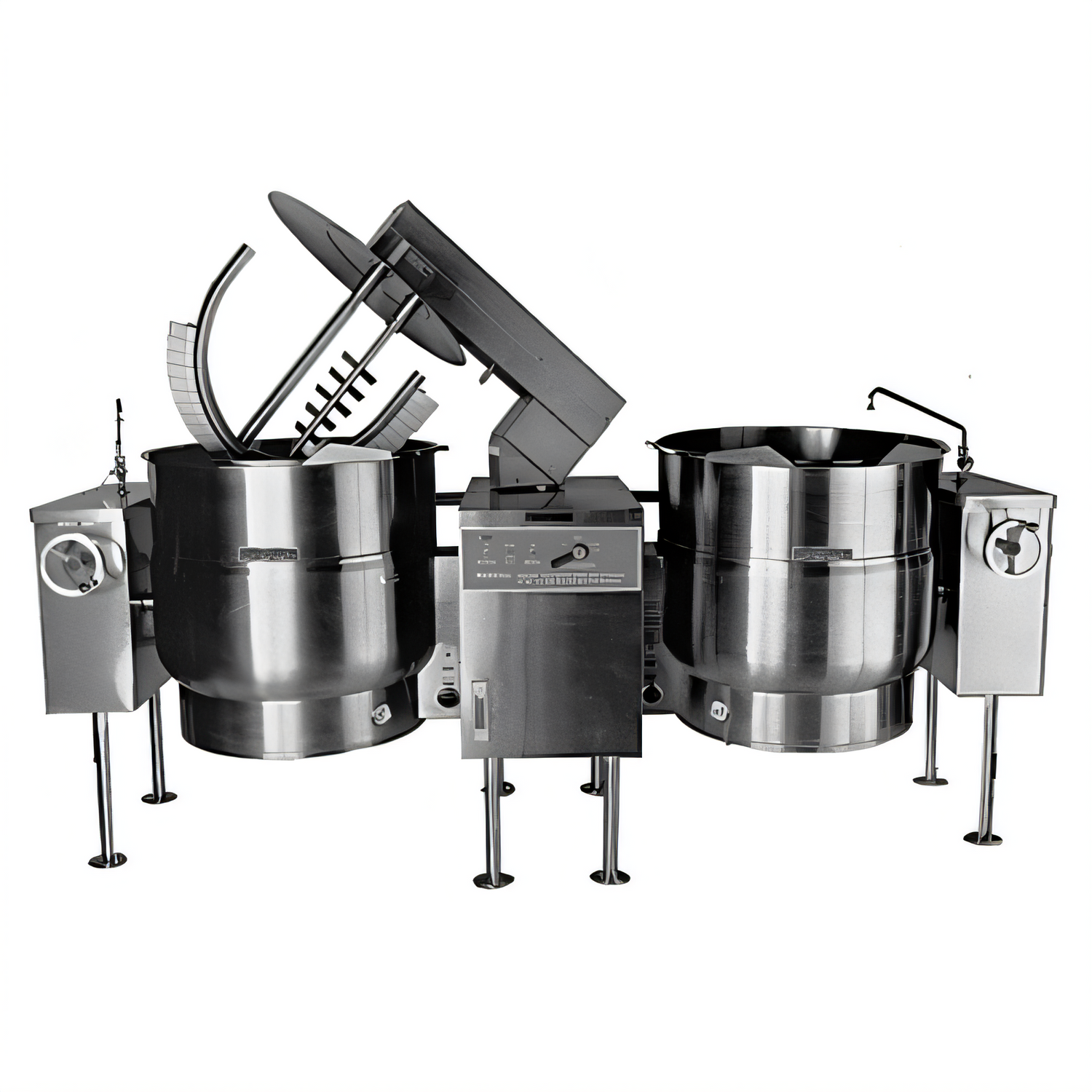

ELTM-40-2 Twin 40-Gallon Electric Tilting Mixer Kettle

by Crown Steam Group (Middleby)

Two independent 40-gallon, 2/3-jacketed kettles, an integrated 5 HP variable-speed agitator and effortless power-tilt give the ELTM-40-2 the muscle to cook, mix and pour up to 80 gallons of product with unbeatable consistency and speed.

Key advantages

  • Self-contained 24 kW steam system heats from 140 – 285 °F (60 – 140 °C) with no external boiler.
  • Twin 40 gal (151 L) kettles—batch soups, sauces, fillings or chili up to 80 gal at once.
  • 5 HP hydraulic drive delivers smooth, variable-speed mixing for perfect texture.
  • Primary stainless scraper agitator plus high-speed secondary mixer—both tool-free removable.
  • Power-tilt bridge swings 140° clear; kettles tilt a full 90° for fast, complete emptying.
  • 316 SS kettle liner resists acidic ingredients; 304 SS exterior & legs for rugged durability.
  • Vacuum/pressure gauge, low-water shut-off and 50 psi relief valve protect operator & equipment.
  • Stainless tubular legs with four-hole, flanged feet simplify secure floor mounting.
  • Certified cCSAus & NSF for immediate installation in commercial kitchens.

Operator-friendly controls

  • Main power switch & variable-speed dial on front console.
  • Mixer lift switch raises/lowers agitators with one touch.
  • Thermostat with pilot light for precise temperature control.
  • Easy-read vacuum/pressure gauge shows jacket status at a glance.
  • Low-water warning light and automatic cut-off prevent element damage.

Built for the long run

  • Hemispherical kettle bottoms maximize heat transfer and come with Crown’s 10-year hemisphere warranty.
  • All-welded satin-finish stainless construction cleans quickly and resists corrosion.
  • Removable heating elements speed service and reduce downtime.

Specifications

Model ELTM-40-2
Kettle capacity 2 × 40 gal (2 × 151 L)
Total batch capacity 80 gal (303 L)

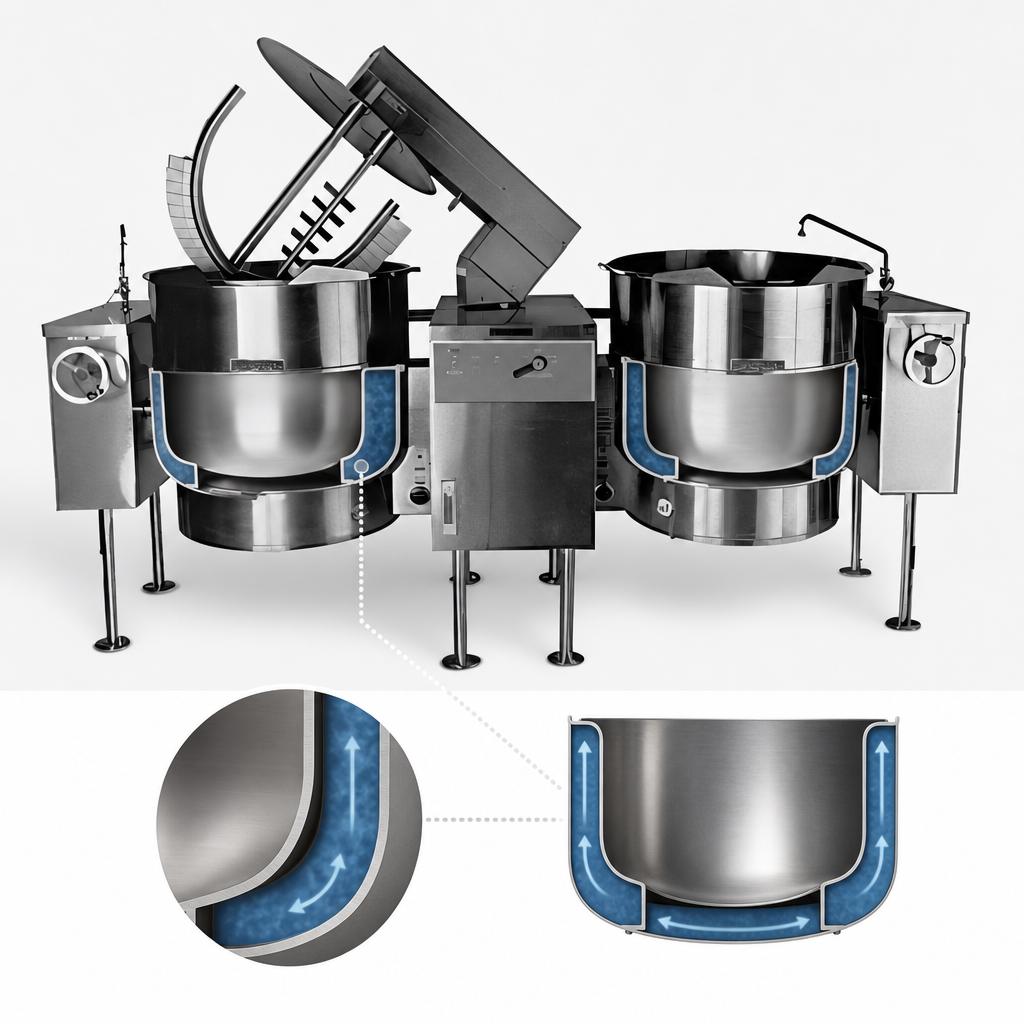

Jacket coverage 2/3, self-generating steam
Heating input 24 kW electric (removable elements)
Voltage / amps 208 V 3Φ 147 A | 240 V 3Φ 130 A | 480 V 3Φ 65 A
Motor 5 HP hydraulic, variable speed
Temperature range 140 – 285 °F (60 – 140 °C)
Working pressure 50 psi (345 kPa)
Approx. footprint (W × D × H) 102 in × 55 in × 75.6 in (2591 mm × 1397 mm × 1921 mm)
Shipping weight ≈ 1,600 lb (727 kg)
Minimum clearances 3 in sides | 4 in back
Certifications cCSAus, NSF
Standard warranty 1-year parts & labor • 10-year kettle hemisphere

Optional voltages, faucets, strainers and etched volume markings are available—ask your Crown representative for details.

Installation reminder: This appliance is intended for commercial use only and must be bolted to the floor using the supplied flanged feet. Observe the stated clearances to ensure safe operation and service access.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF, cCSAus

Height

75.63in

Width

102.0in

Depth

38.25in

Shipping Weight

1600.0lbs

Jacket

2/3 jacket

Kettle Liner

316 stainless steel

Type

tilt

Base

open leg

Kettles

(2) 40-gallon

Specifications

Tilting Kettle/Mixer, electric, (2) 40 gallon capacity, 2/3 steam jacket, 316 stainless steel liner, floor mounted control console supports, includes (2) removable agitators, vacuum/pressure gauge, pressure relief valve, low water shut off, 5 HP variable speed motor, 304 stainless steel construction, stainless steel tubular legs with adjustable flanged feet, cCSAus, NSF
