Crown (Middleby) | SKU:
ELTM-100
Crown (Middleby) ELTM-100 Steam Kettles
$113,065.50
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Crown (Middleby) ELTM-100 Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Crown (Middleby) ELTM-100 Steam Kettles
$113,065.50
Unit price
/
Unavailable
Description

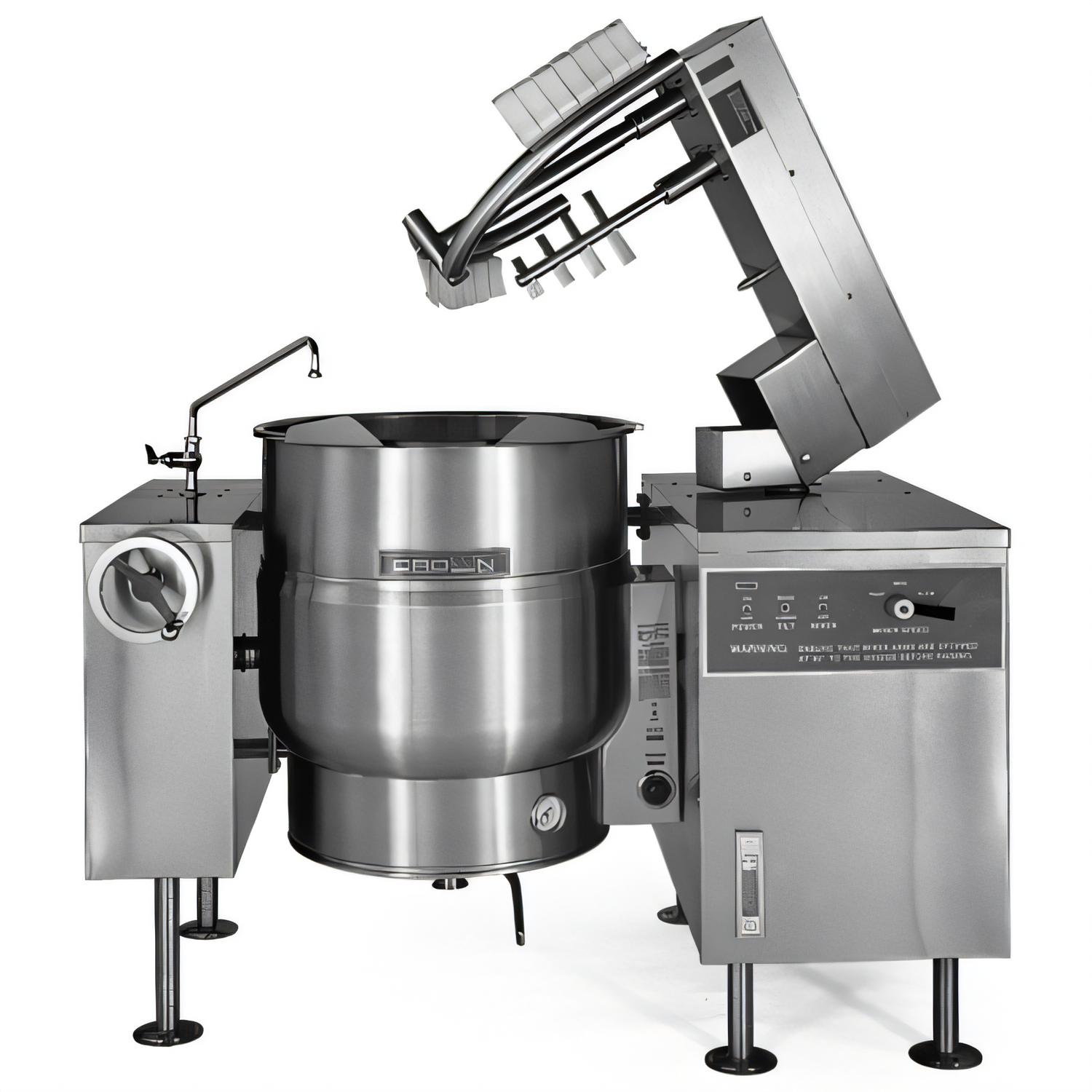

Crown ELTM-100 Electric Tilting Mixer Kettle — 100 Gal.
High-Volume Production • 2/3 Steam Jacket • 316 SS LinerThe ELTM-100 from Crown (Middleby) combines a self-generating steam jacket with heavy-duty variable-speed agitation, giving you the capacity to cook, mix and finish up to 100 gallons of product in one perfectly controlled vessel.
Key Performance Advantages
- Massive 100 gal / 380 L capacity for soups, sauces, fillings & more.

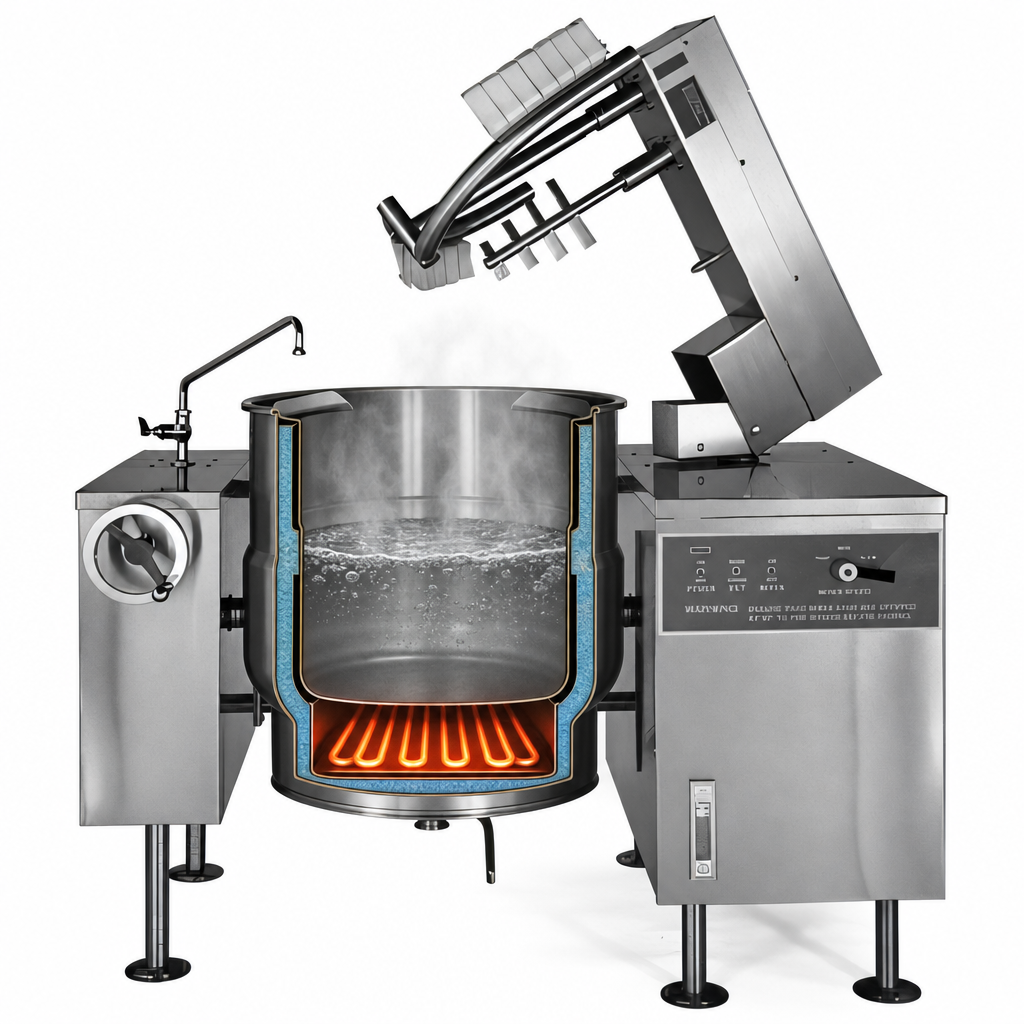

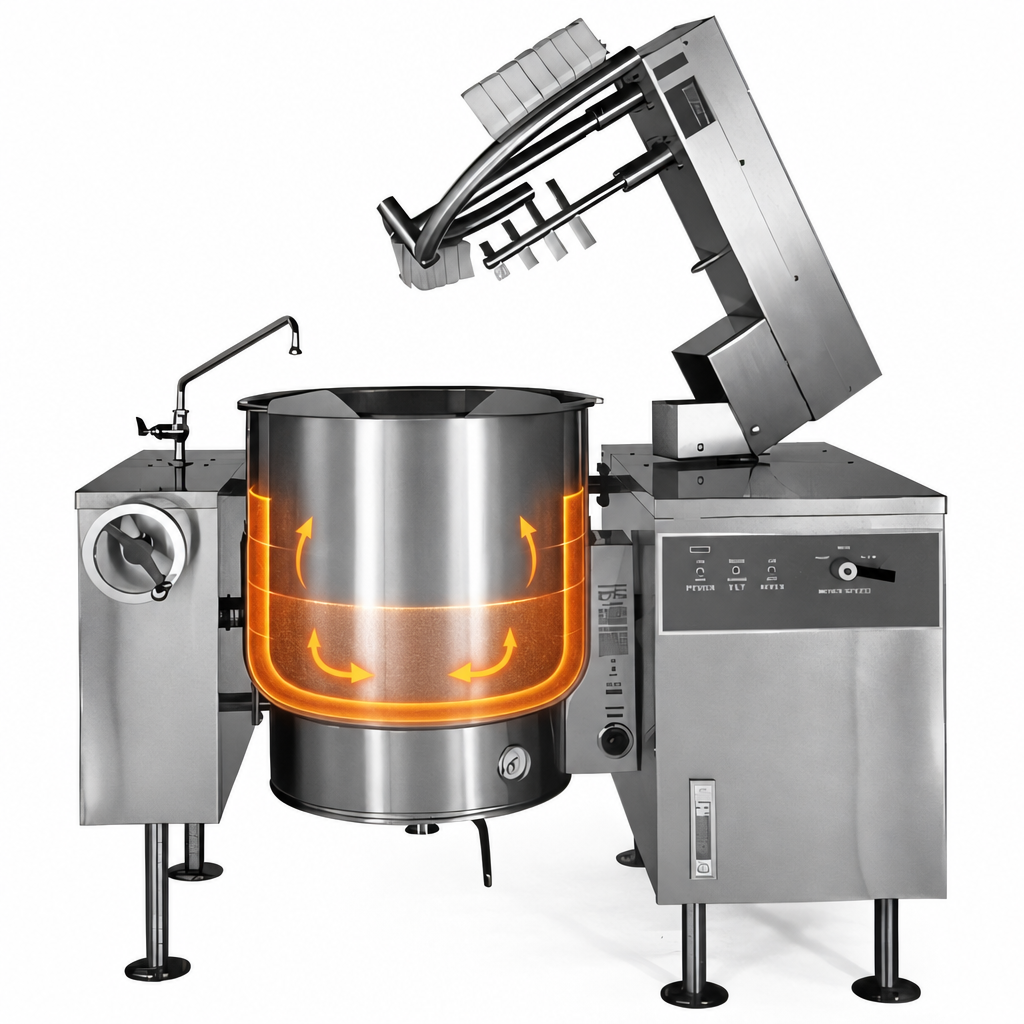

- Self-contained 2/3 steam jacket (24 kW standard, 33 kW optional) — no external boiler required.
- Hemispheric bottom and 316 SS liner deliver rapid, even heating and resist acidic ingredients.
- Two removable agitators (scraper & high-speed mixer) powered by a rugged 5 HP hydraulic motor.
- Tool-less agitator removal speeds change-overs and sanitation.
- Power bridge swings 140° clear; sealed, self-locking tilt mechanism dumps a full 90° for complete emptying.
- Floor-mounted control console with main power, bridge lift and variable-speed dial.
- Integrated safety suite: vacuum/pressure gauge, 50 psi relief valve, low-water cut-off & indicator lights.
- 304 SS exterior, tubular legs and adjustable flanged feet withstand daily wash-downs.
- Certified cCSAus & NSF — ready for code-compliant installation.
Operator-Friendly Controls
- Main power rocker switch
- Bridge lift switch for instant agitator access
- Variable-speed control (0–100 %)
- Thermostat range : 140 °F – 285 °F (60 °C – 140 °C)
Technical Specifications
| Model | ELTM-100 |
|---|---|
| Capacity | 100 gal | 380 L |
| Kettle Liner | 316 Stainless Steel |
| Exterior / Frame | 304 Stainless Steel, satin finish |
| Jacket Coverage | Lower 2/3, electric self-generating steam |
| Heating Power | 24 kW standard (33 kW optional) |
| Electrical | 208 or 240 V, 3 ph, 60 Hz (380-600 V options available) |
| Agitator Drive | 5 HP variable-speed hydraulic motor |
| Tilt | 90° forward dump, self-locking — bridge swings 140° |
| Max Jacket Pressure | 50 psi (345 kPa) |
| Thermostat Range | 140 °F – 285 °F (60 °C – 140 °C) |
| Shipping Weight | ≈ 1295 lb (588 kg) |
| Overall Dimensions (W×D×H) | 35.5″ × 71.5″ × 58.5″ (902 × 1816 × 1486 mm) |
| Minimum Clearances | Sides 3″ (76 mm) | Back 4″ (102 mm) |
| Certifications | cCSAus, NSF |
Popular Factory Options (sold separately)
- Swing-arm fill faucet (left or right console)
- 2″ or 3″ butterfly dump valve with strainer
- Etched gallon or litre markings
- Two-piece lift-off cover
- Kettle heat shield
Installation Note: Unit must be bolted to a suitable floor surface and connected to utilities that
match the data-plate ratings. Commercial use only.
Warranty : 1 year parts & labor plus a 10-year hemispherical shell warranty. Ask about Middleby equipment financing to keep your cash-flow cooking.
Features & Specs
Features & Specs
Manufacturer
Crown (Middleby)
Certifications
NSF, cCSAus
Height
85.0in
Width
71.5in
Depth
38.25in
Shipping Weight
1295.0lbs
Base
double console
Jacket
2/3 jacket
Capacity
100 gal
Type
tilt
Kettle Liner
316 stainless steel
Specifications
Tilting Kettle/Mixer, electric, 100 gallon capacity, 2/3 steam jacket, self-locking tilt, 316 stainless steel liner, floor mounted control console supports, includes (2) removable agitators, vacuum/pressure gauge, pressure relief valve, low water shut off, 5 HP variable speed motor, 304 stainless steel construction, stainless steel tubular legs with adjustable flanged feet, cCSAus, NSF
