Crown (Middleby) ELTM-100-2 Steam Kettles
Description

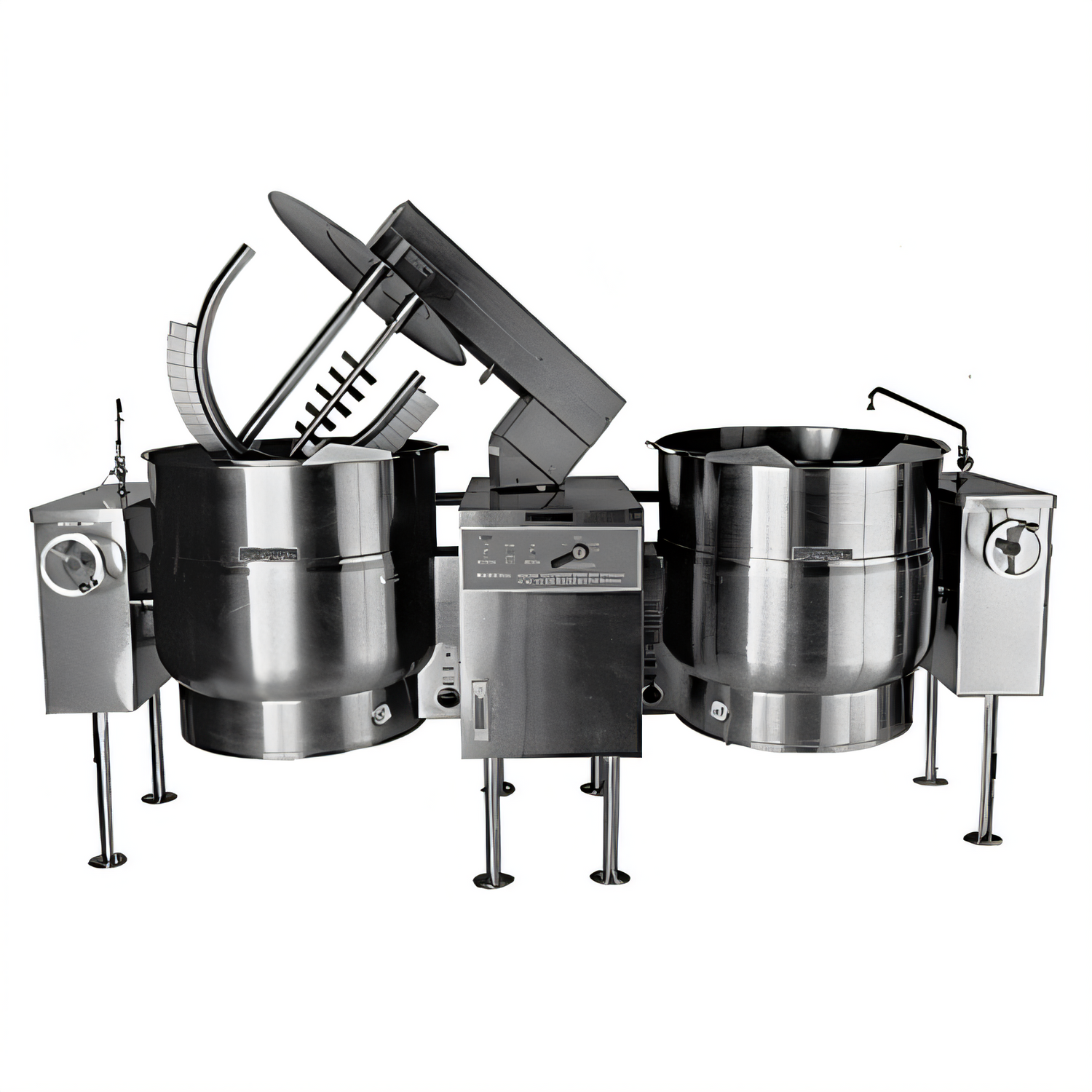

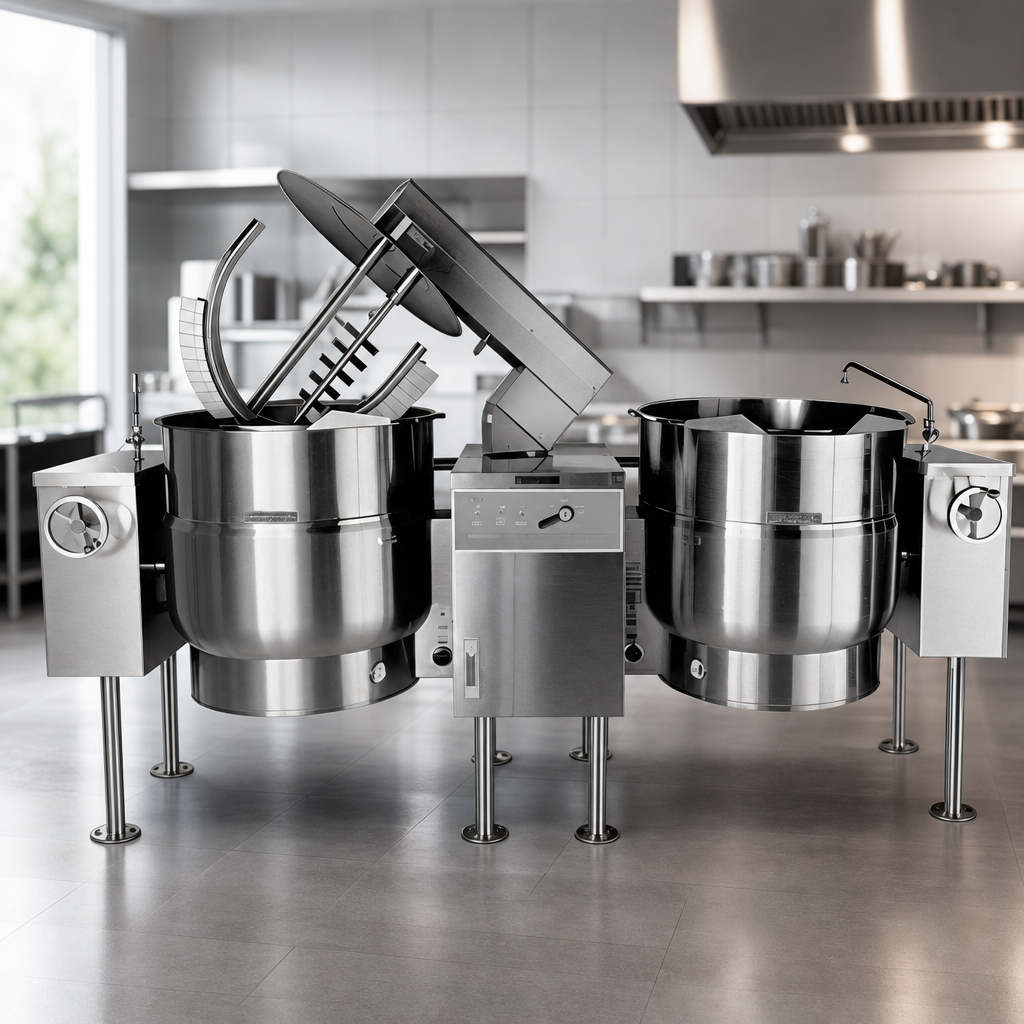

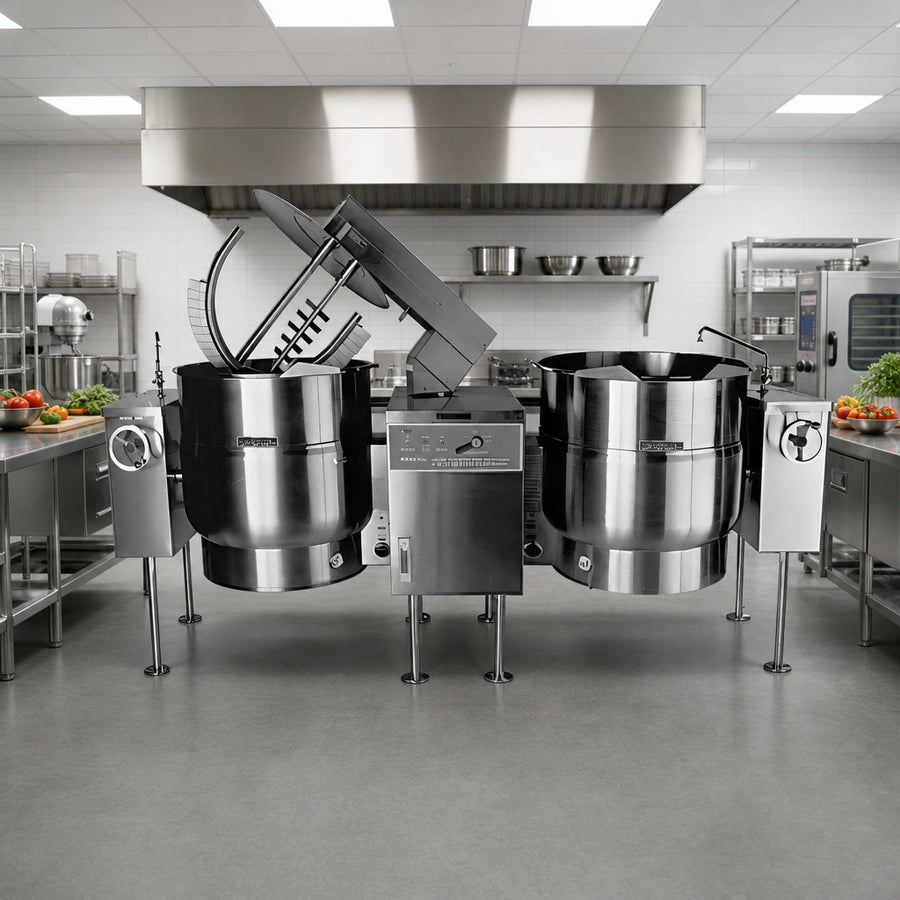

Crown ELTM-100-2 Twin 100-Gallon Electric Tilting Mixer Kettles
2 × 100 gal (2 × 380 L) • Self-generating steam • cCSAus & NSF listedBuilt for the highest-volume kitchens, the Crown ELTM-100-2 combines two full-size 100-gallon kettles with a heavy-duty 5 HP variable-speed mixer. From creamy soups and savory sauces to chili, pie fillings and delicate custards, this all-in-one powerhouse delivers repeatable results while slashing labor and clean-up time.
Why It Belongs in Your Cookline
- Twin 100-gallon hemispheric kettles give you 200 gallons of simultaneous batch capacity.

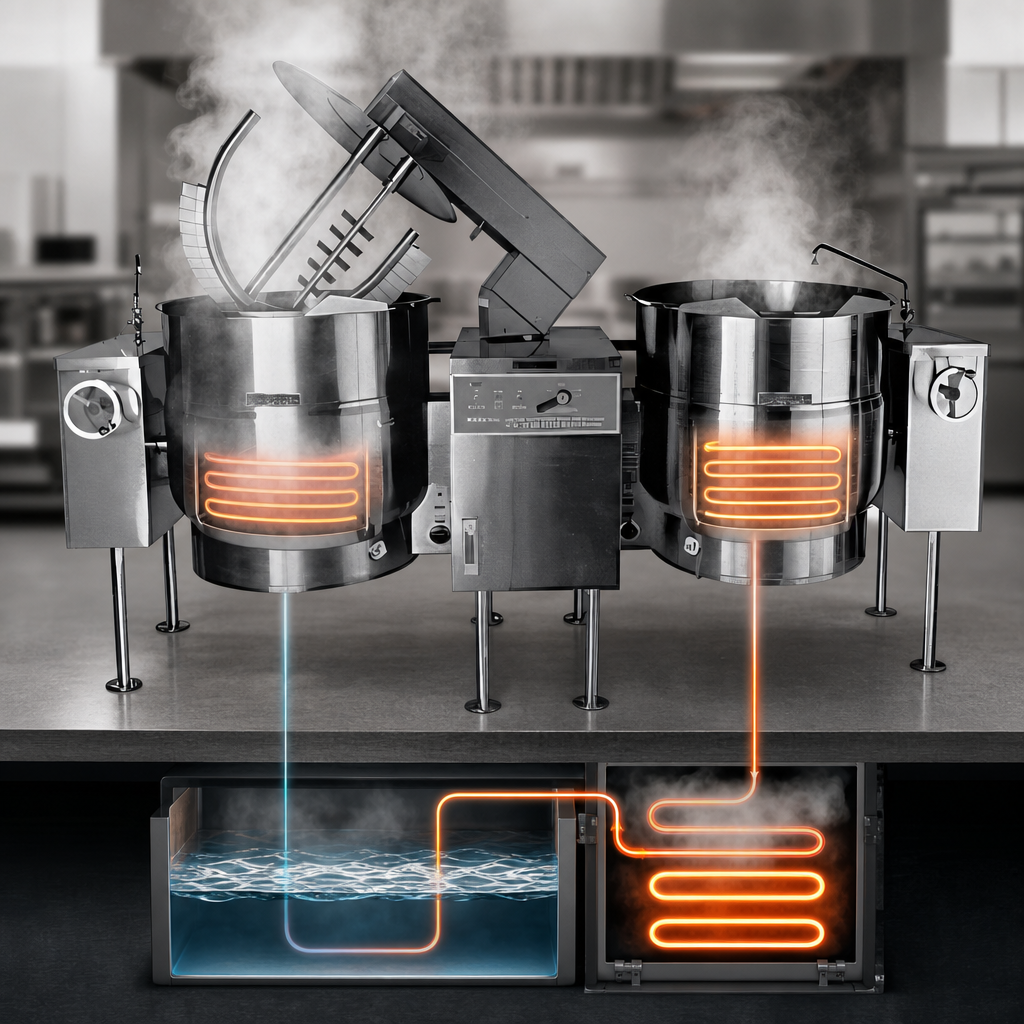

- Self-generating closed steam system with a 2/3 jacket for fast, even heating up to 285 °F (140 °C).
- 316 SS kettle liner resists acidic recipes; 304 SS exterior wipes clean and keeps its shine.
- 5 HP variable-speed hydraulic drive (scraper & high-speed agitator) handles everything from gentle risottos to stiff mashed potatoes.
- Tool-free removable agitators for effortless sanitation.
- Sealed stainless tilt mechanism locks securely and tilts a full 90° for complete emptying.
- Power-tilt bridge swings 140° out of the way for kettle cleaning or servicing.
- Integrated controls: main power, thermostat, mixer lift & speed, vacuum/pressure gauge, low-water indicator.
- Stainless tubular legs with adjustable flanged feet bolt directly to the floor for rock-solid stability.
- Certified to cCSAus for electrical & sanitation and NSF for food safety.
At-a-Glance Specifications
| Model | ELTM-100-2 |
|---|---|
| Capacity | 2 × 100 gal | 2 × 380 L |
| Kettle Interior | 316 stainless steel, hemispheric bottom, 2/3 steam jacket |
| Exterior Construction | All-welded 304 stainless steel, satin finish |
| Heating & Steam | Self-contained electric steam, 33 kW elements (removable) |
| Thermostat Range | 140 °F – 285 °F (60 °C – 140 °C) |
| Maximum Jacket Pressure | 50 psi (345 kPa) – relief valve & vacuum/pressure gauge included |
| Mixer Drive | 5 HP motor, variable speed hydraulic pump |
| Electrical (Standard) |
208 V / 3 ph / 60 Hz – 33 kW – 197.4 A 240 V / 3 ph / 60 Hz – 33 kW – 172.8 A 480 V / 3 ph / 60 Hz – 33 kW – 86.4 A (Other voltages available) |
| Overall Dimensions (W × D × H) | 121 in × 49 in × 85 in H (3073 mm × 1245 mm × 2159 mm) |
| Shipping Weight | 2,150 lb (975 kg) |
| Minimum Clearance | 3 in sides • 4 in back |
| Certifications | cCSAus, NSF, 10-year hemisphere kettle warranty |
What’s Included
- (2) 100-gallon tilting kettles with 316 SS liner
- 5 HP variable-speed mixer drive
- (1) Stainless scraper agitator
- (1) High-speed secondary agitator
- Vacuum/pressure gauge & 50 psi relief valve
- Low-water cut-off safety
- Floor-mounted control console with lift & speed controls
- Stainless legs with adjustable flanged feet
- Operator’s manual & 1-year parts & labor warranty
Hemisphere kettle body carries a 10-year warranty; complete unit covered 1-year parts & labor when installed by a Crown-authorized service agency.
