Crown (Middleby) ELT-80 Steam Kettles
Description

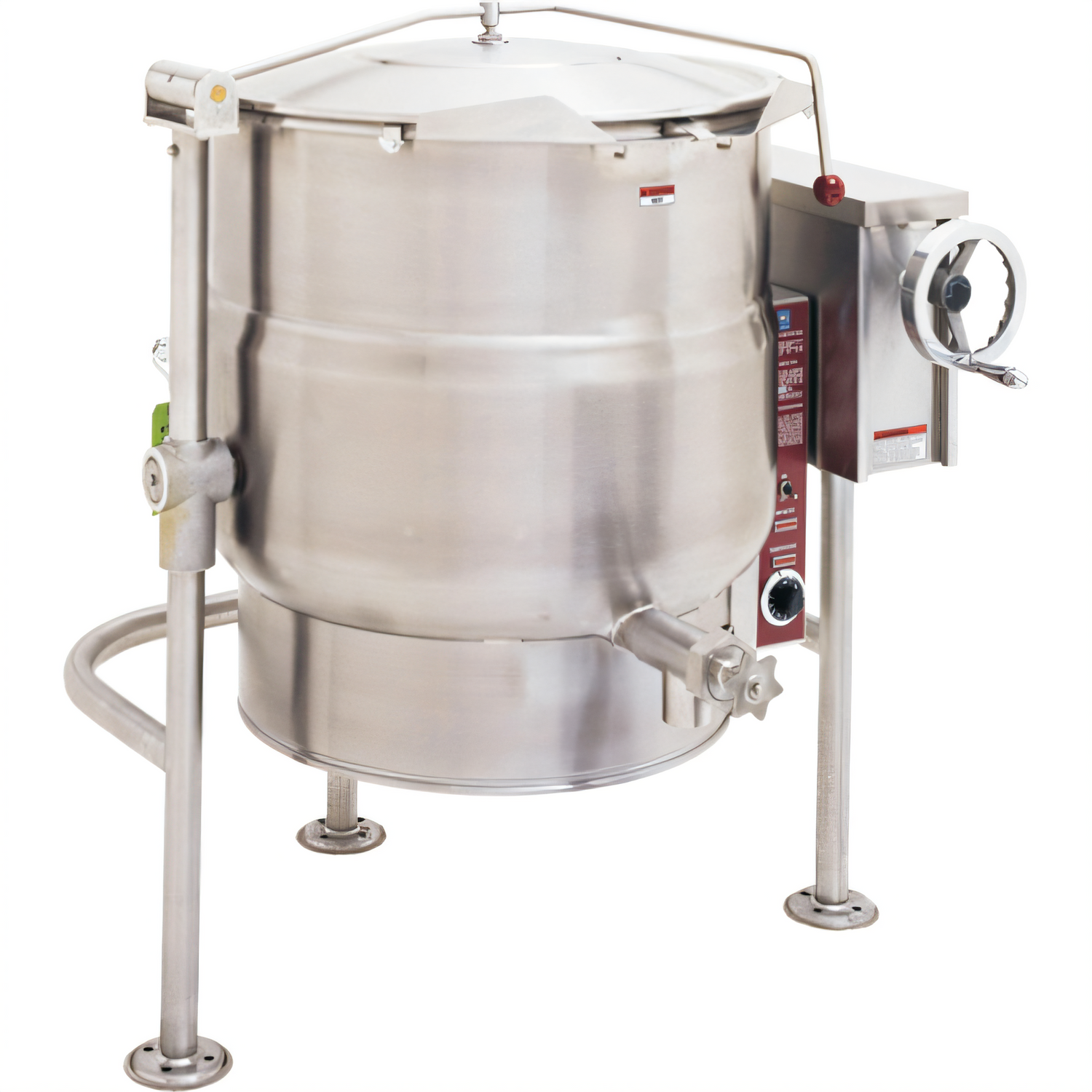

Crown ELT-80 Electric Steam Tilting Kettle
80 Gallon / 303 L • Self-Generating Closed Steam SystemBuilt for high-volume production, the Crown ELT-80 combines the speed of a 50 psi steam jacket with the simplicity of electric power. Its 316 stainless interior stands up to acidic ingredients, while the smooth crank-tilt mechanism lets one operator pour up to 80 gallons of product with absolute control.
Performance & Construction Highlights
- 80 gal (303 L) working capacity—ideal for soups, sauces, stocks & pasta water.
- 2/3-jacketed, self-contained steam system (no external boiler) factory-sealed with distilled water.
- Operates up to 50 psi; thermostatically regulated from 165 °F – 285 °F (74 °C – 140 °C).
- 316 stainless steel liner for superior corrosion resistance in high-acid cooking.

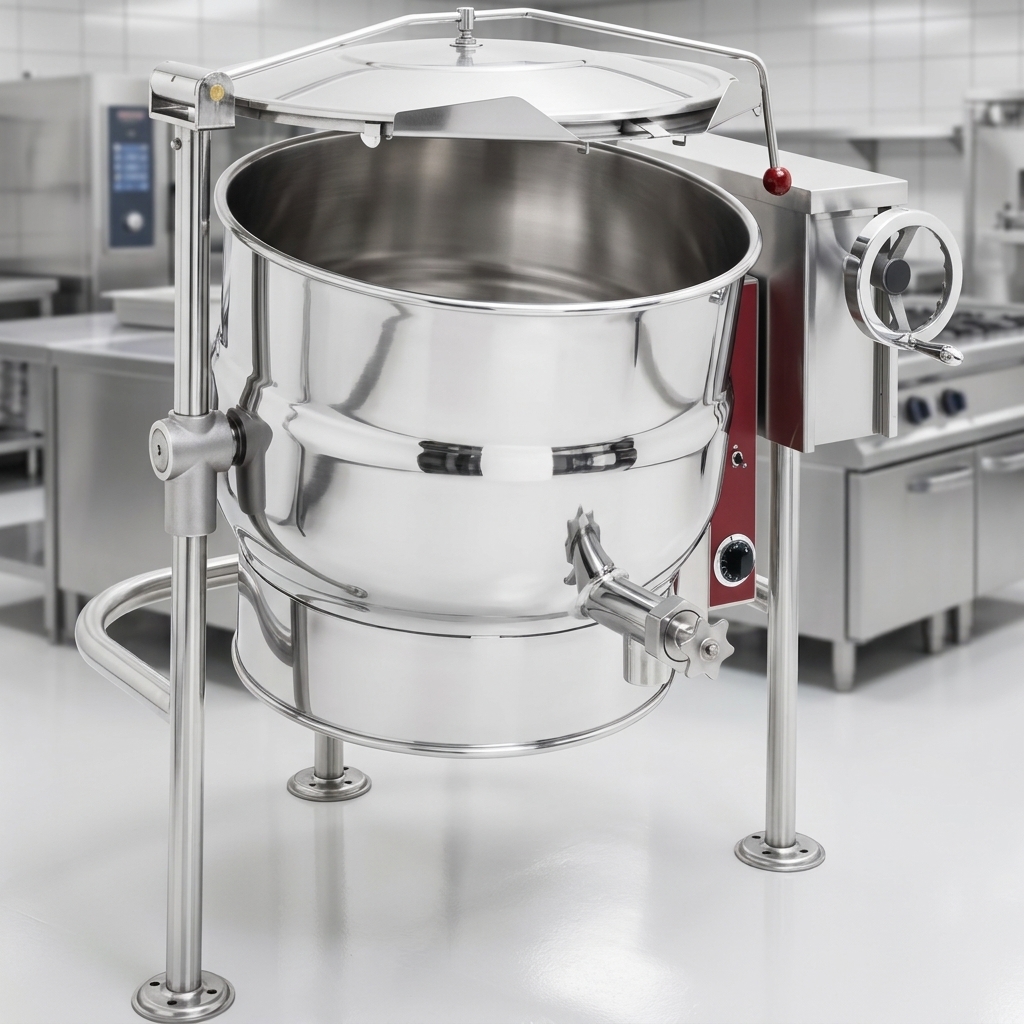

- All-welded 304 stainless exterior with sanitary #4 finish.

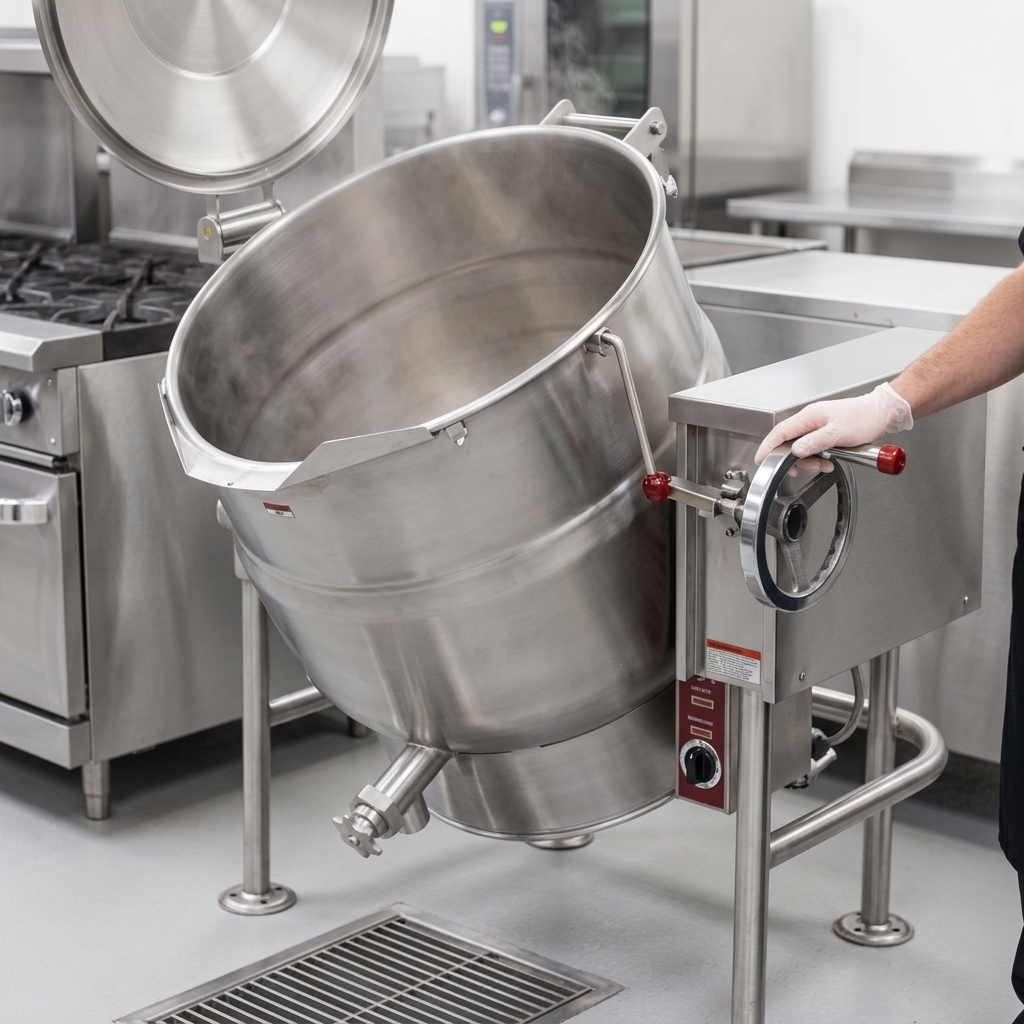

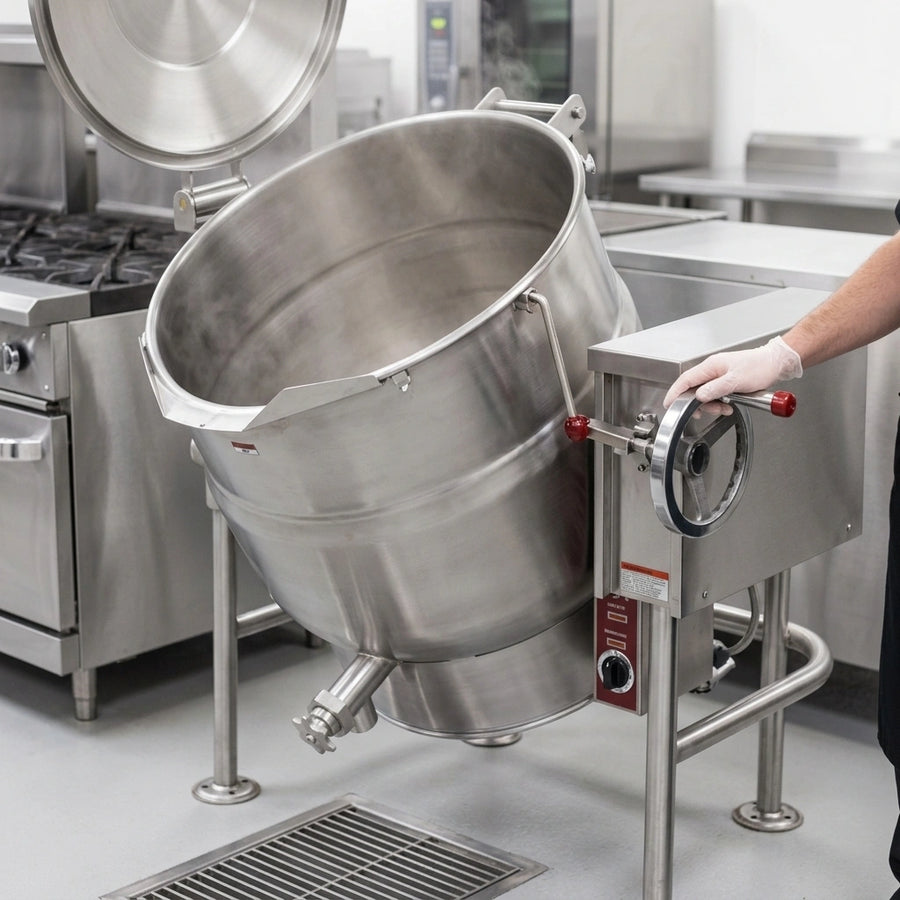

- Manual crank tilt with worm & segment gearing and self-locking positive stop—tilts a full 90° for complete emptying.

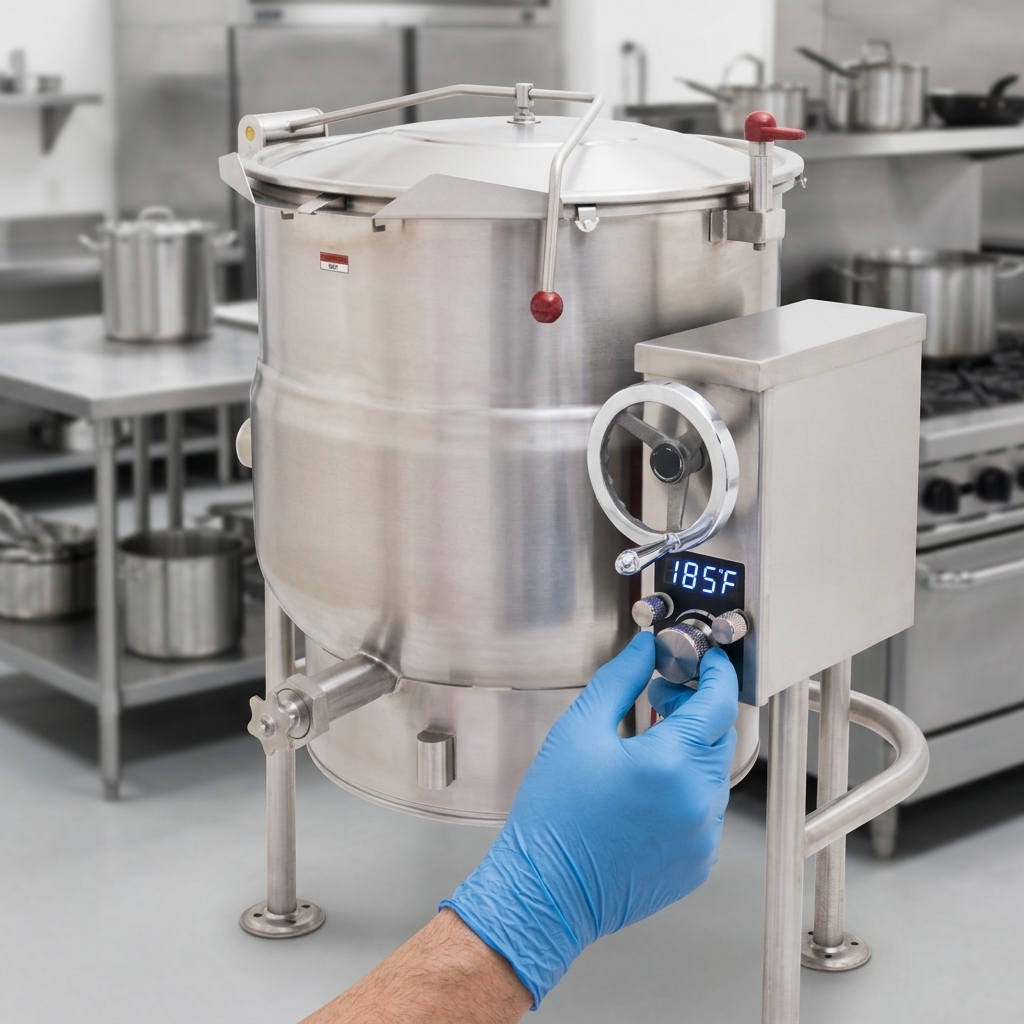

- Drip-proof stainless console with power switch, thermostat dial, pilot lights, low-water safety, vacuum/pressure gauge & 50 psi relief valve.
- Standard faucet mounting bracket—add a swing spout faucet without field fabrication.
- Tri-leg base with two rear support legs; 1-5/8″ (41 mm) stainless pipe & flanged adjustable feet ready for floor anchoring.
- Removable incoloy heating elements for quick service access.
- cCSAus & NSF certified for commercial kitchens.
Specification Sheet
| Model | ELT-80 |
|---|---|
| Capacity | 80 gal / 303 L |
| Jacket Coverage | Lower 2/3 of kettle body |
| Operating Pressure | 50 psi (345 kPa) |
| Temperature Range | 165 °F – 285 °F (74 °C – 140 °C) |
| Standard Electrical | 18 kW, 208–240 V, 3-phase (other voltages available) |
| Optional Electrical | 24 kW or 33 kW heater packages; 380–600 V configurations |
| Exterior Dimensions (W × D × H) | 33″ × 45″ × 48″ (838 × 1143 × 1219 mm) |
| Shipping Weight | 520 lb / 236 kg |
| Tilt Type | Hand crank, worm & gear, self-locking |
| Interior Material | 316 SS |
| Exterior Material | 304 SS |
| Mounting | Tri-leg base with flanged adjustable feet |
| Certifications | NSF, cCSAus |
Popular Factory Options
- Spring-assist hinged stainless cover
- 2″ or 3″ sanitary draw-off valves with perforated strainer
- Single or double pantry faucets (18″ swing spout) with or without rinse spray hose
- Etched gallon or litre markings & contoured measuring strip
- Pour-lip strainer, pan supports & triple basket assembly
- 24 kW or 33 kW heavy-duty element upgrades
Looking for a different size? The ELT series is available from 20 – 100 gallons with the same rugged construction and control package.
