Crown (Middleby) ELT-60F Steam Kettles
Description

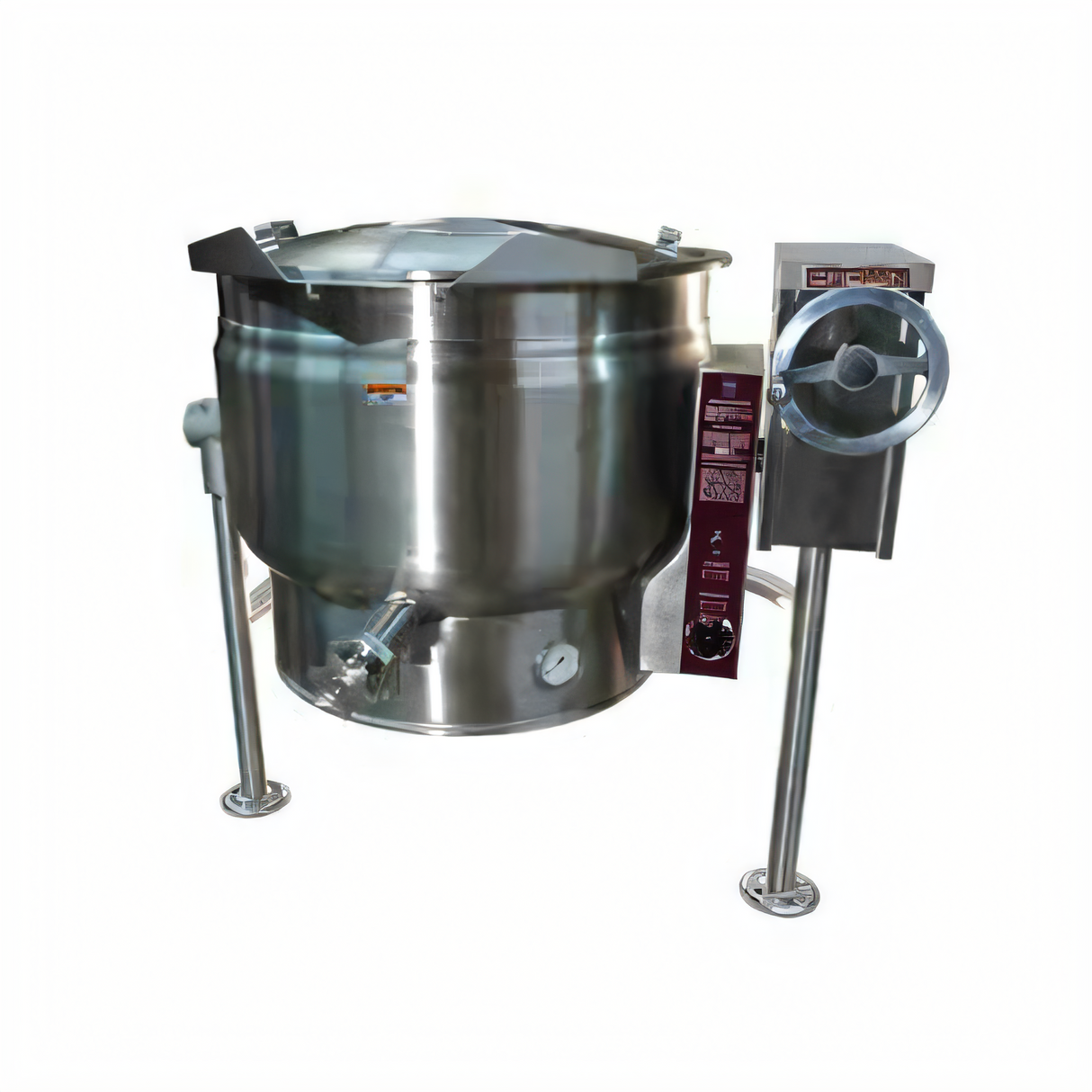

Crown ELT-60F 60-Gallon Full-Jacket Electric Tilting Kettle

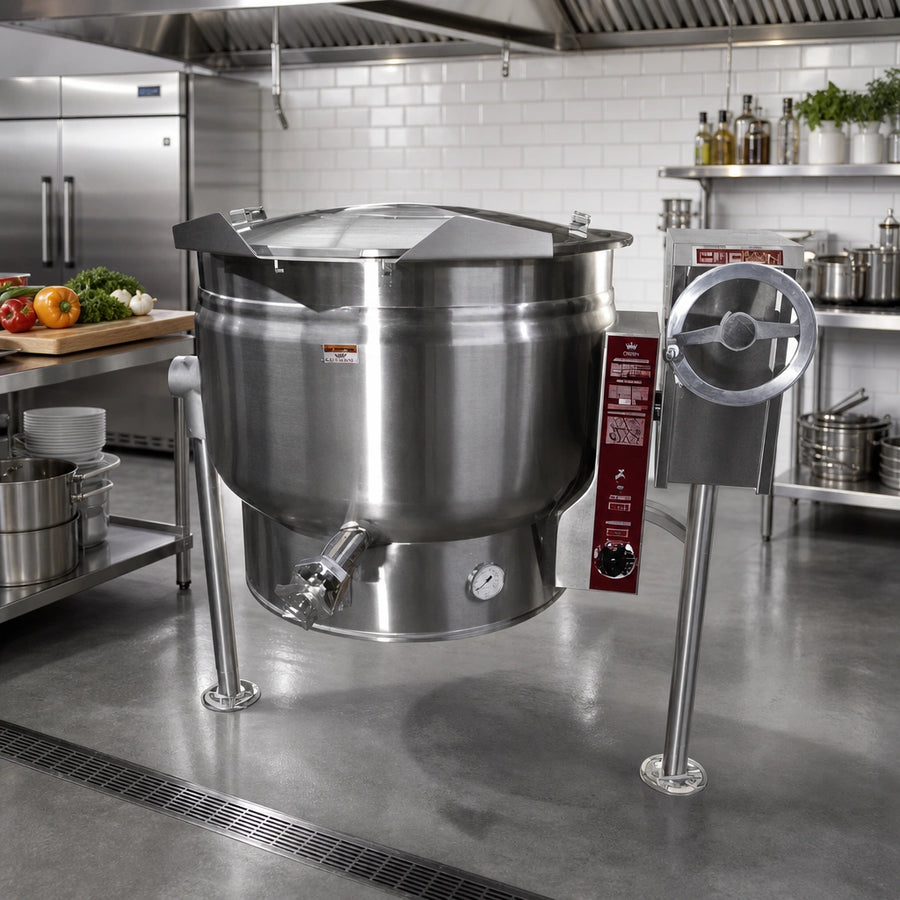

Self-contained steam power for high-volume productionEngineered for busy commercial kitchens, the Crown ELT-60F delivers 60 gallons of consistent, steam-jacketed cooking without the need for an external boiler. From soups and sauces to pasta, chili and custards, this floor-mounted workhorse combines rapid heat-up, precise control and effortless tilting to streamline every large-batch recipe.
Performance & Construction Highlights

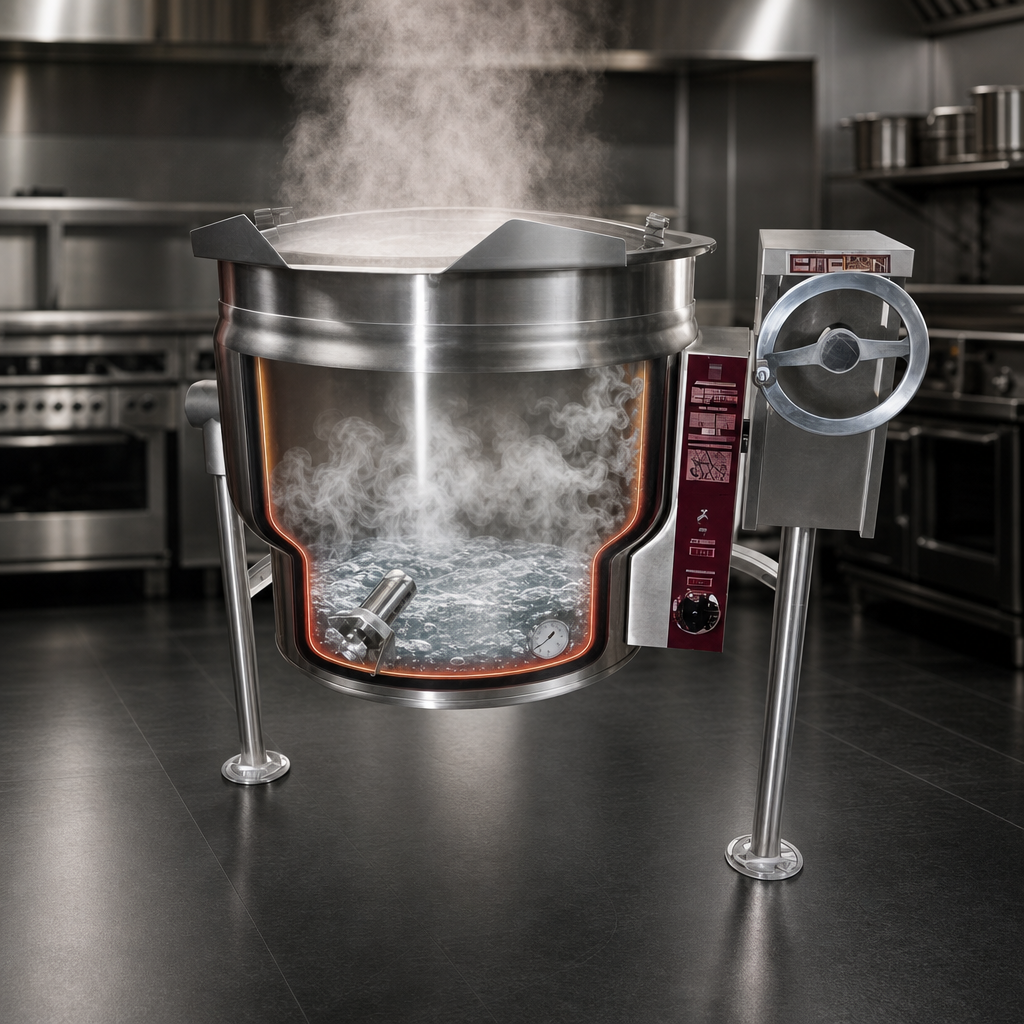

- Self-generating closed steam jacket—50 psi operating pressure, 165–285 °F (74–140 °C) temperature range.
- 316 stainless steel liner resists acidic foods; 304 stainless steel exterior with sanitary #4 finish.
- Hemispherical bottom promotes superior heat circulation and easy cleaning.
- Hand-crank tilt with self-locking positive stop allows a smooth, full 90° pour.
- Integrated control console: power switch, thermostat dial, pilot & low-water lights, pressure/vacuum gauge and automatic low-water shut-off.

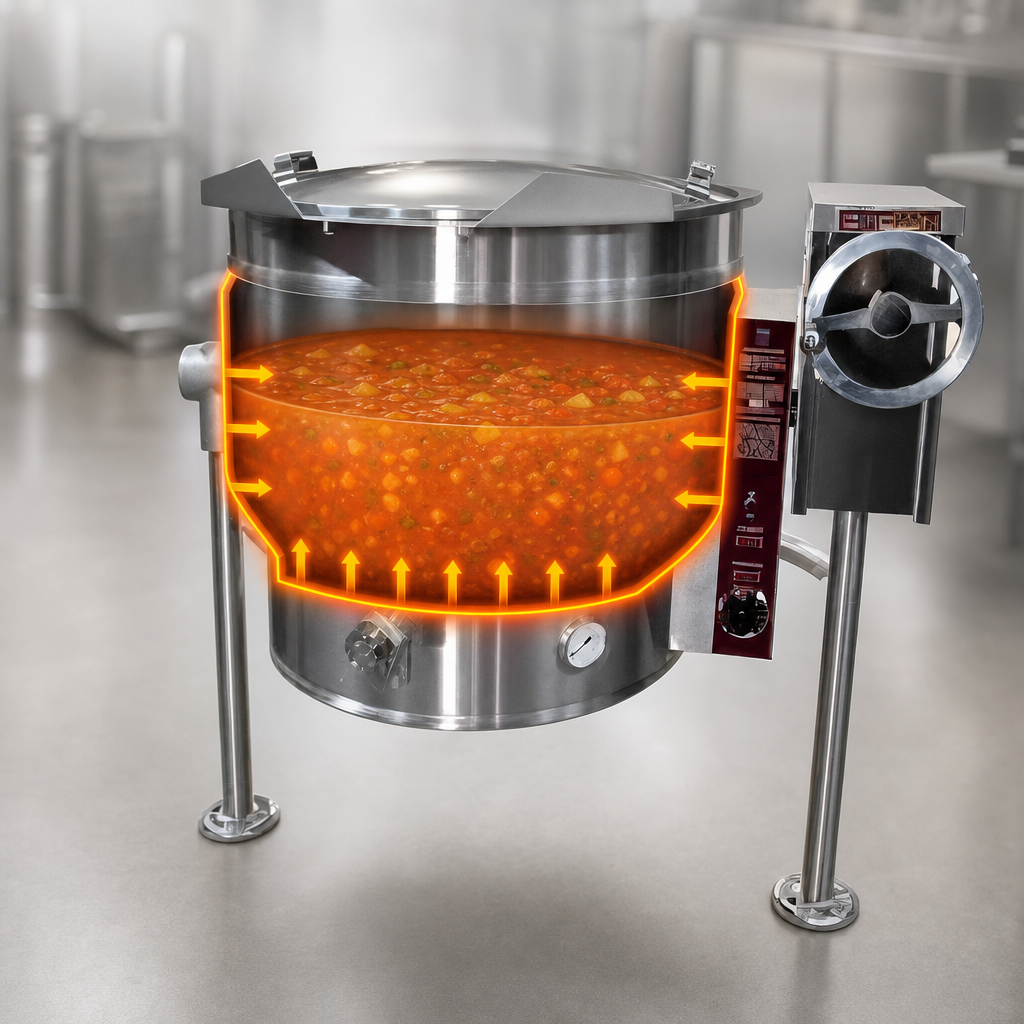

- Full jacket design eliminates hot spots and scorching.
- Tri-leg base with two rear support legs and adjustable flanged feet—leveled and bolted down in minutes.
- Factory-sealed jacket (distilled water) with removable heating elements for simplified service.
- Faucet mounting bracket included—add a single or double pantry faucet for fast fills and rinse-downs.
- NSF listed and cCSAus certified for sanitation and electrical safety.
Technical Specifications
| Model | ELT-60F |
|---|---|
| Nominal Capacity | 60 gal / 227 L |
| Heating Power | Standard 24 kW | Optional 33 kW |
| Electrical Supply (3 Ø) | 208, 220, 240, 380/220, 415/240, 480 or 600 V, 50/60 Hz |
| Amps @ 24 kW | 208 V – 91.6 A | 240 V – 79.4 A | 480 V – 39.7 A |
| Operating Pressure | 50 psi (345 kPa) maximum |
| Temperature Range | 165 – 285 °F (74 – 140 °C) |
| Exterior Dimensions | 35.5″ W × 39.25″ D × 50″ H (902 × 997 × 1270 mm) |
| Height, Tilted | 79.5″ (2019 mm) |
| Shipping Weight | ≈ 610 lb / 277 kg |
| Certifications | NSF, cCSAus |
Optional Factory Accessories
- 2″ or 3″ tangent draw-off valves with perforated or solid strainers.
- Single or double pantry faucets with 18″ swing spout—optional 68″ rinse-hose assemblies.
- Spring-assist hinged stainless-steel cover or one-piece lift-off cover.
- Etched gallon or litre graduations for quick, accurate batching.
- Kettle heat shield, contoured measuring strip, pan supports and basket kits.
Need another size? Crown ELT-F kettles are also available in 20, 30 and 40 gallon capacities.
