Crown (Middleby)  |  SKU: ELT-40

Crown (Middleby) ELT-40 Steam Kettles

$28,088.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation manual Parts list Middleby financial flyer Crown steam group letter Warranty sheet
Related Searches
Steam Cooking Equipment Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

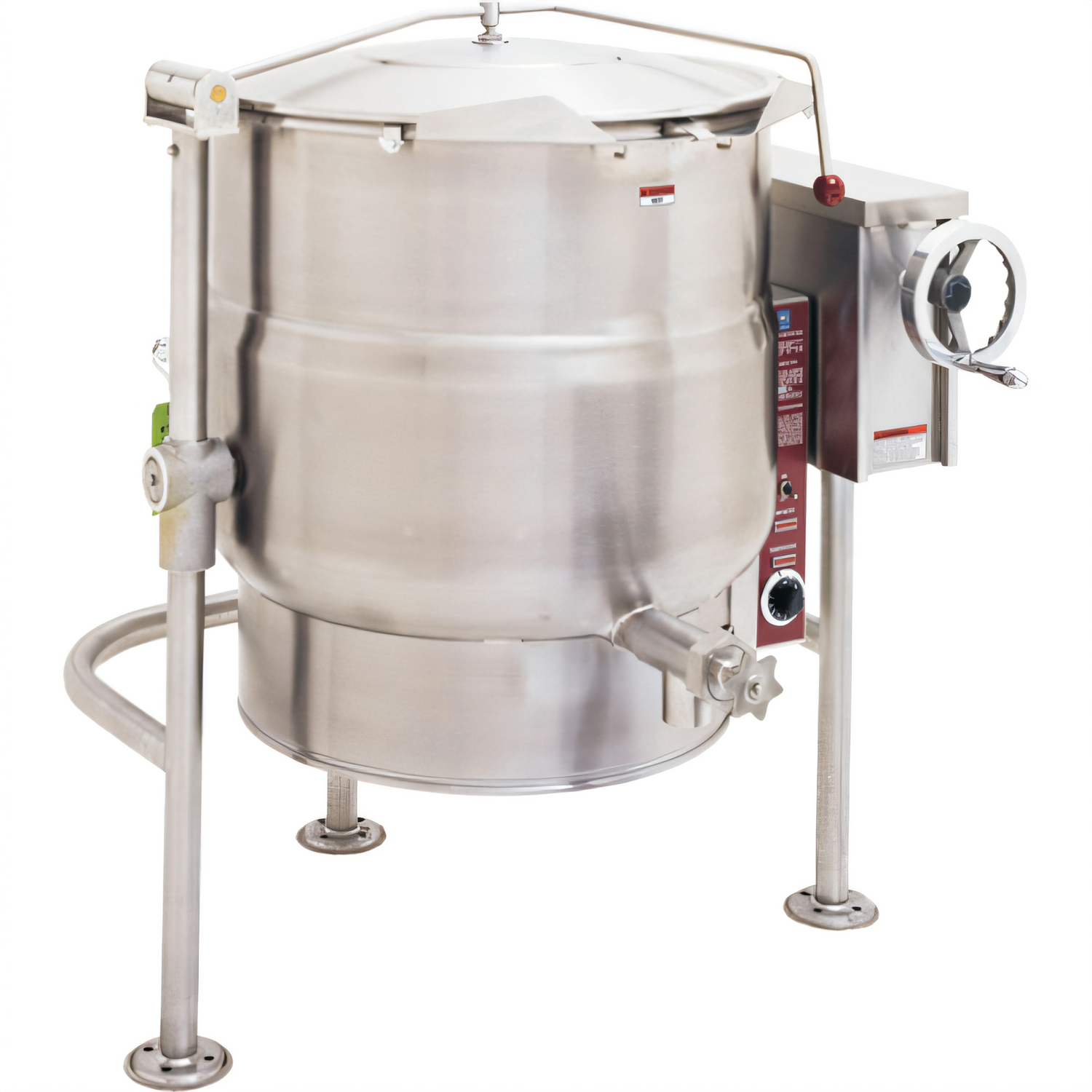

Crown ELT-40 40-Gallon Electric Tilting Kettle

Self-Generating Steam • 2/3 Jacket • Tri-Leg Base

Produce high-volume soups, sauces, pastas and more with the reliability of steam-jacketed cooking—no external boiler needed. The Crown ELT-40 delivers 40 gallons of even, controllable heat, then pours every ounce out smoothly with its self-locking crank tilt.

Key Features

  • 40-gallon (152 L) capacity—yields 250+ 8 oz portions per batch.
  • Electric, self-contained steam system operates at 50 psi (closed loop, factory-sealed).
  • 2/3-jacket coverage for rapid, uniform heating with zero hot spots.
  • 316 SS interior liner resists acid attack from tomato, citrus and wine-based recipes.
  • 304 SS exterior with sanitary #4 finish for easy wipe-down and long life.

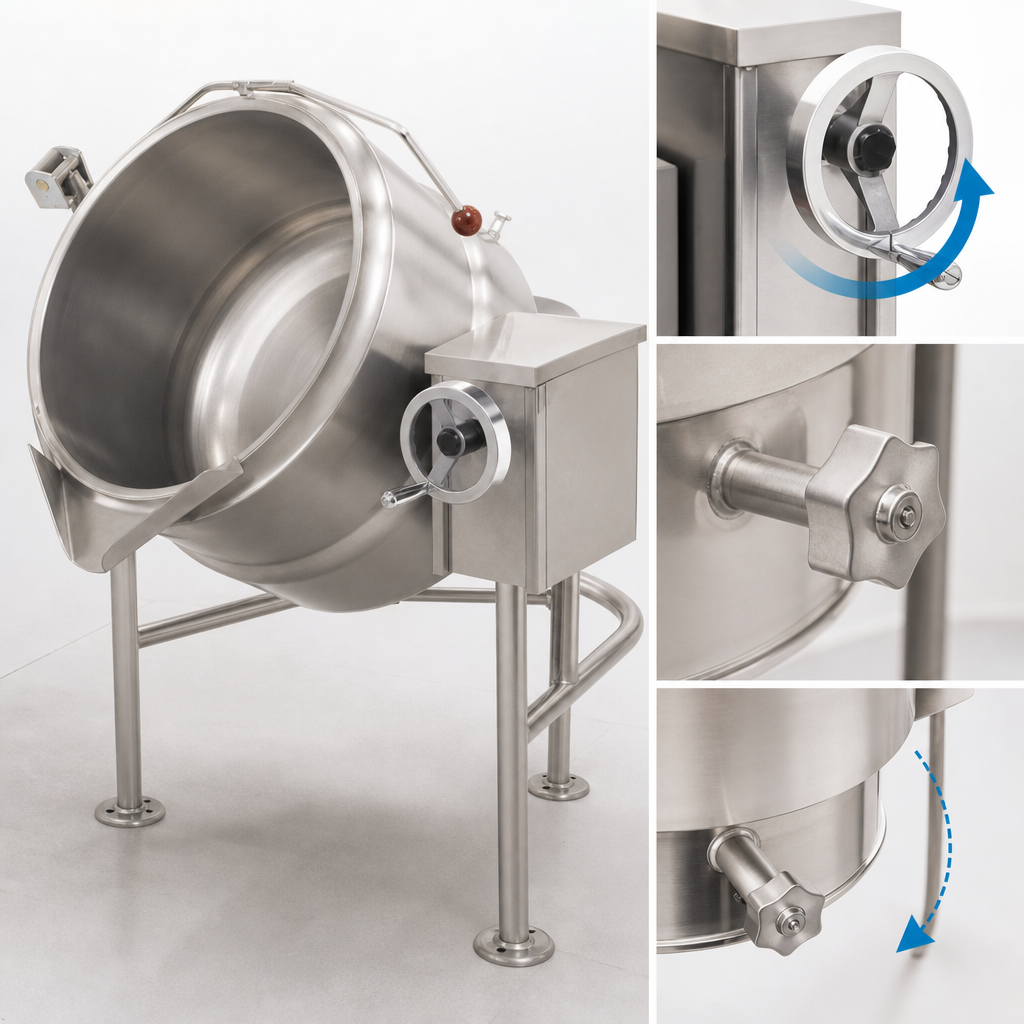

  • Manual crank tilt with self-locking positive stop—pivots a full 90° for complete emptying.
  • Tri-leg base with 1 5⁄8″ Ø stainless legs and adjustable flanged feet for secure floor anchoring.
  • Integrated control console:

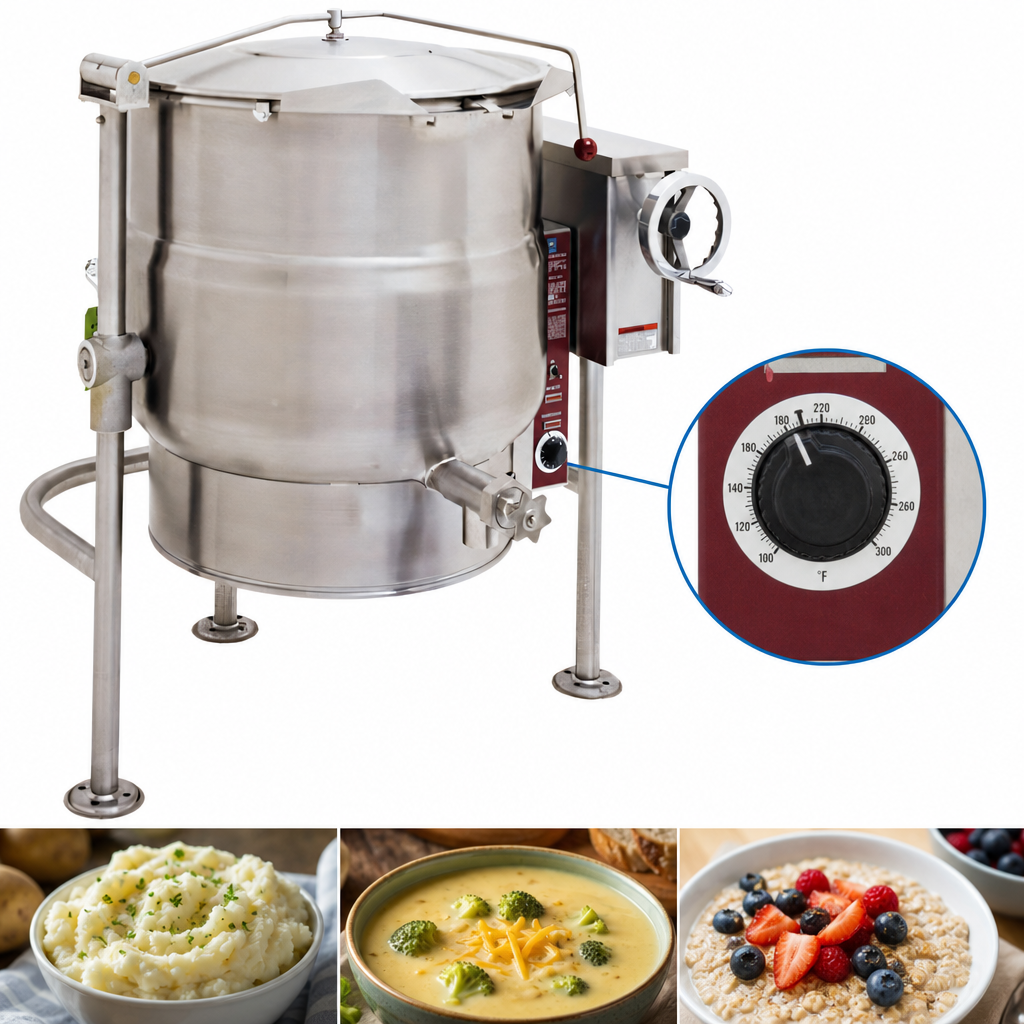

    • On/Off power switch & rotary thermostat (165 °F – 285 °F / 74 °C – 140 °C).
    • Low-water & temperature pilot lights.
    • Vacuum/pressure gauge and 50 psi safety relief valve.
    • Automatic low-water shut-off protects heating elements.
  • Removable incoloy heating elements simplify service.
  • Faucet mounting bracket pre-installed—add optional pantry faucet at any time.
  • Certified cCSAus & NSF for commercial kitchens.

Specifications

Model ELT-40
Capacity 40 gal / 152 L
Jacket Coverage 2/3 of kettle body
Interior Material 316 stainless steel
Exterior Material 304 stainless steel, #4 finish
Heat Input (standard) 18 kW electric, self-generating steam
Electrical (18 kW, 3-phase) 208 V/41.6 A • 220 V/39.4 A • 240 V/36.1 A
Optional Heat Input 24 kW element (consult factory for amps)
Operating Pressure 50 psi (345 kPa)
Temperature Range 165 °F – 285 °F (74 °C – 140 °C)
Tilt Mechanism Hand crank, self-locking, 90° dump angle
Overall Dimensions (W × D × H) 26″ × 38″ × 68.5″ (660 × 965 × 1740 mm)
Shipping Weight 352 lb / 160 kg
Certifications cCSAus, NSF

Popular Accessories (sold separately)

  • Spring-assist hinged stainless steel cover
  • 2″ or 3″ draw-off valve with perforated strainer
  • Single or double pantry faucet with 18″ swing spout
  • Pour-lip strainer, pan supports & kettle heat shield

Need help sizing or configuring your kettle? Contact our team—we’re happy to help.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF, cCSAus

Height

38.0in

Width

41.0in

Depth

37.75in

Shipping Weight

352.0lbs

Base

tri-leg

Kettle Liner

316 stainless steel

Capacity

30 - 45 gallon

Kettle Jacket

partial jacket

Specifications

Tilting Kettle, electric, 40 gallon capacity, 2/3 jacket, thermostatic control, crank tilt with self-locking positive stop, faucet bracket, 316 stainless steel interior liner, 304 stainless steel exterior, console & tri-leg base, cCSAus, NSF
