Crown (Middleby) ELT-40-QS Steam Kettles

SKU: ELT-40-QS
$28,088.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Crown (Middleby) New Arrivals

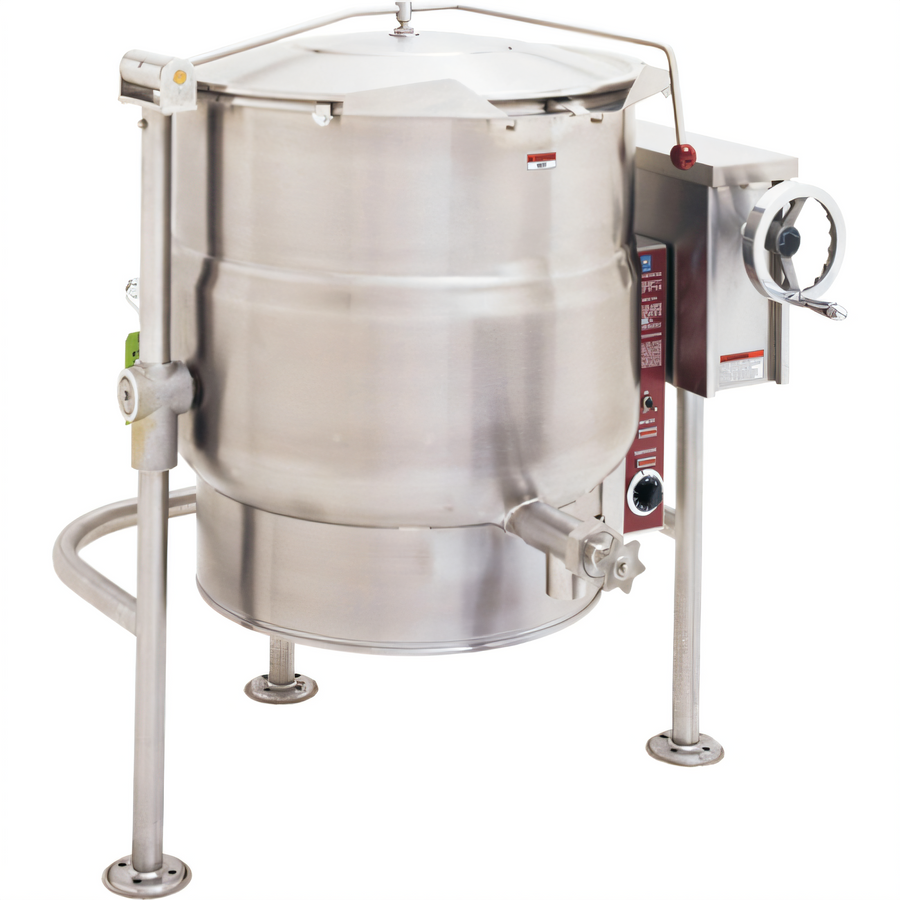

Crown ELT-40 40-Gallon Electric Tilting Steam Kettle

Self-Generating • 2/3 Steam Jacket • Manual Crank Tilt

Engineered for high-volume production with the simplicity of electric steam, the Crown ELT-40 gives chefs rock-solid temperature control, effortless tilting and an ultra-durable stainless-steel build. From scratch stocks to slow-simmered sauces, this 40-gallon workhorse keeps up with the busiest commissaries, hotels and institutional kitchens.

Key Features

  • 40 gal / 152 L capacity – batch up to 640 8-oz portions at once.
  • Self-generating closed steam system, 50 psi jacket – no external boiler required.
  • Lower 2/3-jacket design provides fast, even heating with zero hot spots.
  • 316 SS interior liner resists acid & salt corrosion; perfect for tomato, citrus & brines.
  • 304 SS exterior with sanitary #4 finish cleans up quickly and looks great on the line.
  • Smooth hand-crank tilt pivots a full 90° and self-locks at any point for safe, controlled pouring.
  • Thermostatic control (165 °F – 285 °F / 74 °C – 140 °C) with low-water cutoff, pilot lights & pressure gauge.
  • Removable heating elements for reduced service time and cost.
  • Tri-leg base with 1-5/8″ stainless pipe legs & flanged feet – secure floor mounting included.
  • Factory-installed faucet bracket accepts single or double pantry faucet kits.
  • cCSAus & NSF certified; built in Canada at Crown’s Toronto facility.

Technical Specifications

Capacity 40 gal / 152 L
Jacket Coverage Lower 2/3 of kettle body
Operating Pressure 50 psi (345 kPa)
Temperature Range 165 °F – 285 °F (74 °C – 140 °C)
Heat Input 18 kW standard | 24 kW optional
Electrical 208, 220, 240, 380/220 or 415/240 V, 3-Ph
(1-Ph available to 18 kW)
Interior / Exterior 316 SS liner  |  304 SS shell
Tilt Mechanism Manual crank with self-locking positive stop (90° dump)
Overall Dimensions* 26″ W × 41″ D × 68.5″ H (660 × 1041 × 1740 mm)
Shipping Weight 352 lb (160 kg)
Certifications cCSAus, NSF

*Heights shown include tri-leg base; allow clearance for tilting and service access.

Popular Options & Accessories

  • Spring-assist hinged stainless-steel cover (CH-40)
  • 2″ or 3″ sanitary draw-off valve with perforated strainer (TVT-2 / TVT-3)
  • Single or double pantry faucets with 18″ swing spout (SF-18 / DF-18)
  • Etched gallon or litre markings inside kettle (GM- / LM-)
  • Pour-lip strainer, pan supports, triple basket kit & more
Installation note: This unit must be hard-wired and anchored by a licensed professional in accordance with local codes. Always maintain the factory-sealed jacket – do not vent or add water.

Overall Dimensions:

41.0"W x 37.75"D x 38.0"H

Product Weight:

352.0 lb
Manufacturer Crown (Middleby)
Certifications ["NSF", "cCSAus"]
Height 38.0in
Width 41.0in
Depth 37.75in
Shipping Weight 352.0lbs
Capacity 30 - 45 gallon
Kettle Liner 316 stainless steel
Base tri-leg
Kettle Jacket partial jacket
Specifications Tilting Kettle, electric, 40 gallon capacity, 2/3 jacket, thermostatic control, crank tilt with self-locking positive stop, faucet bracket, 316 stainless steel interior liner, 304 stainless steel exterior, console & tri-leg base, cCSAus, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Installation & operation manual PDF Download PDF Parts list PDF Download PDF Middleby financial flyer PDF Download PDF Crown steam group letter PDF Download PDF Warranty sheet PDF Download
