Crown (Middleby) ELT-30F Steam Kettles
Description

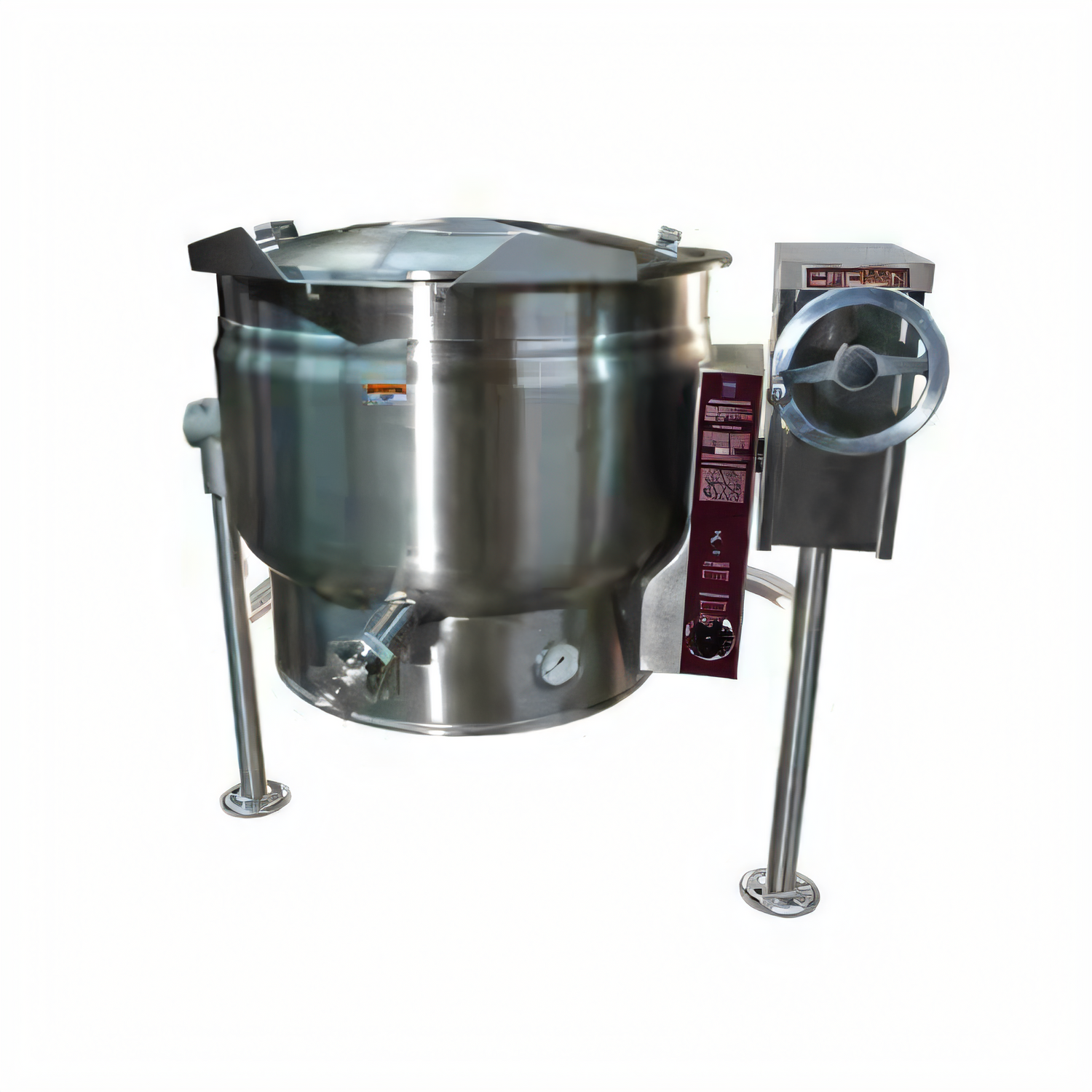

Crown ELT-30F 30-Gallon Full Jacket Electric Tilting Kettle
Heavy-duty 316 SS liner • Self-generating steam • cCSAus & NSFBuilt for busy commercial kitchens, the Crown ELT-30F delivers fast, even, high-capacity cooking in a compact floor-mounted footprint. A self-contained, 50 psi steam jacket surrounds the entire kettle body, providing efficient heat transfer without an external boiler. The smooth crank tilt and 90° pour angle make emptying effortless, while the 316 stainless interior stands up to acidic recipes day after day.
Why you’ll love it
- 30-gal (114 L) capacity handles large batches of soups, sauces, stocks & more.

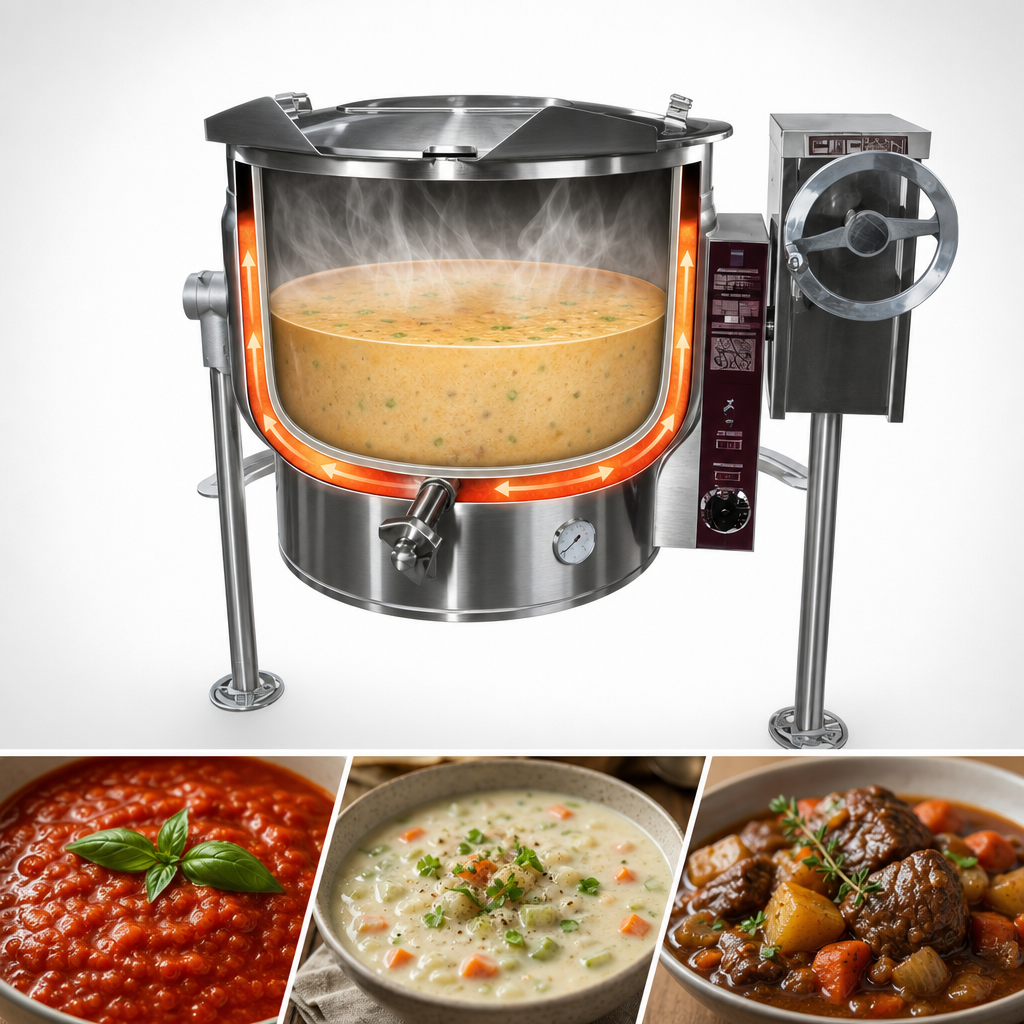

- Full-jacket, self-generating closed steam system (50 psi) heats from 165 – 285 °F (74 – 140 °C) with rapid recovery.
- Premium 316 stainless-steel liner resists pitting & corrosion from tomato, vinegar or citrus-based foods.
- Satin-finished 304 stainless exterior cleans up quickly and looks great front-of-house.
- Hemispherical bottom promotes superior heat circulation & easy stirring.
- Manual crank tilt with self-locking positive stop holds any position and provides a full 90° dump.
- Integrated faucet bracket ready for an optional single or double swing-spout pantry faucet.
- Tri-leg base with two rear support legs and flanged, adjustable feet bolts securely to the floor.

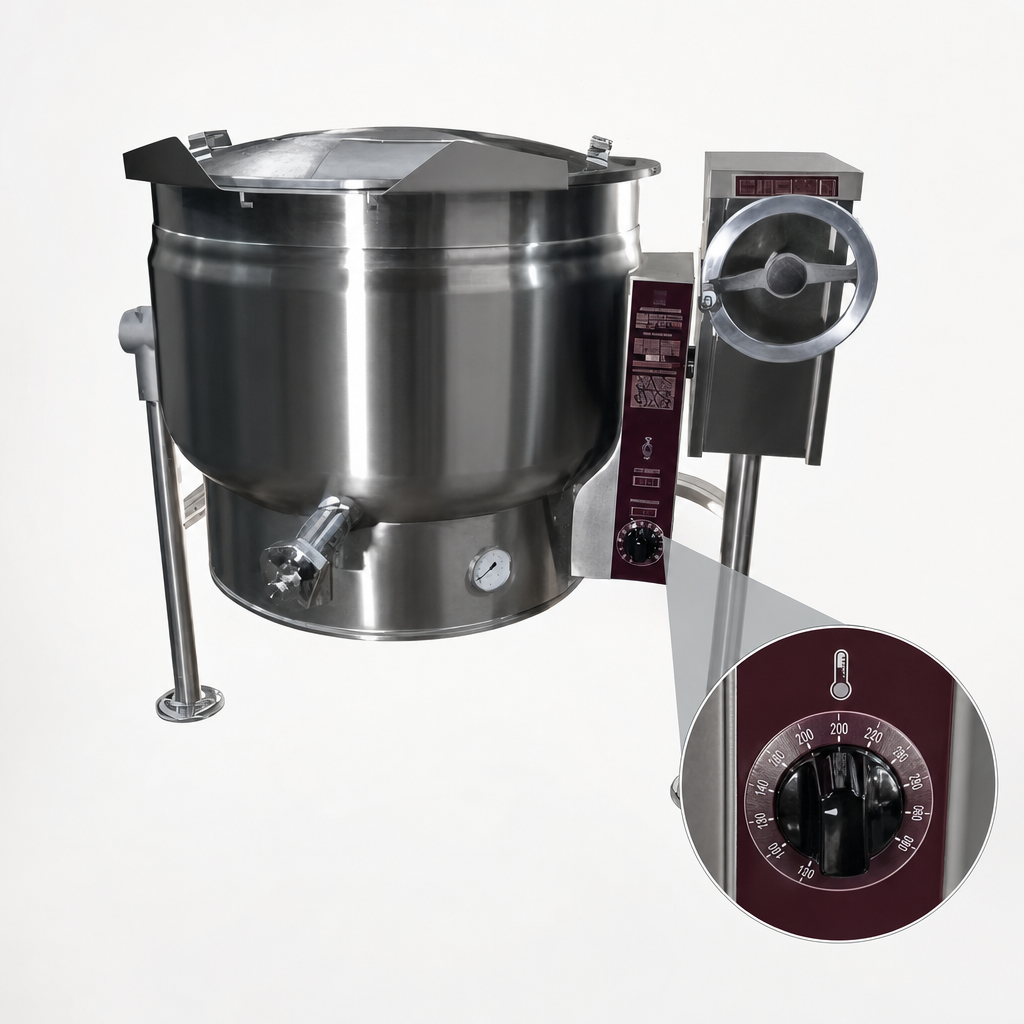

- Front console houses power switch, thermostat dial, pilot & low-water lights, 0-50 psi gauge, safety relief valve and automatic low-water shut-off.
- Field-removable heating elements simplify service.
- Certified cCSAus & NSF for gas-free, code-compliant installation in North America.
At-a-glance specifications
| Model | ELT-30F |
|---|---|
| Capacity | 30 gal | 114 L |
| Construction | 316 SS liner, 304 SS exterior, #4 sanitary finish |
| Heating | Electric, self-generating full steam jacket (50 psi) |
| Temperature range | 165 °F – 285 °F (74 °C – 140 °C) |
| Tilt | Hand-crank, self-locking, 90° forward |
| Standard input | 18 kW, 3-phase |
| Optional input | 24 kW or 33 kW, 3-phase |
| Typical amperage (18 kW) | 208 V — 50 A | 220 V — 47 A | 240 V — 43 A |
| Overall dimensions | W 29.5" × D 43.9" × H 67.5" (749 × 1 114 × 1 715 mm) |
| Shipping weight | ≈ 402 lb (182 kg) |
| Clearances | 0" sides & back |
| Certifications | cCSAus, NSF |
Popular add-ons (sold separately)
- 2" or 3" tangent draw-off valve kits
- Single or double pantry faucet with 18" swing spout (optional spray-hose versions available)
- Spring-assist or lift-off stainless-steel cover
- Etched gallon or litre graduations
- Triple basket assembly for pasta & blanching
Need a different capacity or voltage? Ask our team about the full Crown ELT-F series from 20 – 60 gallons.
