Crown (Middleby) ELT-30 Steam Kettles
Crown (Middleby) ELT-30 Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Crown (Middleby) ELT-30 Steam Kettles
Description

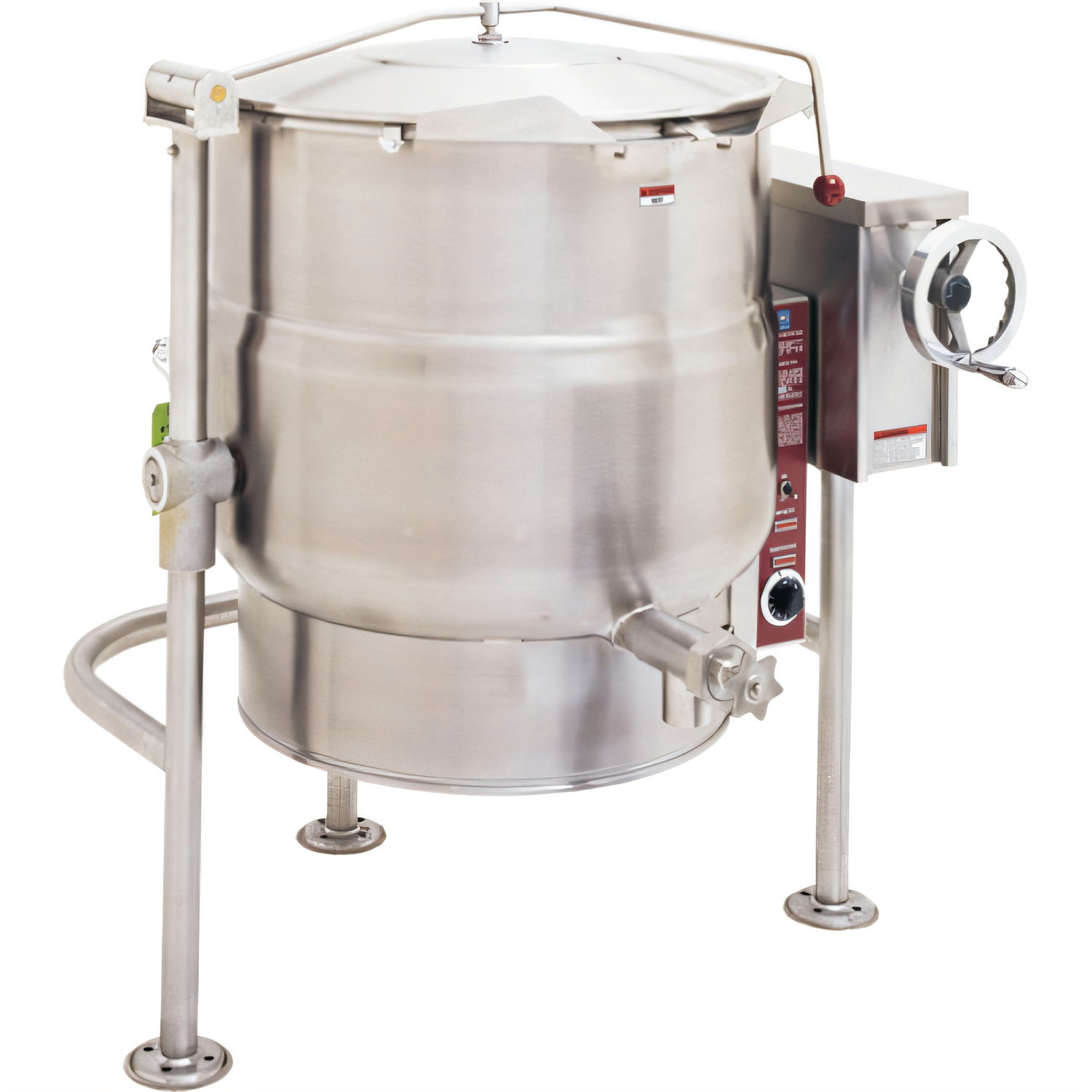

Crown ELT-30 Electric Steam Tilting Kettle
30 gal | 2/3 Jacket | 15 kW | Manual Crank TiltBuilt for busy commercial kitchens that demand speed, consistency and durability, the Crown ELT-30 delivers 30 gallons (114 L) of even, steam-jacketed cooking power in a compact, floor-mounted package. Its self-contained 50 psi steam system, 316-stainless interior and smooth crank tilt make batch cooking soups, sauces, pastas and proteins safer and more efficient than stock pots ever could.
Why You’ll Love It

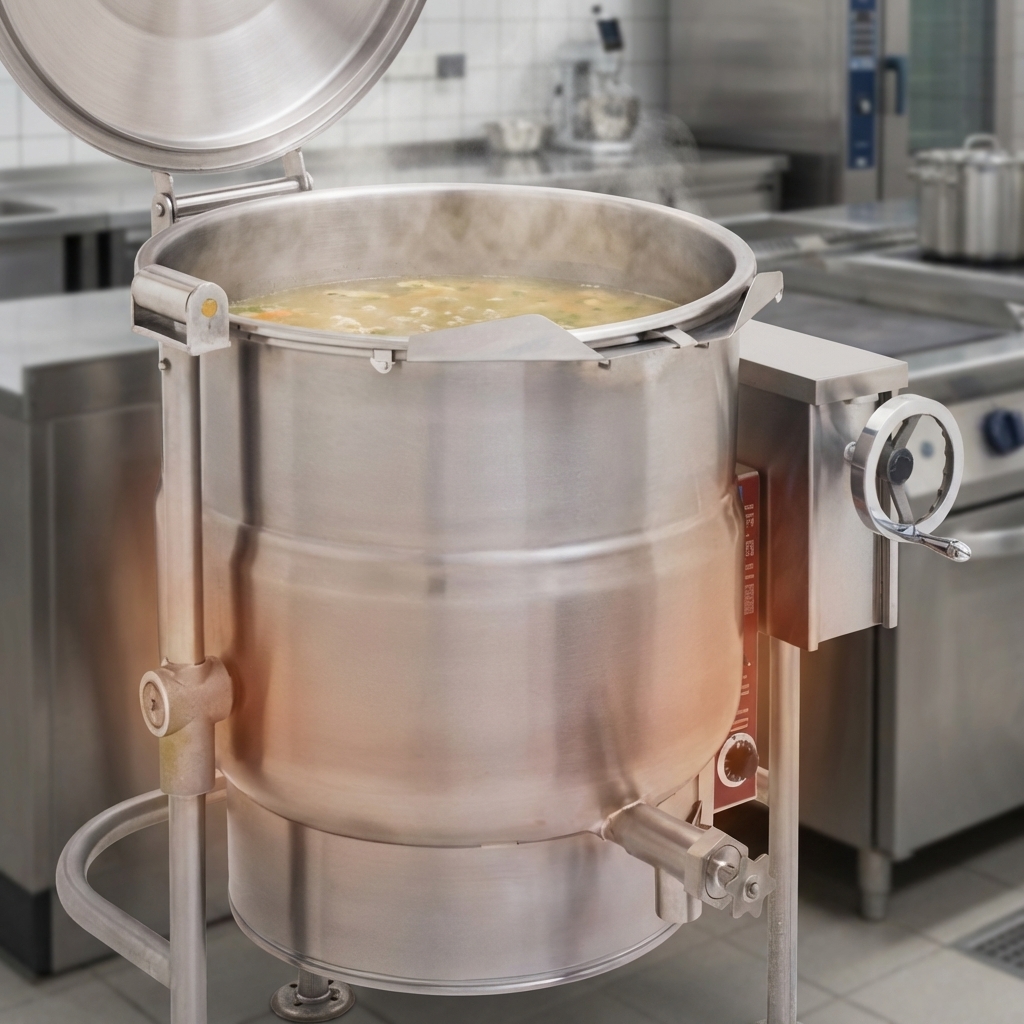

- Self-generating closed steam jacket (lower 2/3) reaches 165 – 285 °F fast—no external boiler required.
- Ultra-resilient 316 stainless steel liner stands up to acidic foods; #4 finish 304 SS exterior wipes clean easily.

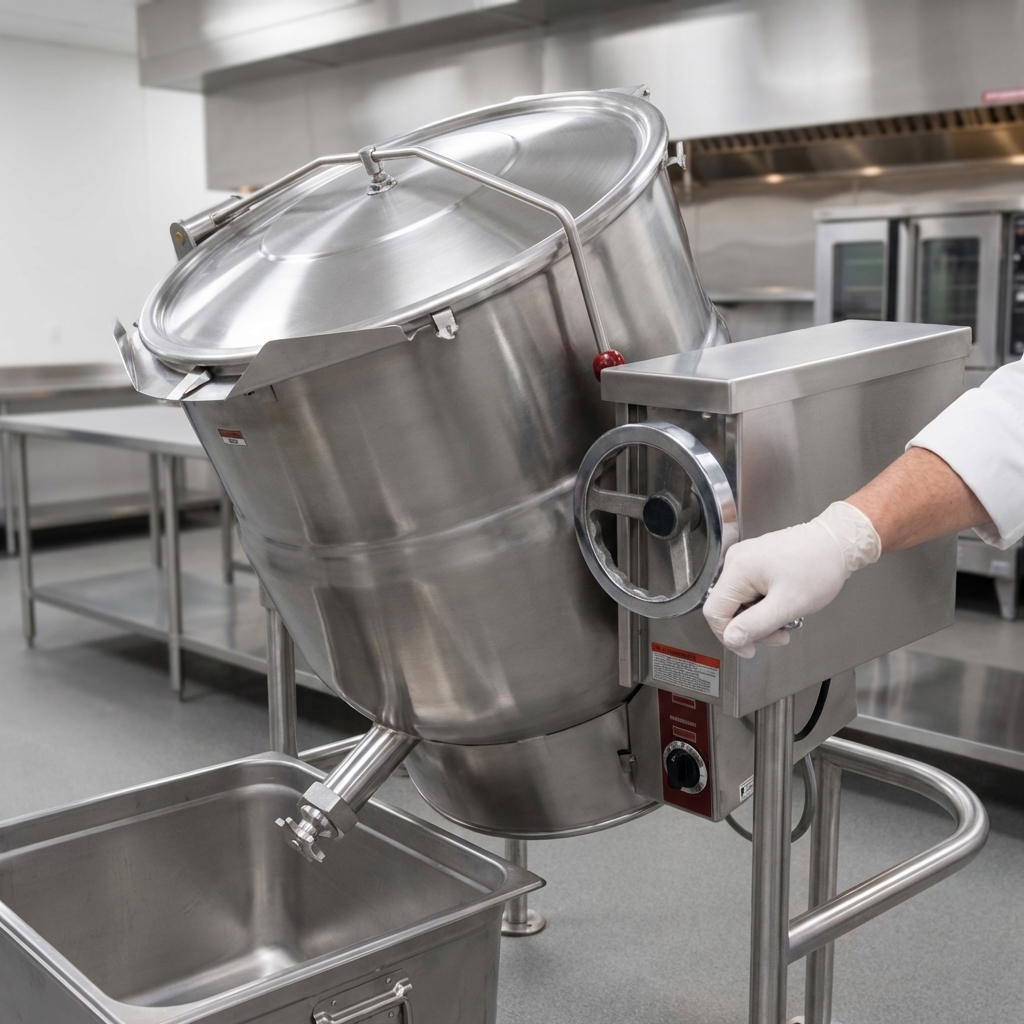

- Manual crank tilt with self-locking positive stop and 90° pour angle for controlled, splash-free emptying.

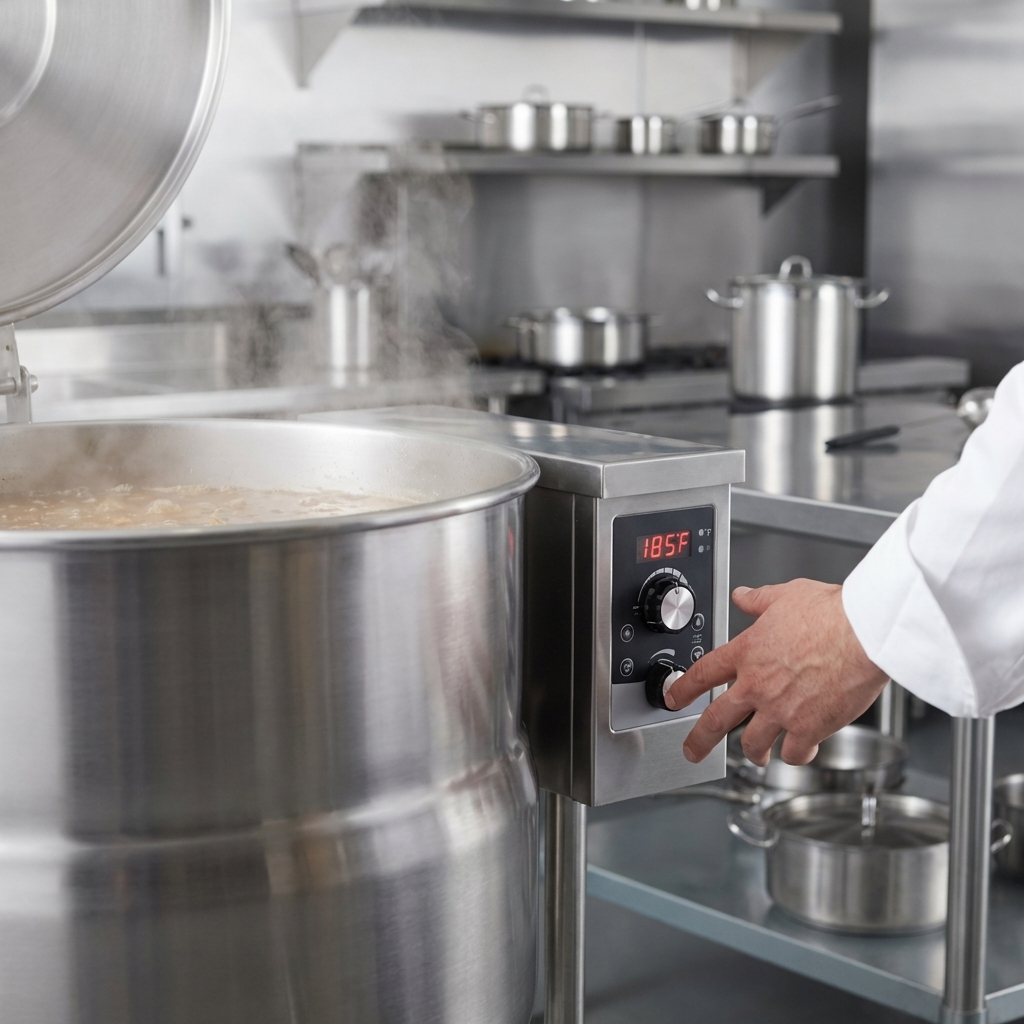

- Integrated thermostatic control, power switch, pilot & low-water lights, vacuum/pressure gauge and low-water cut-off keep operation simple and safe.
- Tri-leg base with flanged, adjustable feet bolts securely to the floor for rock-solid stability.
- Removable heating elements for easier serviceability and lower lifetime cost.
- Factory-installed faucet bracket—ready for optional single or double pantry faucets.
- Certified cCSAus & NSF for worry-free code compliance.
Technical Specs
| Model | ELT-30 |
|---|---|
| Capacity | 30 gal | 114 L |
| Construction | 316 SS liner, 304 SS exterior, welded #4 finish |
| Jacket Coverage | Lower 2/3 (factory-sealed distilled water) |
| Heating Power | 15 kW removable elements |
| Standard Electrical | 208–240 V / 3 ph / 50-60 Hz |
| Optional Electrical | 380/220, 415/240, 480, 600 V / 3 ph |
| Amps @ 208 V / 3 ph | 41.6 A (see manual for other voltages) |
| Operating Pressure | 50 psi (345 kPa) |
| Temperature Range | 165 – 285 °F | 74 – 140 °C |
| Tilt Mechanism | Manual hand-wheel, self-locking |
| Dump Angle | 90° full pour |
| Overall Size (W×D×H) | 24 in × 38 in × 39 in (610 × 965 × 990 mm) |
| Shipping Weight | 313 lb | 142 kg |
| Clearances | Zero side & back clearance required |
| Certifications | cCSAus, NSF |
Popular Accessories (sold separately)
- Spring-assist hinged stainless cover (CH-)
- 2″ or 3″ draw-off valve with perforated strainer (TVT-2 / TVT-3)
- Single or double pantry faucet with 18″ swing spout (SF-18 / DF-18)
- Etched gallon or litre markings (GM- / LM-)
- Kettle heat shield (KHS-)
- Pour-lip strainer (TKS-) & triple basket assembly (TBA-)
Intended for commercial use only. Installation must be performed by a qualified electrician/plumber in accordance with all local codes.
