Crown (Middleby)  |  SKU: ELT-20

Crown (Middleby) ELT-20 Steam Kettles

$26,497.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Middleby financial flyer Installation & operation manual Crown steam group letter Warranty sheet
Related Searches
Steam Cooking Equipment Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

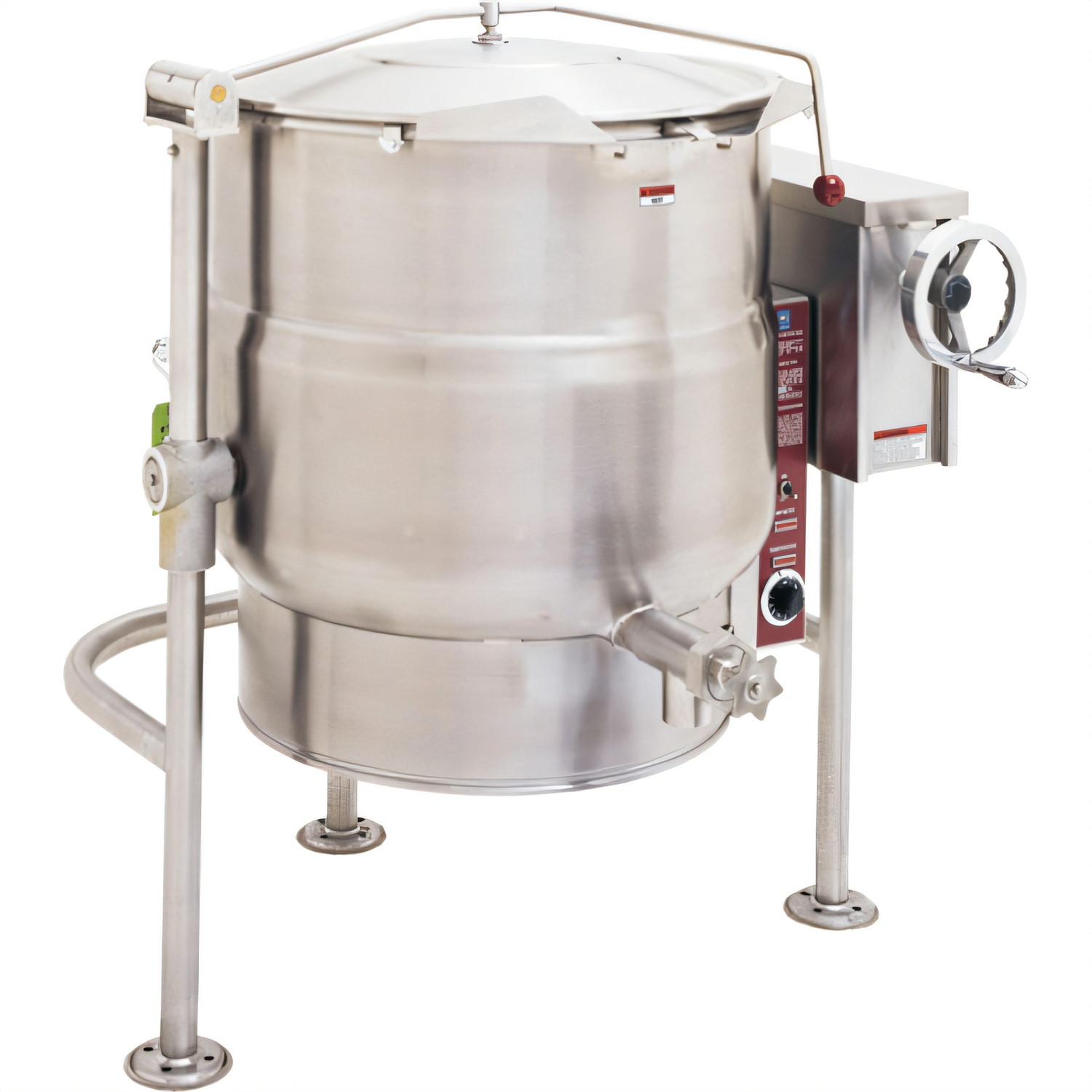

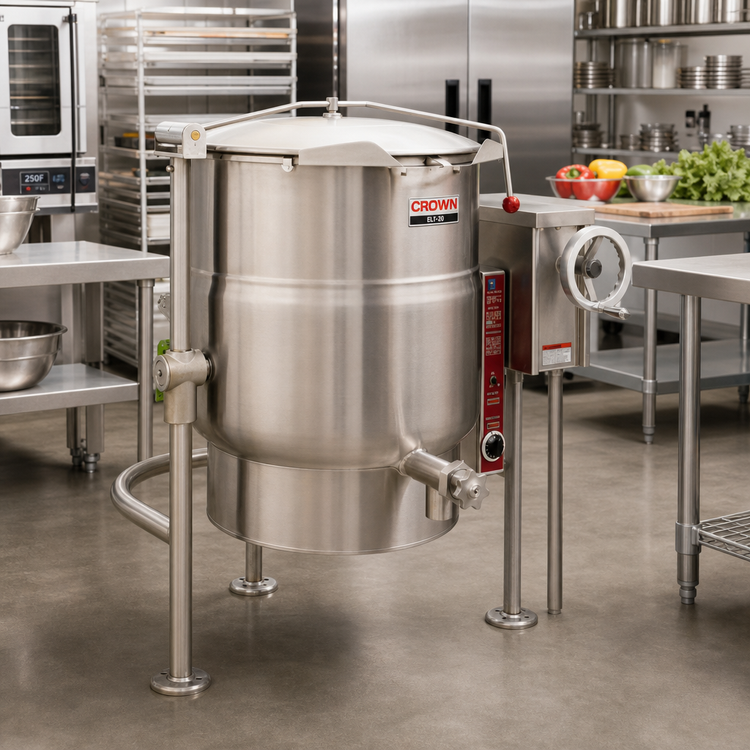

ELT-20 20-Gallon Electric Tilting Kettle

Self-contained steam jacketed kettle — 12 kW, tri-leg base

Built for demanding commercial kitchens, the Crown ELT-20 delivers rapid, even heating and effortless pouring in a durable, all-stainless package. Simply wire it in, crank to tilt, and start turning out perfectly cooked soups, sauces, pastas and more.

Key Features

  • 20 gal (76 L) batch capacity – up to 320 one-cup portions.

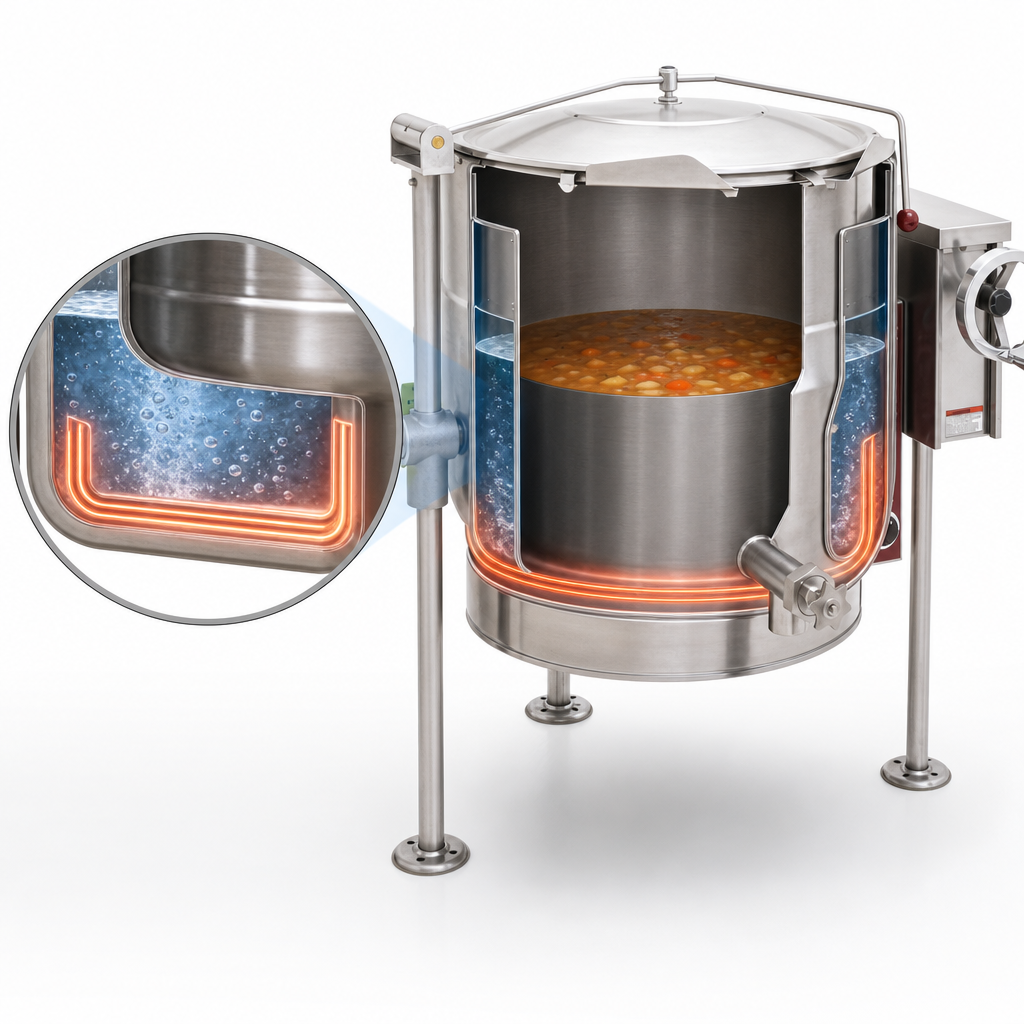

  • Self-generating 50 psi steam jacket surrounds the lower 2/3 of the kettle – no external boiler required.
  • Type 316 stainless steel liner resists acidic ingredients; #4 finish Type 304 stainless exterior, console & base.

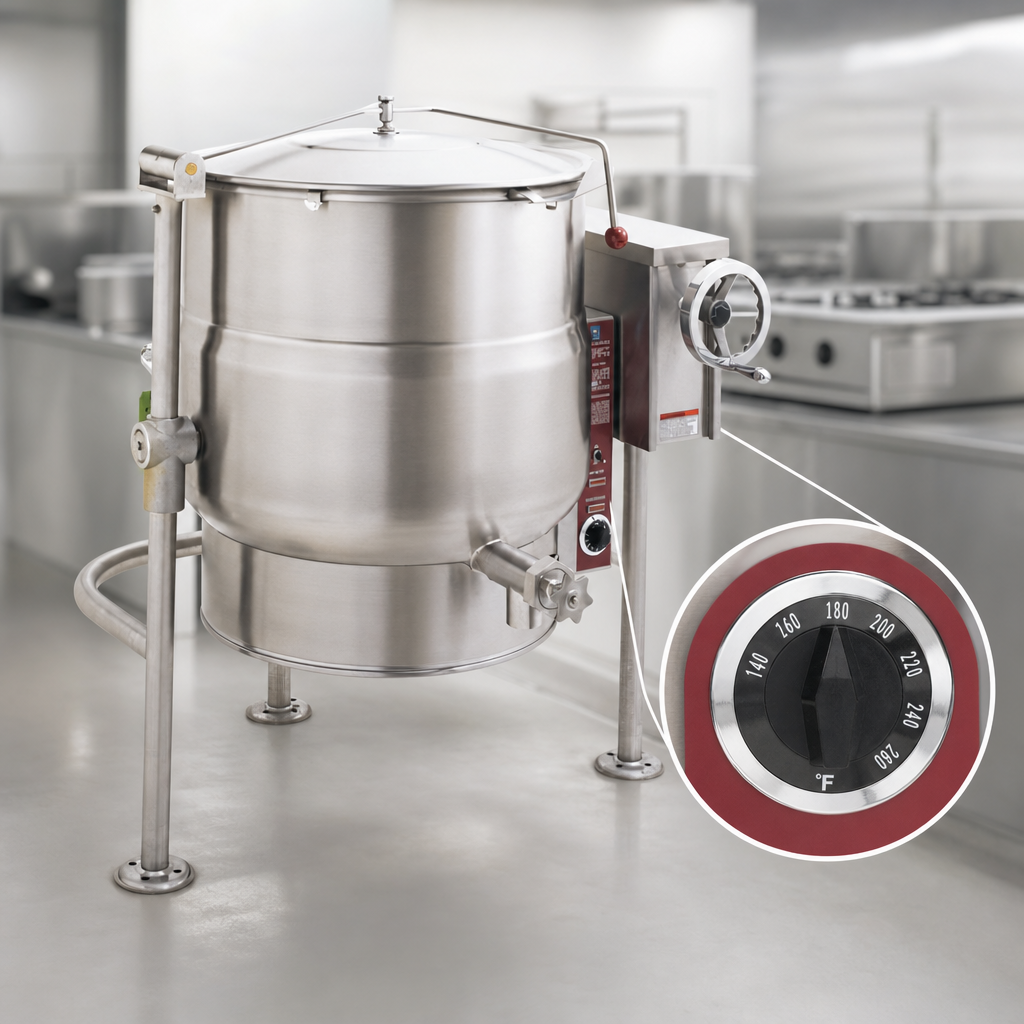

  • 12 kW removable electric elements reach 165 °F – 285 °F (74 °C – 140 °C) and hold tight with thermostatic control.
  • Hand-crank tilt with self-locking positive stop – smooth, 90° dump for complete emptying.
  • Drip-proof control console with power switch, temperature dial, pilot lights, low-water light, pressure gauge, safety relief valve & low-water shut-off.
  • Hemispherical bottom promotes superior heat distribution and easy cleaning.
  • Integral faucet bracket accepts optional single or double pantry faucets.
  • Tri-leg frame with adjustable flanged feet bolts securely to the floor.
  • Certified NSF & cCSAus for sanitation and safety.

Specifications

Model Crown ELT-20
Capacity 20 gal / 76 L
Heating Input 12 kW electric
Steam Jacket 2/3 coverage, 50 psi (3.45 bar) self-contained, factory-sealed
Temperature Range 165 °F – 285 °F (74 °C – 140 °C)
Interior Liner 316 stainless steel
Exterior / Frame 304 stainless steel, #4 finish
Tilt Mechanism Manual hand-crank, self-locking, 90° forward tilt
Electrical 208/220/240 V, 50/60 Hz, 1-phase or 3-phase, 12 kW (specify at order)
Overall Dimensions* 21" W × 38" D × 63.5" H (533 × 965 × 1 613 mm)
Ship Weight* ≈ 296 lb (134 kg)
Certifications NSF, cCSAus

*Dimensions & weight are nominal and subject to change without notice.

Popular Options & Accessories (Sold Separately)

  • Spring-assist or lift-off stainless steel cover
  • 2" or 3" draw-off valves with perforated strainers
  • Single or double pantry faucets with 18" swing spout (with or without rinse-spray hose)
  • Etched gallon or litre markings, contoured measuring strip
  • Pour-lip strainer, pan supports, triple basket assemblies & more

Why Choose Crown ELT Kettles?

  • Energy-efficient steam jacketed cooking with no exposed flame
  • Factory-sealed jacket means no boiler maintenance or refilling
  • Removable elements simplify service
  • Backed by Crown Steam Group’s limited warranty and nationwide parts support
  • Capacities from 20 – 100 gal available to grow with your kitchen
Installation note: Unit must be permanently floor-mounted and hard-wired by qualified personnel. Follow local codes and allow required clearances.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF, cCSAus

Height

38.0in

Width

36.0in

Depth

34.0in

Shipping Weight

296.0lbs

Capacity

18 - 26 gallon

Kettle Liner

316 stainless steel

Base

tri-leg

Kettle Jacket

partial jacket

Specifications

Tilting Kettle, electric, 20 gallon capacity, 2/3 jacket, thermostatic control, crank tilt with self-locking positive stop, faucet bracket, 316 stainless steel interior liner, 304 stainless steel exterior, console & tri-leg base, 12.0kW, cCSAus, NSF
