Crown (Middleby) ELT-100 Steam Kettles
Description

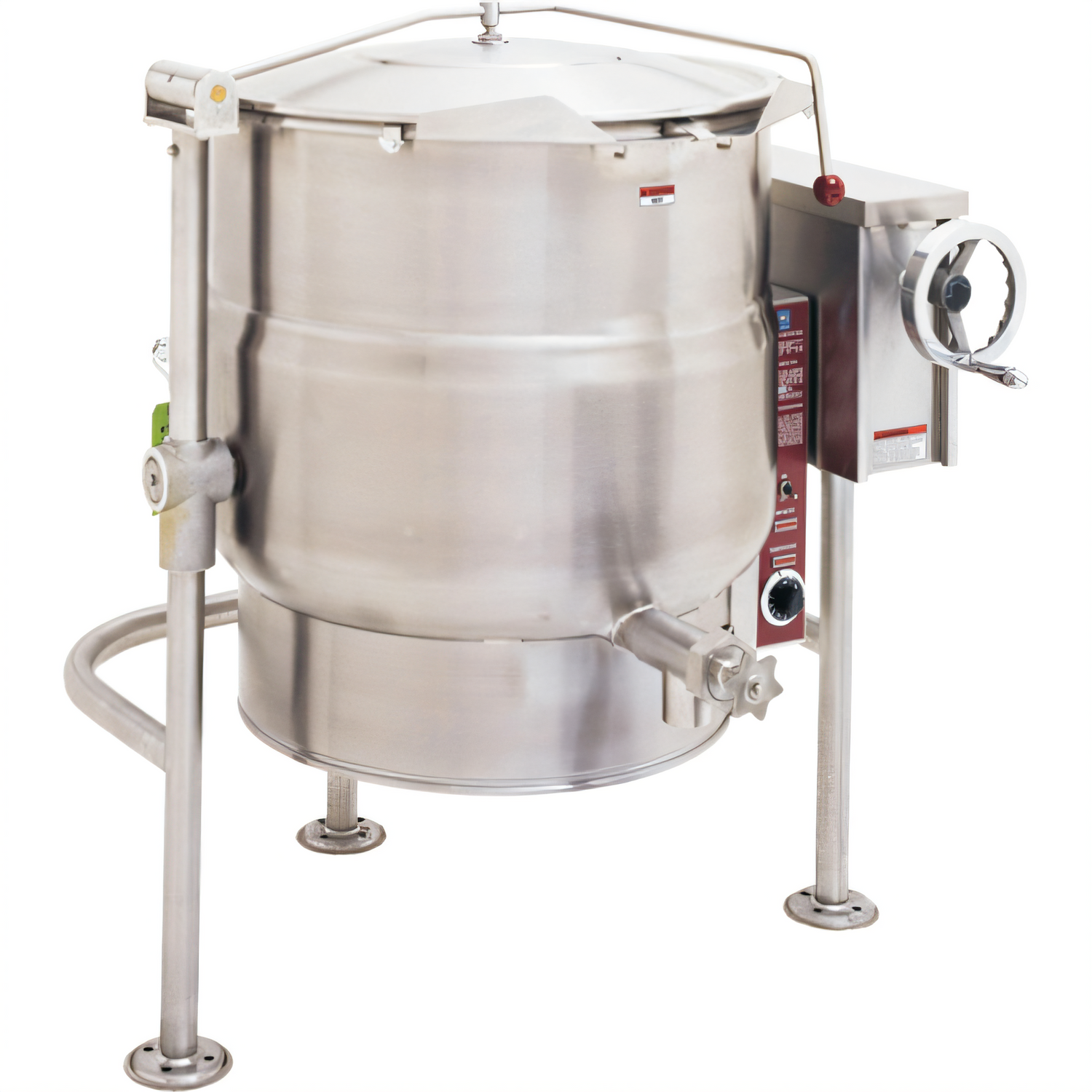

Crown ELT-100 Electric Steam Tilting Kettle – 100 Gallons
Self-Generating 2/3 Jacket • 316 SS Interior • Crank-Tilt with Positive StopDesigned for high-volume kitchens that refuse to compromise on flavor, speed or food safety, the Crown ELT-100 delivers a full 100 gallons (379 L) of evenly-heated capacity in an energy-efficient, self-contained electric steam kettle. From chowders and sauces to sous-vide circulations, its 2/3 steam jacket and 316 stainless-steel liner bring unbeatable heat transfer and corrosion resistance – no external boiler required.
Key Features
- Massive 100 gal / 379 L batch capacity – ideal for central kitchens, commissaries & institutions.
- Self-generating closed steam system operates at 50 psi; simply wire it in and start cooking.
- Premium 316 stainless-steel interior liner resists acidic foods and aggressive cleaning chemicals.
- #4 finish 304 stainless-steel exterior for a sleek, easy-to-sanitize surface.
- Precise thermostatic control from 165 °F to 285 °F (74 °C – 140 °C).
- Crank-tilt design with self-locking positive stop allows a full 90° pour for complete emptying.
- Tri-leg base with two rear support legs and adjustable flanged feet for rock-solid, code-compliant anchoring.
- Integrated faucet bracket – accept optional single or double pantry faucets (sold separately).
- Easy-service removable heating elements; low-water cut-off and safety relief valve as standard.
- cCSAus & NSF listed; built for continuous commercial duty.
Operator-Friendly Console
- Drip-proof stainless control console houses the power switch, calibrated thermostat, pilot & low-water lights.
- Large vacuum/pressure gauge provides at-a-glance jacket status.
- Factory-sealed distilled-water jacket means zero routine refills or boiler permits.
Specifications
| Model | ELT-100 |
|---|---|
| Capacity | 100 gal / 379 L |
| Jacket Coverage | Lower 2/3 of kettle body |
| Interior Material | 316 stainless steel |
| Exterior Material | 304 stainless steel, #4 finish |
| Temperature Range | 165 °F – 285 °F (74 °C – 140 °C) |
| Working Pressure | 50 psi (345 kPa) |
| Standard kW | 24 kW, 3-ph |
| Optional kW | 33 kW, 3-ph |
| Voltage Availability | 208, 220, 240, 380/220 4-wire, 415/240 4-wire, 480 or 600 V |
| Overall Footprint (W × D × H) | ≈ 35.5" × 48.8" × 49.5" (902 × 1238 × 1257 mm) |
| Shipping Weight | ≈ 630 lb / 286 kg |
| Certifications | cCSAus, NSF |
Popular Options & Accessories (factory installed)
- Spring-assist hinged stainless-steel cover (CH-)
- 2" or 3" tangent draw-off valve with perforated strainer (TVT-2 / TVT-3)
- Single or double pantry faucet with 18" swing spout (SF-18 / DF-18)
- 68" rinse-spray hose kits (SF-RSH-18 / DF-RSH-18)
- Etched gallon or litre markings, contoured measuring strip
- Kettle heat shield, pan supports, basket assemblies & more
Intended for commercial use only. Always verify local electrical codes and select the correct voltage/kW option at time of order.
