Crown (Middleby) EL-80 Steam Kettles
Crown (Middleby) EL-80 Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Crown (Middleby) EL-80 Steam Kettles
Description

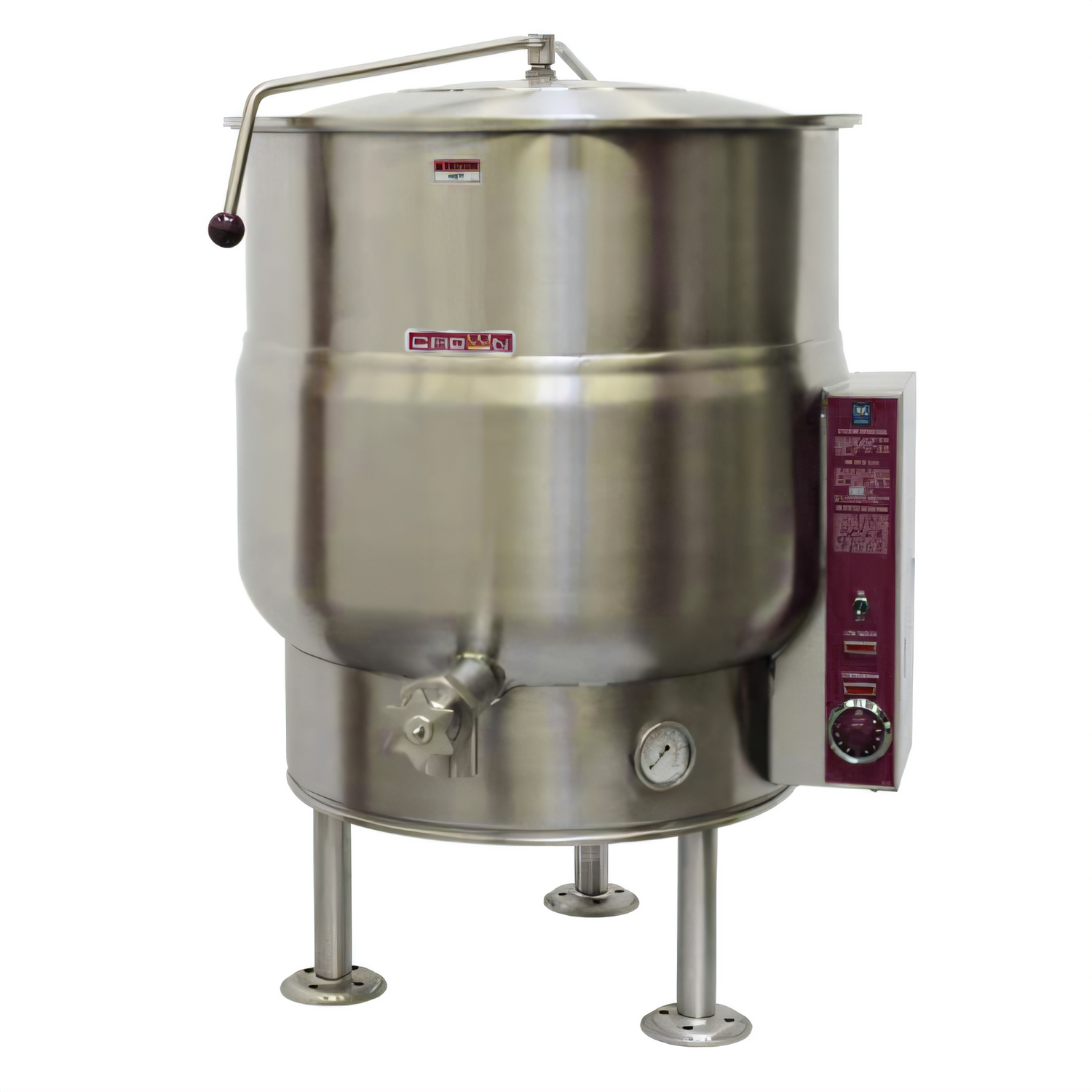

Crown EL-80 Electric Tri-Leg Stationary Kettle – 80 gal (303 L)
Self-generating 2/3-jacket steam kettle with 316 SS liner & built-in controlsBuilt for high-volume, high-acid cooking, the Crown EL-80 delivers rock-solid performance in a compact stationary footprint. Its 2/3 steam jacket is factory-sealed and self-generating—no external boiler required—while heavy-duty 316 stainless inside and polished 304 stainless outside stand up to the toughest commercial kitchens. Standard features like one-hand spring-assist cover, 2″ sanitary draw-off valve with perforated strainer, and an integral faucet bracket make production cooking faster, safer and more precise.
Key Features
- 80 gal / 303 L working capacity (ASME code-stamped)
- Self-contained electric steam system – no boiler hookup needed

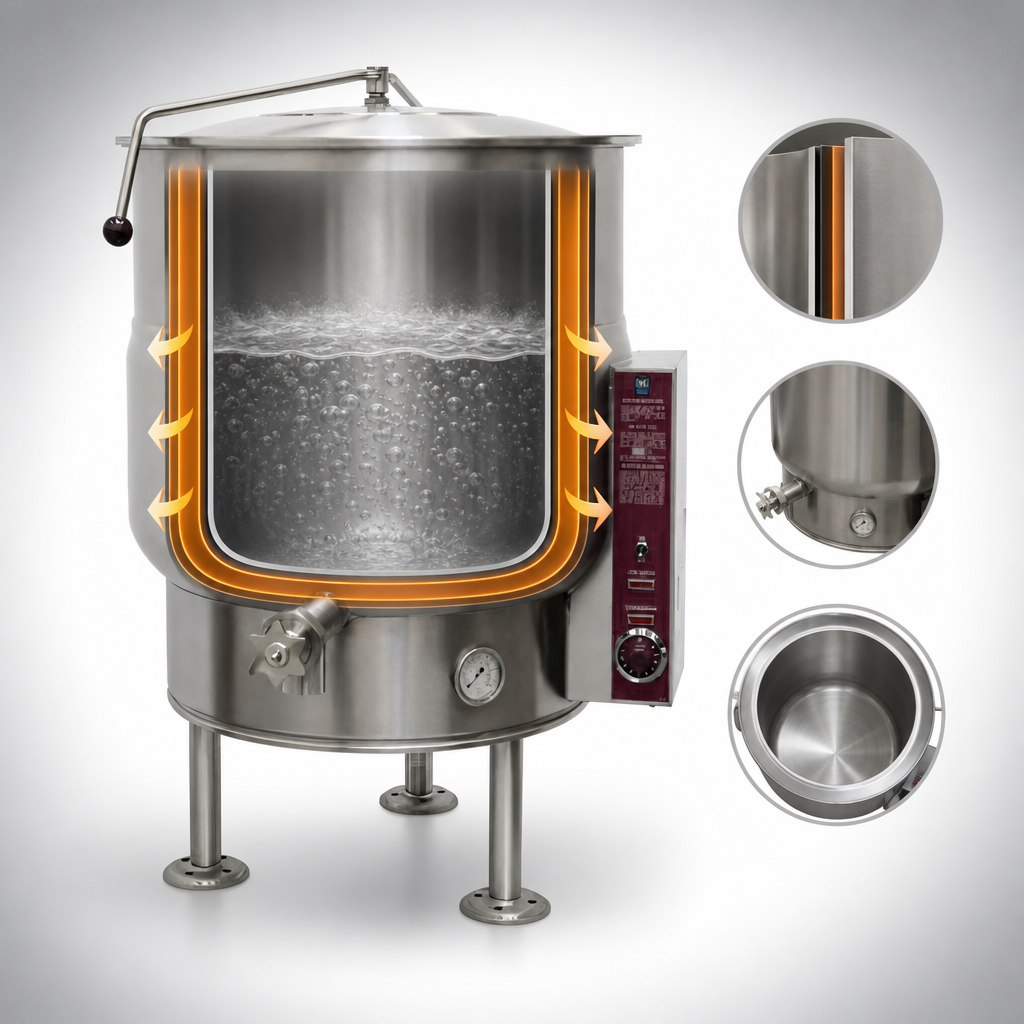

- 2/3 jacketed hemispherical bottom for superior heat circulation
- 316 stainless steel interior liner – ideal for tomato-based & other acidic foods
- #4-finish 304 stainless steel exterior for long-lasting good looks
- Tri-leg base with adjustable flanged feet for rigid floor anchoring
- Removable heating elements & factory-sealed distilled-water jacket for low maintenance
- Full control package: on/off power switch, thermostat (165 °F-285 °F / 74 °C-140 °C), pilot & low-water lights, vacuum/pressure gauge, safety relief valve, low-water shut-off
- 2″ sanitary draw-off valve with perforated strainer for quick product transfer
- Spring assisted hinged stainless steel domed cover – easy single-hand operation
- Integrated faucet bracket—ready for optional single or double pantry faucet
- cCSAus, NSF & National Board registered for peace-of-mind compliance
- 1-year parts & labor warranty backed by Crown Steam’s nationwide service network
Technical Specifications
| Model | Crown EL-80 |
|---|---|
| Capacity | 80 gal (303 L) |
| Jacket Coverage | Lower 2/3 of kettle body |
| Operating Temp / Pressure | 165 °F – 285 °F (74 °C – 140 °C) | 0-50 psi (0-345 kPa) |
| Standard kW Rating | 18 kW (optional 24 kW or 33 kW) |
| Electrical Service | 208, 220, 240, 380/220, 415/240, 480 or 600 VAC, 3-phase (208-240 V also available 1-phase for 18 kW) |
| Included Items | 2″ draw-off valve w/ perforated strainer, spring-assist cover, faucet bracket |
| Construction | 316 SS liner, 304 SS exterior, all-welded #4 finish |
| Base | Tri-leg tubular stainless frame with 4-hole flanged feet |
| Overall Dimensions | ⌀33″ W x 45″ D x 81″ H (approx.) |
| Shipping Weight | 445 lb (202 kg) |
| Minimum Clearance | 3″ (76 mm) sides & back |
| Certifications | ASME, cCSAus, NSF |
Popular Factory Options & Accessories
- 3″ (76 mm) draw-off valve (TVS-3)
- Etched gallon or litre markings
- Single or double pantry swing-spout faucets
- Graduated measuring strip or strainer hook
- Higher wattage elements (24 kW / 33 kW)
- Correctional package, kettle heat shield & more
Need flexible financing? Ask about Middleby Equipment Financing for quick approvals and low monthly payments.
