Crown (Middleby) EL-60 Steam Kettles
$25,415.50
Unit price
/
Unavailable
Description

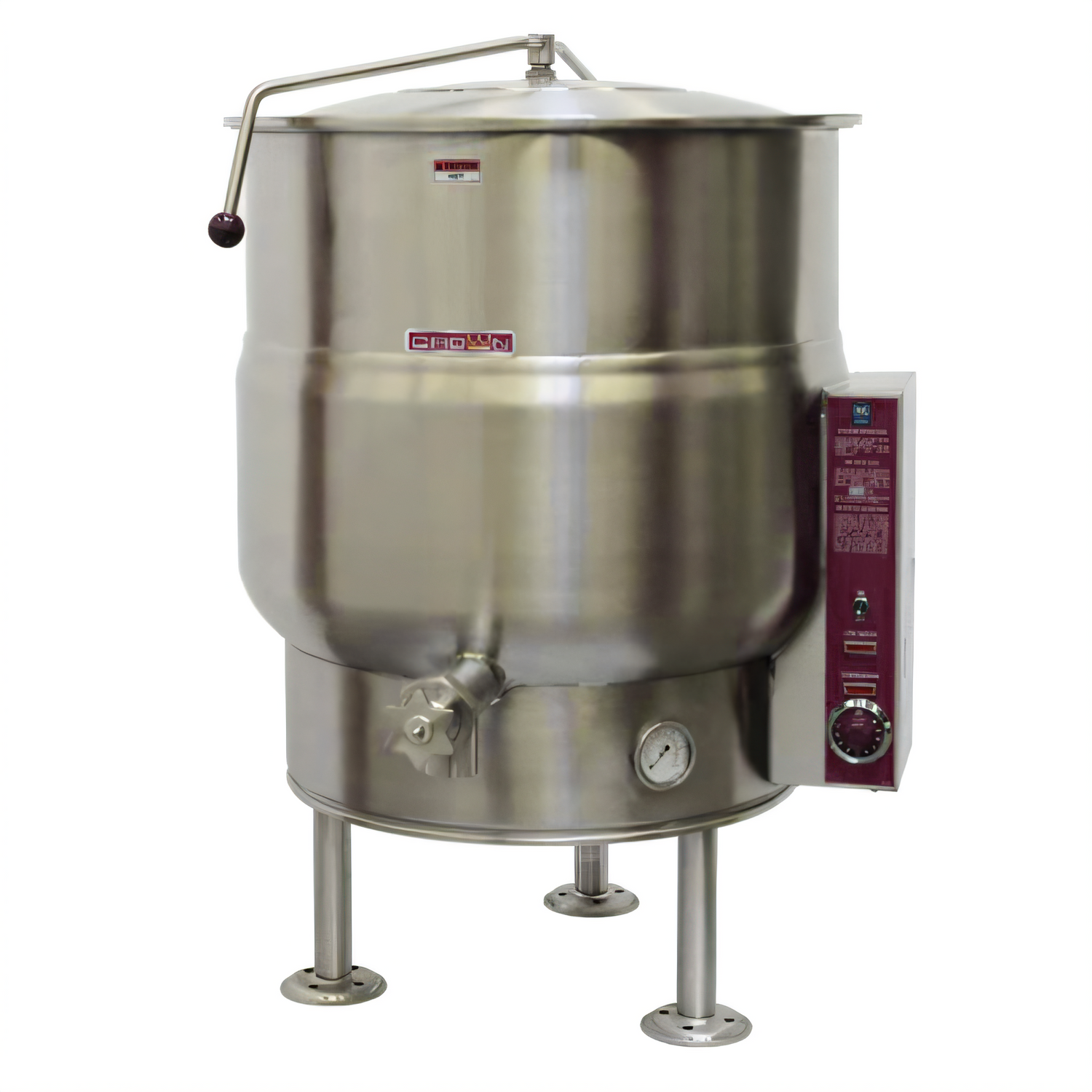

Crown EL-60 60-Gallon Electric Tri-Leg Kettle
Self-Generating • 2/3 Steam Jacket • StationaryWhen your production kitchen needs large-batch performance without the cost or maintenance of an external boiler, the Crown EL-60 delivers. This 60-gallon (227 L) stationary kettle generates its own steam, heats evenly from 165 °F to 285 °F (74 °C – 140 °C) and is built to withstand the most demanding, high-acid recipes thanks to its 316 stainless-steel liner.
Why You’ll Love It
- True 60-gallon capacity (227 L) ideal for soups, stocks, sauces & braises.
- Self-contained electric steam system – no boiler hookup required.

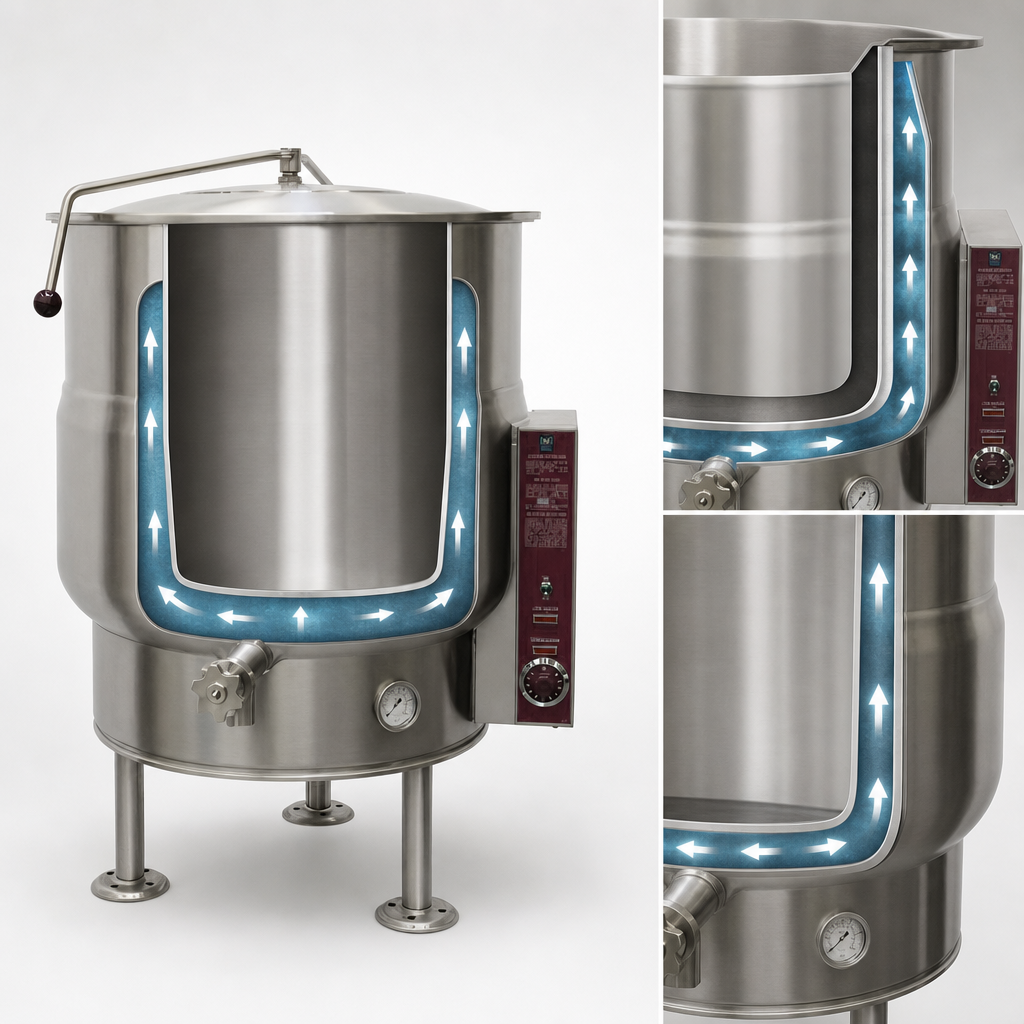

- 2/3 jacketed, hemispherical design for rapid, uniform heat distribution.
- 316 SS interior resists pitting & corrosion from acidic ingredients.
- 304 SS exterior with #4 sanitary finish wipes clean in seconds.
- Spring-assisted hinged cover reduces operator fatigue; faucet bracket included.
- 2 in. sanitary draw-off valve with removable perforated strainer for portioning or draining.

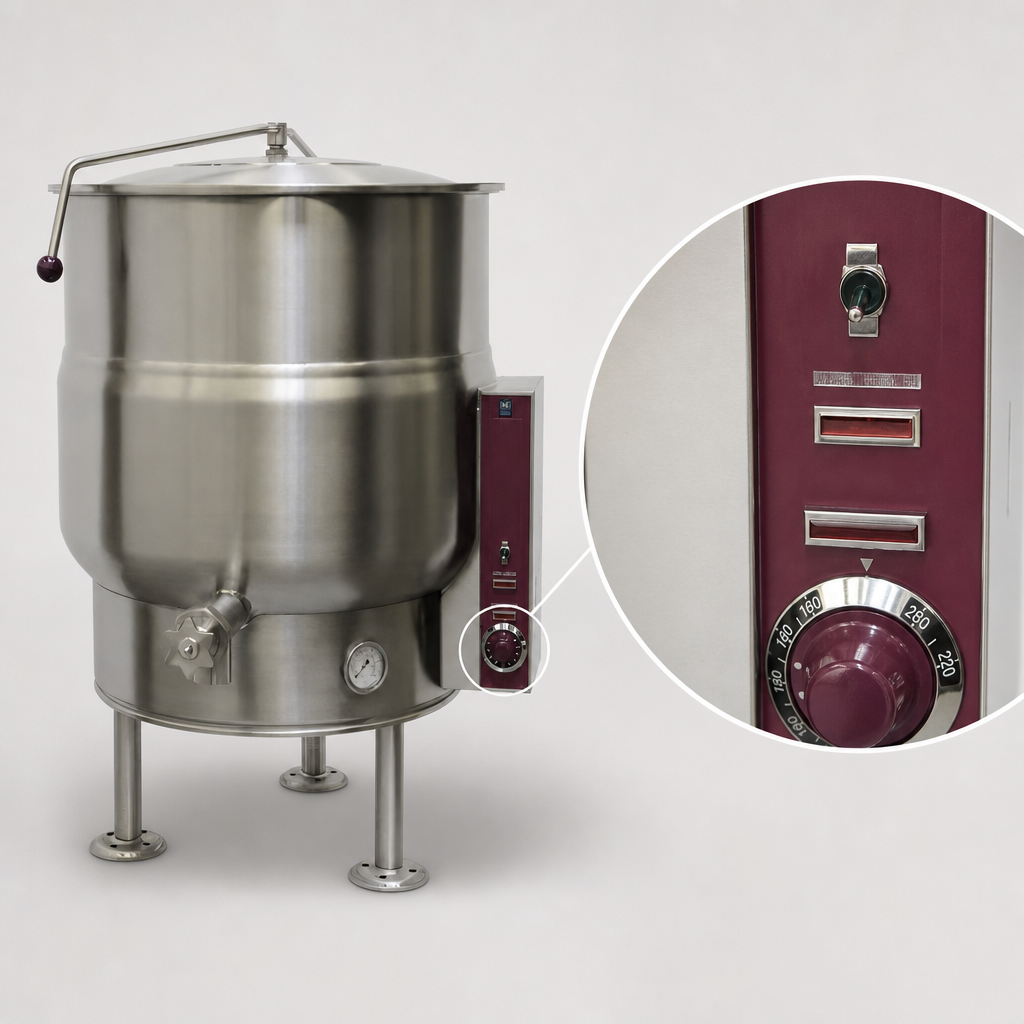

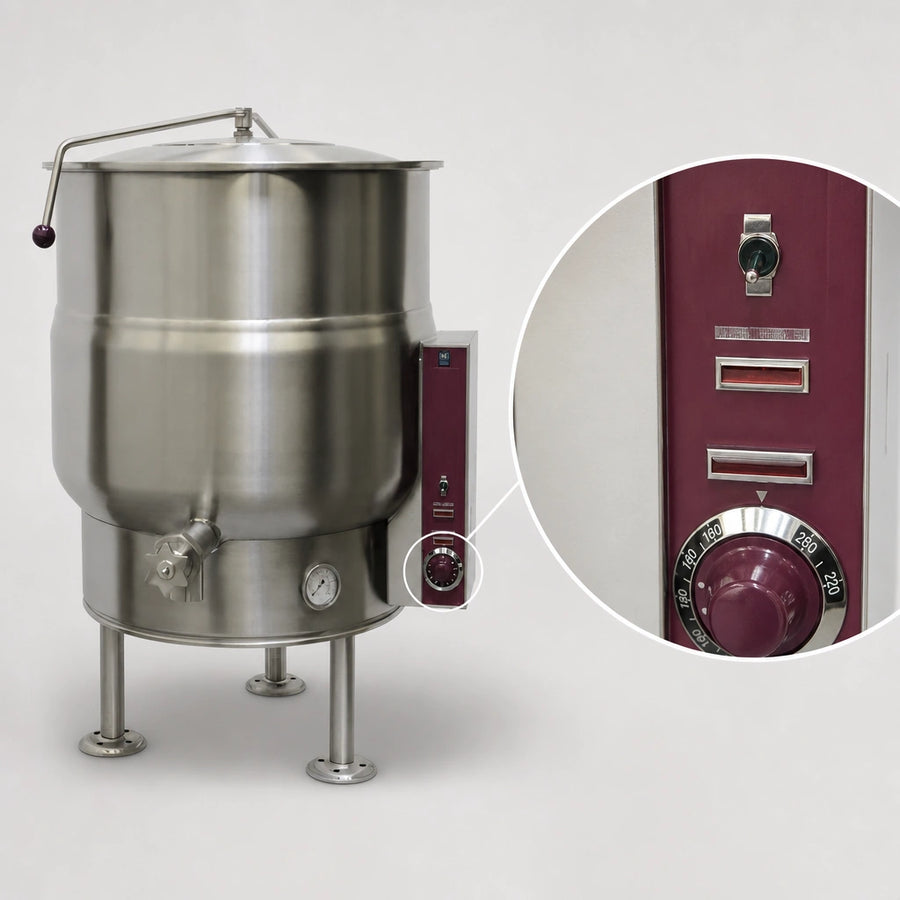

- Precise thermostatic control; power, “heat on” & low-water indicator lights.
- Tri-leg base with adjustable flanged feet for secure floor mounting.
- ASME code stamped, cCSAus certified & NSF listed.
Technical Specifications
| Model | EL-60 (Stationary) |
|---|---|
| Capacity | 60 gal / 227 L |
| Jacket Coverage | Lower 2/3 of kettle |
| Working Temp. Range | 165 °F – 285 °F (74 °C – 140 °C) |
| Max. Jacket Pressure | 50 psi (345 kPa) |
| Electrical (standard) |
18 kW, 3-phase 208, 220, 240, 380, 415, 480 or 600 VAC (Single-phase available through 18 kW) |
| Optional kW Ratings | 24 kW or 33 kW |
| Overall Height | 75 in / 1 905 mm |
| Diameter | 29.5 in / 749 mm |
| Shipping Weight | 390 lb / 177 kg |
| Clearance Required | 3 in (76 mm) sides & back |
| Certifications | ASME, cCSAus, NSF |
Popular Options & Accessories
- 3 in. draw-off valve (TVS-3)
- Etched gallon or litre markings
- Single or double pantry faucets (SF-18 / DF-18)
- Graduated measuring strip (CMS-)
- Kettle heat shield (KHS-)
- High-output heating elements (24 kW / 33 kW)
Intended for commercial use only. Always verify electrical requirements and local code compliance before ordering.
Features & Specs
Features & Specs
Manufacturer
Crown (Middleby)
Certifications
NSF, cCSAus
Height
75.0in
Width
33.75in
Depth
37.25in
Shipping Weight
390.0lbs
Capacity
50 - 70 gallon
Kettle Jacket
partial jacket
Base
tri-leg
Kettle Liner
316 stainless steel
Specifications
Stationary Kettle, electric, 60 gallon capacity, 2/3 jacket, thermostatic control, 2" draw-off, includes: perforated strainer, spring assisted hinged cover & faucet bracket, 316 stainless steel interior, 304 stainless steel exterior finish, tri-leg, cCSAus, NSF
