Crown (Middleby) EL-30 Steam Kettles
Description

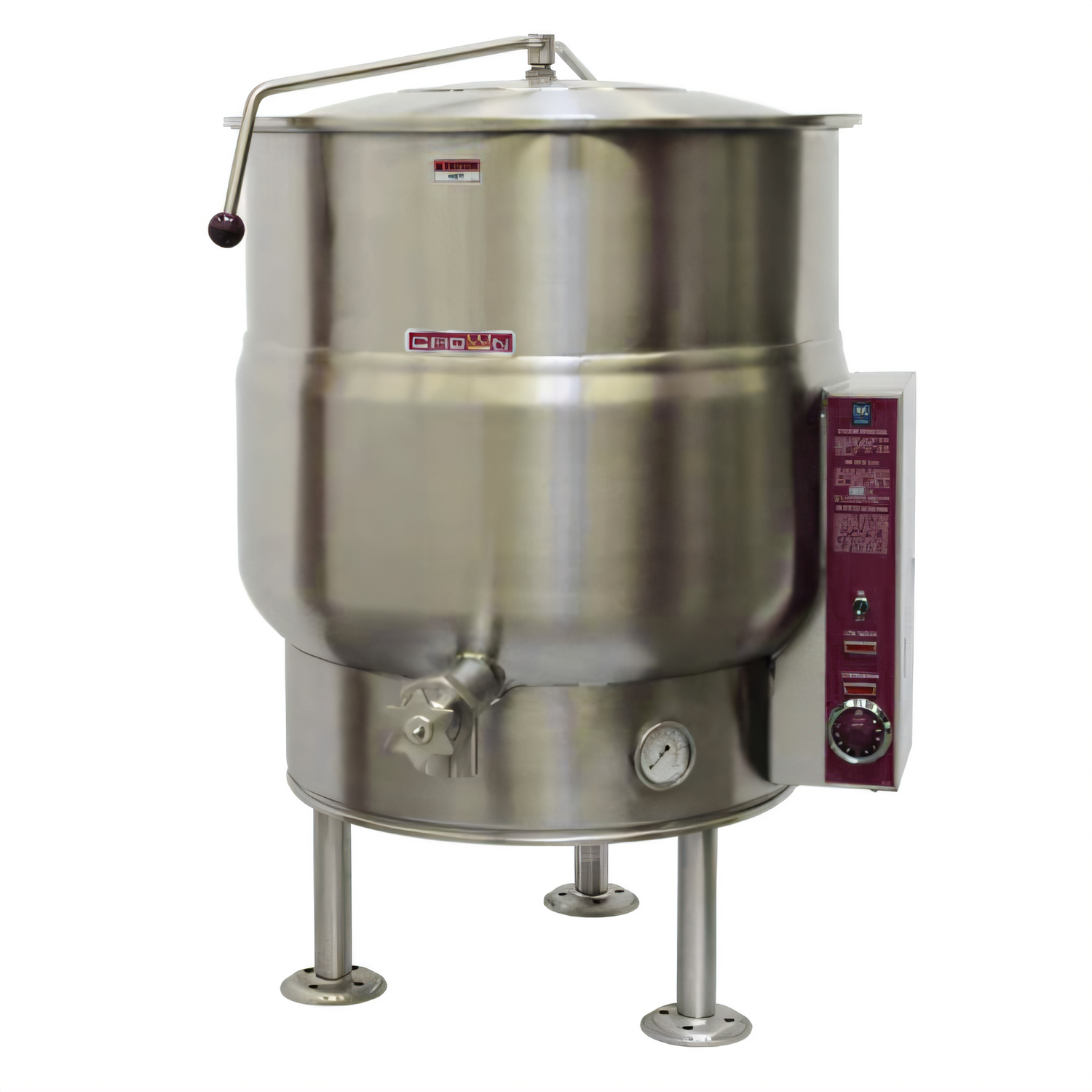

Crown EL-30 30 Gallon Electric Tri-Leg Stationary Kettle
15 kW • 2/3 steam jacket • 316/304 stainless • cCSAus & NSFBuilt for busy commercial kitchens, the Crown EL-30 delivers high-speed, even heating without the need for an external boiler. Its 30-gallon capacity, rugged stainless-steel construction and precise thermostatic control make it the perfect workhorse for soups, sauces, stocks, pasta and more.
Key benefits
- Self-contained steam system – no boiler room hookup required.
- Powerful 15 kW elements rapidly heat contents to 165-285 °F (74-140 °C).
- Hemispherical bottom & 2/3-jacket design deliver uniform heat circulation.

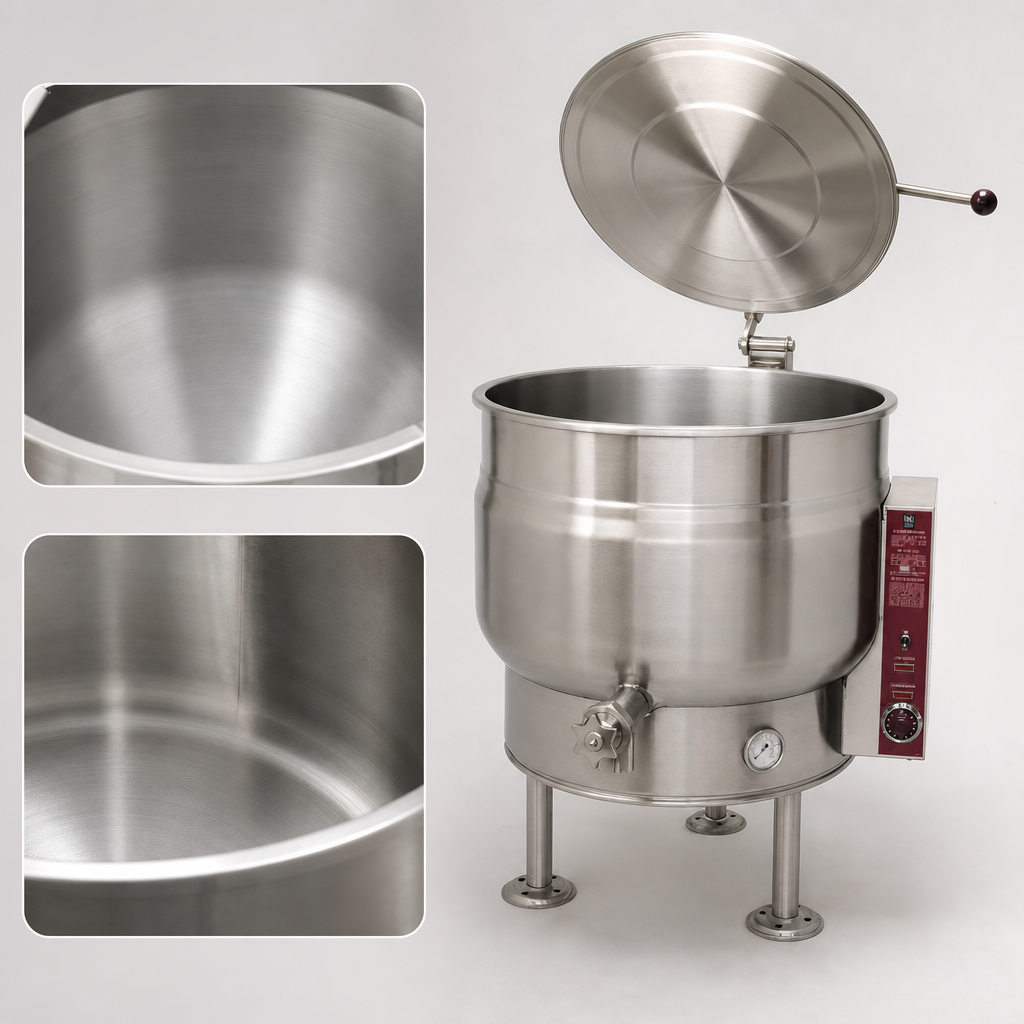

- 316 SS kettle liner resists pitting from high-acid foods; 304 SS exterior simplifies cleanup.
- Tri-leg base with 4-hole flanged feet anchors securely to the floor.
- ASME code-stamped, cCSAus listed and NSF certified for peace of mind.
What’s in the box
- 2" sanitary draw-off valve with perforated strainer
- Spring-assisted hinged stainless-steel cover
- Faucet mounting bracket (ready for optional pantry faucet)
- Built-in pressure/vacuum gauge, low-water cutoff & safety relief valve
- Factory-sealed distilled water charge in the jacket
Performance & controls
- Adjustable thermostat with easy-read dial and indicator lights
- Low-water warning light protects elements and jacket
- Removable heating elements for straightforward service access
- Maximum operating pressure: 50 psi (345 kPa)
Technical specifications
| Capacity | 30 gal / 114 L |
|---|---|
| Heat input | 15 kW electric, self-generating |
| Voltage options | 208-240 V 1-ph or 208-600 V 3-ph (specify at order) |
| Typical amp draw | 1-ph 240 V 62.5 A • 3-ph 240 V 36.1 A |
| Temperature range | 165-285 °F (74-140 °C) |
| Jacket coverage | Lower 2/3 of kettle body |
| Interior material | 316 stainless steel |
| Exterior material | 304 stainless steel, #4 finish |
| Overall dimensions | 24" W × 38" D × 63.5" H (610 × 965 × 1613 mm) |
| Shipping weight | 226 lb (103 kg) |
| Clearances | 3" (76 mm) from sides & rear |
| Certifications | ASME, cCSAus, NSF |
| Warranty | 1-year parts & labor |
Popular factory options
- 3" draw-off valve (TVS-3)
- Etched gallon or litre markings
- Single or double pantry faucet with swing spout
- Graduated measuring strip or strainer hook
- Draw-off valve hose kit, heat shield & correctional packages
Intended for commercial use only. Looking for financing? Ask us about easy monthly payments through Middleby Financial.
