Crown (Middleby) EL-25 Steam Kettles
$19,088.50
Unit price
/
Unavailable
Description

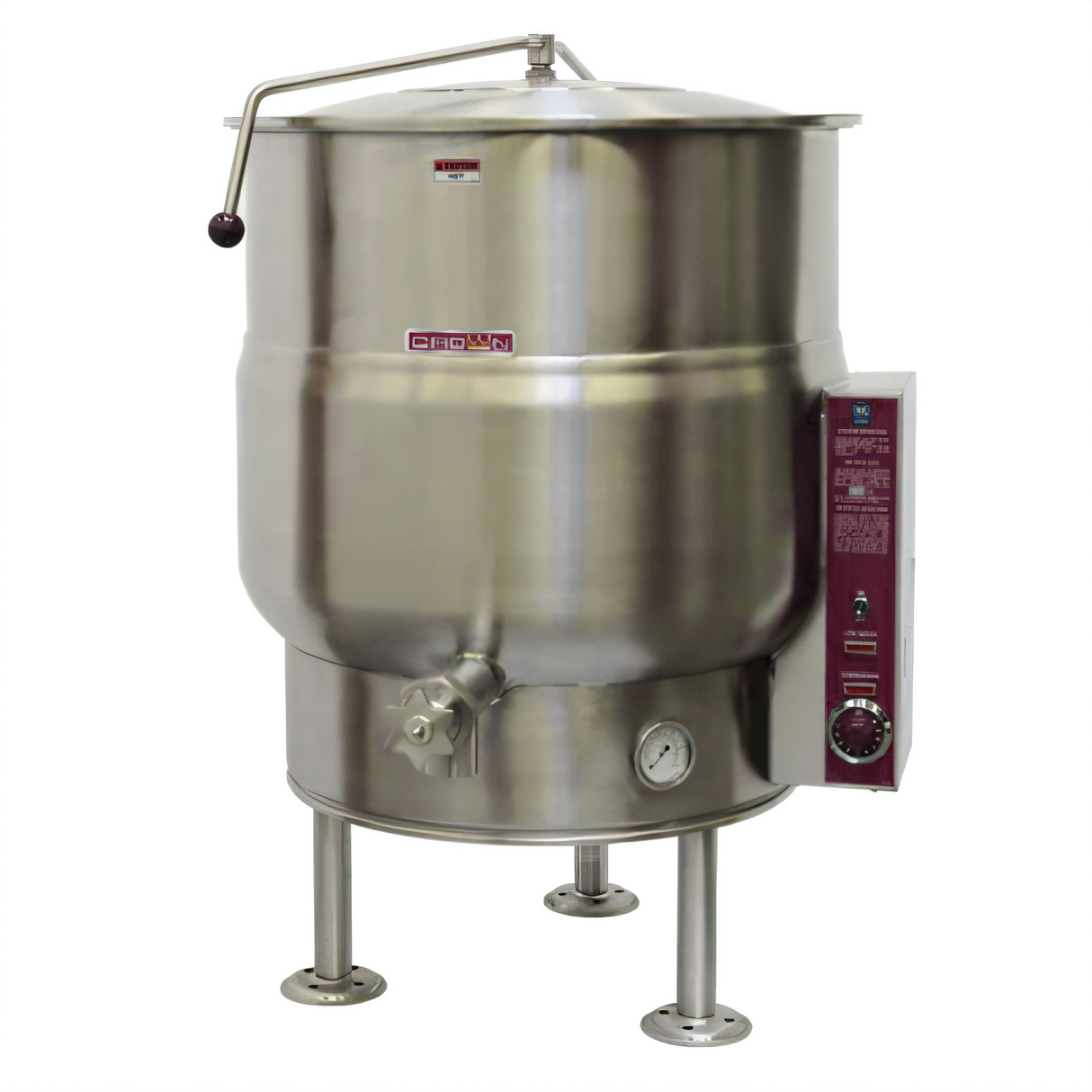

Crown EL-25 Electric Steam Tri-Leg Kettle – 25 Gallon
Self-contained, 2/3-jacketed stationary kettle with 2″ draw-off valveBuilt for demanding commercial kitchens, the Crown EL-25 delivers 25 gallons (95 L) of even, jacketed heat without the need for an external boiler. The 12 kW electric system is factory-sealed and ready to tackle soups, sauces, stocks and more with precise thermostatic control and rock-solid stainless construction.
Key Features
- 25 gal / 95 L capacity for medium-volume batch production
- Self-generating closed steam system – no external boiler required

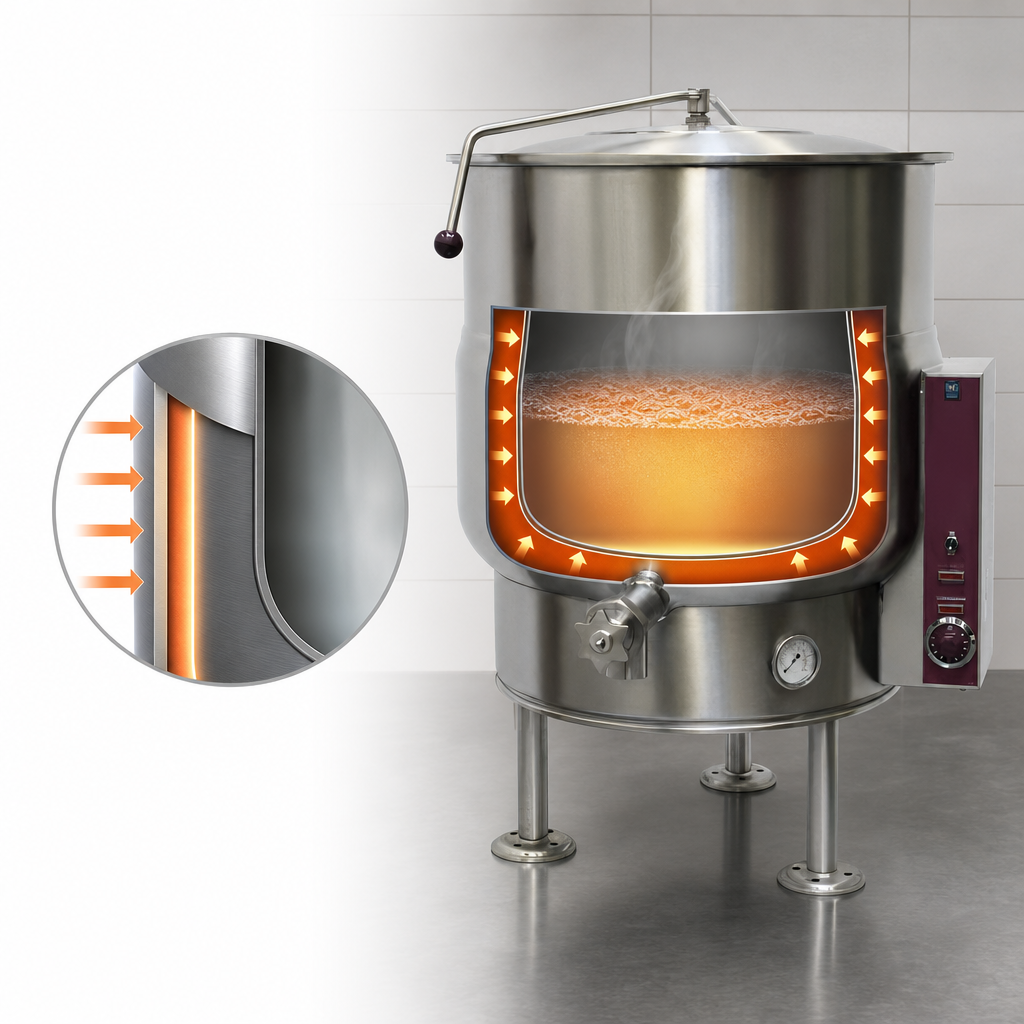

- Lower ⅔-jacketed design heats from 165 °F – 285 °F (74 °C – 140 °C) up to 50 psi
- 12 kW electric elements (removable) ensure rapid, even heating
- Premium 316 stainless steel interior liner resists acidic recipes
- 304 stainless steel exterior with sanitary #4 finish
- Tri-leg base with adjustable flanged feet for secure floor mounting
- 2″ sanitary draw-off valve with included perforated strainer for clean portioning
- Spring-assisted, hinged stainless steel cover with stay-open feature
- Factory-installed faucet bracket ready for optional pot-filler

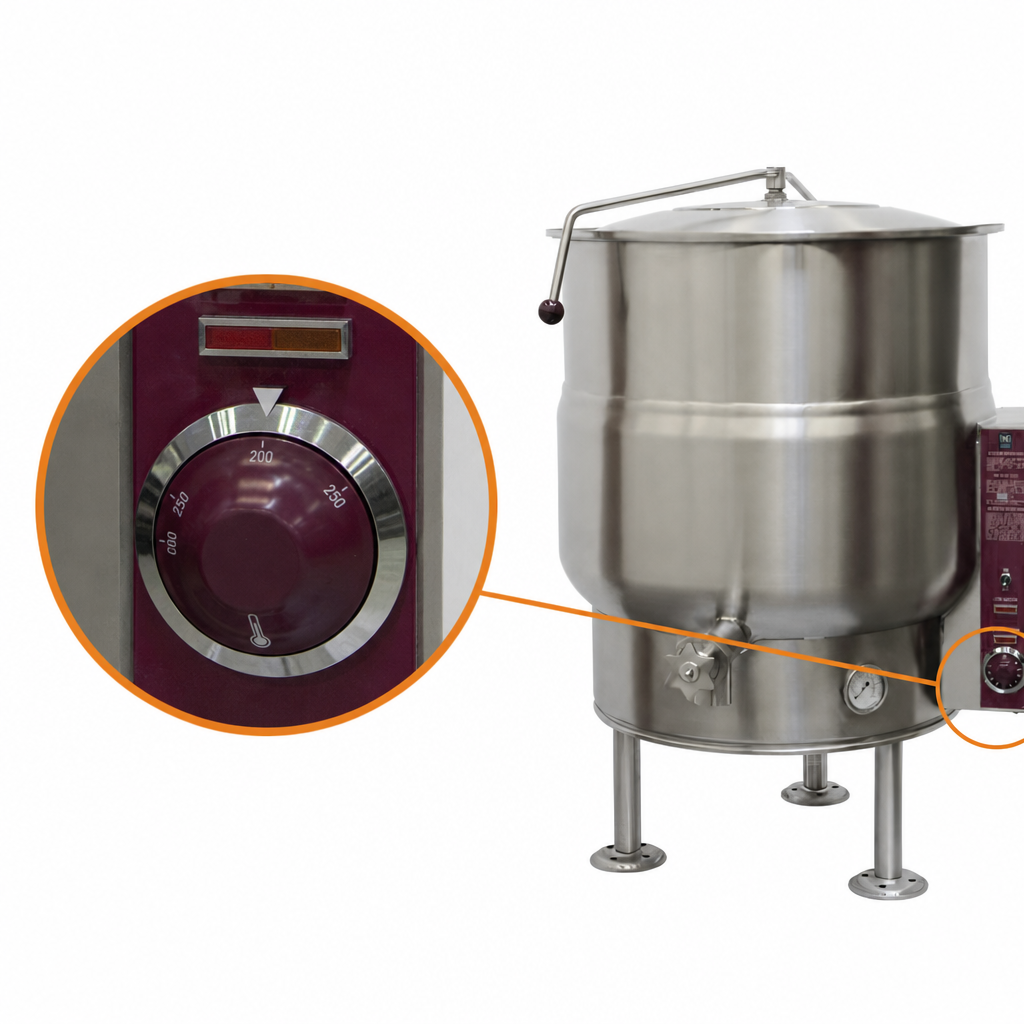

- Integral control panel: power switch, thermostat dial, pilot & low-water lights, vacuum/pressure gauge, safety relief valve, low-water cut-off
- ASME code stamped, cCSAus & NSF certified
Why Choose the EL-25?
- Gentle, jacketed heat prevents scorching and improves product yield
- No boiler room maintenance – simply connect power and start cooking
- Precise thermostat control allows worry-free simmering or holding
- High-acidity compatibility extends kettle service life
- Large batch size reduces labor and cooking cycles
Specifications
| Model | EL-25 |
|---|---|
| Capacity | 25 gal / 95 L |
| Heat Input | 12 kW electric |
| Jacket Coverage | Lower ⅔ of kettle body |
| Operating Temp. | 165 °F – 285 °F (74 °C – 140 °C) |
| Max. Working Pressure | 50 psi (345 kPa) |
| Interior Material | 316 stainless steel |
| Exterior Material | 304 stainless steel, #4 finish |
| Draw-Off Valve | 2″ sanitary, with perforated strainer |
| Cover | Spring-assist, hinged, stainless steel |
| Dimensions (W × D × H) | 21″ × 25 ¼″ × 58 ¾″ (533 × 641 × 1492 mm) |
| Shipping Weight | 200 lb (91 kg) |
| Clearance Required | 3″ (76 mm) sides & back |
| Certifications | ASME, cCSAus, NSF |
Electrical Data (3-Phase)
| Voltage | Amps / Line |
|---|---|
| 208 V | 33.3 A |
| 220 V | 31.5 A |
| 240 V | 28.9 A |
| 380 V | 18.2 A |
| 415 V | 16.7 A |
| 480 V | 14.4 A |
| 600 V | 11.6 A |
Single-phase configurations are also available at 208 V, 220 V or 240 V. Consult the factory for alternative voltages or phase requirements.
Popular Options (sold separately)
- 3″ draw-off valve (TVS-3)
- Two-piece hinged stainless steel cover
- Etched gallon or litre markings
- Kettle heat shield
- Single or double pantry faucet with swing spout
- Draw-off valve hose kit
WARNING: This equipment is intended for commercial foodservice use only. Installation and service must be performed by qualified professionals in accordance with local and national codes.
Features & Specs
Features & Specs
Manufacturer
Crown (Middleby)
Certifications
NSF, cCSAus
Height
60.5in
Width
23.75in
Depth
33.25in
Shipping Weight
200.0lbs
Kettle Liner
316 stainless steel
Kettle Jacket
full jacket
Base
tri-leg
Capacity
18 - 26 gallon
Specifications
Stationary Kettle, electric, 25 gallon capacity, 2/3 jacket, thermostatic control, 2" draw-off, includes: perforated strainer, spring assisted hinged cover & faucet bracket, 316 stainless steel interior liner, 304 stainless steel exterior, tri-leg, 12kW, cCSAus, NSF
