Crown (Middleby) EL-20 Steam Kettles
$18,926.50
Unit price
/
Unavailable
Description

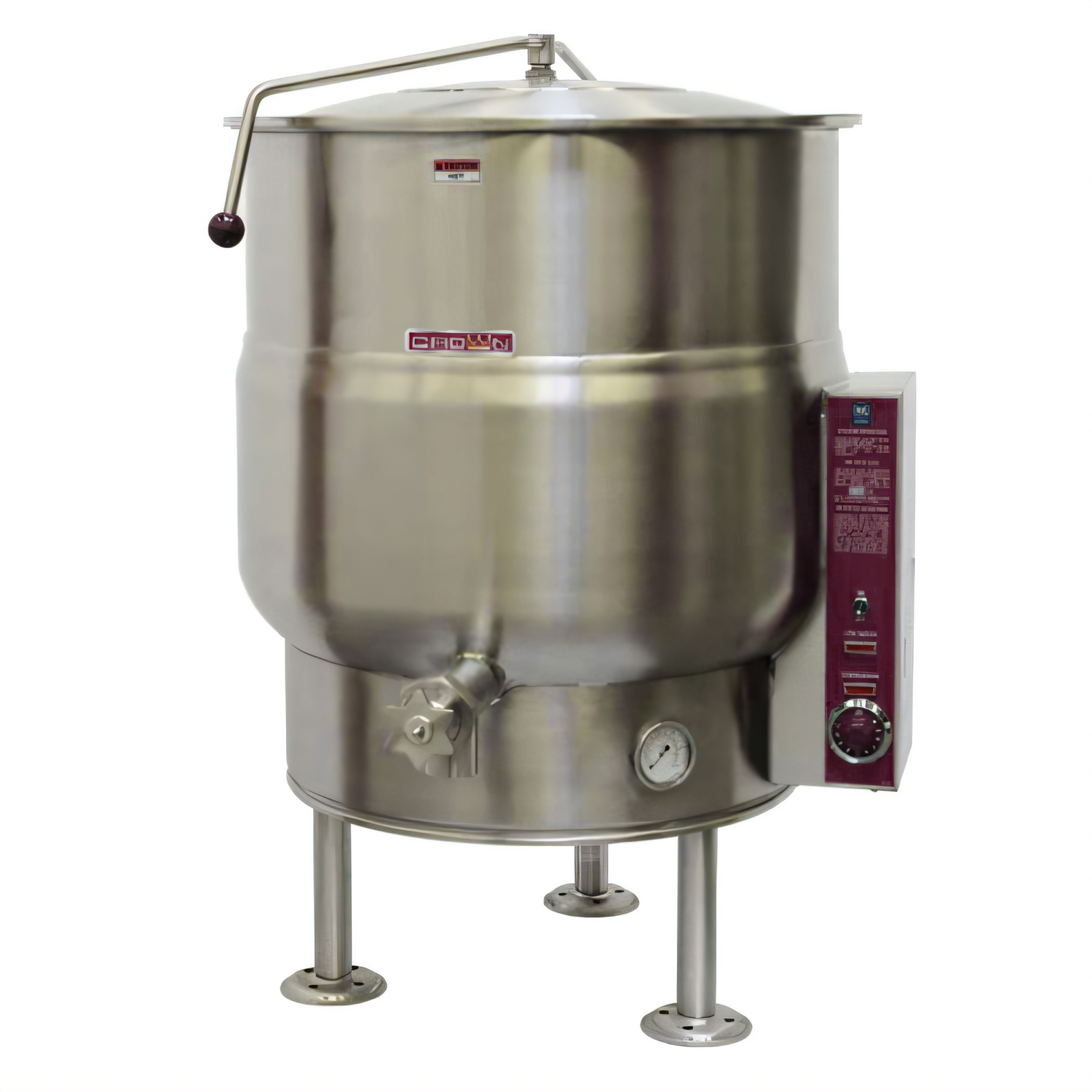

Crown EL-20 20-Gallon Electric Tri-Leg Steam Kettle
Self-Contained • 2/3 Jacket • 316/304 Stainless • 12 kWEngineered for demanding commercial kitchens, the Crown EL-20 stationary kettle delivers fast, even steam heat without the cost or complexity of an external boiler. A 20-gallon, 316-stainless liner handles high-acid recipes with ease, while rugged 304-stainless construction, a spring-assist cover and a sanitary 2 inch draw-off valve streamline every batch of soups, sauces, stocks and pastas.
Highlights & Benefits
- 20 gal / 76 L capacity – perfect for small-batch production & à-la-minute service
- Self-generating 2/3 steam jacket distributes heat evenly; no external steam source required
- Powerful 12 kW removable elements reach set temps fast and simplify service

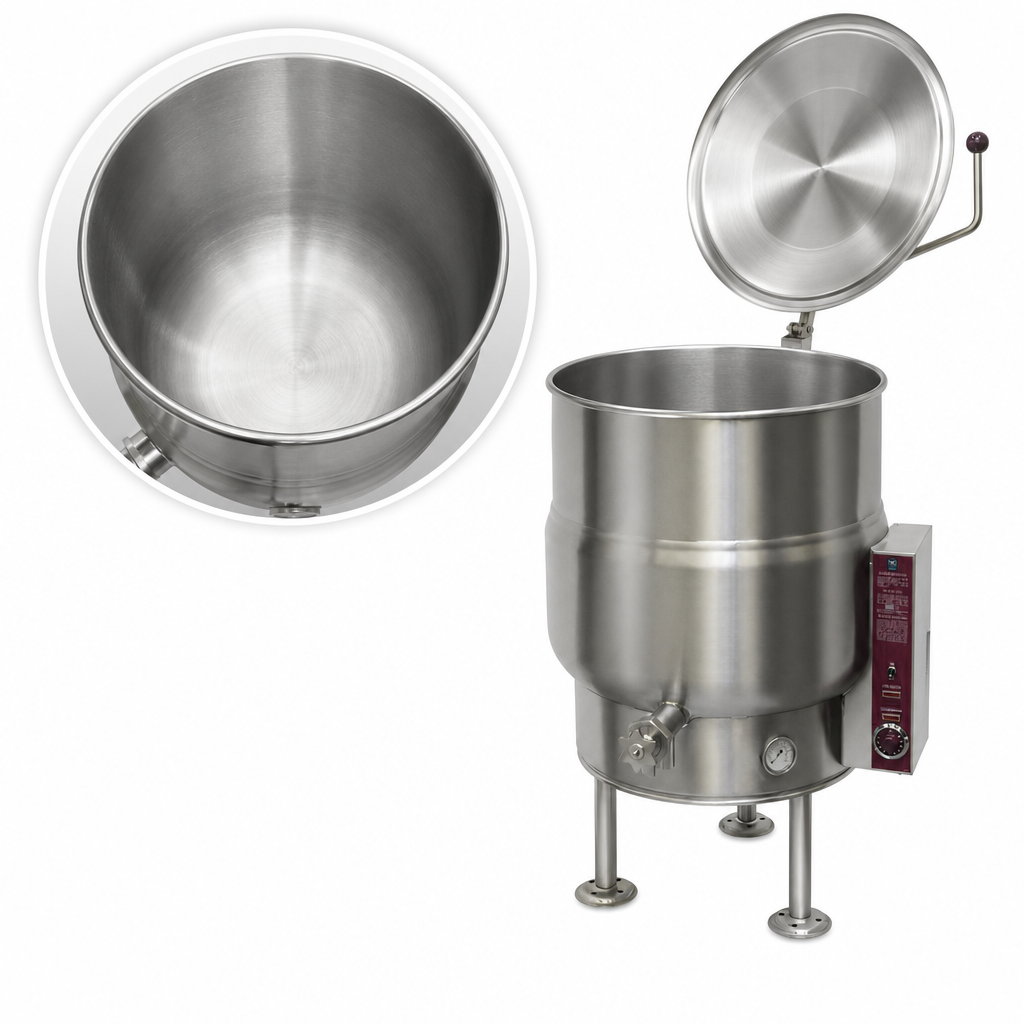

- 316 SS interior resists corrosion from tomato, vinegar & citrus based recipes

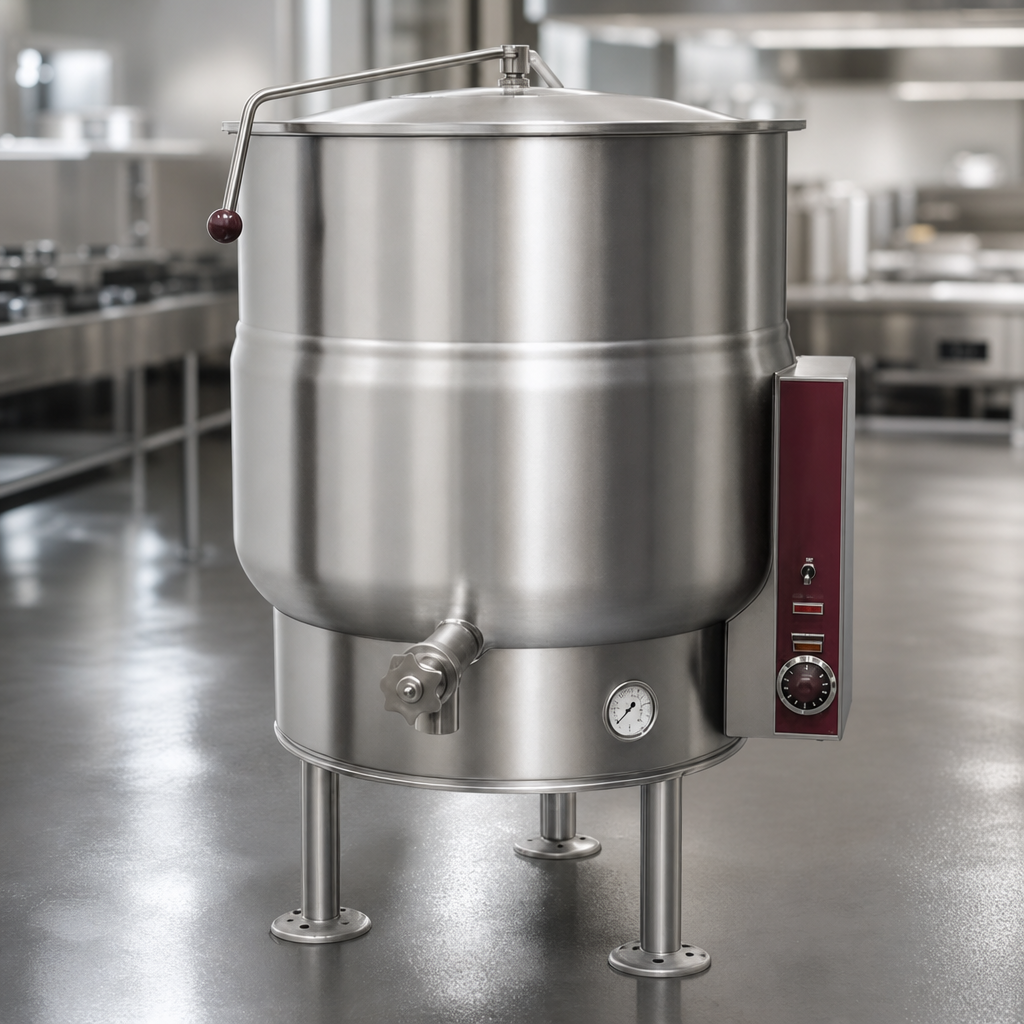

- 304 SS exterior with #4 finish wipes clean and maintains a professional look
- Thermostatic control (165 – 285 °F / 74 – 140 °C) for precise, repeatable results
- Spring-assist domed cover – one-hand lift & hold
- 2 in. sanitary draw-off valve with perforated strainer speeds draining & portioning
- Built-in faucet bracket – add an optional single or double pantry faucet with no extra drilling
- Tri-leg base with adjustable flanged feet for rock-solid, code-compliant floor mounting
- Full safety package: low-water cutoff, pressure/vacuum gauge & 50 psi relief valve
- ASME code stamped, cCSAus & NSF certified – ready for installation in every jurisdiction
Technical Specifications
| Model | EL-20 (stationary) |
|---|---|
| Capacity | 20 gal | 76 L |
| Jacket Coverage | Lower 2/3 of kettle body |
| Heating Power | 12 kW electric, self-contained steam |
| Voltage Options* | 208/220/240 V 1- or 3-phase · 380/415/480/600 V 3-phase |
| Max Amp Draw (12 kW) | 1-Ph: 208 V 57.7 A · 240 V 50.0 A 3-Ph: 208 V 33.3 A · 240 V 28.9 A · 480 V 14.4 A |
| Temperature Range | 165 – 285 °F (74 – 140 °C) |
| Working Pressure | Up to 50 psi (345 kPa) |
| Interior / Exterior | 316 SS liner / 304 SS shell & legs |
| Controls | On/Off switch · Thermostat dial · Pilot & low-water indicators · Pressure/vacuum gauge |
| Standard Fittings | 2 in. draw-off valve with strainer · Spring-assist cover · Faucet bracket |
| Overall Dimensions** | Ø 21 in (533 mm) · Depth 38 in (965 mm) · Height 60.5 in (1 537 mm) |
| Shipping Weight | 196 lb (89 kg) |
| Minimum Clearance | 3 in (76 mm) sides & back |
| Certifications | ASME, cCSAus, NSF, National Board Registered |
| Warranty | 1 year parts & labor (commercial use) |
* Confirm voltage & phase at time of order.
** See spec sheet for detailed rough-in dimensions.
What’s in the Box
- Crown EL-20 electric kettle (pre-charged with distilled water in jacket)
- Spring-assist hinged stainless cover
- 2″ sanitary draw-off valve with perforated strainer
- Factory-mounted faucet bracket
- Installation & operation manual
Popular Accessories (Sold Separately)
- Single or double pantry faucet kits (SF-18 / DF-18)
- 3″ draw-off valve upgrade (TVS-3)
- Graduated sight glass or etched gallon/litre markings
- Kettle heat shield (KHS-)
- Triple basket assembly for pasta or seafood (TBA-)
Important: This equipment is intended for commercial use only.
Installation must be performed by a qualified technician and in accordance with all
applicable electrical and plumbing codes.
Features & Specs
Features & Specs
Manufacturer
Crown (Middleby)
Certifications
NSF, cCSAus
Height
60.5in
Width
23.75in
Depth
33.25in
Shipping Weight
196.0lbs
Kettle Liner
316 stainless steel
Capacity
18 - 26 gallon
Kettle Jacket
partial jacket
Base
tri-leg
Specifications
Stationary Kettle, electric, 20 gallon capacity, 2/3 jacket, thermostatic control, 2" draw-off, includes: perforated strainer, spring assisted hinged cover & faucet bracket, 316 stainless steel interior liner, 304 stainless steel exterior, tri-leg, 12kW, cCSAus, NSF
