Crown (Middleby) EL-100 Steam Kettles
Description

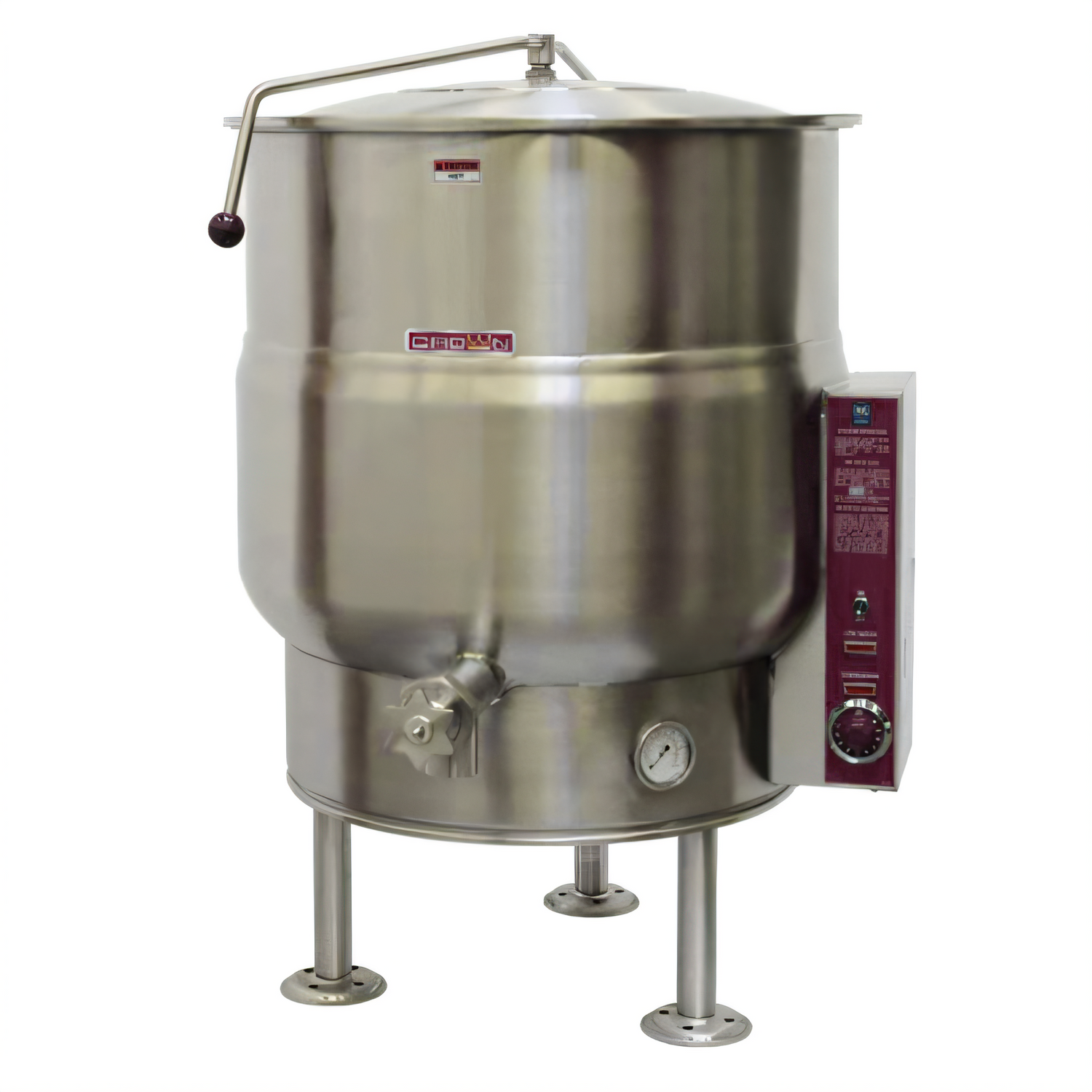

Crown EL-100 100-Gallon Electric Tri-Leg Steam Kettle
Self-Generating • 2/3 Jacket • 316/304 StainlessBuilt for the busiest commissaries, universities, and production kitchens, the Crown EL-100 delivers an enormous 100 gal (379 L) batch capacity with the precision of electric, self-contained steam. Its acid-resistant 316 stainless liner, rugged 304 stainless shell, and labor-saving accessories come ready to boost output the moment it’s bolted to the floor.
Key Features
- Self-generating 2/3 steam jacket sealed with distilled water—no external boiler required.
- Temperature range 165 – 285 °F (74 – 140 °C) at up to 50 psi for rapid, even heating.

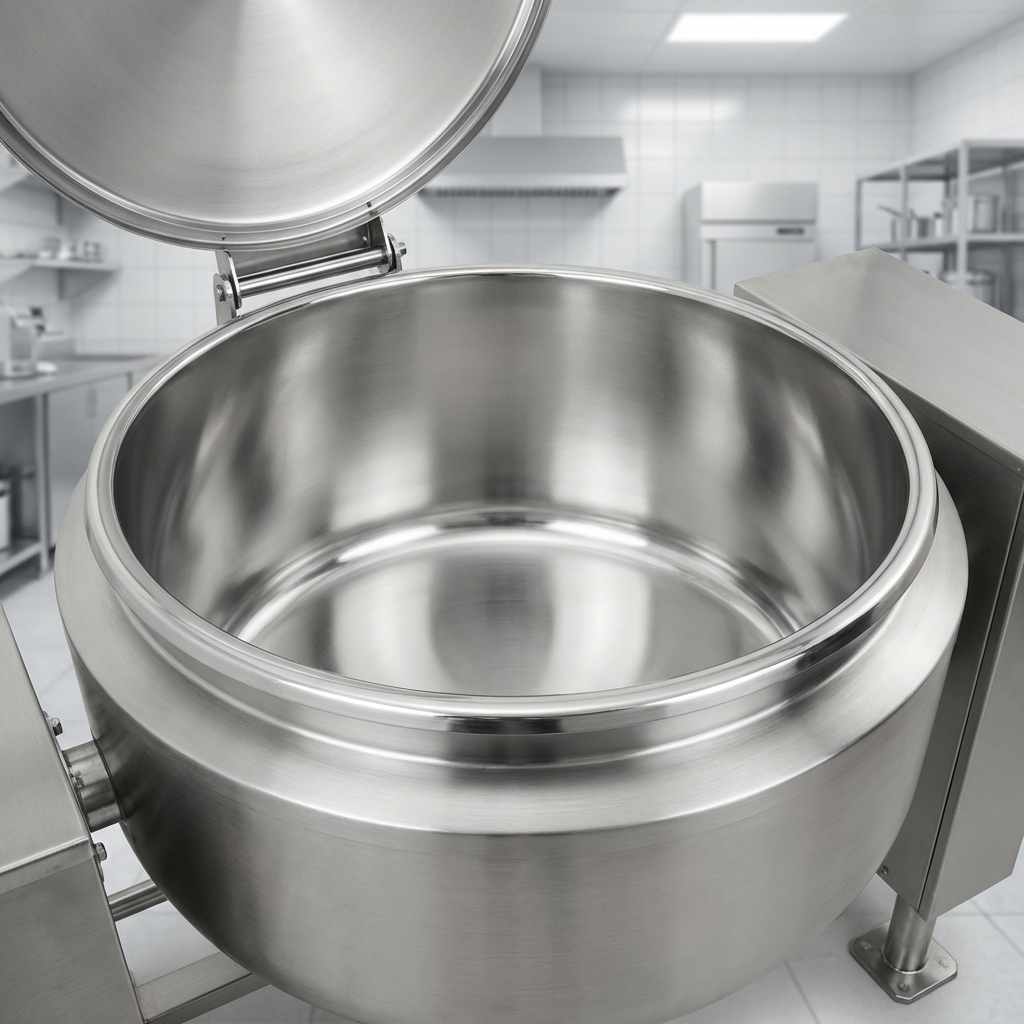

- 316 SS interior liner handles high-acid foods; 304 SS exterior with all-welded #4 finish.
- Includes spring-assisted hinged stainless cover, faucet bracket, and 2″ sanitary draw-off valve with removable perforated strainer.
- Tri-leg base with 4-hole adjustable flanged feet for positive floor anchoring.

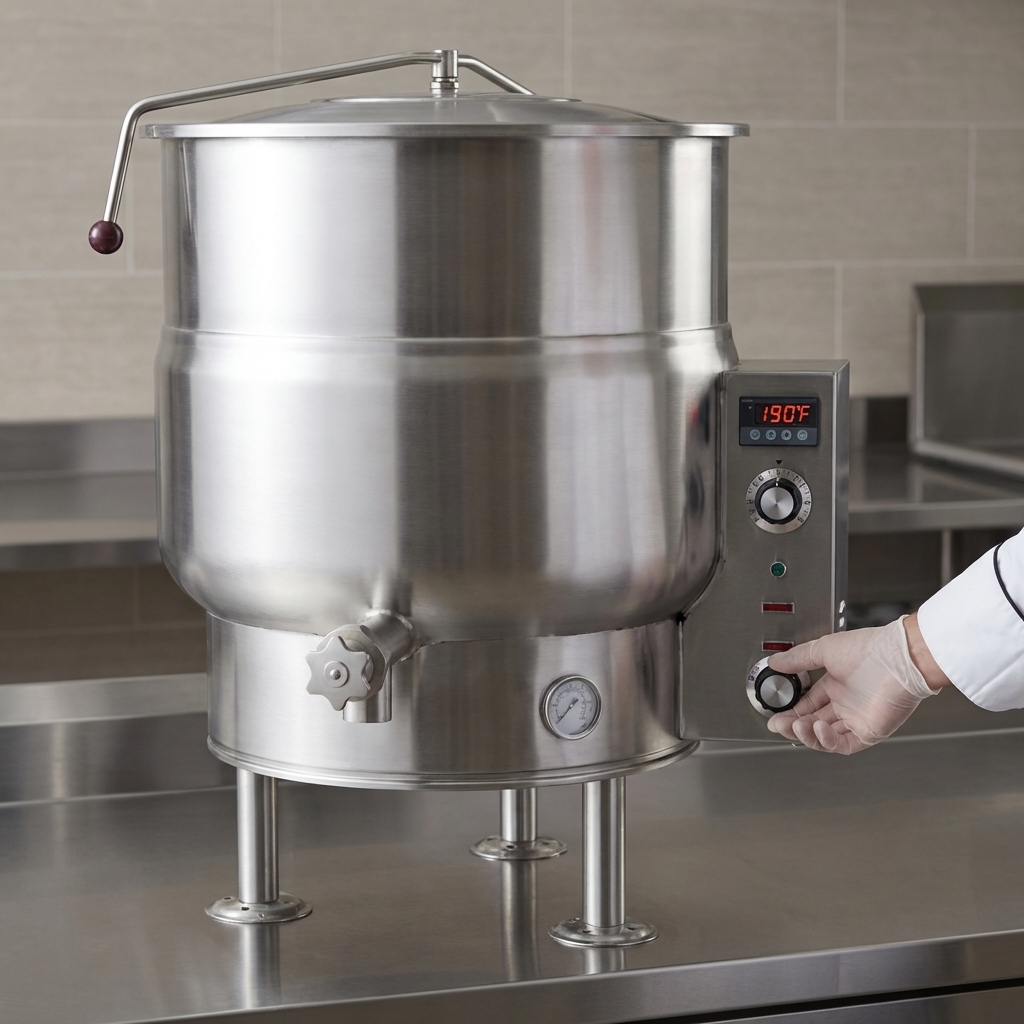

- Front-mounted control panel: lighted power switch, thermostat, pilot & low-water lights, vacuum/pressure gauge, safety relief valve, and automatic low-water shutoff.
- Field-replaceable heating elements speed up maintenance and reduce downtime.
- ASME code stamped, National Board registered, cCSAus & NSF certified for peace of mind.
Specifications
| Capacity | 100 gal / 379 L |
|---|---|
| Construction | 316 SS liner, 304 SS exterior, hemispherical bottom |
| Jacket Coverage | Lower 2/3 of kettle |
| Heating Method | Electric, self-contained steam generation |
| Standard Power | 24 kW, 3-phase (optional 33 kW) |
| Voltage Options | 208, 220, 240, 380/220, 415/240, 480, or 600 VAC 50/60 Hz |
| Temperature / Pressure | 165 – 285 °F (74 – 140 °C) | Max 50 psi (345 kPa) |
| Overall Dimensions (W×D×H) | 35.5″ × 40″ × 87″ (902 × 1016 × 2210 mm) |
| Shipping Weight | 486 lb (221 kg) |
| Clearance | 3″ (76 mm) sides & back |
| Certifications | ASME, cCSAus, NSF |
Ideal Applications
- Soups, sauces, and stocks
- Pasta, rice, and grains
- Candy, caramel, and confectionery syrups
- Braising, poaching, and sous-vide finishing
- Bulk re-thermalization of chilled or frozen product
Need gallon or litre etchings, a 3″ draw-off, or faucet packages? A full range of factory options and accessories are available—contact us for a tailored quote.
