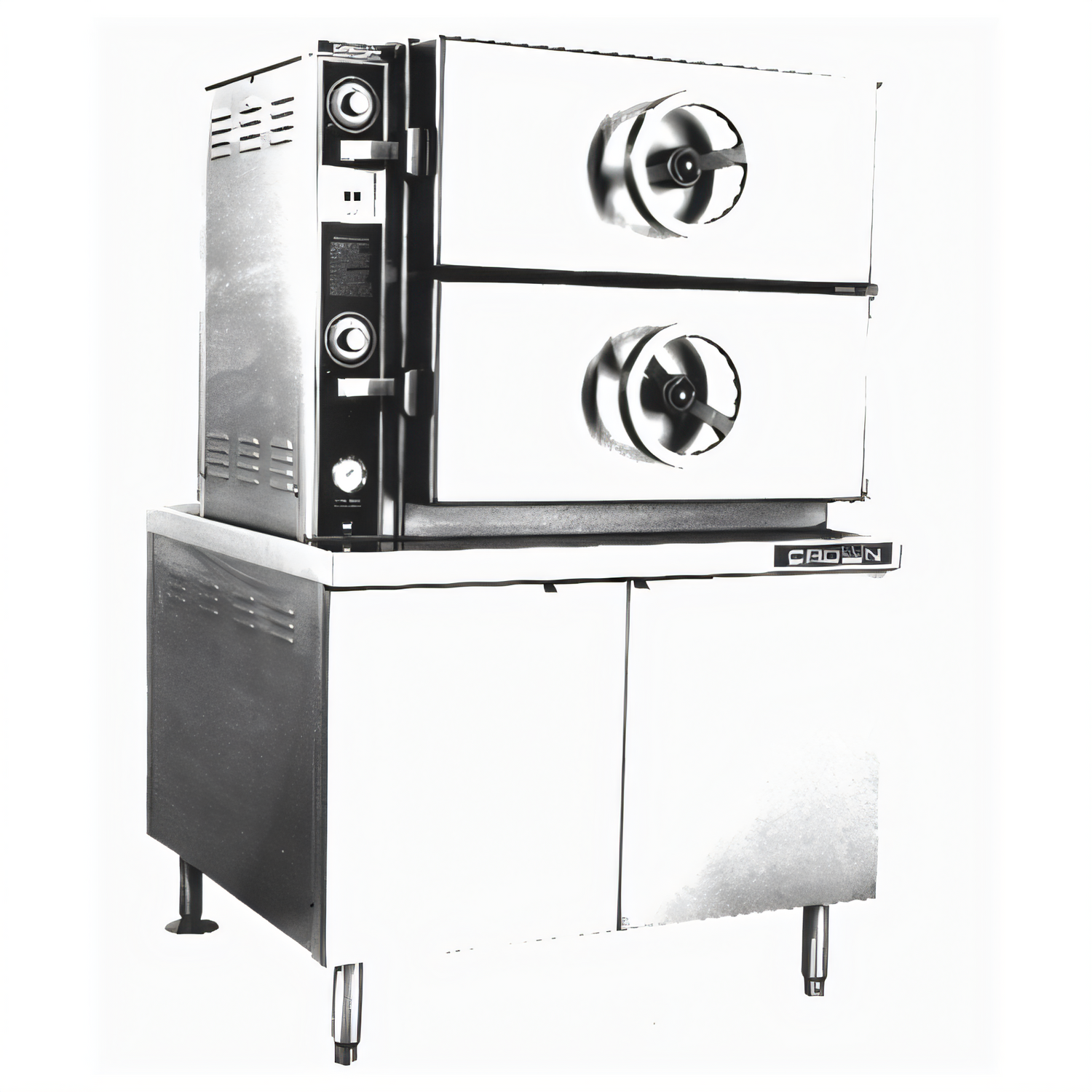

Crown (Middleby) EDA-3 Pressure Steamers
Description
Crown “Do-All” Dual-Pressure Steamer – 3-Compartment, 36" Cabinet Base
Model EDA-3 | Electric | Upper compartment pressure / pressure-lessDrive speed, versatility and consistency in one small footprint. The Crown EDA-3 lets you switch the upper compartment from rapid high-pressure cooking to gentle pressure-less steaming, while two additional pressure chambers keep production moving. An integrated 48 kW ASME boiler, factory water treatment and CSD-1 safety suite make this all-stainless steamer a worry-free workhorse for any high-volume kitchen.
Key performance benefits
- Three independent chambers with 0–60 min manual timers, pilot lights & audible buzzer.
- Upper compartment selector for 6 psi pressure or pressure-less 0 psi steaming.
- 48 kW electric boiler (9–11 psi) reaches cooking pressure in about 15 minutes.
- Automatic boiler blow-down, water-level control, pressure gauge & safety relief valve.
- Factory-installed water filter, split water line & “Y” strainer protect against scale and debris.
- Universal pan slides hold up to 24 full-size 12" × 20" × 2.5" pans.
- Doors feature wheel-and-screw closure, 316 SS inner liners & replaceable gaskets for a tight seal.
- All-welded 304 SS cabinet with #4 finish and 6" adjustable flanged legs for bolting to floor.
- Thermostatically-controlled condenser cools exhaust steam before it reaches the drain.
- cCSAus & NSF certified; designed for continuous commercial use.
Technical specifications
| Compartments / type | 3 total – Upper: pressure / pressure-less, Lower 2: pressure only |
|---|---|
| Pan capacity | 24 × 2.5" pans | 12 × 4" pans | 6 × 6" pans |
| Door clear opening | 10-¼" W × 26-⅜" H |
| Boiler rating | 48 kW, 9–11 psi operating, automatic blow-down |
| Voltage (3 ph) | 240 V (115.5 A) • 380 V (72.9 A) • 415 V (66.8 A) • 480 V (57.7 A) |
| Water connection | 3/8" O.D. cold water, 25–50 psi (170-345 kPa) |
| Drain connection | 2" IPS to open floor drain (air gap required) |
| Optional steam take-off | ¾" IPS for adjacent equipment |
| Exterior dimensions | 36" W × 41" D × ≈71" H (including 6" legs) |
| Construction | 316 SS cooking chambers • 304 SS exterior • #4 satin finish |
| Certifications | cCSAus, NSF |
Looking for accessories such as pan racks or spray hoses? Contact our team and we’ll configure the perfect Crown steamer package for your kitchen.
