Crown (Middleby) EDA-2 Pressure Steamers
Description

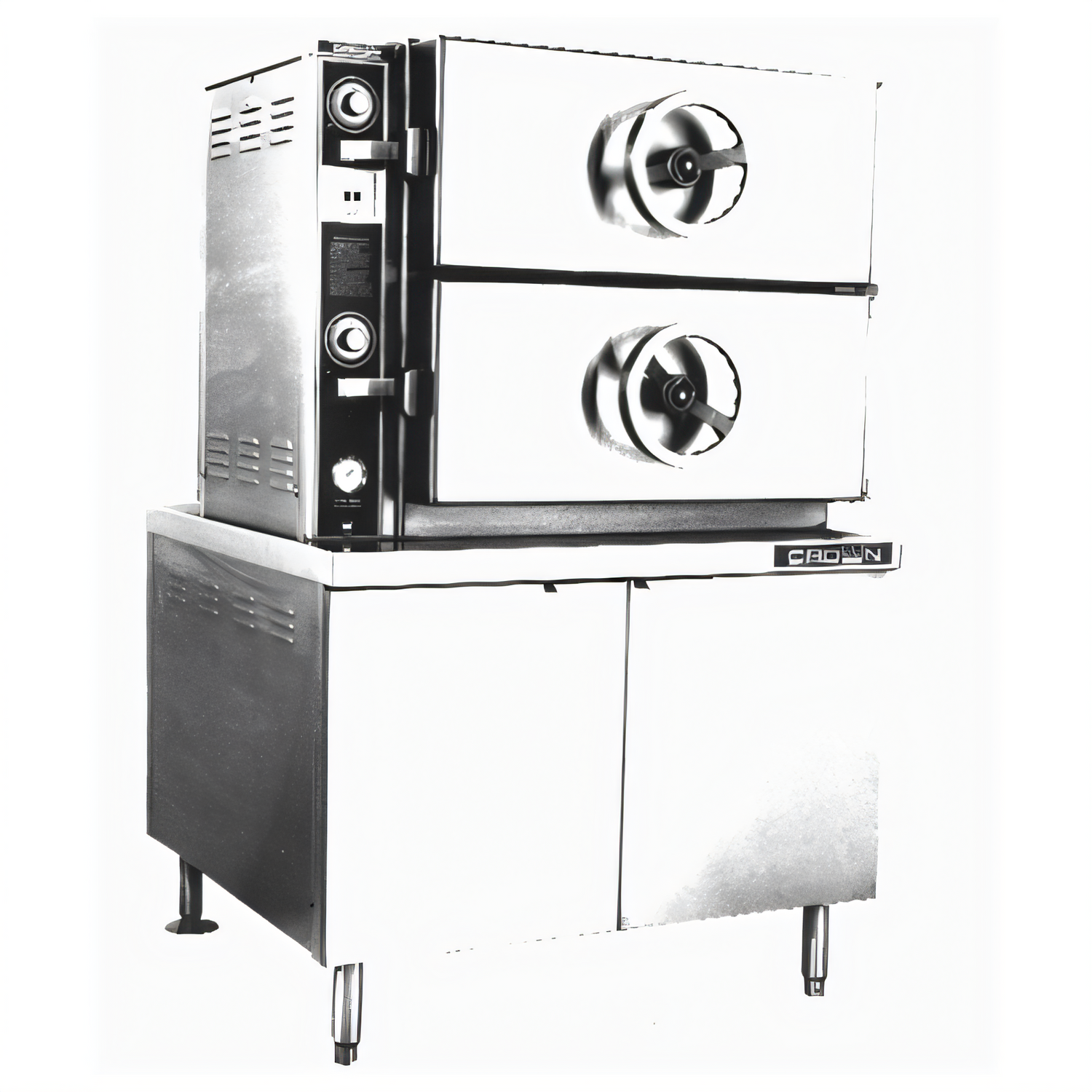

Crown EDA-2 “Do-All” Dual-Pressure Steamer
2-Compartment | 36" Cabinet Base | Electric 42 kWBuilt for high-volume kitchens that demand speed, flexibility, and rock-solid reliability, the Crown EDA-2 lets you choose pressure or pressureless steaming in the upper compartment while delivering full-pressure power in the lower compartment. From delicate seafood to dense root vegetables, this steamer truly does it all—with the efficiency of an on-board 42 kW boiler and the protection of a factory-installed water treatment system.
Why You’ll Love It

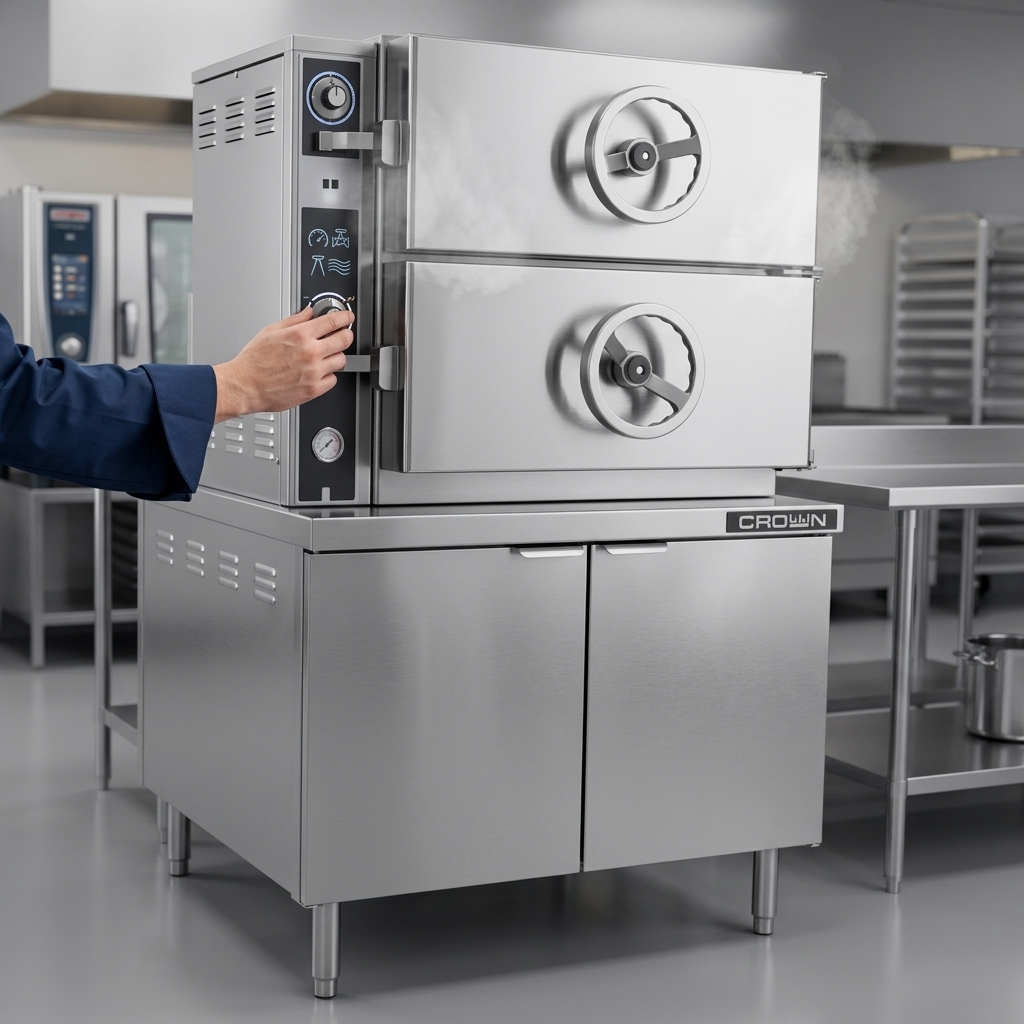

- Dual-mode upper compartment: switch instantly between pressure (≤ 6 psi) and pressureless free-venting steam.

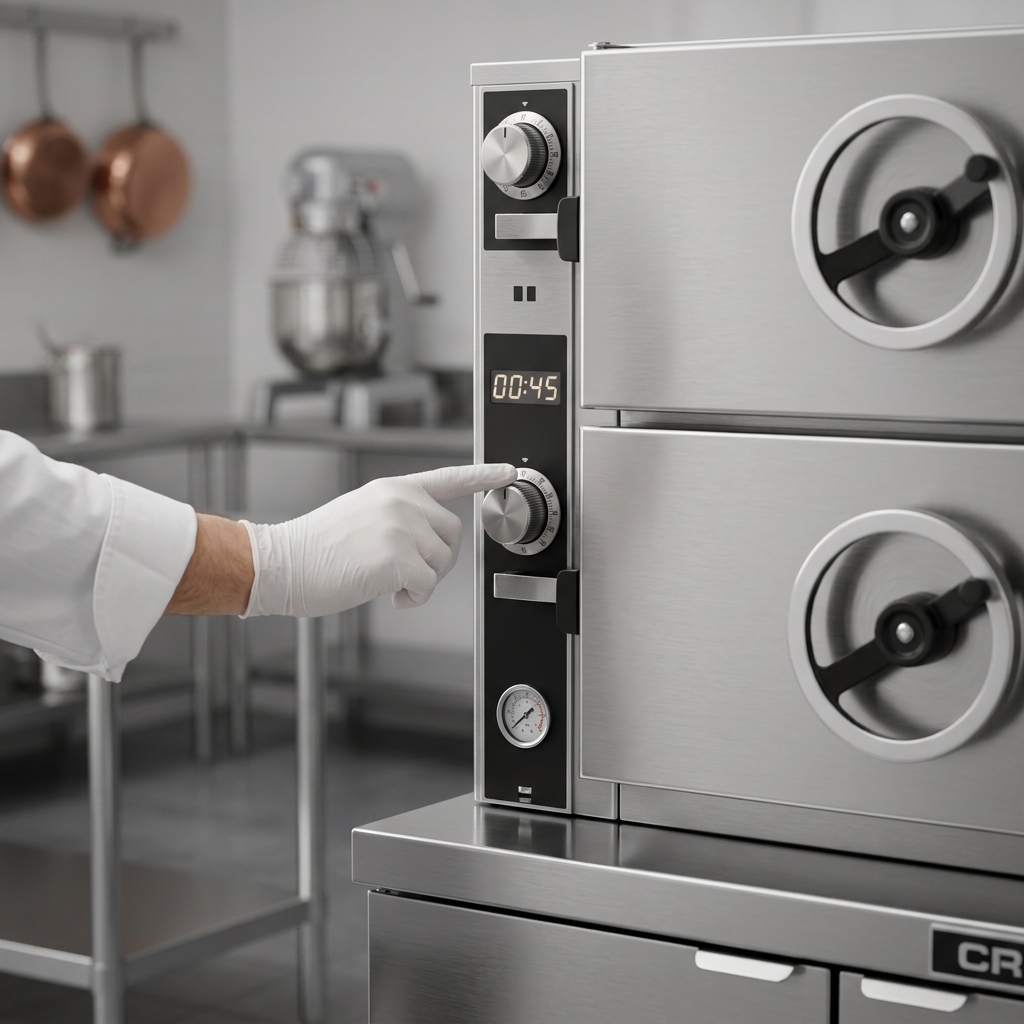

- Independent 60-minute manual timers with audible & visual alerts for each compartment.
- 42 kW electrically-heated boiler operates at 9–11 psi and reaches cooking temperature in about 15 minutes.
- Integrated CSD-1 code package, automatic blowdown, split water line, and “Y” strainer keep the boiler running clean and safe—no extra kits to buy.
- Factory-supplied water filtration system protects your investment and preserves warranty coverage.
- Heavy-duty construction: 316 SS cook chambers, 304 SS exterior, wheel-and-screw door latches, and universal pan supports.

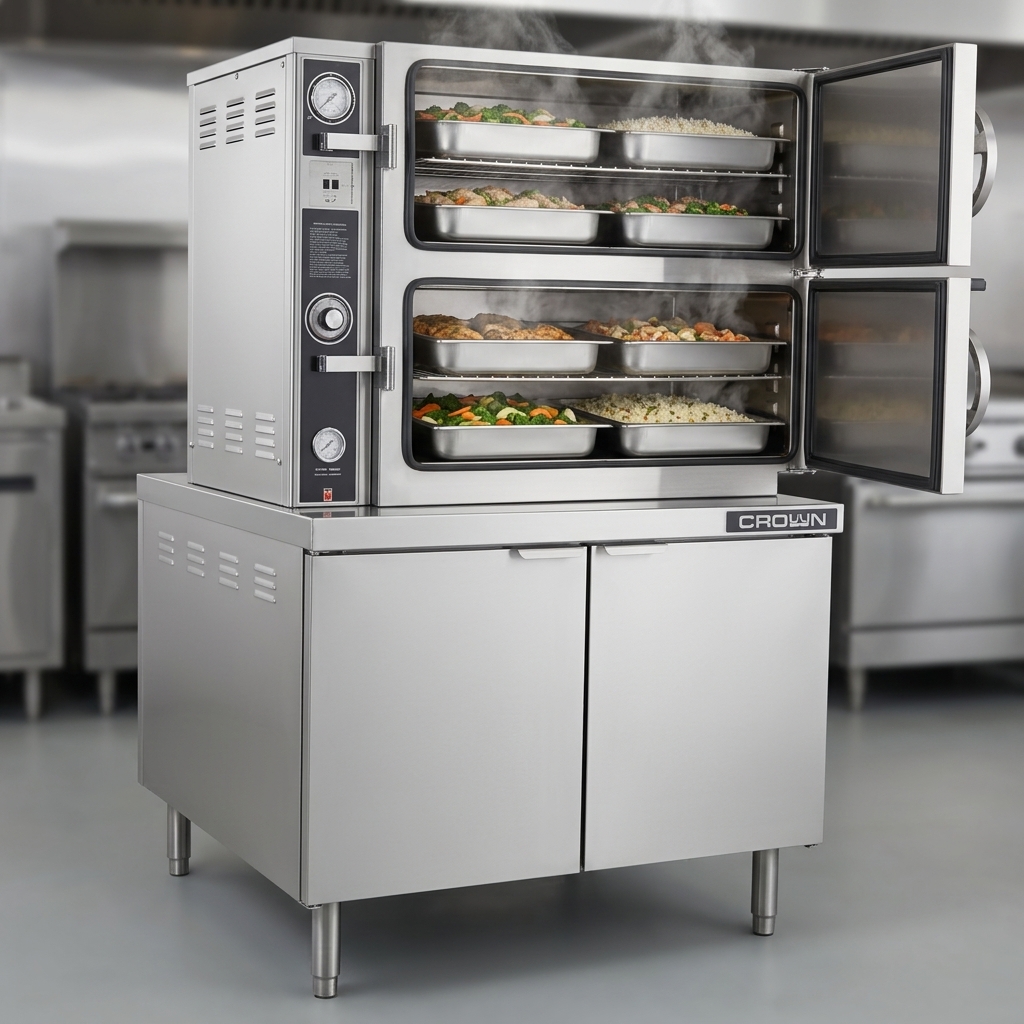

- Holds 8–16 full-size (12 × 20") pans—perfect for batch cooking or à-la-carte service.
- 6" adjustable stainless legs with flanged feet provide a rock-solid, code-approved floor mount.
- Certified cCSAus & NSF for worry-free installation anywhere in North America.
Technical Specs
| Compartments / Mode | 2 total • Upper: pressure or pressureless • Lower: pressure |
|---|---|
| Pan Capacity (12" × 20") | 2.5" deep – 8 pans /compartment (16 total) 4" deep – 4 pans /compartment (8 total) 6" deep – 2 pans /compartment (4 total) |
| Boiler Rating | 42 kW, 9–11 psi operating pressure, automatic blowdown |
| Electrical (3 Ph options) | 208 V 116.6 A | 220 V 110.2 A | 240 V 101.0 A 380 V 63.8 A | 415 V 58.4 A | 480 V 50.5 A |
| Cabinet Width | 36" (914 mm) |
| Interior / Exterior | 316 SS chambers | 304 SS #4 satin cabinet |
| Door Opening | 10-1/4" × 26-3/8" (260 × 670 mm) |
| Water & Drain | 3/8" O.D. cold water, 25–50 psi | 2" IPS open floor drain |
| Certifications | cCSAus, NSF |
Popular Accessories (sold separately)
- Sliding sheet-pan supports (SPS-PC1 / SPS-PC2)
- Wire shelf racks (SSR-PC)
- Single or double pantry spray hoses with mounting bracket
- Nickel-plated boiler shell for aggressive water conditions
