Description

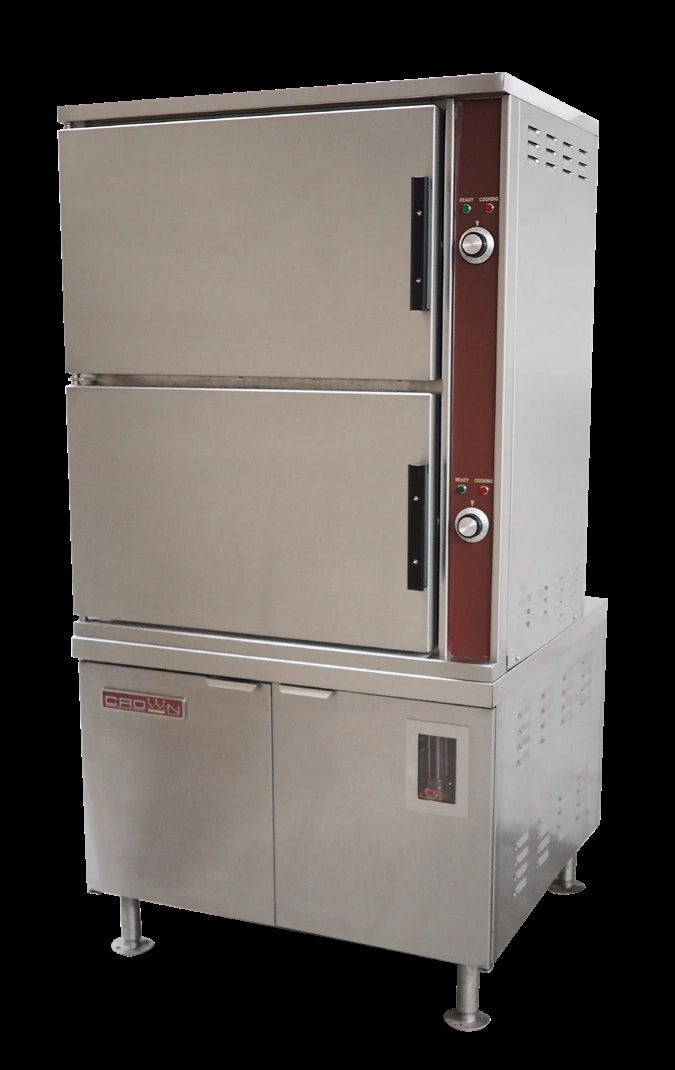

Crown ECX-24 Two-Compartment Electric Convection Steamer
36" cabinet base • 24-pan capacity • Built-in electric boilerThe Crown ECX-24 is a high-performance, self-contained convection steamer that puts an entire steam battery in just 36 inches of floor space. Independent compartments, a rugged 42 kW boiler and factory-installed water treatment give chefs the speed, capacity and consistency they need—service after service.
Why You’ll Love It
- Two independent cavities hold 12 full-size (12 × 20 × 2½") pans each—24 pans total.
- Electric steam boiler operates at 9-11 psi for rapid recovery and even cooking.
- Automatic boiler blowdown + factory water treatment system dramatically cut scale-related downtime.
- Separate 60-minute timer, ready/cook lights and audible buzzer for each compartment.
- Door interlock stops steam instantly when a door is opened, protecting staff and saving energy.
- Removable 316 SS pan supports & drip trough speed up cleaning.
- Satin-finish 304 SS exterior stands up to the daily grind and still looks sharp.
- CSD-1 compliant controls, split water lines and drain tempering system simplify code approval.
- 6" stainless legs with adjustable flanged feet anchor the unit securely to the floor.
- cCSAus & NSF listed for commercial kitchens throughout North America.
At-a-Glance Specifications
| Model | ECX-24 |
|---|---|
| Compartments | 2, independently controlled |
| Pan Capacity | 12 × 12" × 20" × 2½" per compartment (24 total) |
| Steam Generator | Electric boiler, 42 kW standard (48 kW optional) |
| Operating Pressure | 9 – 11 psi (62 – 76 kPa) |
| Voltage (3-Ph) | 208 V or 240 V standard; 380 / 415 / 480 / 575-600 V available |
| Amperage @ 42 kW | 208 V = 116.6 A | 240 V = 101 A | 480 V = 50.5 A |
| Shipping Weight | ≈ 950 lb / 408 kg |
| Interior | One-piece, fully-welded 316 SS |
| Exterior | 304 SS, satin finish |
| Certifications | cCSAus, NSF |
| Warranty | 1 yr parts & labor • 2 yr prorated boiler shell |
Perfect For
- High-volume restaurants & banquet facilities
- Schools, universities & healthcare kitchens
- Ghost kitchens & commissaries needing rapid batch production
- Caterers looking to maximize throughput in minimal space
To maintain warranty coverage, incoming water must meet Crown Steam Group’s quality requirements (TDS < 60 ppm, pH 6.8-7.3). Replace filter cartridges on schedule and purge 2-3 gal at each change.
