Crown (Middleby) ECX-2-6-6 Steam Kettles
Description

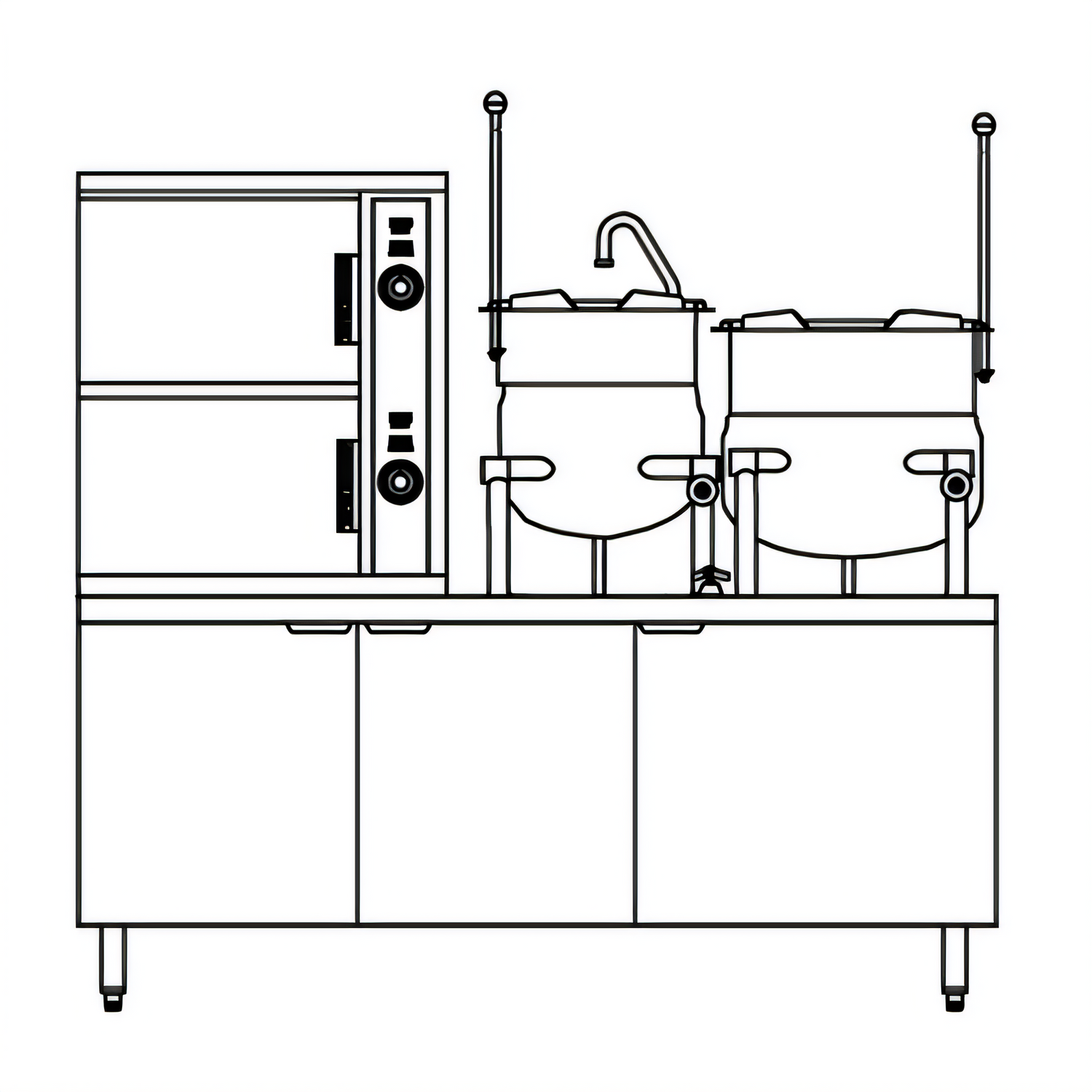

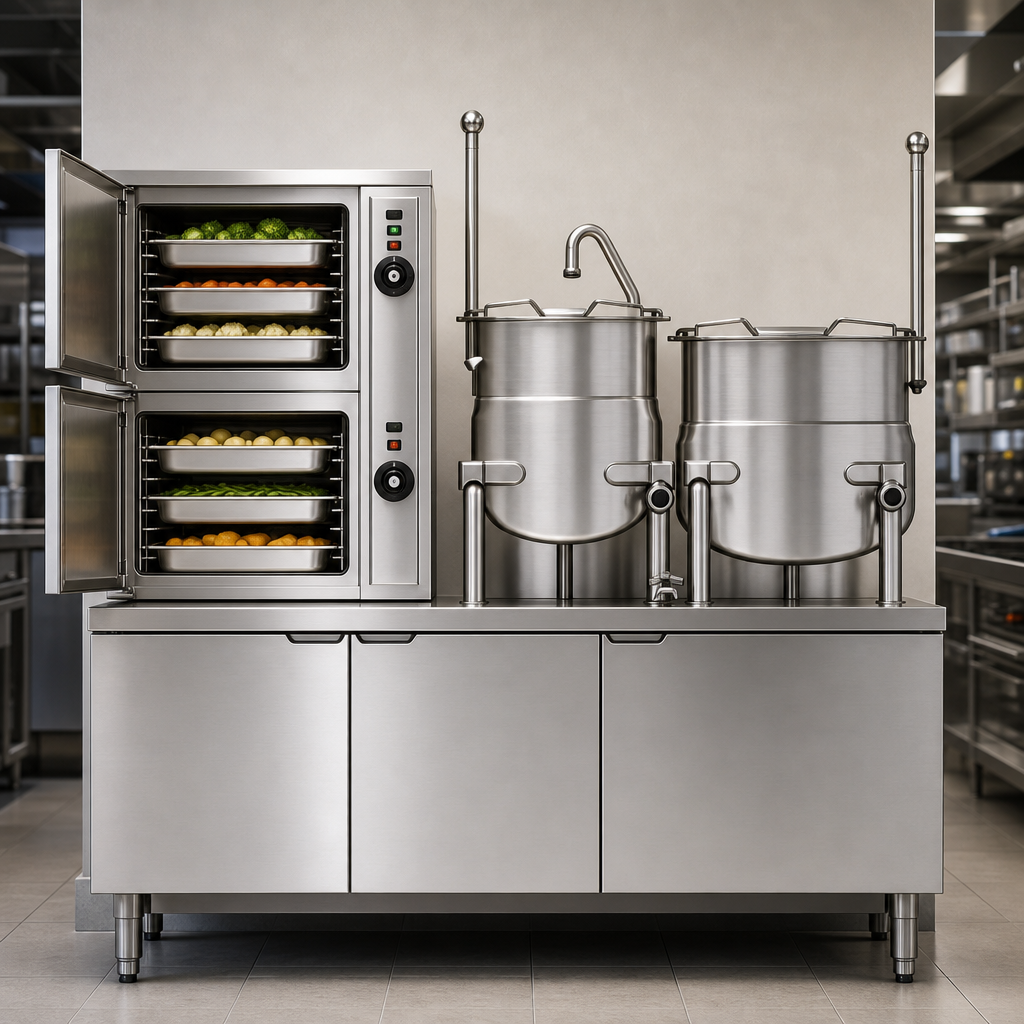

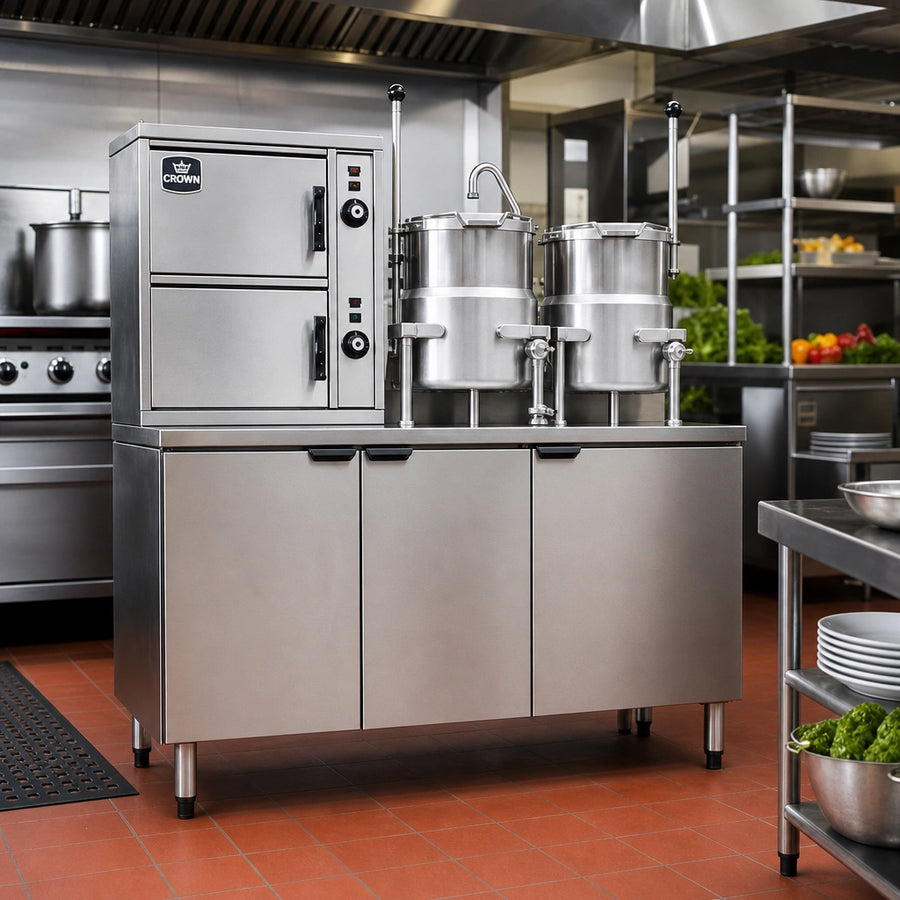

Crown ECX-2-6-6 Electric Convection Steamer & Twin 6-Gallon Kettles
60" cabinet base • 6-pan capacity • 42 kW boilerCombine high-volume steaming and kettle cooking in one space-saving station. Crown’s ECX-2-6-6 delivers rapid, even convection steam in two independent compartments while a shared 42 kW electric boiler powers two 6-gallon tilting kettles—ideal for soups, sauces and sides. Built for the toughest commercial kitchens, every surface that touches food is 316 stainless steel and the exterior is rugged 304 stainless with a sleek #4 finish.
Key Features
- Two fully insulated 316 SS cooking chambers, each accommodates up to (3) 12" × 20" × 2½" hotel pans
- Integrated 42 kW electric steam boiler operates at 9-11 psi for fast recovery and consistent results

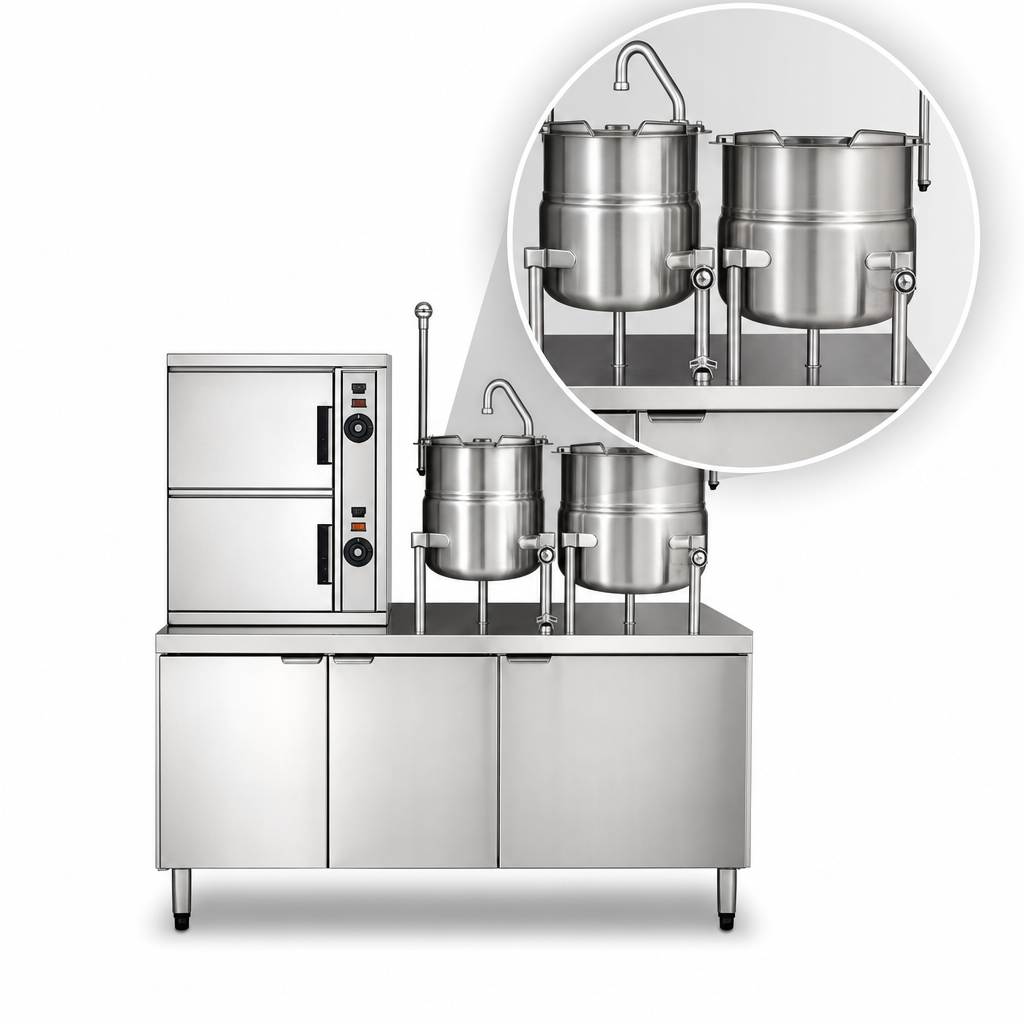

- (2) 6-gallon tilting kettles mounted on the same base—cook entrées, stocks or sauces while you steam
- Deck-mount faucet with swing nozzle & integral sink for quick fill-ups and easy clean-up
- CSD-1 code package with automatic water-level control, high-limit and safety relief valve
- Automatic blowdown, split water line and factory-supplied water treatment system protect the boiler
- 60-minute mechanical timer plus ready/cook indicator lights for each compartment
- Positive-lock doors with full-perimeter gasket and drip trough keep heat in and floors dry
- 6" stainless legs with adjustable flanged feet for secure floor mounting
- cCSAus & NSF listed for commercial kitchens
Built for All-Day Performance
- ASME-stamped & National Board-registered boiler for long-term reliability
- Removable pan racks and kettle supports for quick sanitation
- Low-water, door-open and cycle-complete alarms keep crews informed and safe
- Drain-tempering system meets 140 °F discharge requirements with a ½" cold-water line
Specifications
| Model | ECX-2-6-6 |
|---|---|
| Compartments / Pan Capacity | 2 / (6) 12" × 20" × 2½" pans total |
| Kettles | (2) 6 gal tilting kettles |
| Boiler Rating | 42 kW • 9-11 psi |
| Electrical (3 Ø) | 208 V 116.6 A | 220 V 110.2 A | 240 V 101 A | 380 V 63.8 A | 415 V 58.4 A | 480 V 50.5 A |
| Cabinet Width | 60" (1,524 mm) |
| Shipping Weight | Approx. 910 lb (413 kg) |
| Interior Material | All-welded 316 stainless steel |
| Exterior Finish | #4 finish 304 stainless steel |
| Legs / Feet | 6" stainless, adjustable, flanged |
| Certifications | cCSAus, NSF |
Utility Connections
- Boiler feed water: ½" NPT, 25-50 psi
- Condensate cold water (drain tempering): ½" NPT, 25-50 psi
- Faucet hot & cold: 3⁄8" O.D. tubing, 25-50 psi (NSF-61 compliant)
- Open drain: 2" IPS to floor sink
- Field electrical connection: consult data plate for voltage and phase
Water supply must not exceed 60 ppm TDS, 1.5 ppm chlorine, pH 6.8-7.3. Installing and maintaining the included filter system is required for warranty coverage.
What’s Included
- Factory-installed water treatment system cartridges
- Automatic boiler blowdown valve
- Removable stainless pan racks & kettle mounting hardware
- One-year parts & labor warranty + 10-year kettle hemisphere warranty
