Crown (Middleby) ECX-2-6-10 Steam Kettles
Description

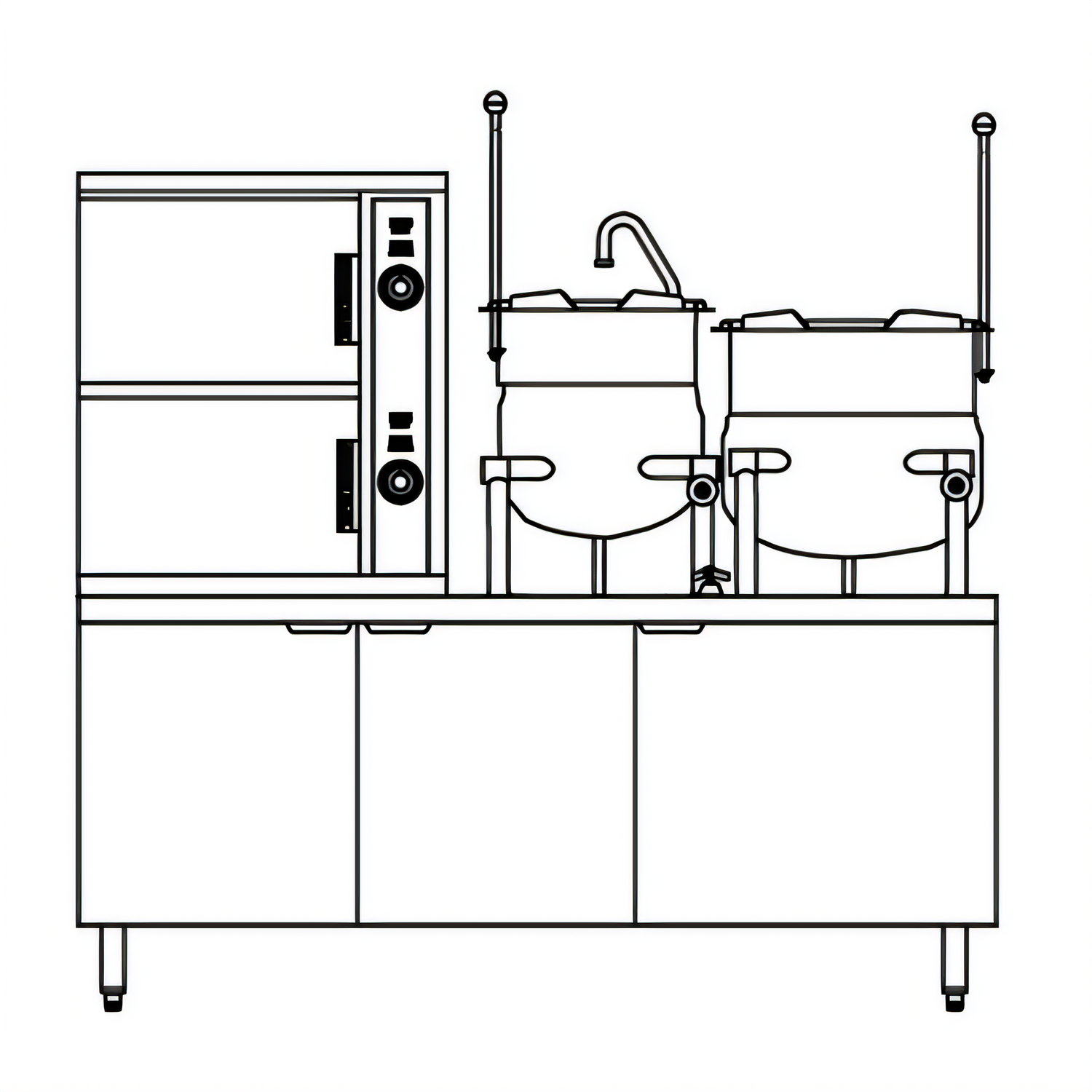

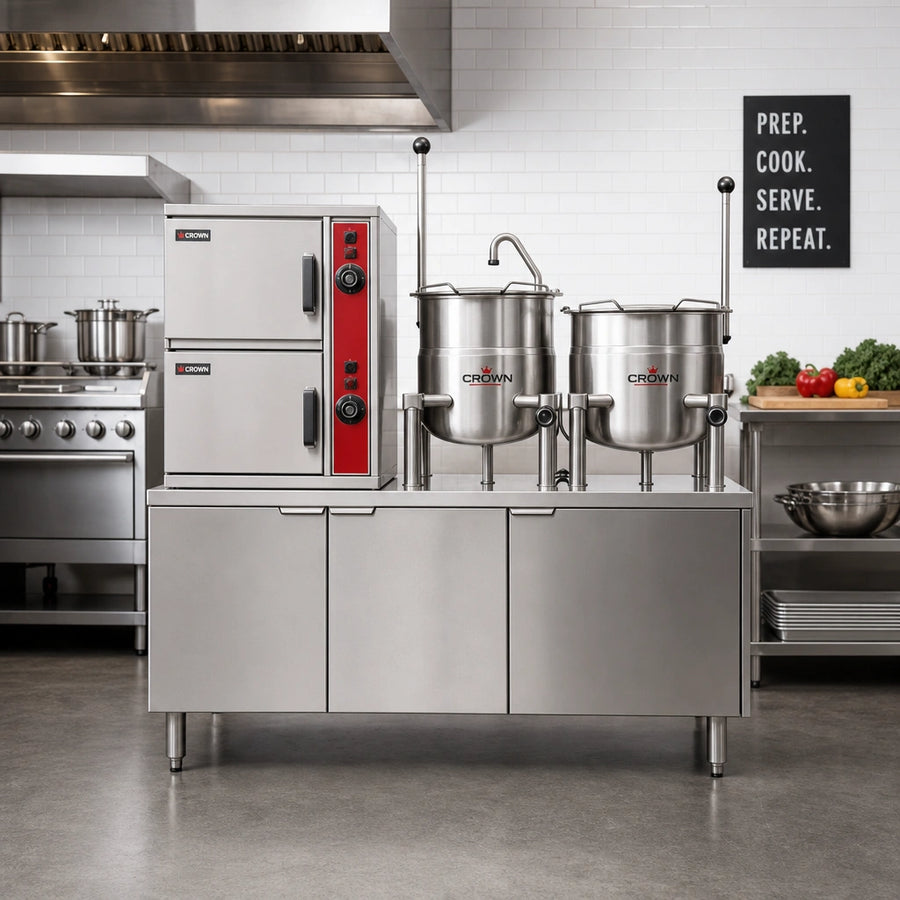

Crown ECX-2-6-10 Electric Convection Steamer/Kettle Station
6-Pan (2-Compartment) Steamer • 6 gal & 10 gal Jacketed Kettles • 60" Boiler BaseProduce large-volume, made-to-order menu items faster and more consistently with the Crown ECX-2-6-10. This self-contained, countertop-to-kettle workstation fuses a two-compartment convection steamer with one 6 gallon and one 10 gallon kettle, all powered by a high-efficiency 42 kW electric boiler. Built entirely from food-grade stainless steel (316 interior / 304 exterior) and pre-equipped with automatic blow-down, water filtration and CSD-1 safety controls, it arrives ready for heavy-duty, code-compliant commercial service.
Why it Belongs in Your Kitchen

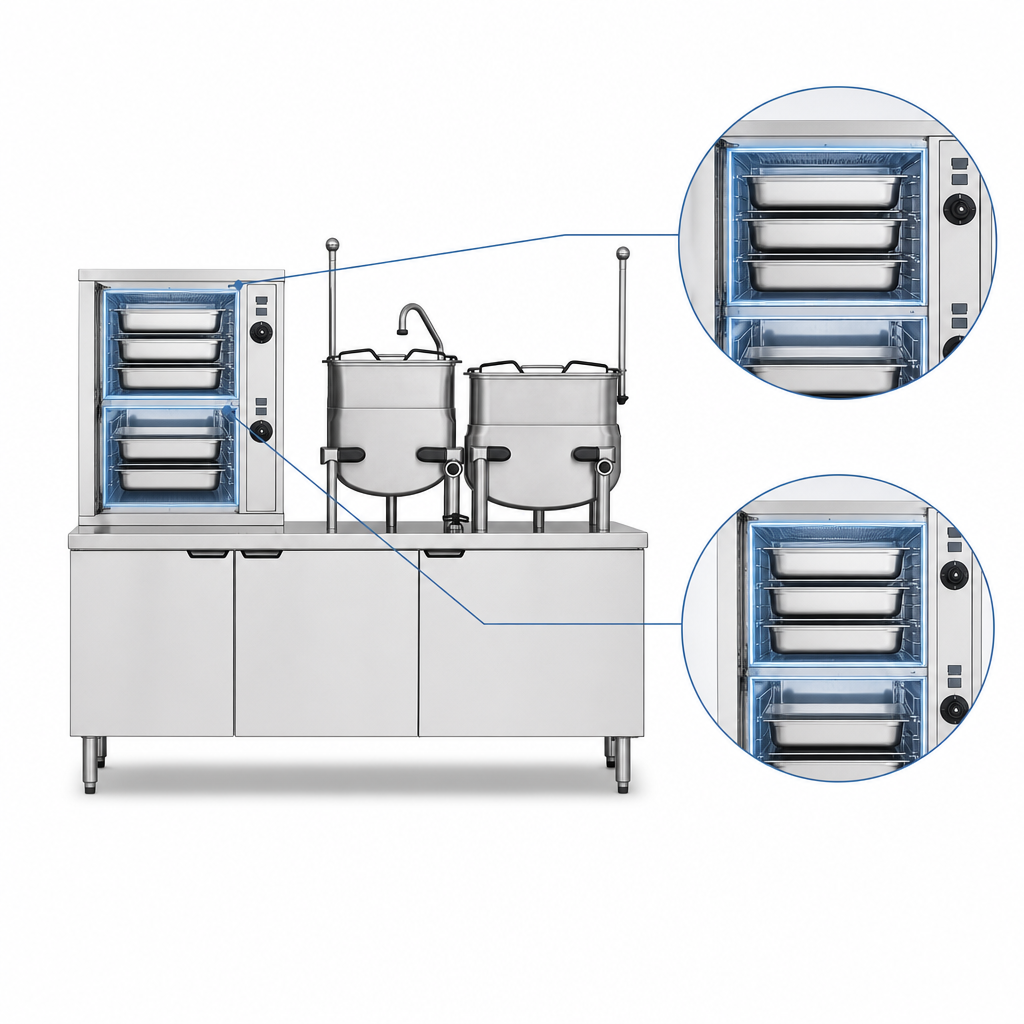

- High-capacity steaming: Each compartment holds (3) 12" x 20" x 2-1/2" hotel pans – a total of 6 pans at once.

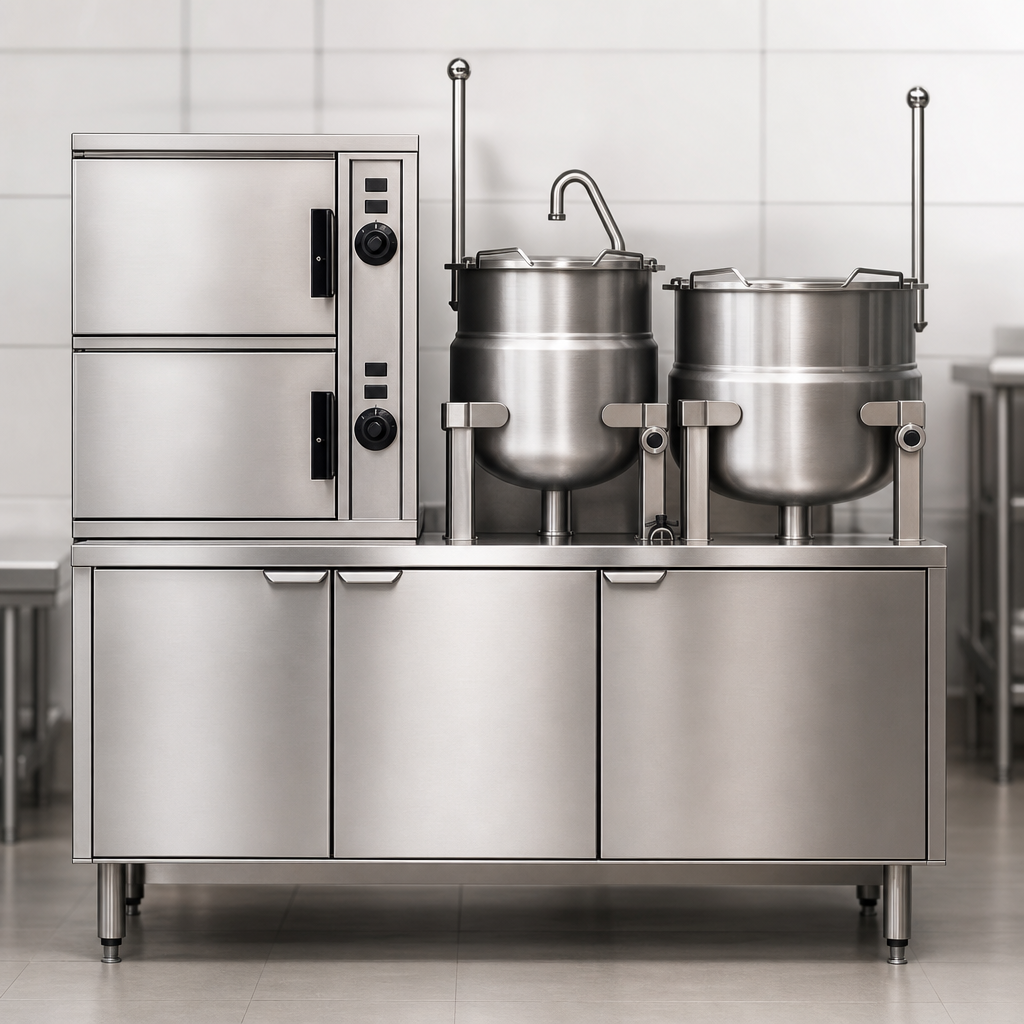

- Dual kettles, double output: Simultaneously batch soups, sauces or stocks in a 6 gal and a 10 gal hemispherical kettle.
- Fast recovery 42 kW boiler: 9-11 psi operating pressure maintains consistent cooking temps under heavy load.
- Built-in hand-sink & faucet set: Deck-mount hot/cold valve, swing nozzle and integral sink keep prep space sanitary and efficient.
- Code-ready safety package: CSD-1 controls, split water line, drain tempering and automatic blowdown are factory installed.
- Simple, rugged controls: Independent 60-minute mechanical timers with Ready / Cooking lights and end-of-cycle buzzer.
- Floor-mount stability: 6" stainless legs with adjustable flanged feet secure the 60" cabinet to the floor.
- cCSAus & NSF approved: Meets sanitation and electrical safety standards for commercial foodservice operations.
Technical Specifications
| Model | ECX-2-6-10 |
|---|---|
| Steamer Compartments | 2, pressureless convection |
| Pan Capacity | (3) 12" × 20" × 2-1/2" GN 1/1 pans per compartment (total 6) |
| Kettle Capacities | 6 gal (22.7 L) & 10 gal (37.9 L) jacketed kettles |
| Boiler Rating | 42 kW electric, 9-11 psi (62-76 kPa) operating pressure (48 kW upgrade available) |
| Electrical (3 Ø) | 208 V – 116.6 A | 220 V – 110.2 A | 240 V – 101.0 A | 380 V – 63.8 A | 415 V – 58.4 A | 480 V – 50.5 A |
| Exterior / Interior | 304 SS cabinet & doors / 316 SS cooking chambers |
| Overall Dimensions | 60" W × 35" D × 72.5" H (shipping) |
| Shipping Weight | ≈ 930 lb (422 kg) |
| Certifications | cCSAus, NSF, ASME-coded boiler, CSD-1 compliant |
Included Standard
- Factory-installed water treatment/filter system
- Automatic boiler blowdown & water level control
- Drain tempering kit for ≤ 140 °F outlet water
- Full perimeter door gasket with stainless drip trough
- Removable stainless steel pan racks & supports
To maintain performance and protect your warranty, incoming water must meet Crown’s guidelines: <60 ppm TDS, <1.5 ppm chlorine, <20 ppm alkalinity, pH 6.8–7.3, <13 ppm silica. Use the supplied filtration system and replace cartridges as directed.
Backed by Crown Steam Group’s 1-year parts & labor warranty (10-year kettle shell; 2-year prorated boiler shell). Intended for commercial use only.
