Crown (Middleby) ECX-2-36 Steamers (Countertop & Floor)
Description

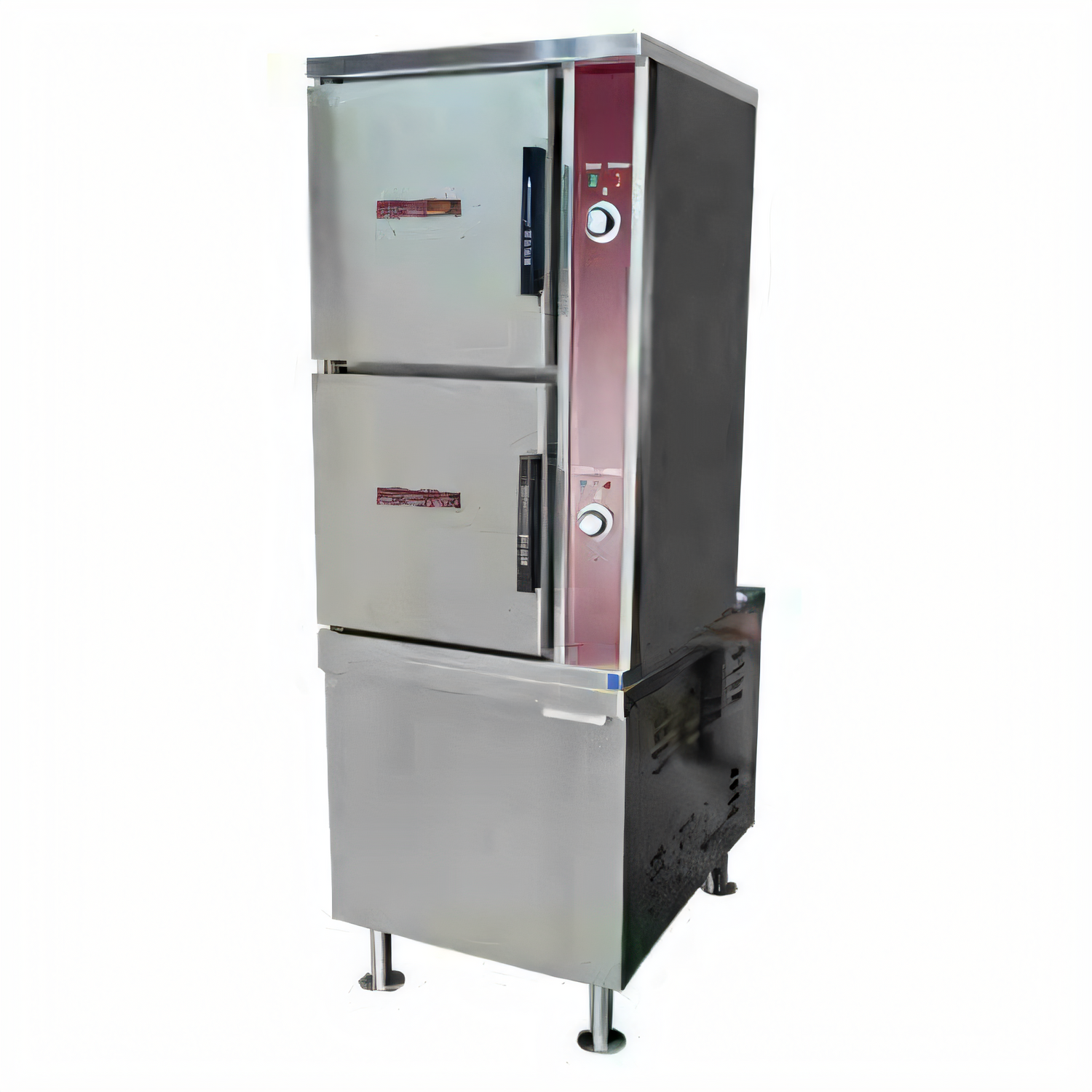

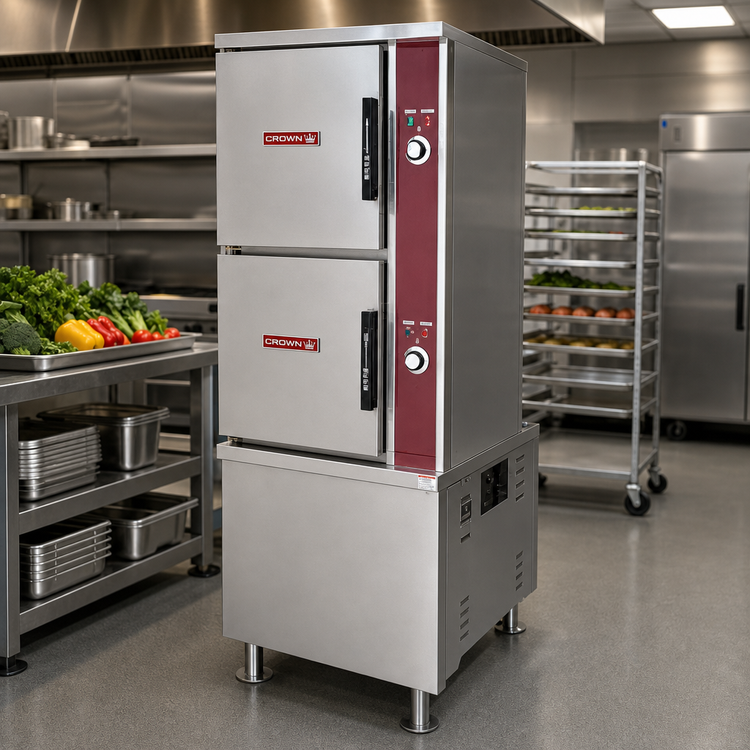

Crown ECX-2-36 Electric Two-Compartment Convection Steamer
36" cabinet base • 24 kW electric boiler • 6-pan total capacityBuilt for busy commercial kitchens, the Crown ECX-2-36 pairs a high-efficiency electric steam boiler with two fully-independent, fan-assisted cooking chambers. From delicate vegetables to high-volume batch production, you’ll enjoy fast, even results without flavor transfer—backed by rugged stainless-steel construction and industry-leading safety features.
Key Features & Benefits
- 24 kW electrically-heated boiler operates at 9-11 psi for rapid steam recovery.

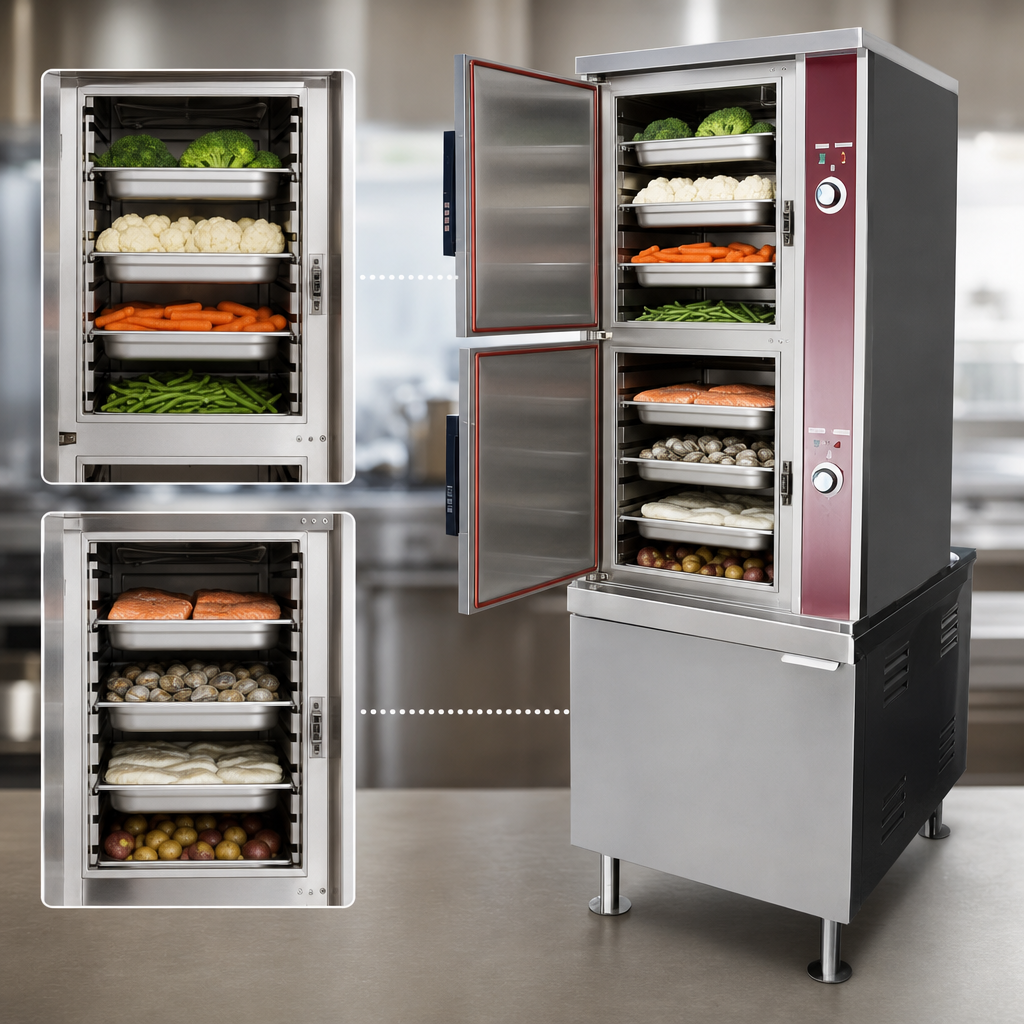

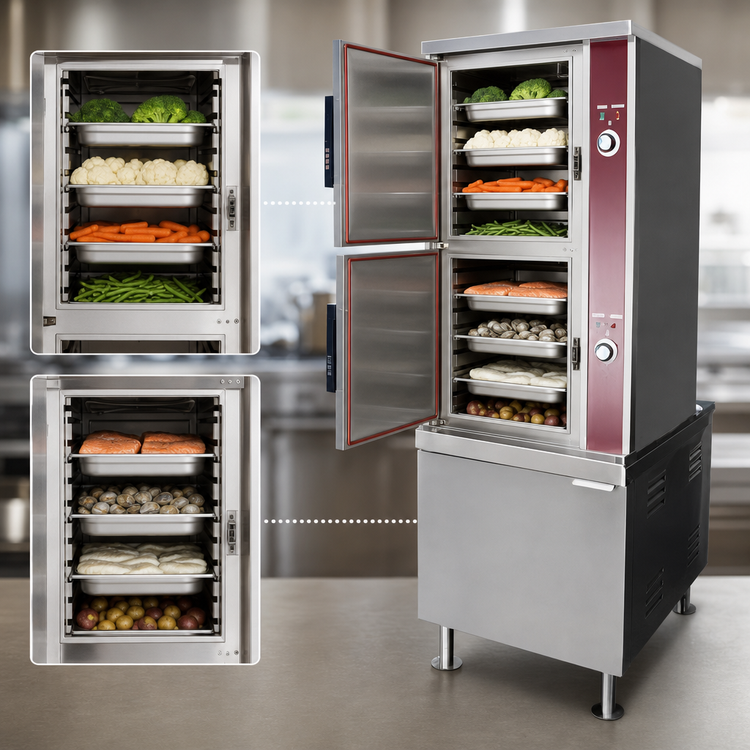

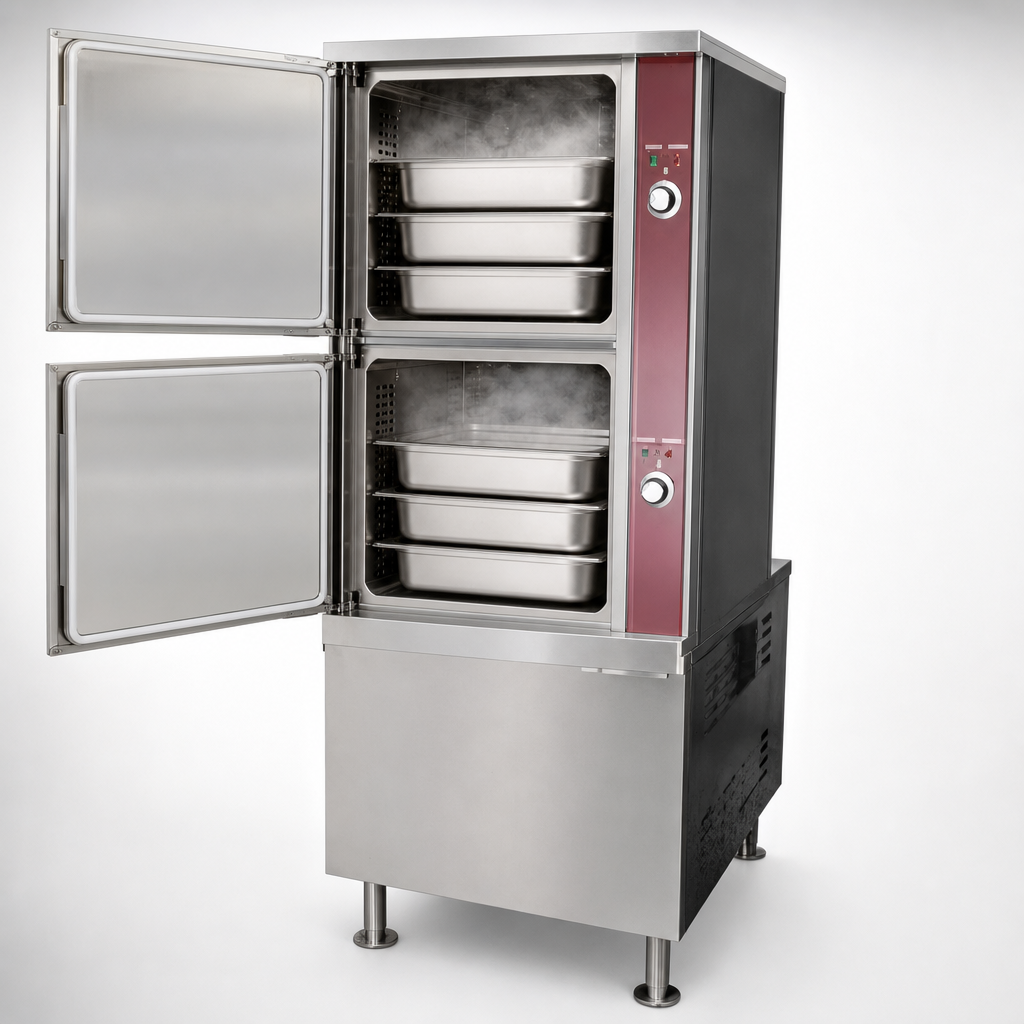

- Two pressureless convection compartments—each fits (3) 12" x 20" x 2½" hotel pans.
- One-piece 316 stainless-steel cooking chambers with full interior insulation.
- Durable 304 stainless-steel exterior resists dents, corrosion and daily wear.
- 60-minute mechanical timer, ready pilot and cook light for each compartment.
- Automatic blowdown, split water line and CSD-1 code package protect the boiler and simplify maintenance.
- Factory-supplied water filter system slows scale build-up and extends component life.
- Removable pan supports and front drip trough for ultra-fast clean-up.
- 6" adjustable stainless-steel legs with flanged feet for secure floor mounting.
- cCSAus, NSF and ASME boiler code compliant—engineered exclusively for commercial foodservice.
At-a-Glance Specifications
| Model | ECX-2-36 |
|---|---|
| Compartments | 2 (independent) |
| Total Pan Capacity | (6) 12" x 20" x 2½" pans • 3 per compartment |
| Alternate Pan Capacities | (6) 1" pans | (2) 4" pans | (1) 6" pan per compartment |
| Boiler Power | 24 kW electric |
| Operating Pressure | 9-11 psi (62-76 kPa) |
| Voltage Options (3 Φ, 60 Hz) | 208 V / 240 V / 380/220 V / 415/240 V |
| Cabinet Width | 36" (914 mm) |
| Shipping Weight | Approx. 650 lb (295 kg) |
| Water Inlet | ½" NPT @ 25-50 psi |
| Drain | 2" IPS to open floor drain (no solid connection) |
| Clearances | 0" sides & back |
Why Choose Crown’s ECX-2-36?
- Independent cooking lets you steam rice in one compartment while finishing vegetables in the other—no cross-contamination.
- Electric operation eliminates open flames and simplifies installation where gas lines aren’t available.
- Cathodic protector, water treatment and automatic blow-down work together to maximize boiler life and reduce service calls.
- Side-mounted access panel keeps controls within easy reach, cutting service time and cost.
Installation Requirements
Provide the specified 3-phase electrical connection, treated water supply and an unobstructed floor drain. Unit ships for commercial use only.
