Crown (Middleby) ECX-2-24 Steamers (Countertop & Floor)
Description

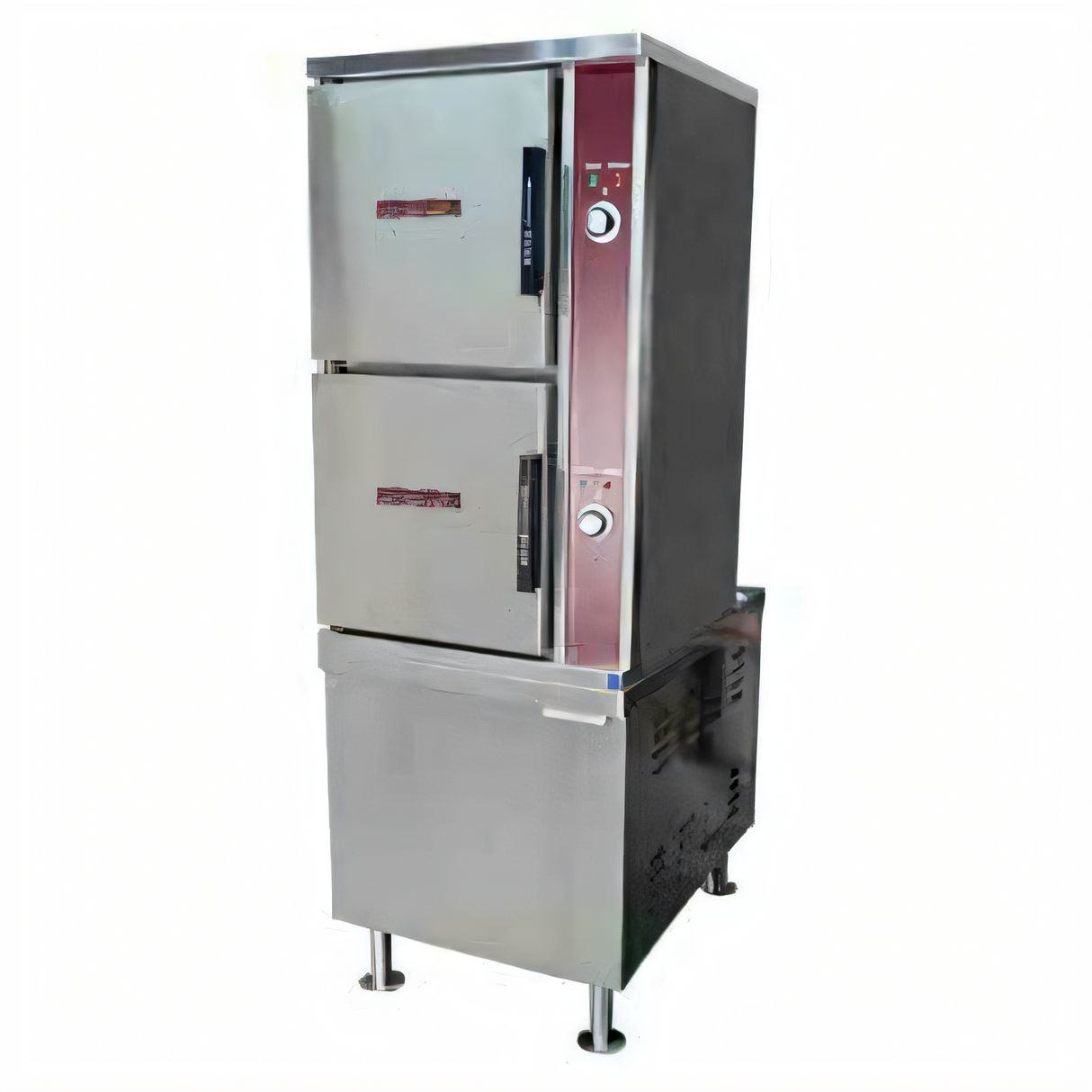

Crown ECX-2-24 Electric Convection Steamer
Two compartments • 24" cabinet base • 24 kW boilerThe Crown ECX-2-24 delivers high-volume steam cooking in a space-saving 24-inch footprint. With two independent 3-pan compartments, built-in water filtration and fully automatic boiler controls, this commercial steamer is engineered to boost productivity while lowering maintenance and energy costs.
Why you’ll love it
- High output, compact size – 24 kW electric boiler generates 9–11 psi of steam for fast, even cooking.

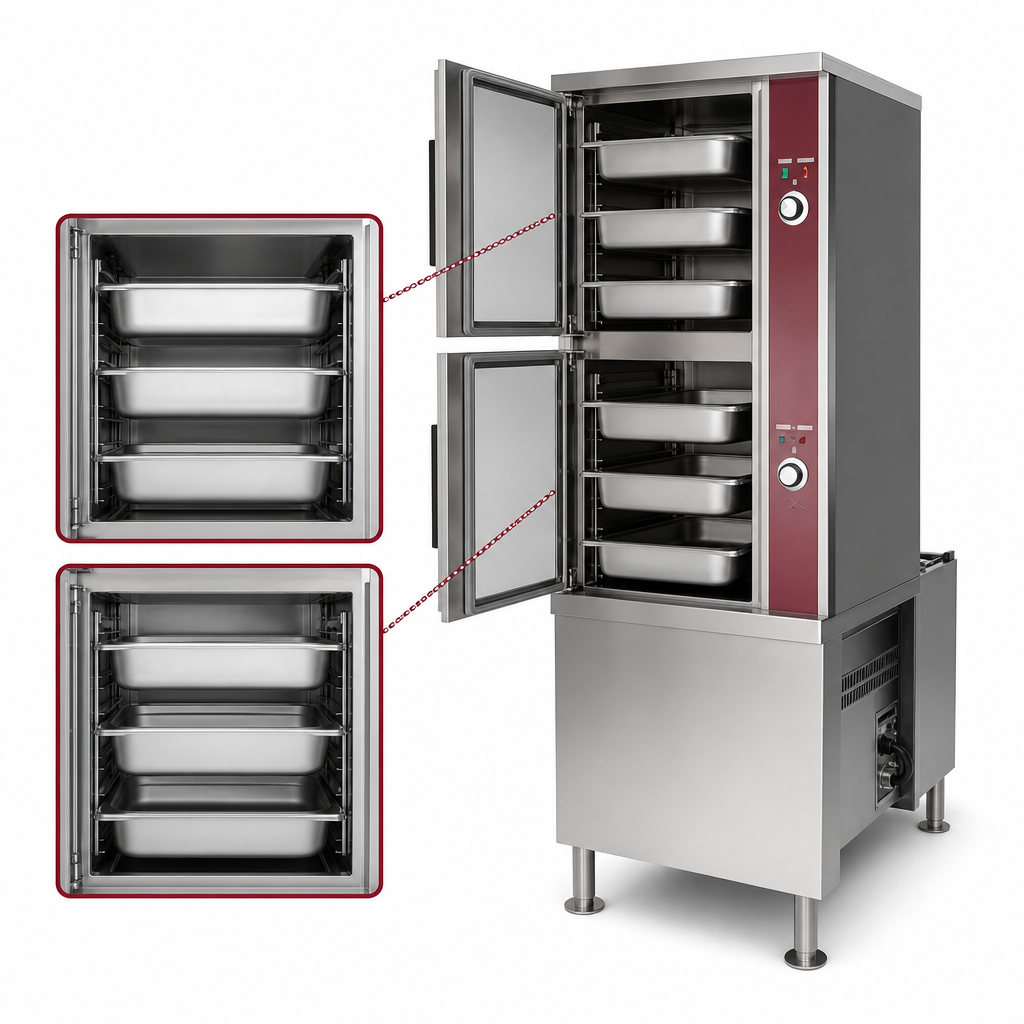

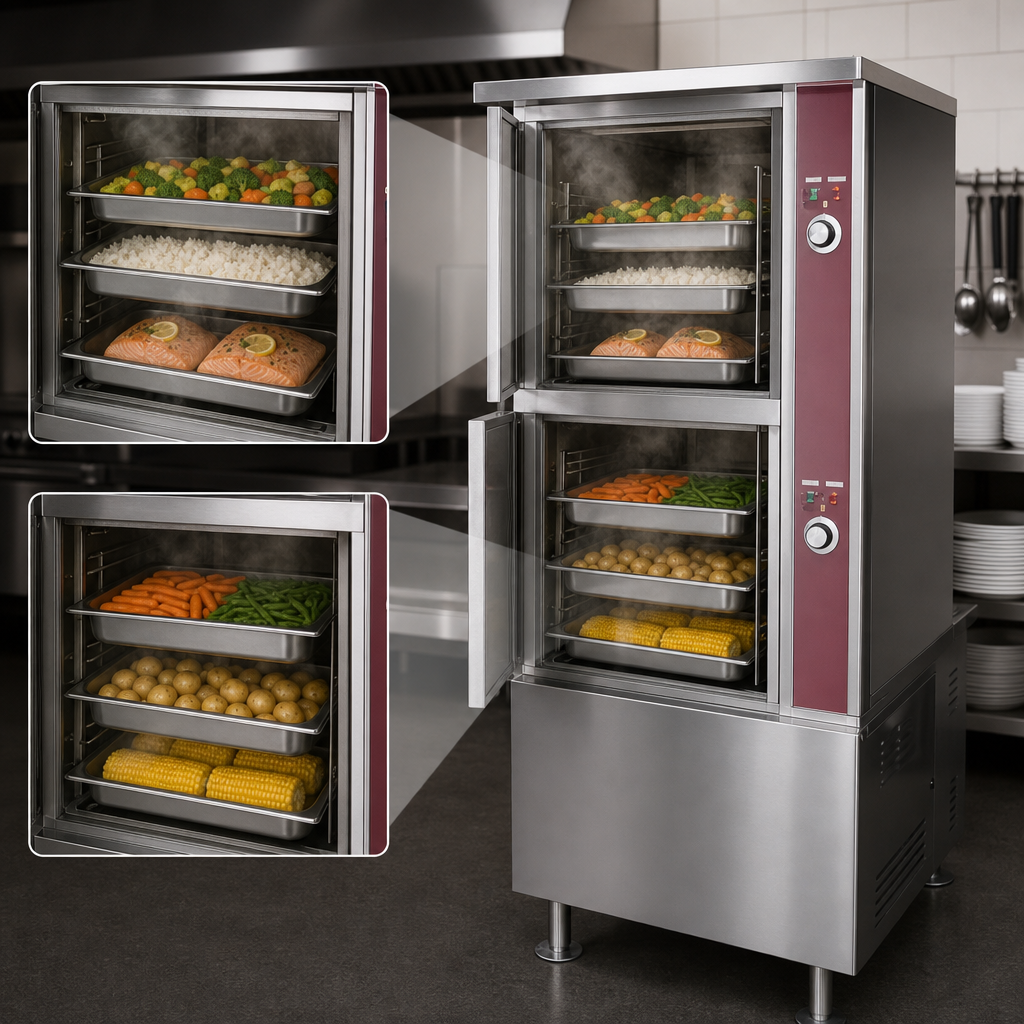

- Twice the capacity – (2) 3-pan compartments hold a total of six 12" × 20" pans (2½" deep).
- 316 SS cooking chambers – one-piece, all-welded interiors resist pitting and corrosion.
- Automatic blowdown & CSD-1 compliance – protects the boiler and meets code with no extra labor.
- Water treatment system included – factory-supplied filter helps extend component life and protects your warranty.
- Operator-friendly controls – independent 60-minute mechanical timers and status lights per cavity.
- Built to last – 304 SS exterior, fully insulated cabinet and 6" stainless legs with adjustable flanged feet.
- Zero side or rear clearance – place flush against walls or equipment to maximize line space.
- Certified & ready for work – cCSAus & NSF listings for installation across North America.
Technical specifications
| Model | ECX-2-24 |
|---|---|
| Compartments | 2 pressureless convection chambers |
| Pan capacity (per cavity) | (3) 12" × 20" × 2½" pans – also fits (6) 1" | (2) 4" | (1) 6" pans |
| Boiler rating | 24 kW electric @ 9–11 psi (62–76 kPa) |
| Voltage options | 208, 240, 380/220, or 415/240 V, 3-phase, 60 Hz |
| Cabinet base width | 24" (610 mm) |
| Chamber dimensions | 13.875" W × 10.875" H × 19.875" D |
| Shipping weight | ≈ 550 lb (249 kg) |
| Standard features | Water treatment system, split water line, automatic blow-down, CSD-1 controls, removable pan supports & drip trough |
| Construction | 316 SS interior, 304 SS exterior, fully insulated |
| Legs / mounting | 6" stainless legs with four adjustable flanged feet |
| Certifications | cCSAus, NSF |
Utility connections
- Electrical: Field-wired; see data plate for amperage per voltage.
- Boiler feed water: ½" NPT, 25–50 psi (170–345 kPa).
- Drain: 2" IPS to open floor drain (no solid connection).
- Optional steam take-off: ¾" IPS for adjacent equipment.
Warranty
One year parts & labor standard. 90-day coverage on door gaskets and consumables. Boiler shell carries a prorated 2-year extended warranty (water quality compliant installations only).
