Crown (Middleby) ECX-2-10 Steam Kettles
Description

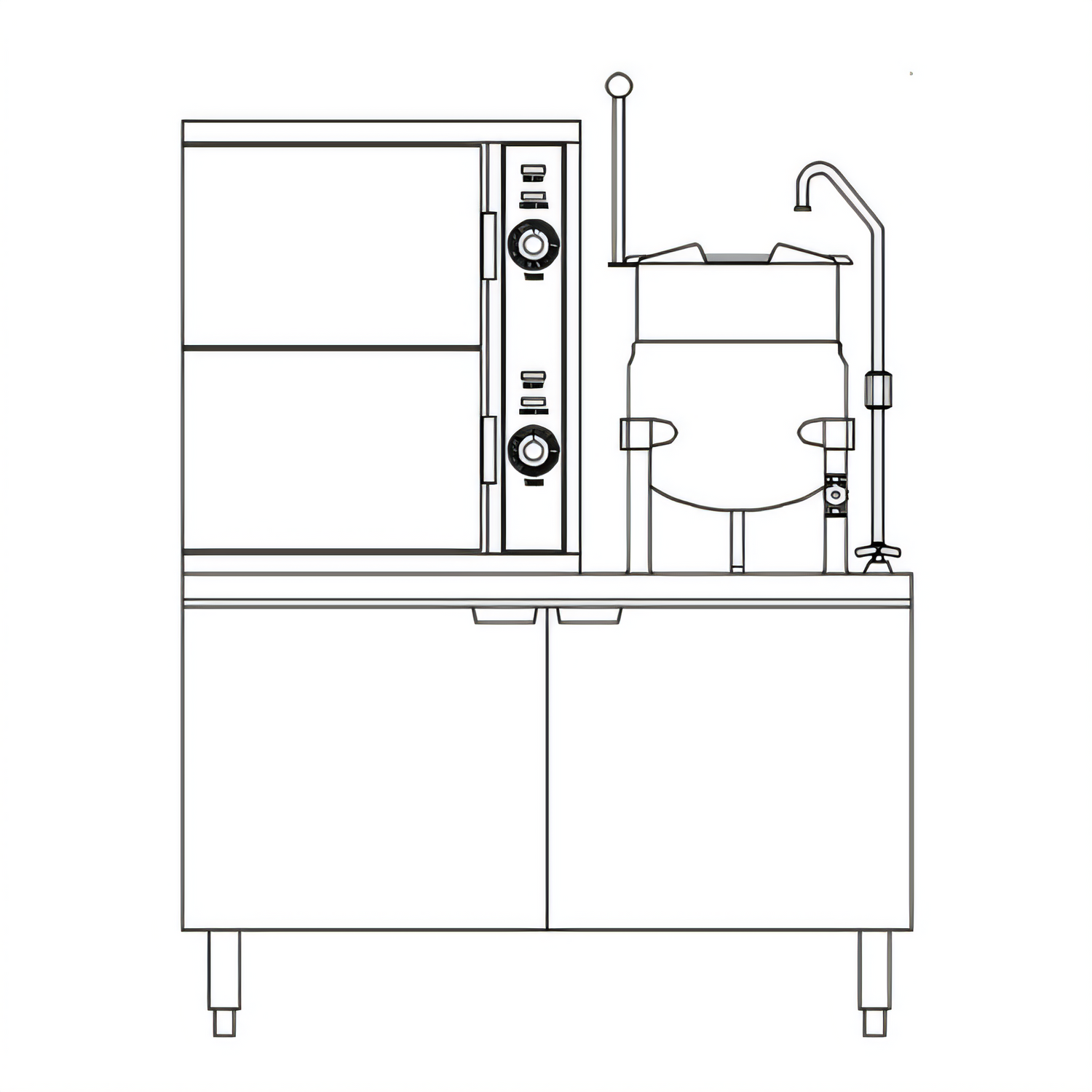

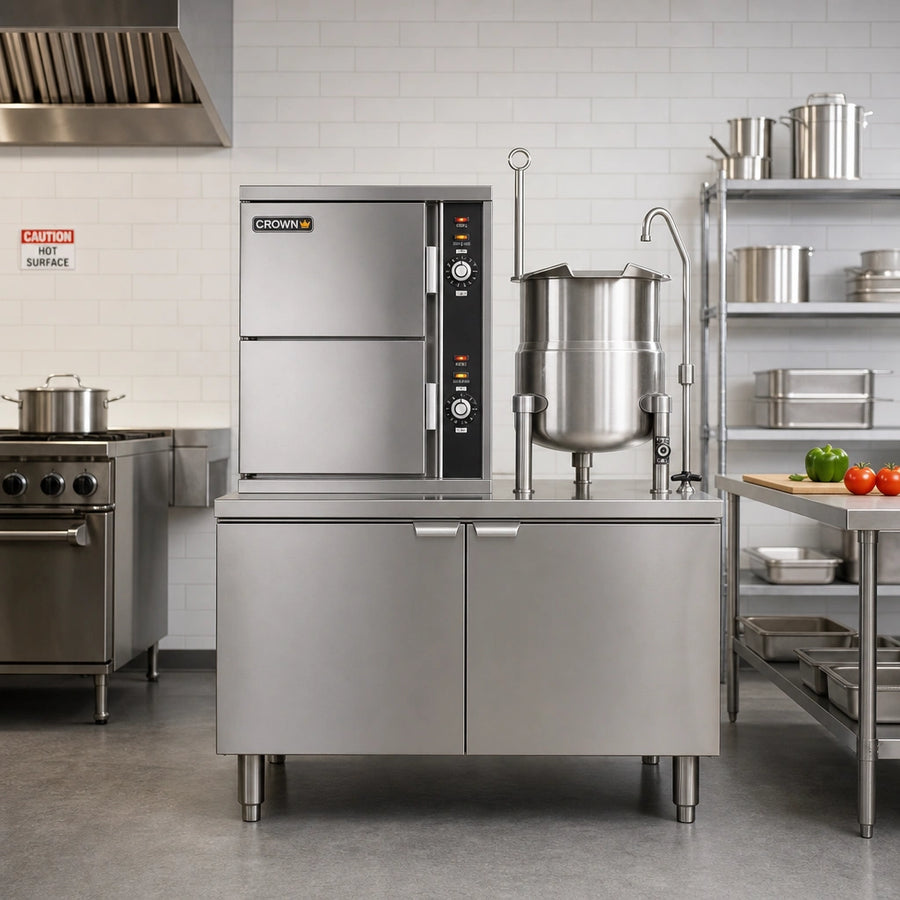

Crown ECX-2-10 Electric Convection Steamer & 10-Gal Kettle
2-compartment, 48 inch cabinet base – cCSAus & NSF ListedBuilt for high-volume kitchens that won’t compromise on speed, versatility or food quality. The Crown ECX-2-10 combines two independent convection steamers with a 10-gallon jacketed kettle on a single space-saving electric boiler base, giving you the power to steam, simmer and cook-&-hold from one ultra-durable workstation.
Why you’ll love it

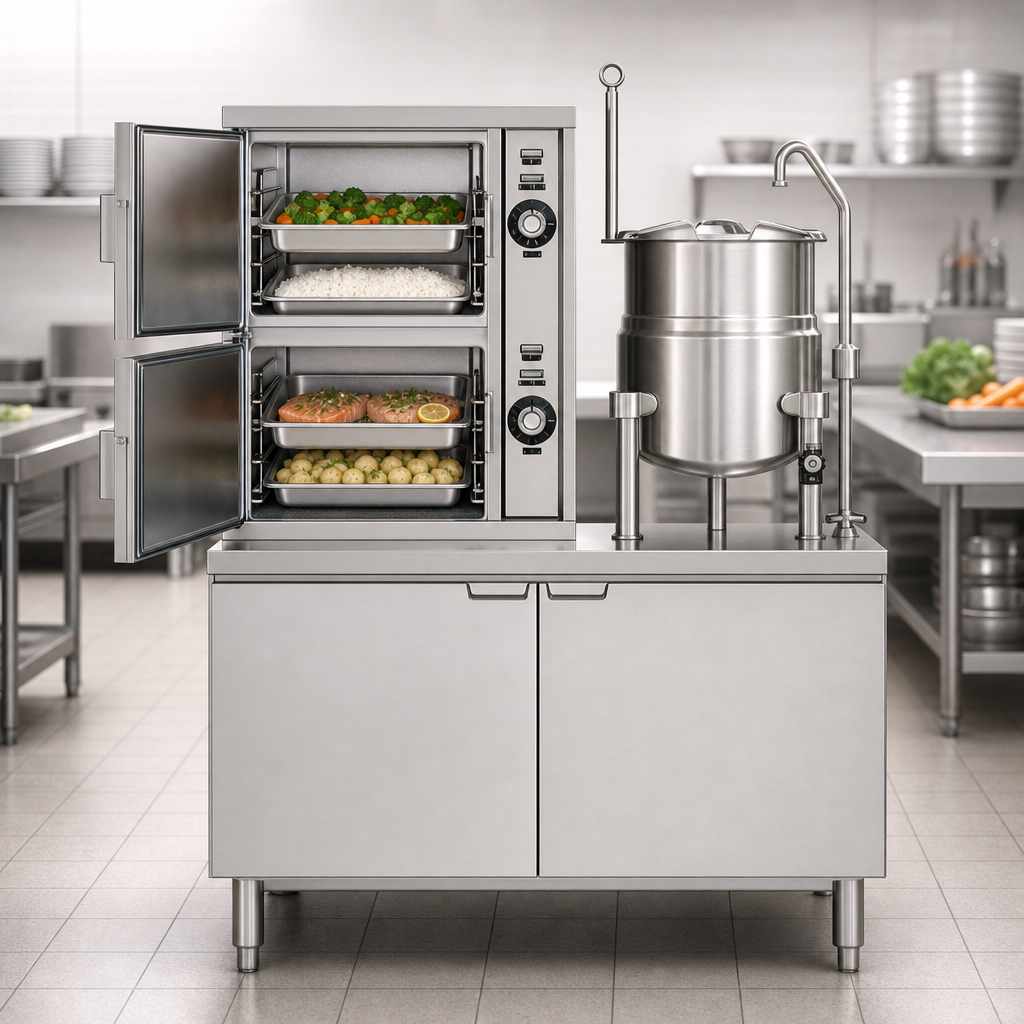

- Two pressure-less convection compartments (9–11 psi) for fast, even steam cooking.
- 3 × 12" × 20" × 2.5" pan capacity per compartment (6 pans total) – load proteins, veg or starches simultaneously.

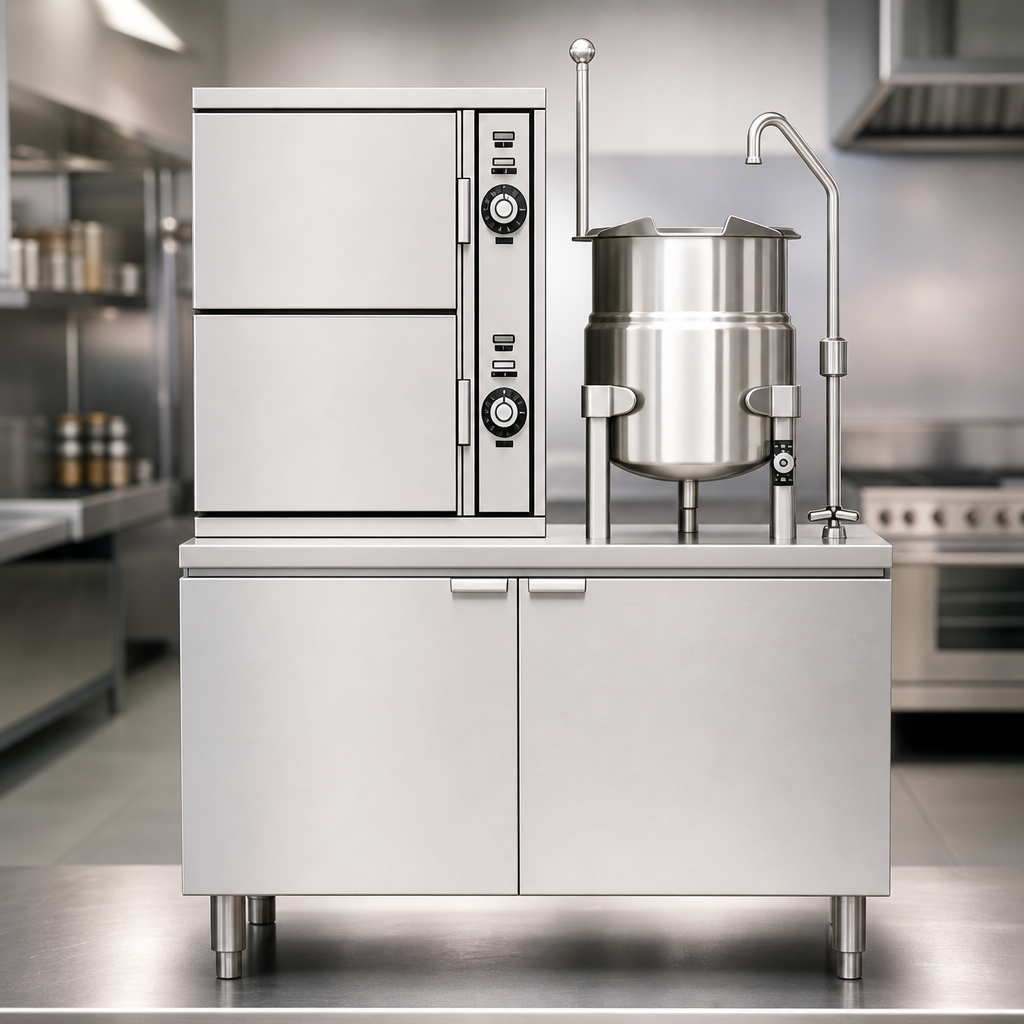

- Integrated 10-gallon (37.9 L) jacketed kettle for soups, sauces, stocks and more.
- 36 kW electric boiler with automatic water level control, CSD-1 package & automatic blowdown.
- Deck-mount faucet, swing nozzle & built-in sink simplify filling, draining and cleanup.
- Independent 60-minute mechanical timer with ready/cooking lights and buzzer per compartment.
- Includes factory-matched water filter system to meet Crown water-quality standards.
- Rugged 316 SS cooking chambers & 304 SS exterior with #4 satin finish.
- 6" stainless legs with adjustable flanged feet for code-compliant floor mounting.
- cCSAus, NSF & ASME-code boiler certifications – built for commercial duty.
Technical specifications
| Model | ECX-2-10 |
|---|---|
| Steam compartments | 2 (pressure-less) |
| Pan capacity | 3 × 12" × 20" × 2.5" (1/1 GN) per compartment – 6 total Also accepts 1 × 4" or 1 × 6" deep pans per cavity. |
| Kettle capacity | 10 gal / 37.9 L |
| Boiler rating | 36 kW electric, 9–11 psi operating pressure |
| Voltage options | 208 V, 220 V, 240 V, 380 V, 415 V or 480 V, 3-phase |
| Cabinet width | 48" (1219 mm) |
| Construction | 316 SS interior, 304 SS exterior, fully insulated chambers |
| Standard accessories | Removable pan racks, water filter cartridge set, sink & faucet assembly |
| Certifications | cCSAus, NSF, ASME-code boiler |
Built-in safety & maintenance
- Automatic water level control with sight glass & pressure gauge.
- High-limit pressure control and boiler safety relief valve.
- Automatic blowdown extends boiler life and reduces scale build-up.
- Full-perimeter door gasket with positive-lock door latch keeps operators safe from steam flash.
Popular factory options
- 42 kW or 48 kW boiler upgrade
- 480 V or 575/600 V electrical systems
- Spray-and-rinse assembly
- Etched gallon or litre markings inside kettle
- Stainless rear panel or frame upgrades
Commercial use only. 1-year parts & labor warranty (10-year kettle hemisphere warranty). Contact your Crown Steam representative for lead-time and factory-configured options.
