Crown (Middleby) ECX-16 Steamers (Countertop & Floor)
Description

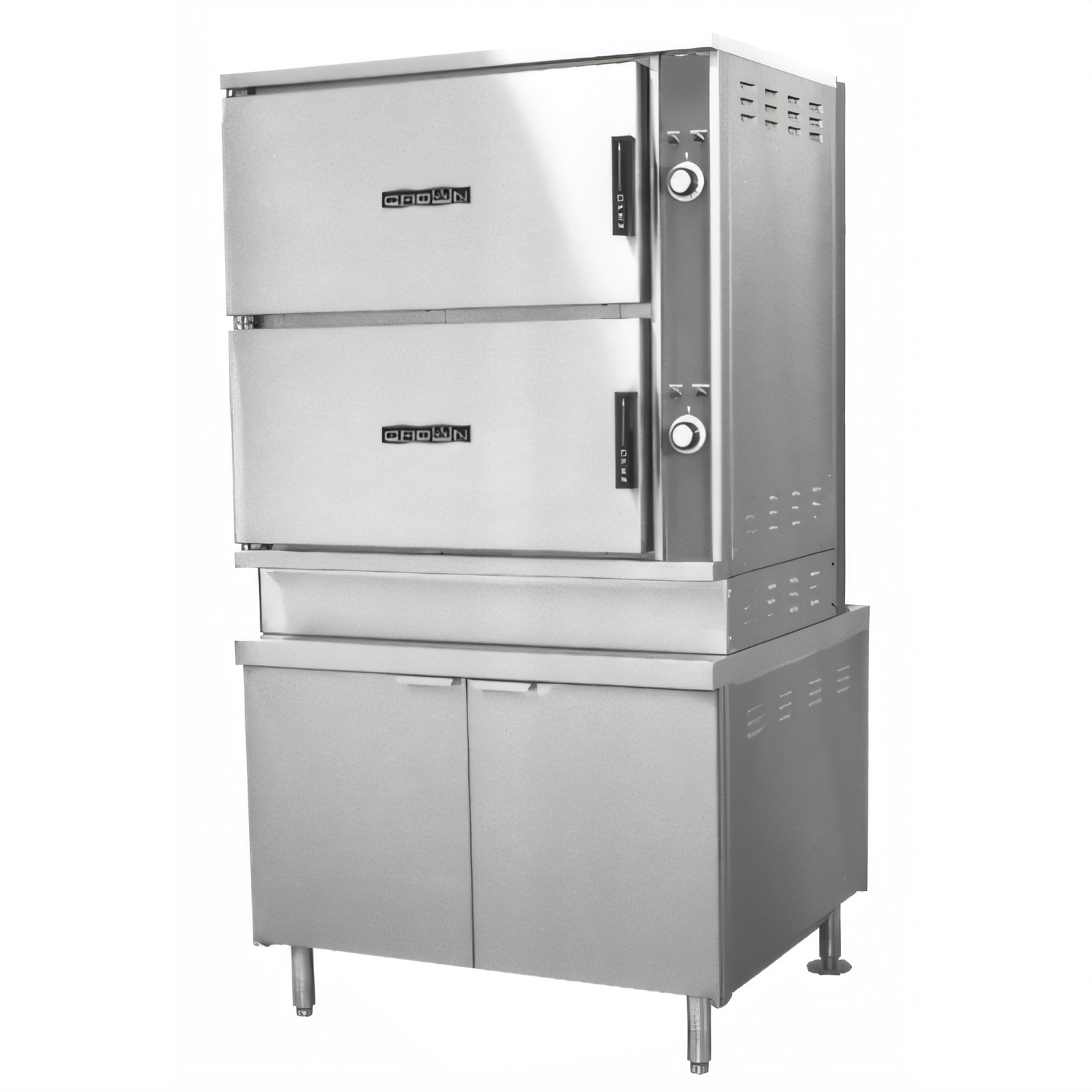

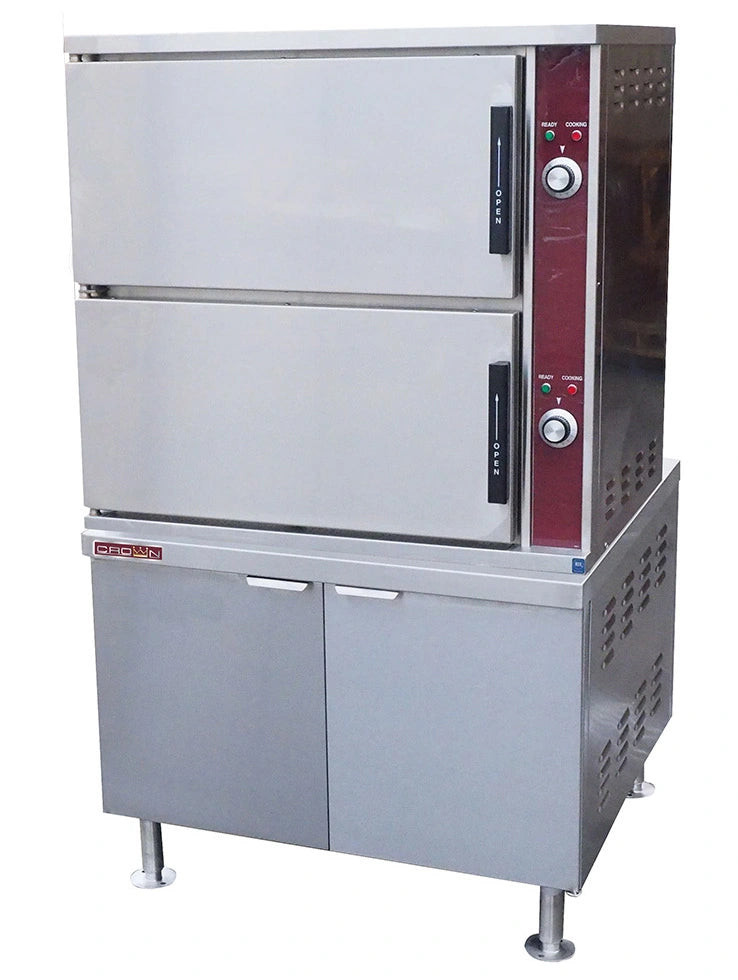

Crown ECX-16 Electric Convection Steamer

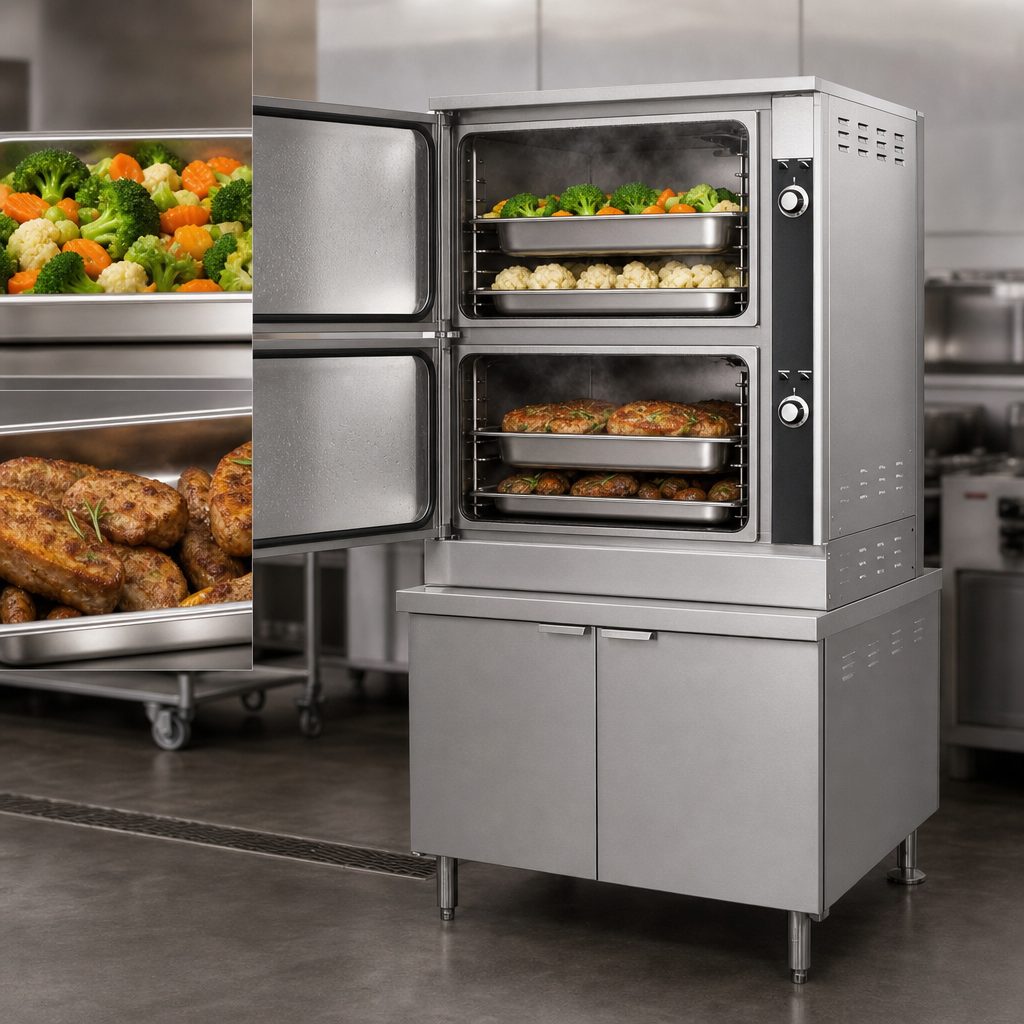

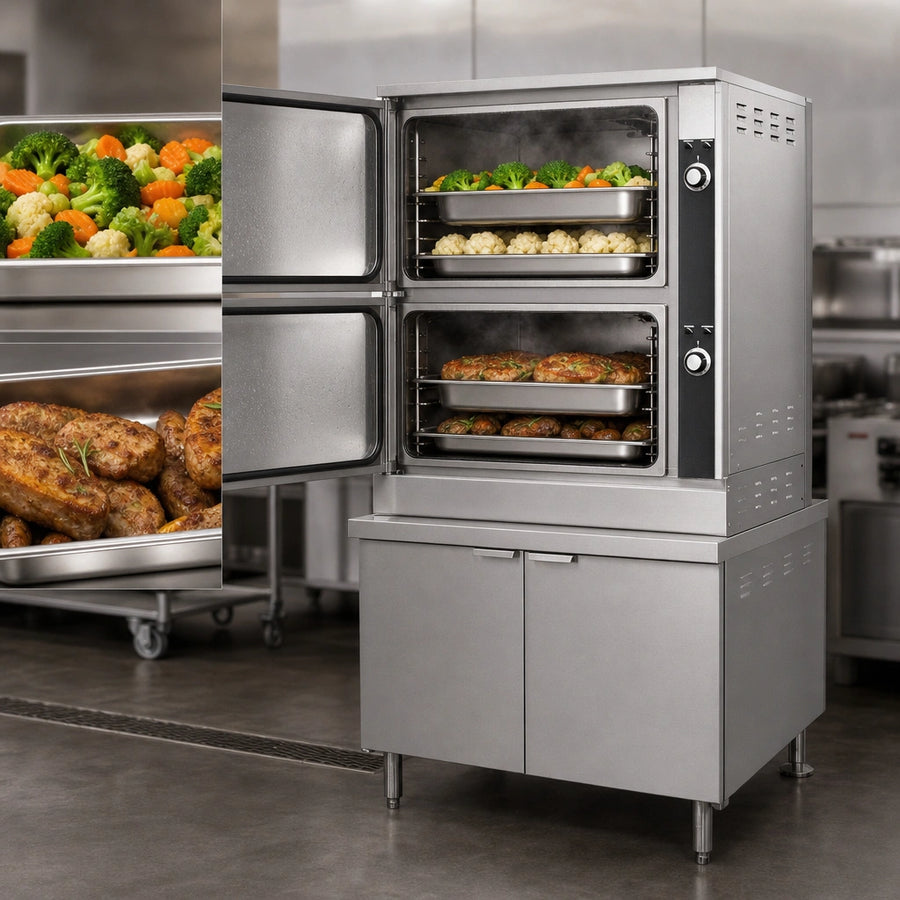

Two compartments • 16-pan total capacity • 36" cabinet base with built-in boilerEngineered for high-volume commercial kitchens, the Crown ECX-16 delivers fast, even steam cooking in a small footprint. Two independent 8-pan chambers, a 42 kW electric boiler and a factory-installed water treatment system combine for unbeatable productivity, reliability and taste.
Key features

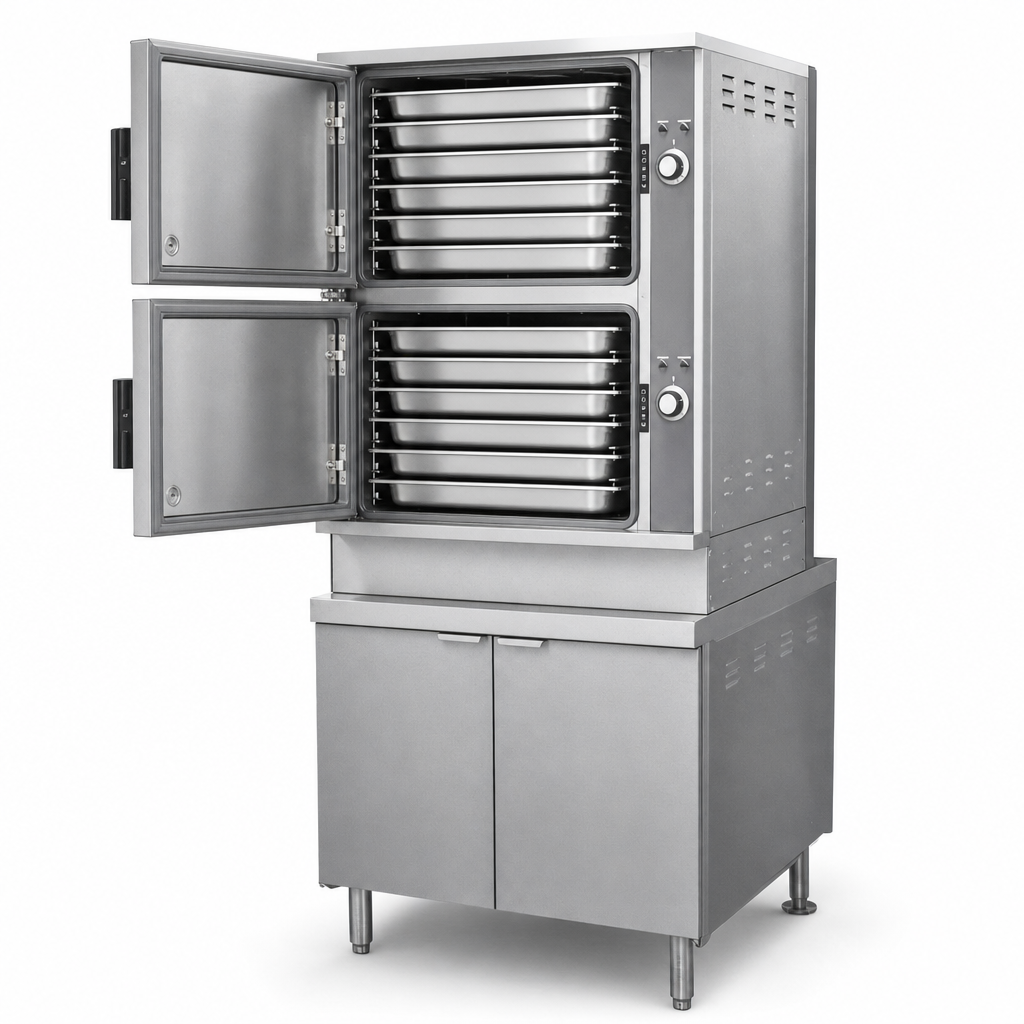

- Capacity: (8) 12" × 20" × 2-1/2" pans per compartment (16 pans total)
- 42 kW electrically heated steam boiler (9–11 psi) with automatic blowdown
- Independent 60-minute timer, red/green pilot lights & audible buzzer for each compartment
- Steam interlock cuts off steam instantly when a door is opened for maximum operator safety
- 316 SS one-piece welded cooking chambers; 304 SS satin-finish exterior for long life and easy cleaning
- Removable pan supports & stainless drip trough speed up end-of-day clean-up
- Includes Middleby Water Treatment System to meet Crown’s water-quality warranty requirements
- CSD-1 code package, split water lines and drain tempering system (140 °F compliance)
- 6" stainless steel legs with adjustable flanged feet—bolt the unit securely to the floor
- cCSAus & NSF listed; not for household use
Specifications
| Model | ECX-16 |
|---|---|
| Compartments | 2 pressureless |
| Pan capacity | 8 × 12" × 20" × 2-1/2" per compartment (16 total) |
| Boiler power | 42 kW standard (48 kW optional) |
| Operating pressure | 9–11 psi (62–76 kPa) |
| Standard voltages | 208 V / 240 V, 3-phase, 60 Hz (others optional) |
| Amperage (42 kW) | 208 V – 116.6 A | 240 V – 101 A |
| Exterior dimensions (W×D×H) | 36" × 38-13/16" × 65-5/8" (cabinet & steamer) |
| Shipping weight | 900 lb (408 kg) |
| Water connections | 3/8" O.D. cold water (feed & condensate) |
| Drain | 2" IPS, vented to floor drain |
| Certifications | cCSAus, NSF |
Popular options & accessories
- 48 kW element upgrade
- 480 V, 575/600 V or 50 Hz electrical packages
- Spray-and-rinse assembly (EBVS-3)
- Steam take-off kit (STOK) for adjacent equipment
- Load-compensate timer (LCT)
- Sheet-pan supports & full-width wire shelf
- Stainless frame or rear panel upgrades
Intended for commercial foodservice applications only. Consult the installation manual for full utility requirements and clearances before ordering.
