Crown (Middleby) ECX-10-6 Steam Kettles
Description

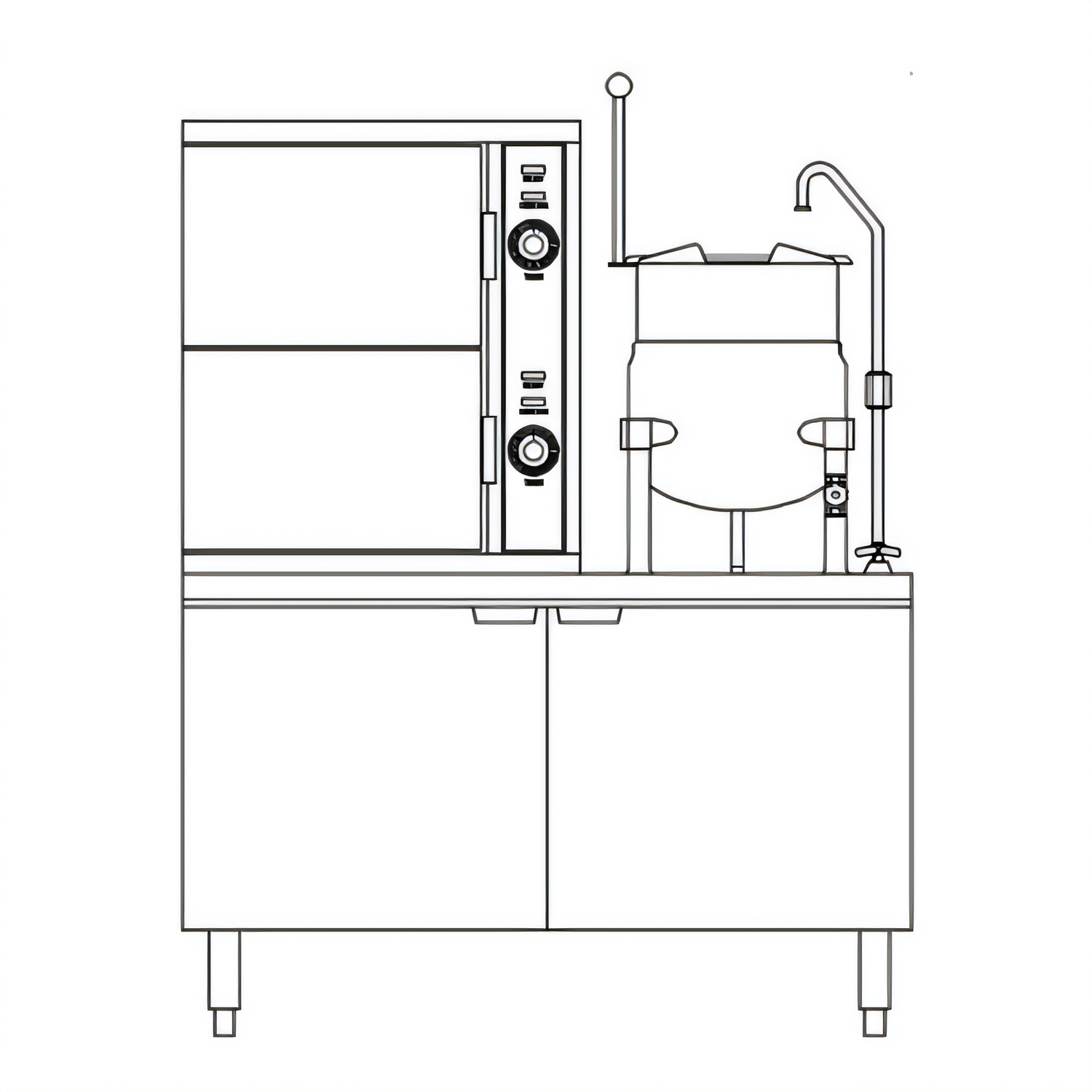

Crown ECX-2-6 Electric Convection Steamer & 6 gal Kettle
2 independent compartments • 44 in. cabinet base • NSF & cCSAusCombine blister-fast pressure-less steam and a versatile 6 gallon kettle in one space-saving footprint. The Crown ECX-2-6 lets you batch-cook proteins, vegetables, starches and sauces simultaneously—while built-in boiler management and included water treatment keep your line moving and your maintenance low.
Key features & benefits

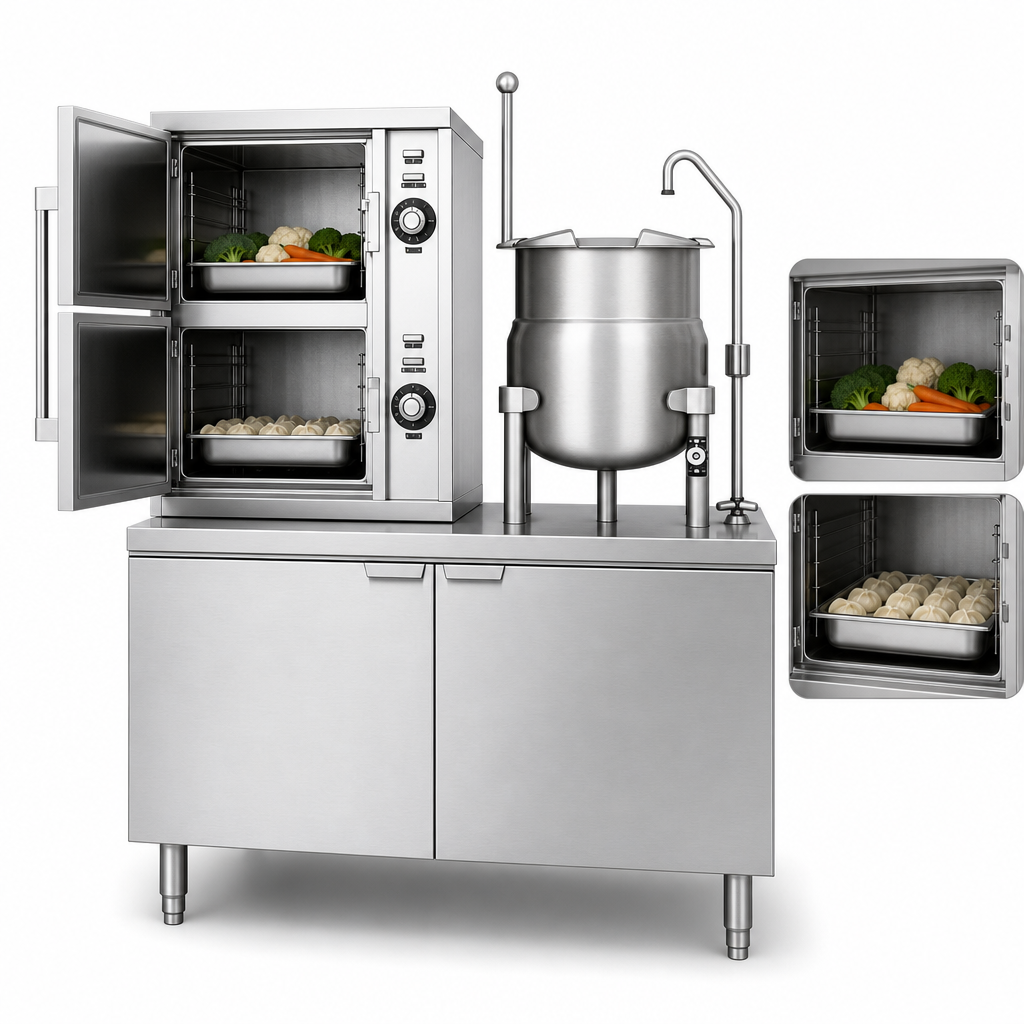

- Two 316 SS cooking compartments with separate 60-minute timers, ready/cook lights and audible cycle buzzer.
- Capacity per compartment: up to 3 full-size 12 × 20 × 2½ in. pans (or 6 x 1 in., 2 x 4 in., 1 x 6 in.).

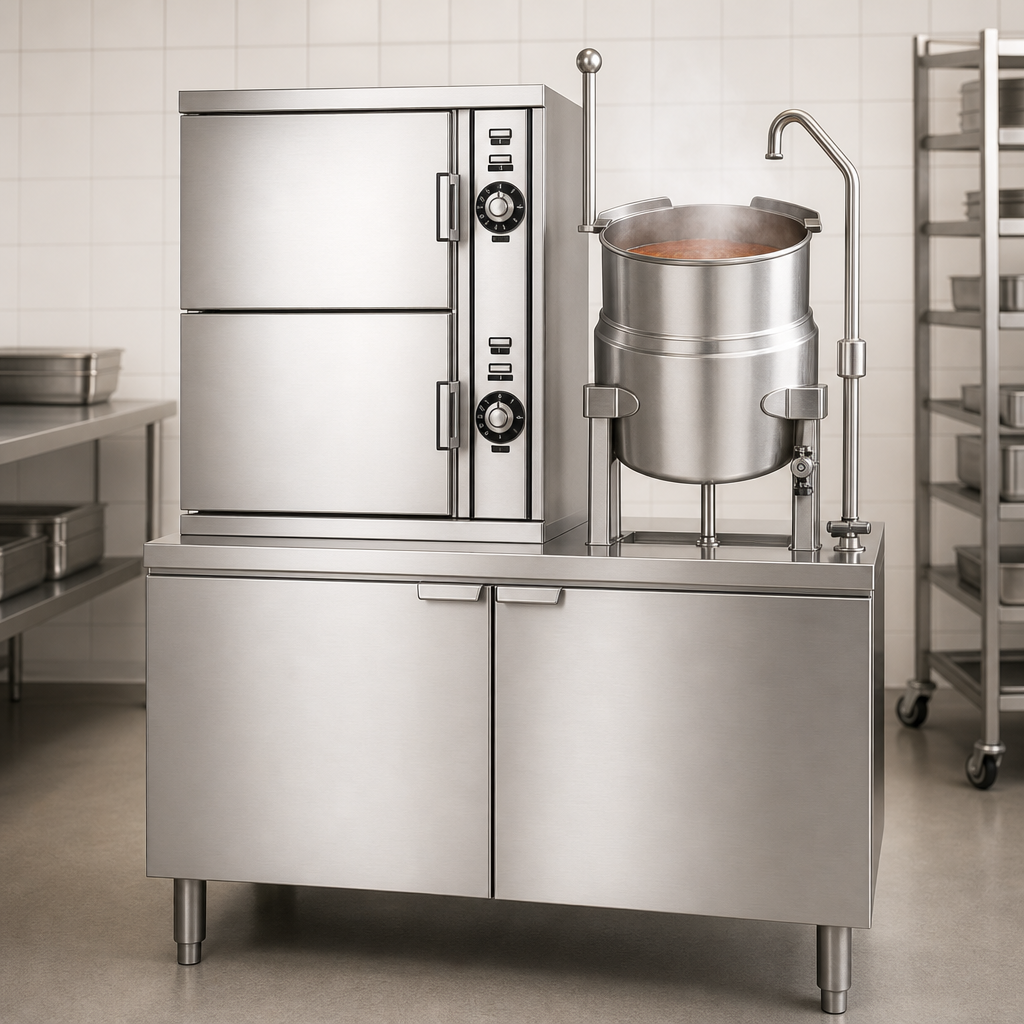

- Integrated 6 gal (23 L) kettle—ideal for soups, sauces and holding—mounted at comfortable working height.
- 36 kW electric steam boiler delivers a steady 9–11 psi for fast, even heat transfer.
- Automatic water level control, automatic blow-down and full CSD-1 code package for worry-free operation.
- Deck-mount faucet with swing nozzle and integral sink simplifies kettle filling & pan draining.
- Factory-supplied water filter system and split water line protect boiler & improve food quality.
- Rugged 304 SS exterior, #4 finish; 6 in. stainless legs with adjustable flanged feet for secure floor mounting.
- ASME-code boiler, National Board registered; certified to NSF & cCSAus standards.
At-a-glance specs
| Model | ECX-2-6 |
|---|---|
| Cooking compartments | 2 × 13.9 W × 10.9 H × 19.9 D in. (316 SS) |
| Pan capacity / compartment | 3 × 2½ in. deep full-size pans (see bullets for other depths) |
| Kettle capacity | 6 gal (23 L) |
| Boiler power / pressure | 36 kW, 9–11 psi (62–76 kPa) |
| Standard voltages | 208 V or 240 V, 3-phase, 60 Hz (99.9 A @ 208 V / 86.6 A @ 240 V) |
| Controls | 60-min mechanical timer per compartment, door-activated steam shut-off |
| Cabinet width | 44 in. (1118 mm) |
| Water connections | ½ in. NPT cold (boiler & condensate), 3⁄8 in. O.D. hot & cold to faucet |
| Drain | 2 in. IPS to open floor drain; 1 1/8 in. O.D. sink drain |
| Certifications | NSF, cCSAus, ASME boiler, CSD-1 |
| Warranty | 1 yr parts & labor; 2 yr prorated boiler shell; 10 yr kettle hemisphere |
Utility requirements
- Electrical: 36 kW, 3-phase (field-convertible 208 V/240 V). Other voltages & 42/48 kW options available.
- Cold water: 25–50 psi (170–345 kPa) @ ½ in. NPT.
- Faucet hot/cold: 25–50 psi via 3⁄8 in. O.D. tubing.
- Open floor drain required; no direct connection on condensate line.
Need a larger kettle, extra pan capacity or alternate voltage? Contact us—factory options such as 42 kW/48 kW boilers, spray-and-rinse assemblies and etched gallon or litre markings are available to build the perfect unit for your line.
