Crown (Middleby) ECX-10-6-6 Steam Kettles
Description

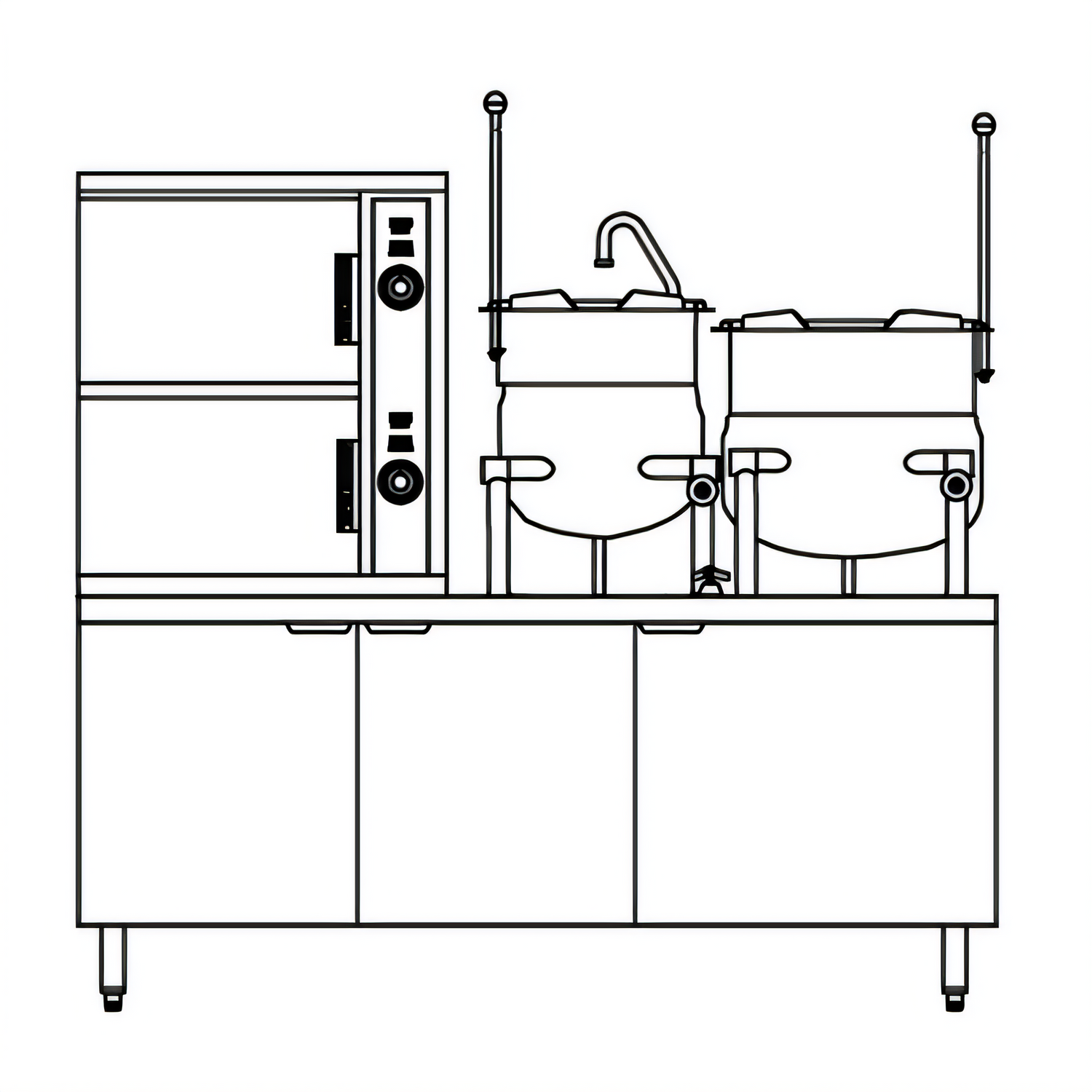

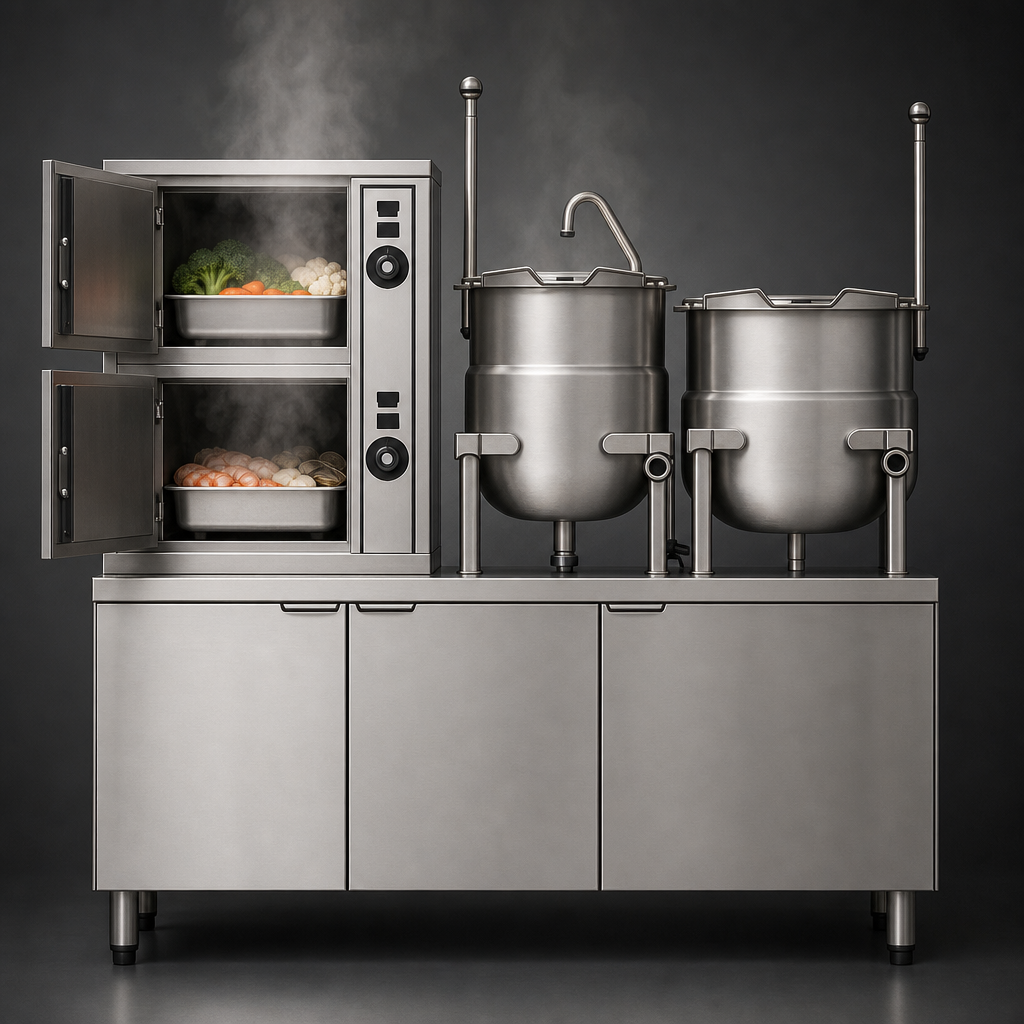

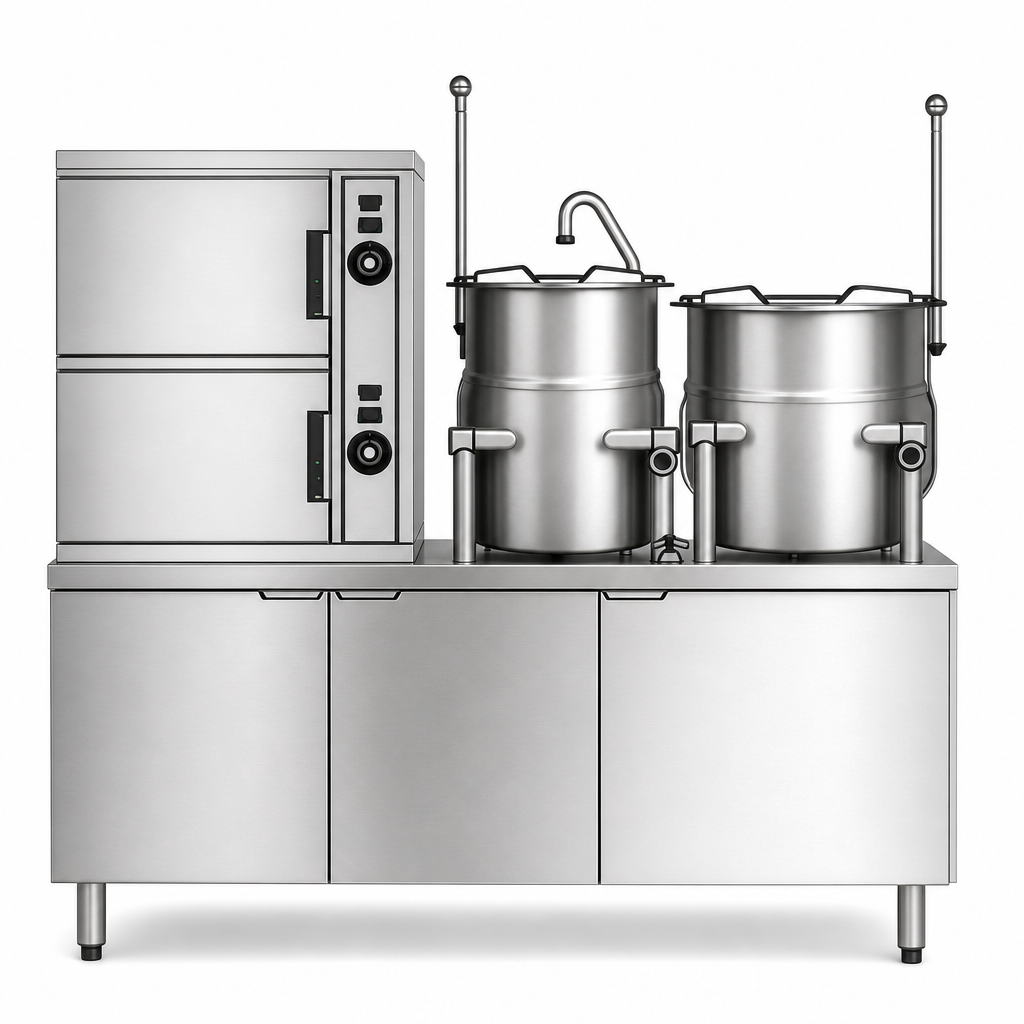

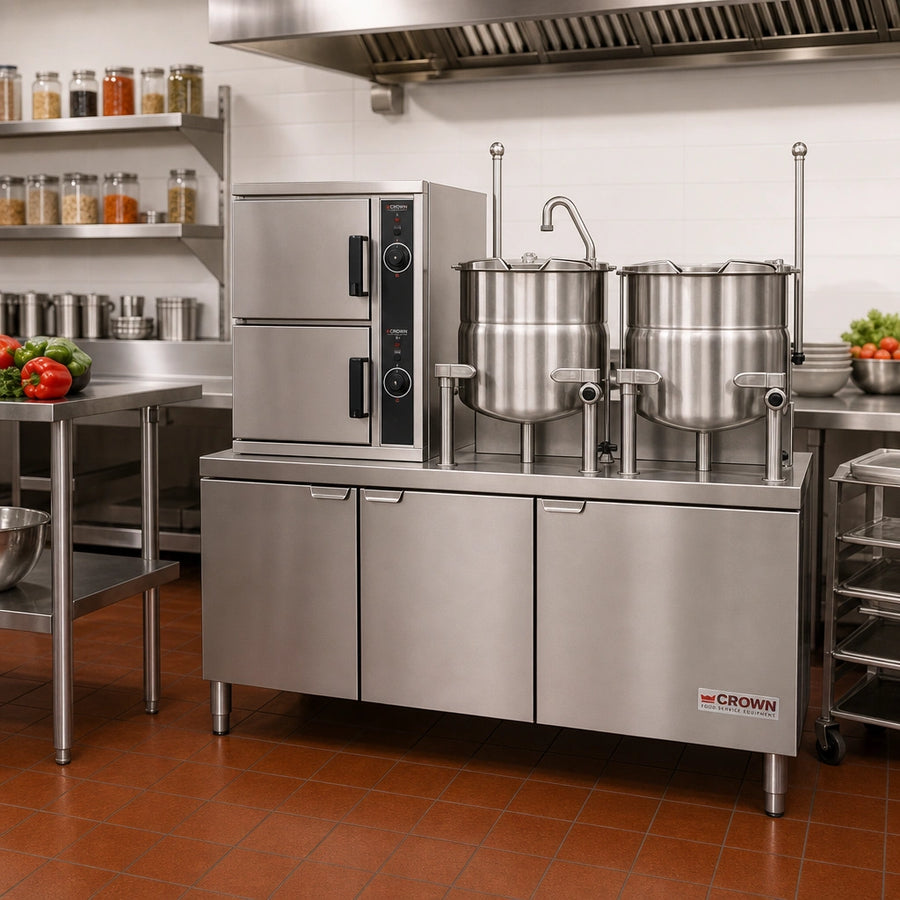

Crown ECX-2-6-6 Electric Convection Steamer/Kettle
2 compartments • (2) 6 gal kettles • 60″ cabinet boiler baseBuilt for high-volume, high-versatility kitchens, the Crown ECX-2-6-6 combines two independent convection steamer compartments with a pair of 6-gallon tilting kettles—all powered by a 42 kW electric steam boiler tucked neatly inside a 60-inch cabinet base. 316 stainless interiors, automatic boiler functions and an included water filter system deliver rock-solid performance while keeping maintenance simple.
Why You’ll Love It
- Holds up to 5 full-size (12″ × 20″ × 2½″) pans per compartment for rapid, even steaming
- (2) 6 gal tilting kettles share the same steam boiler—perfect for soups, sauces & stocks
- 42 kW electric boiler operates at 9-11 psi for fast recovery and continuous production
- 316 SS cooking chambers & kettle liners resist corrosion from acidic foods
- Automatic blowdown, split water line & drain tempering system protect the boiler and the drain line
- Deck-mounted faucet with swing nozzle & integrated sink for effortless kettle filling and rinsing
- CSD-1 code package, pressure controls & safety relief valve for worry-free operation
- 6″ adjustable flanged legs let you bolt the unit securely to the floor
- cCSAus & NSF certified; ASME-code stamped boiler
Capacities at a Glance
| Per Steamer Compartment | 5 × 2½″-deep pans • 3 × 4″-deep pans • 1 × 6″-deep pan |
|---|---|
| Kettle Size | 6 gal (23 L) each, tilting |
| Chamber Size (WxHxD) | 13.9″ × 17.4″ × 19.9″ (352 × 441 × 504 mm) |
Standard Equipment
- Factory-installed water treatment / filter system
- 60-minute mechanical timer with audible buzzer for each compartment
- Removable stainless-steel pan racks & drip trough
- Full perimeter door gasket with positive lock & safety interlock switch
- Automatic water level control, gauge glass & pressure gauge
- Stainless-steel exterior (304) with #4 sanitary finish
Key Specifications
| Boiler Power | 42 kW electric, 3-phase |
|---|---|
| Control Voltage | 115 VAC, 1-phase, 50/60 Hz |
| Amps per line (42 kW) | 208 V 116 A • 220 V 110 A • 240 V 101 A • 380 V 64 A • 415 V 58 A • 480 V 51 A |
| Water Connections | ½″ NPT boiler feed & cold condensate; 3⁄8″ O.D. faucet hot/cold |
| Drain | 2″ IPS to open floor drain (common for steamer, kettles & sink) |
| Overall Width | 60″ (1524 mm) cabinet base |
| Shipping Weight | ≈ 950 lb (431 kg) |
| Certifications | cCSAus, NSF, ASME-coded boiler |
Utility Requirements
- Three-phase electrical service sized per voltage/amps above
- 25–50 psi (170–345 kPa) treated water supply
- Open floor drain located directly under or behind unit
Warranty & Support
- 1 year parts & labor warranty
- 10 year hemisphere kettle shell warranty
- Backed by Crown Steam Group’s nationwide network of authorized service agencies
Intended for commercial use only. Not for household installation.
