Crown (Middleby) ECX-10-6-10 Steam Kettles
Description

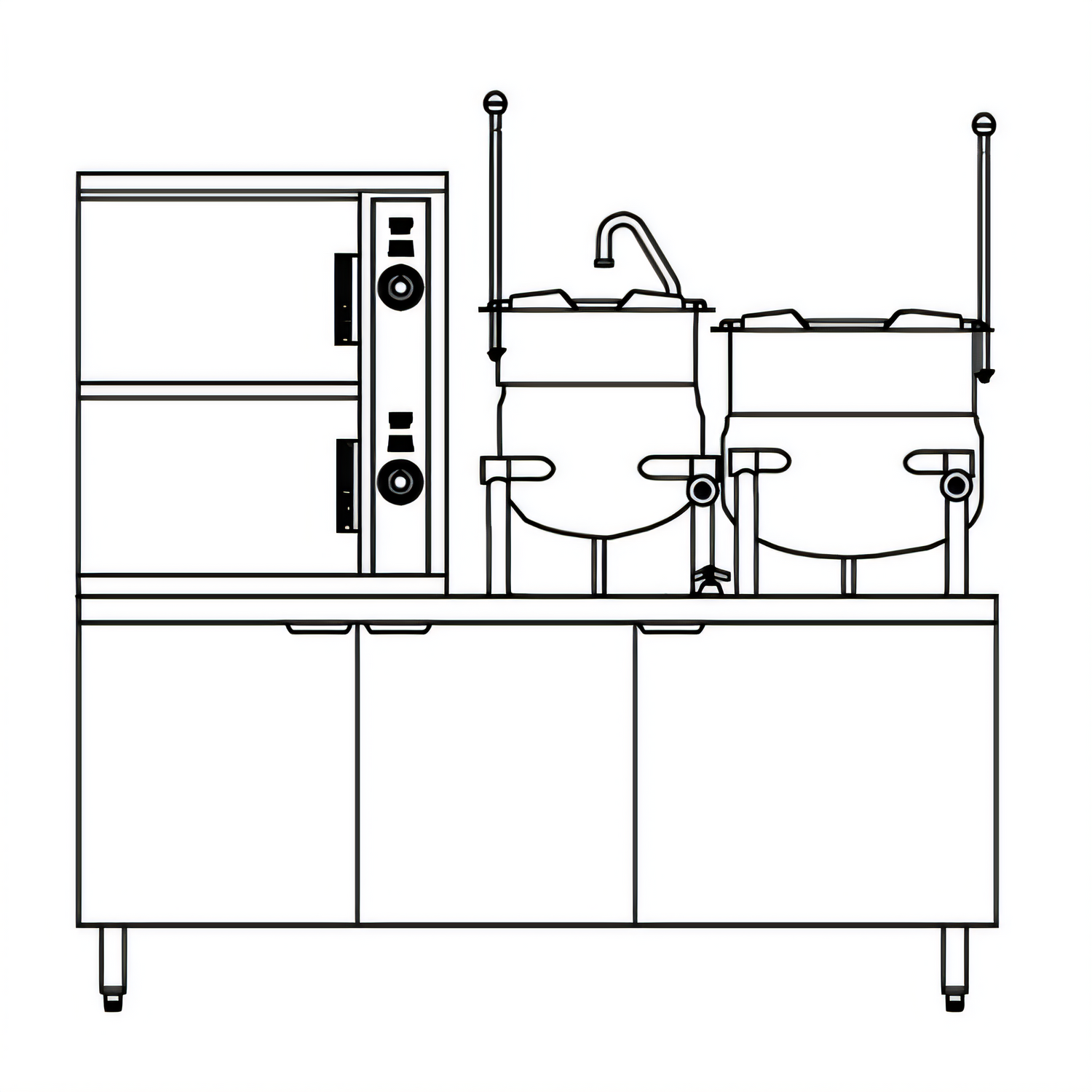

Crown ECX-2-6-10 Electric Convection Steamer / Kettle Station
2-compartment steamer • 6 gal & 10 gal kettles • 60" cabinet baseGet twice the cooking muscle in the same footprint. The ECX-2-6-10 pairs two independent convection-steam compartments with a 6 gallon kettle on the left and a 10 gallon kettle on the right—perfect for simultaneous batch steaming, soup production and sauce work. A 42 kW electric boiler, integrated sink and faucet package, and built-in water filtration make this station a true plug-and-play centerpiece for any high-volume kitchen.
Key features
- 42 kW electric steam boiler delivers 9–11 psi convection steam on demand
- Two fully welded 316 SS cooking chambers, each with a 60-minute timer & audible buzzer

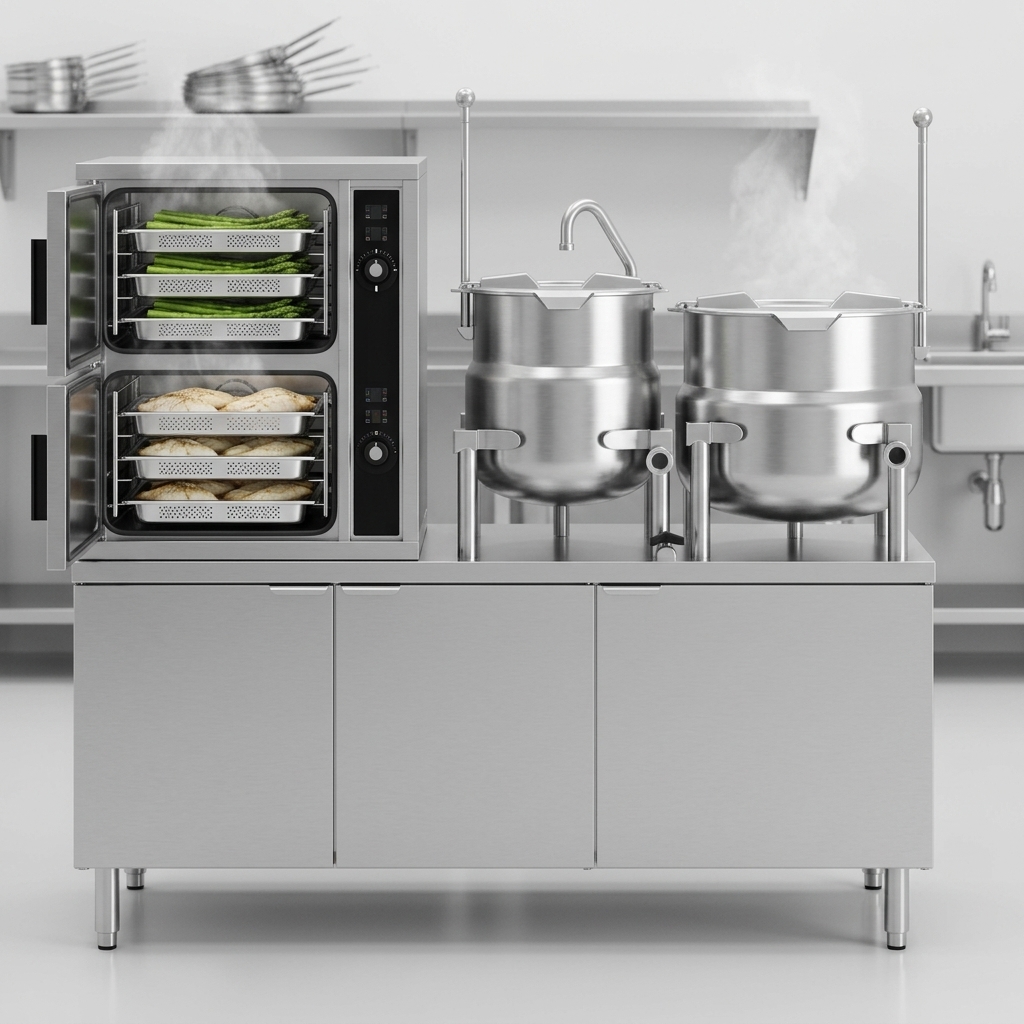

- Pan capacity: up to five 12" x 20" x 2-1/2" hotel pans per compartment

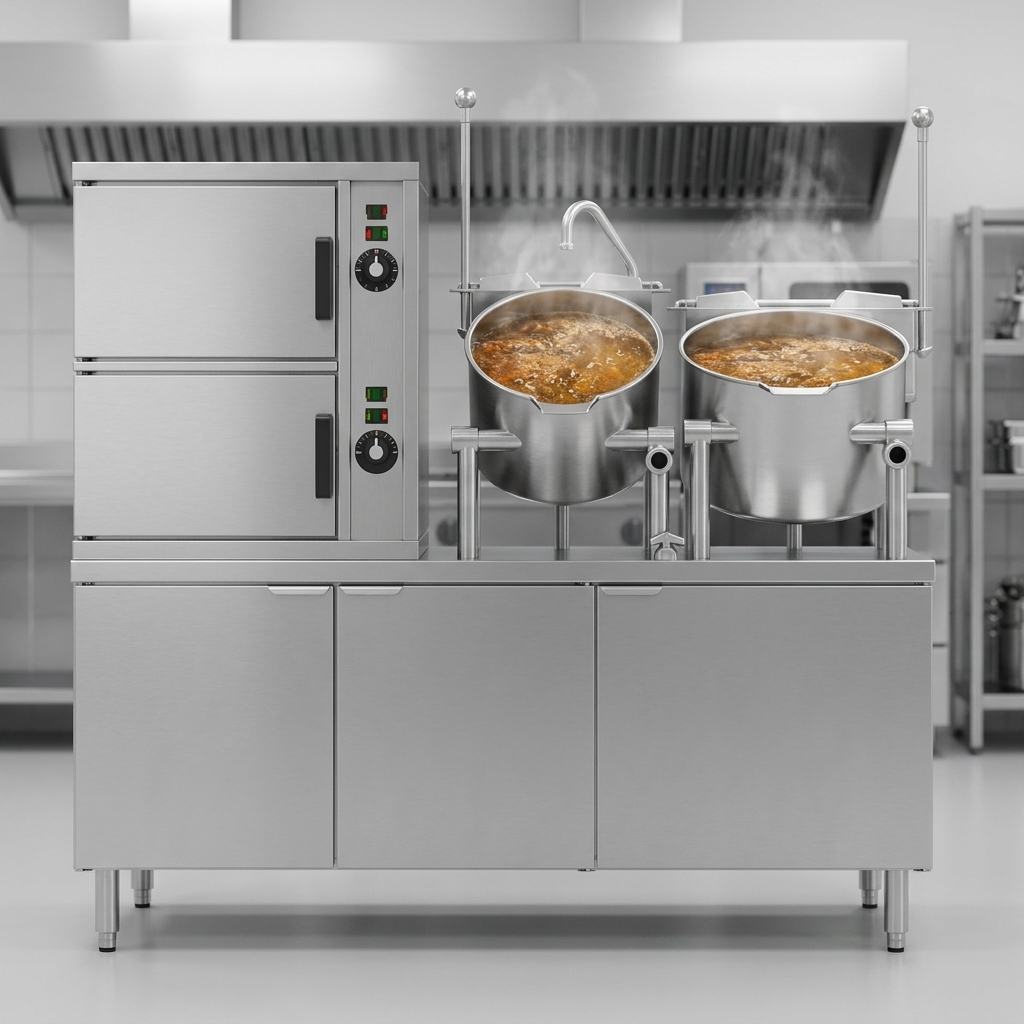

- 6 gal & 10 gal tilting kettles (316 SS liner) for batch soups, sauces or oatmeal

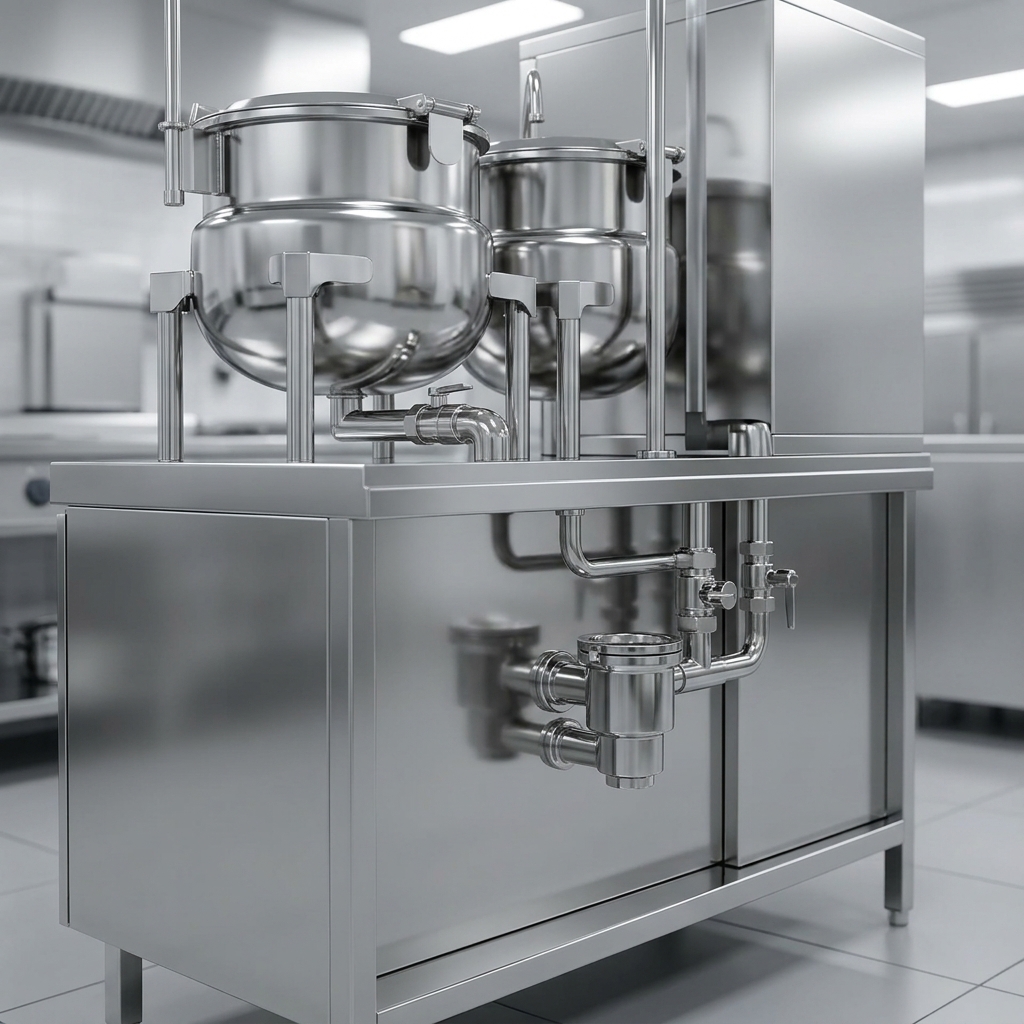

- Automatic blow-down, split water line & full CSD-1 code safety package factory-installed
- Deck-mount faucet valve with swing nozzle plus integral rinse sink & common drain
- Water treatment system included—no guesswork, no added cost
- 304 SS exterior with #4 finish, 6" adjustable flanged legs for secure floor mounting
Performance & capacity
- Steam compartments automatically interrupt steam when a door is opened for safety and energy savings
- Removable pan racks and rounded interior corners speed up end-of-day clean-ups
- Door drip trough channels condensate to drain to keep floors dry
- Drain-tempering system meets 140 °F (60 °C) code requirements—just add a ½" cold-water line
Built for the long haul
- ASME-code boiler, National Board registered
- cCSAus & NSF listed and ready for commercial installation
- Reinforced kettle & boiler mountings inside a full-perimeter angle frame
- #4 polished stainless exterior resists dents, scratches and kitchen chemicals
Technical specifications
| Model | ECX-2-6-10 |
|---|---|
| Configuration | 2 × Steam compartments + 6 gal kettle + 10 gal kettle |
| Pan capacity (per compartment) |
5 × 12" x 20" x 2-1/2" pans or 6 × 1" pans, 3 × 4" pans, 1 × 6" pan |
| Boiler rating | 42 kW, 9–11 psi operating pressure |
| Standard voltages | 208 V / 220 V / 240 V / 380 V / 415 V / 480 V, 3 Ø |
| Amps @ 208 V 3 Ø | ≈ 116.6 A (other voltages on request) |
| Cabinet width | 60" (1524 mm) |
| Shipping weight | ≈ 930 lb (422 kg) |
| Utilities |
½" NPT boiler feed water @ 25–50 psi ½" NPT cold water for drain tempering 3⁄8" O.D. tubing hot & cold for faucet 2" IPS open floor drain (no solid connection) |
Alternate kW (48 kW) and voltage configurations are available—contact us for details.
Warranty & certifications
- 1-year parts & labor warranty
- 10-year hemisphere warranty on kettles
- Boiler shell carries prorated extended coverage
- NSF & cCSAus listed • Meets CSD-1
