Crown (Middleby) ECX-10-24 Steamers (Countertop & Floor)
Description

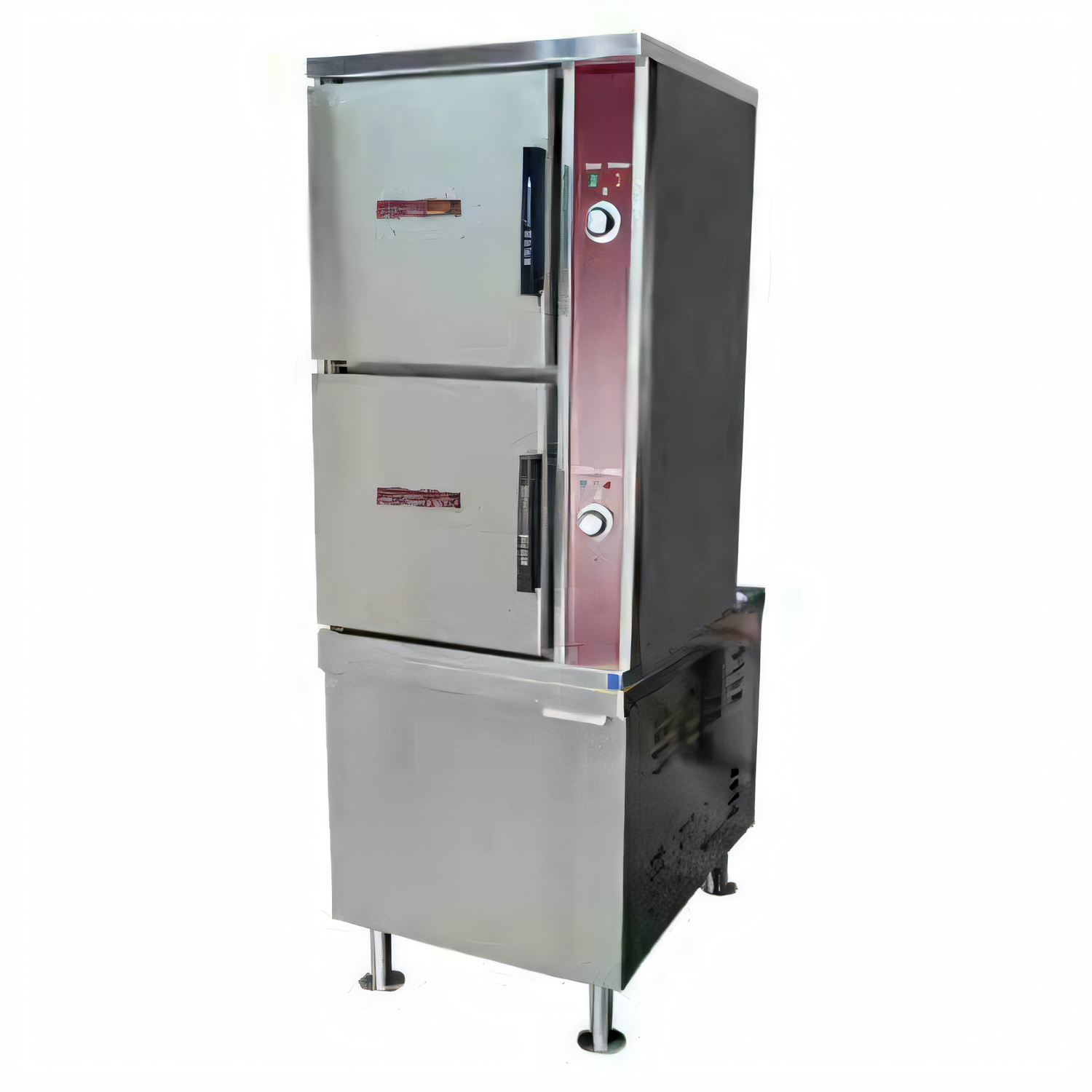

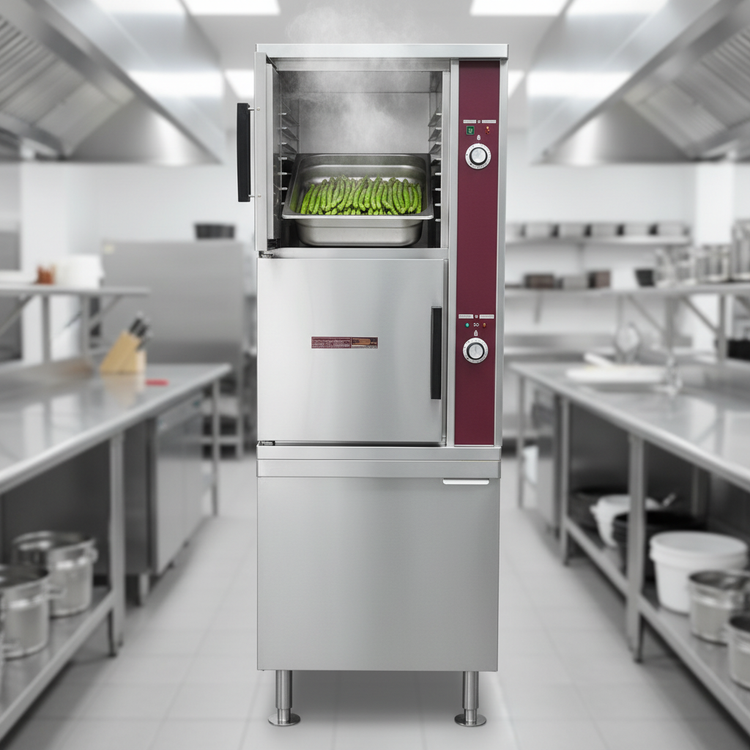

Crown ECX-2-24 Two-Compartment Electric Convection Steamer
24" cabinet base • 10 full-size pan capacity • cCSAus & NSFHigh-volume steaming in a space-saving 24 inch footprint. With two fully independent chambers and a rugged 24 kW electric boiler, the Crown ECX-2-24 delivers fast heat-up, even cooking and all-day reliability for demanding commercial kitchens.
Key Advantages

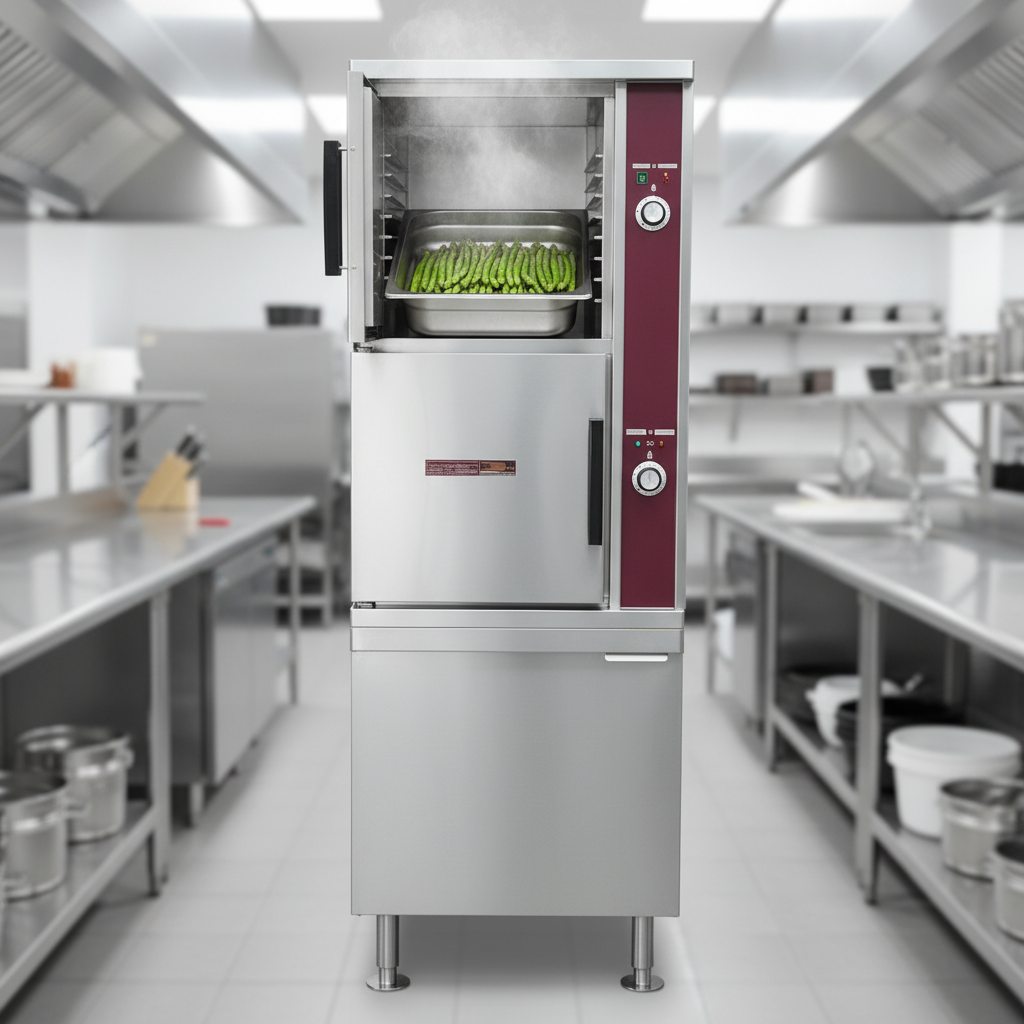

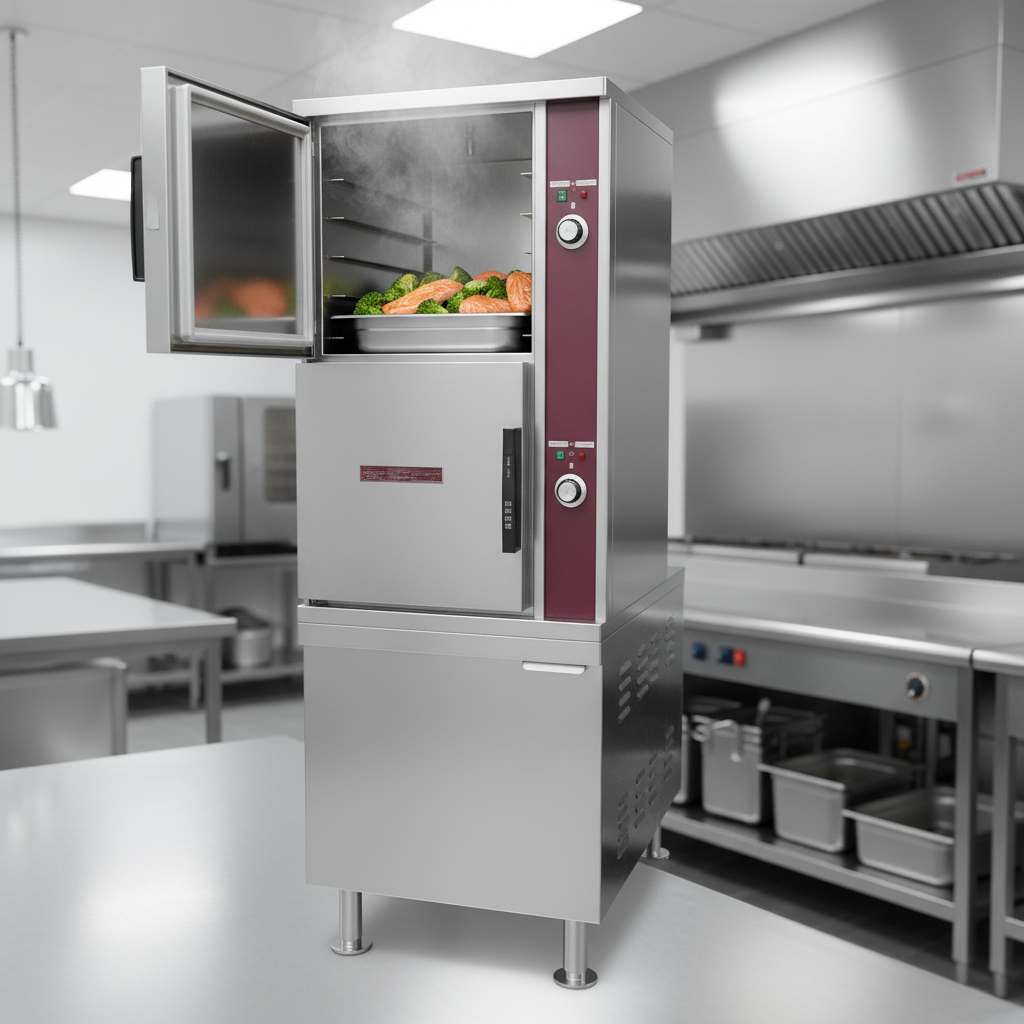

- Two pressureless convection compartments – 5 × 12" × 20" pans per compartment (10 total).
- All-welded 316 SS cooking chambers inside a 304 SS exterior for unmatched corrosion resistance.
- Automatic blowdown, split water line & CSD-1 boiler controls reduce scaling and simplify maintenance.
- Factory-installed Water Treatment System keeps the boiler running at peak efficiency (cartridges included).
- 60-minute mechanical timer, ready/cook lights and end-of-cycle buzzer on each compartment improve workflow.
- Removable pan supports, stainless drip trough and lift-off door liners make daily cleaning quick and easy.
- 6" stainless legs with adjustable flanged feet for secure floor mounting.
- Certified to cCSAus & NSF standards – ready for inspection on day one.
Performance Snapshot
| Compartments | 2 independent, pressureless |
|---|---|

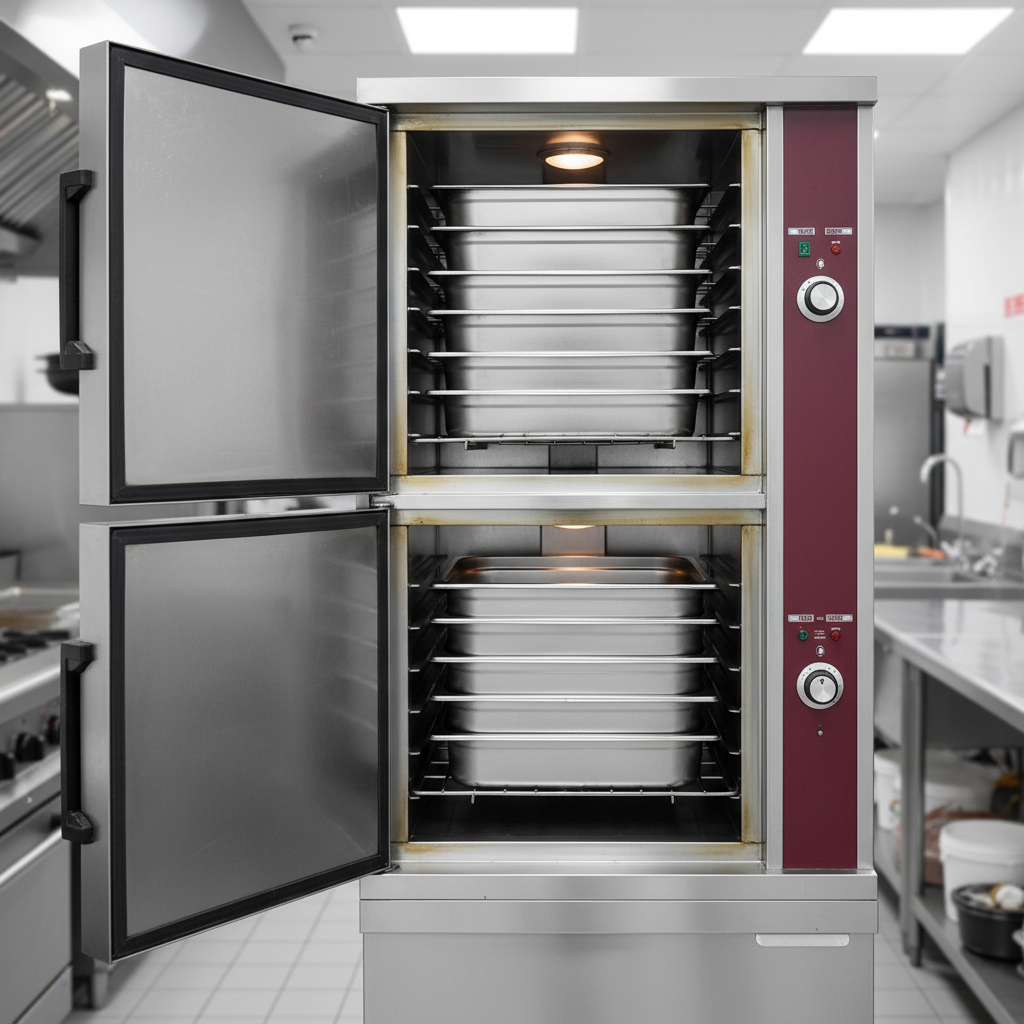

| Pan capacity | 5 full-size (12" × 20") pans per cavity – 10 total |
| Cabinet width | 24" (610 mm) |
| Boiler power | 24 kW, 9–11 psi (62–76 kPa) operating pressure |
| Voltage options | 208 V, 240 V, 380/220 V or 415/240 V, 3-phase, 60 Hz |
| Water inlet | ½" NPT @ 25–50 psi (170–345 kPa) |
| Drain | 2" IPS, open floor drain |
| Construction | Interior 316 SS, Exterior 304 SS, fully insulated |
| Legs / Base | 6" (152 mm) SS legs with adjustable flanged feet |
| Certifications | cCSAus, NSF |
| Warranty | 1-year parts & labor, 2-year prorated boiler shell |
Boiler Protection Built-In
Every unit ships with Crown’s factory-matched water filter, automatic blowdown and a split water line that keeps cold water out of the boiler shell. Together they dramatically cut scale build-up and extend service intervals.
Water supply must meet Crown’s quality guidelines: <60 ppm TDS, <1.5 ppm chlorine, pH 6.8–7.3. Proof of filter installation and cartridge replacement is required for full warranty coverage.
Perfect For
- Schools & universities
- Healthcare and senior living facilities
- Chain and independent restaurants
- Banquet, catering & commissary production
