Crown (Middleby) ECTS-12 Braising Pans & Tilt Skillets
Description

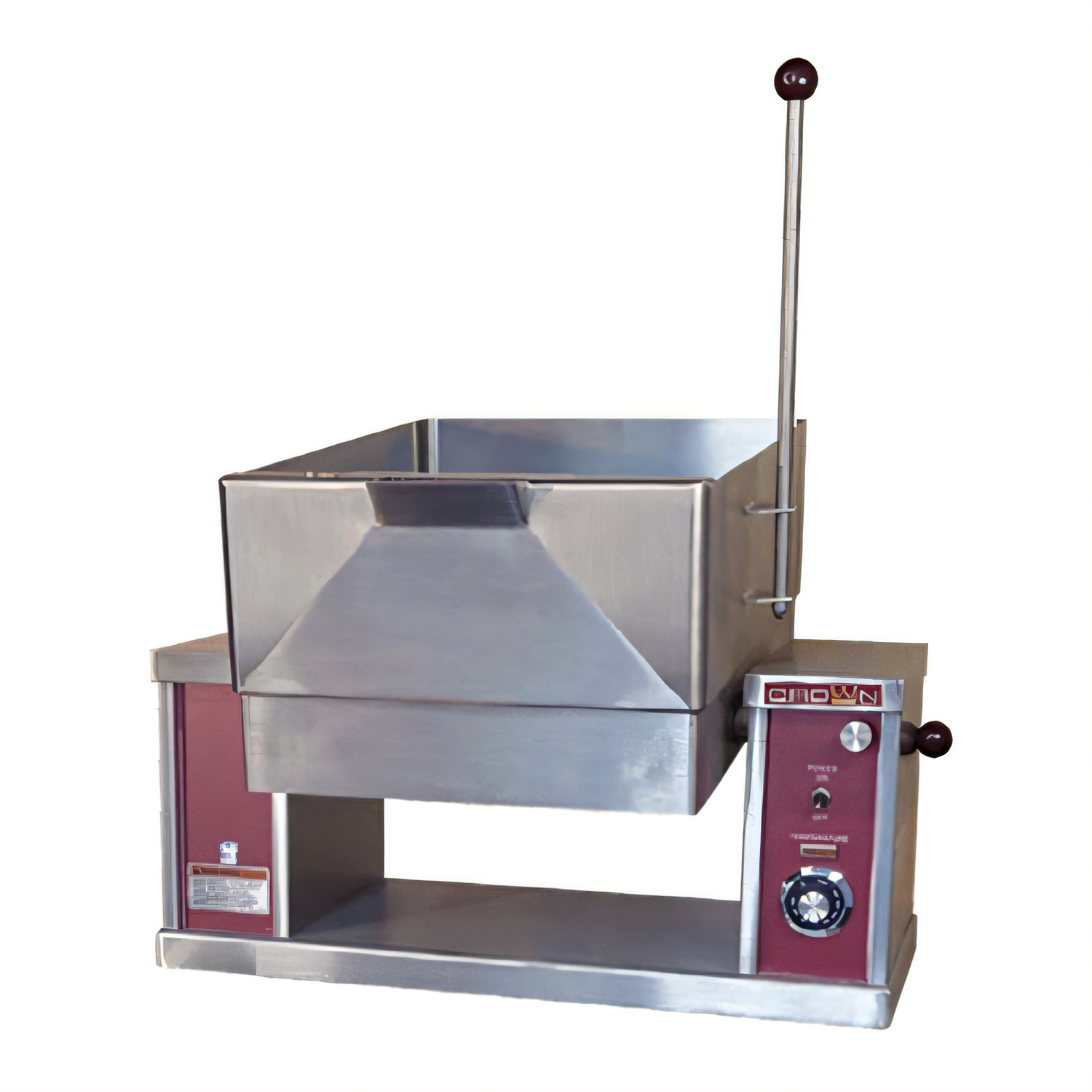

Crown ECTS-12 Countertop Electric Tilting Skillet
12 gal / 45 L capacity • 9 kW • cCSAus & NSF certifiedThe Crown ECTS-12 combines the speed of a griddle, the depth of a braising pan and the volume of a kettle into one compact, countertop powerhouse. With a 10-gauge 304 stainless steel pan and embedded heating elements, it delivers even, responsive heat for grilling, sautéing, braising, holding or small-batch frying—then tilts smoothly for effortless, controlled pour-off.
Why chefs choose the ECTS-12
- True 12-gallon capacity (45 L) with etched gallon markings for fast, repeatable batching.
- One-piece 304 stainless pan—10 ga. walls, coved corners and a polished interior that cleans in seconds.
- 9 kW embedded elements cast into a 1 ½" (38 mm) aluminum plate for uniform heat across the entire cooking surface.
- 160 – 445 °F (71 – 230 °C) range controlled by an integral thermostat with pilot light and high-limit safety shut-off.

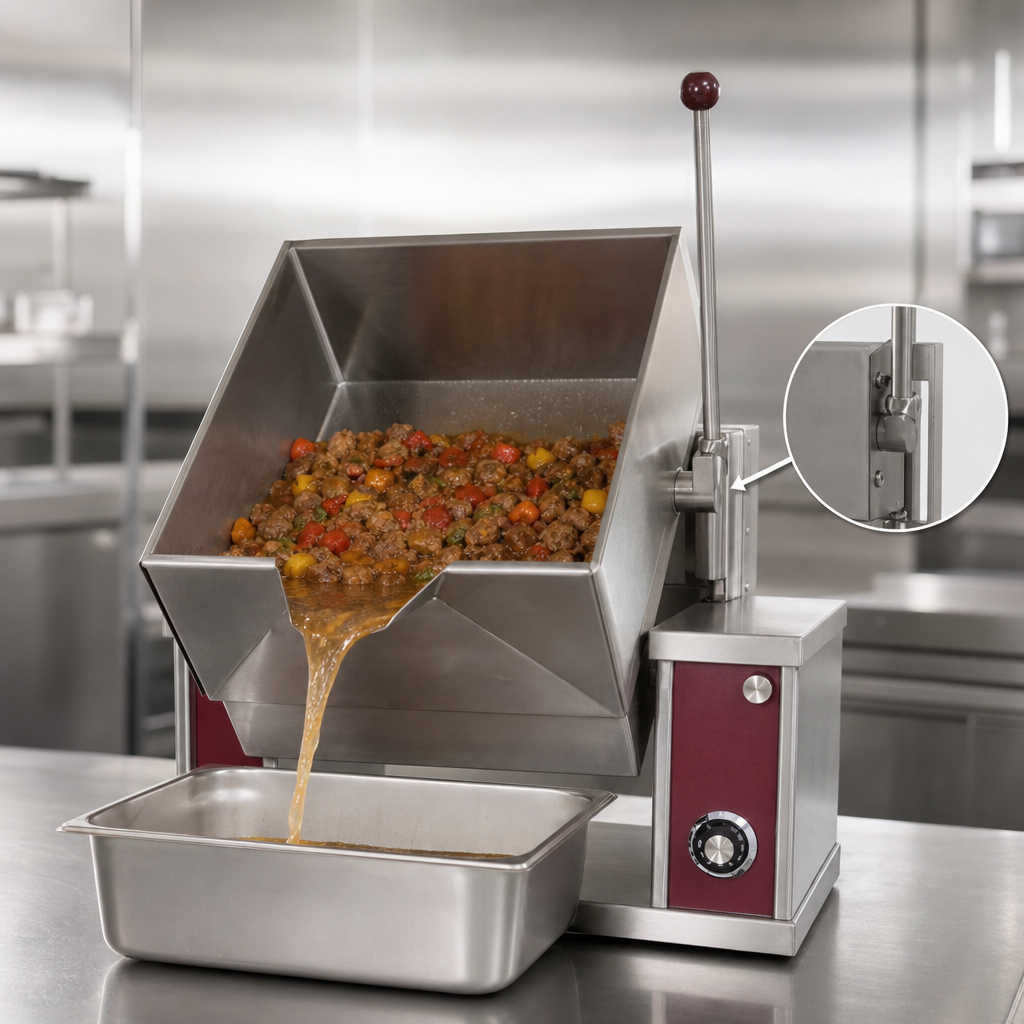

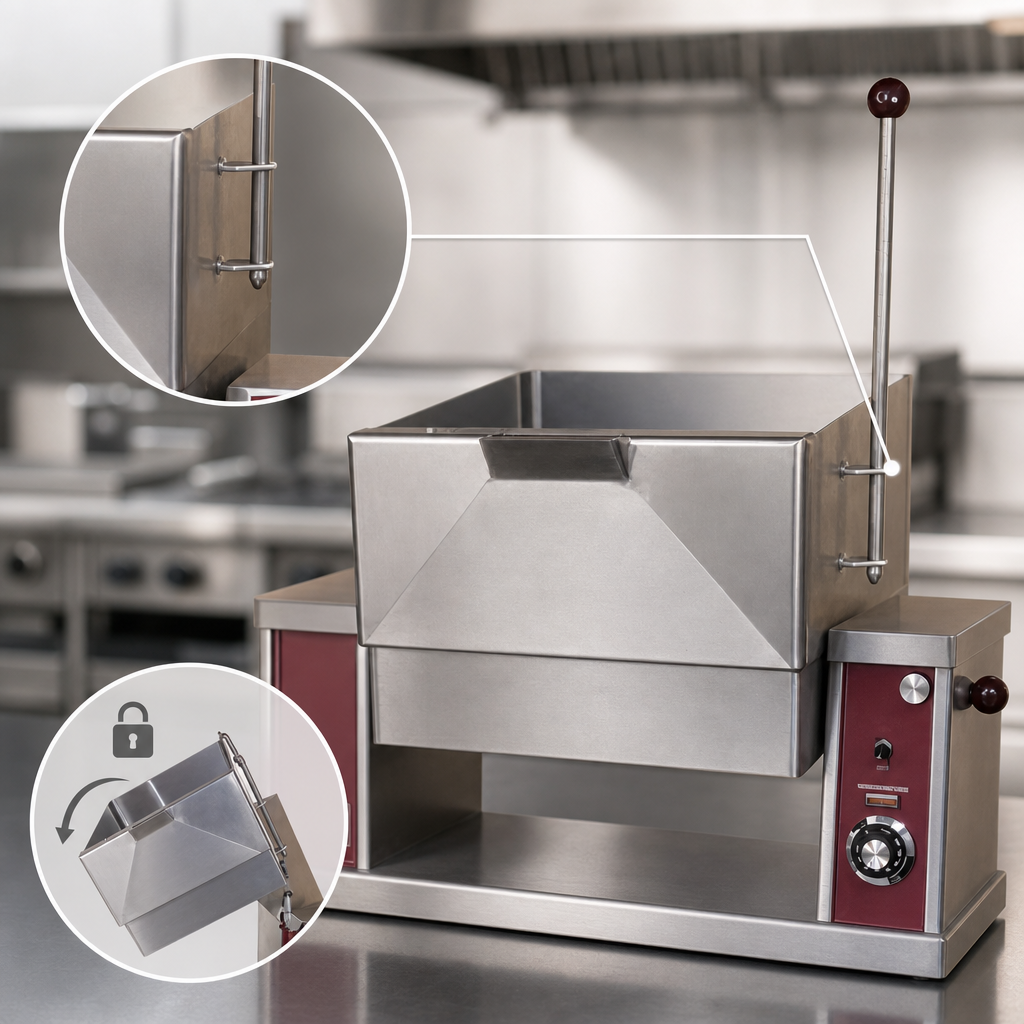

- Manual tilt with side pivots and a heat-proof handle; built-in interlock prevents accidental dumping.
- All-stainless construction with concealed mounting lugs—bolt directly to your countertop or optional stand.
Technical specifications
| Model | ECTS-12 |
|---|---|
| Capacity | 12 gal / 45 L |
| Heat input | 9.0 kW electric |
| Voltage & phase | 208, 220 or 240 V, 1 Ø or 3 Ø standard 380/415/480 V, 3 Ø available |
| Temperature range | 160 °F – 445 °F (71 °C – 230 °C) |
| Pan material | 10-ga. 304 stainless steel, satin exterior / polished interior |
| Tilt mechanism | Manual, side pivots with interlock |
| Overall width (A) | 29 in (737 mm) |
| Overall depth (B) | 16.75 in (425 mm) |
| Shipping weight | 191 lb (87 kg) |
| Certifications | cCSAus, NSF |
| Minimum clearance | 6 in (152 mm) sides & back |
| Warranty | 1-year parts & labor (USA/Canada) |
Optional accessories (add-on)
- Lift-off stainless steel cover (SC-12)
- Pour strainer (PS-12)
- Steam pan insert (SPI-12)
- S-30 open stand with sliding shelf or SD-30 stand with sliding drain drawer
- Single or double pantry faucet & rinse-spray heads
- Faucet bracket, etched liter markings, correctional package & more
Accessories ship separately and must be ordered with the skillet.
