Crown (Middleby) ECTRS-16 Braising Pans & Tilt Skillets
Description

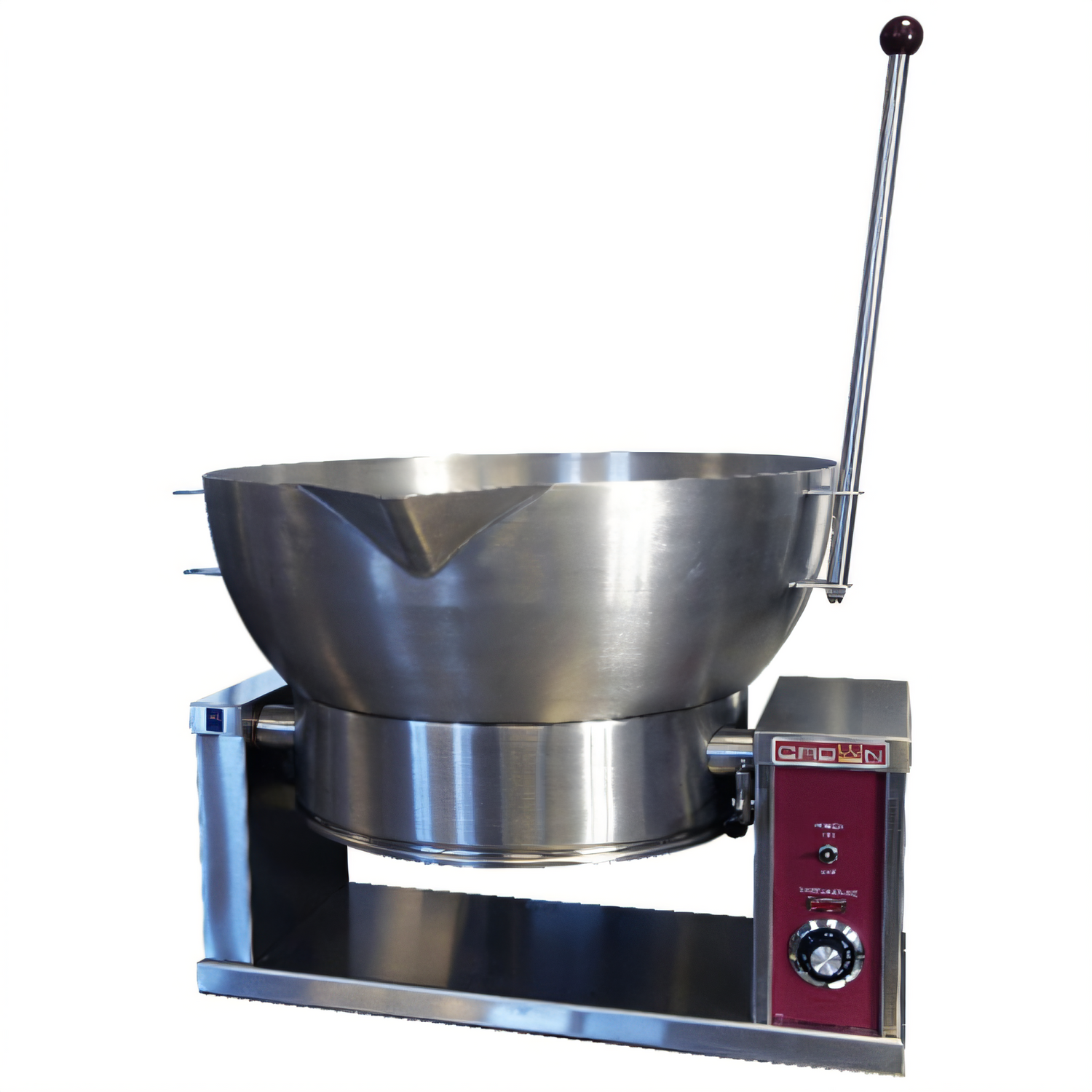

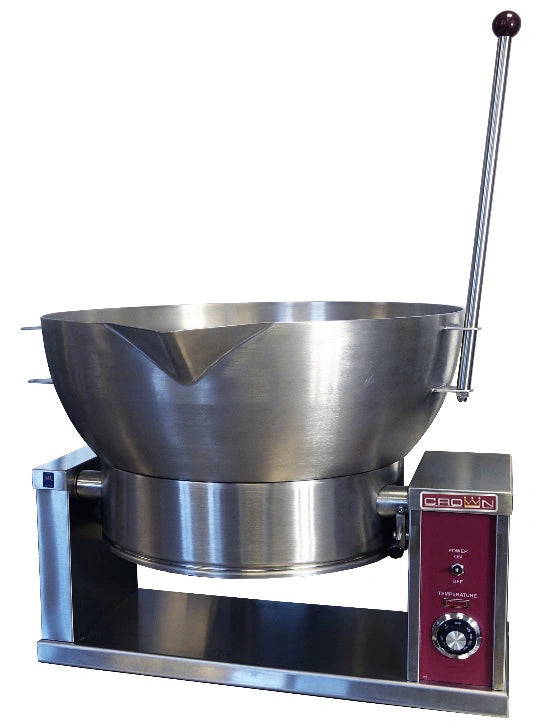

Crown ECTRS-16 Countertop Electric Tilting Skillet
16 gal / 60 L • Round Manual-Tilt • 7.5 kW • Stainless SteelBuilt for heavy-duty commercial kitchens that need big-batch versatility in a compact footprint, the Crown ECTRS-16 delivers fast, even heat with the control and safety you expect from a Middleby company. Season, sear, braise, sauté, simmer or hold—then tilt and pour every last drop with total confidence.
Why you’ll love it

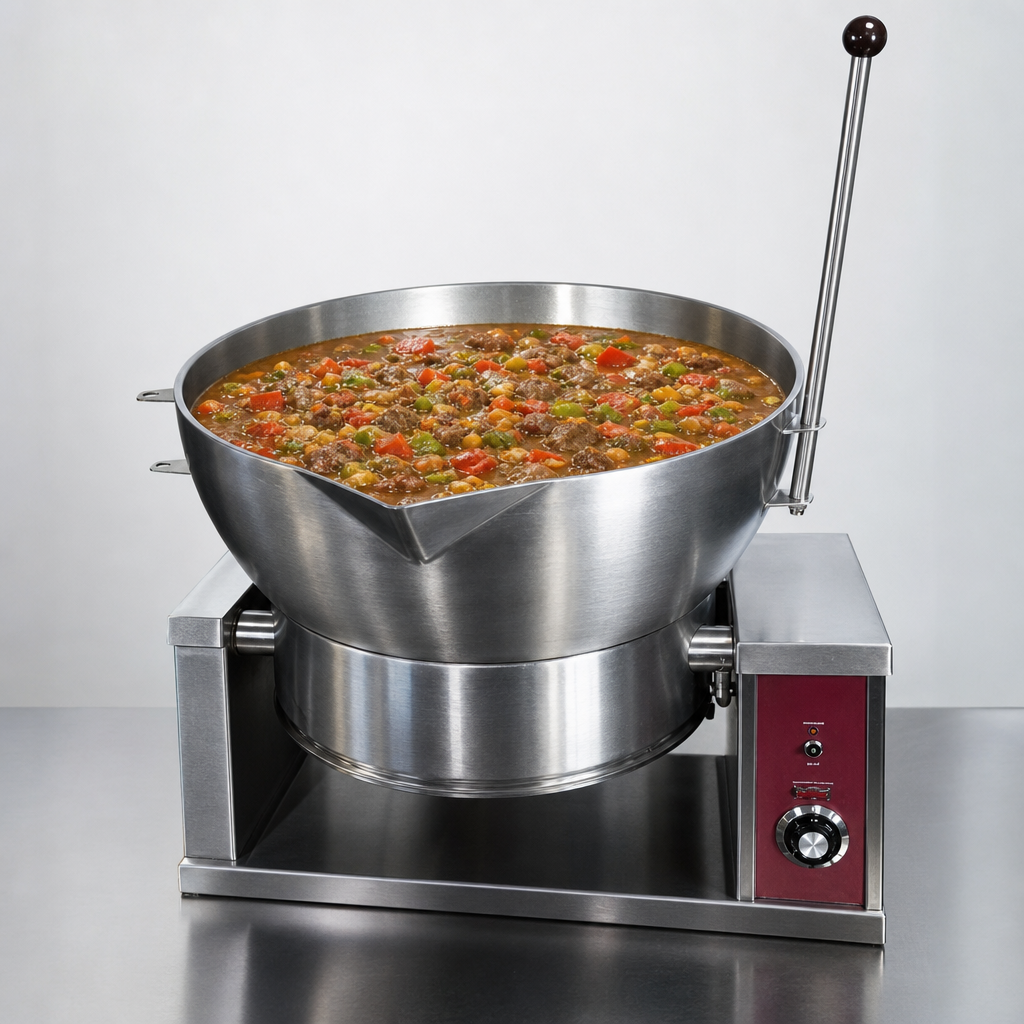

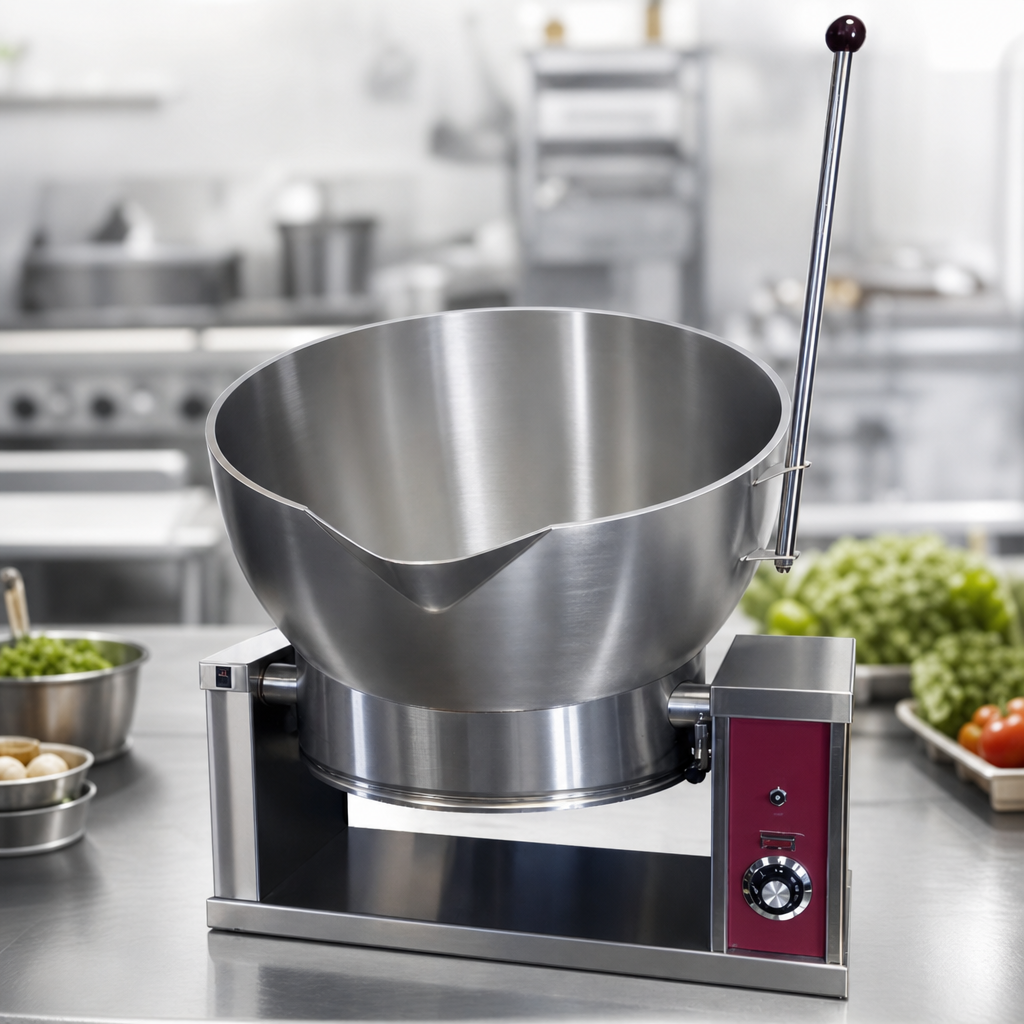

- 16 gallon (60 liter) round pan handles high-volume batches without hot spots.
- 3⁄8" thick stainless steel cooking surface with 7.5 kW clamped-on elements for rapid, even heat.
- Manual side-pivot tilt with heat-resistant handle and tilt interlock prevents accidental dumping.
- Precise thermostat from 160 °F to 450 °F (45 °C – 232 °C) plus safety thermostat & high-temp shut-off.
- One-piece, 10-ga stainless steel pan with coved corners and etched gallon markings for easy cleaning and accurate yields.
- 304 stainless steel, 30" wide countertop base—no additional stand required.
- 1 ½" NPT drain for quick, sanitary emptying.
- Certified cCSAus & NSF for front-of-house safety and code compliance.
Technical specifications
| Model | ECTRS-16 |
|---|---|
| Capacity | 16 gal / 60 L |
| Power | Electric, 7.5 kW, 208–240 V (1 ph) or 208–600 V (3 ph) |
| Amps (208 V / 1 ph) | 36 A |
| Amps (208 V / 3 ph) | 20.8 A |
| Temperature Range | 160 °F – 450 °F (45 °C – 232 °C) |
| Tilt Mechanism | Manual lever, side-mounted stainless steel pivots with interlock |
| Pan Construction | 10-ga stainless steel, polished interior, etched gallon markings |
| Base | 30" W 304 stainless steel countertop chassis (#4 finish) |
| Drain | 1 ½" NPT draw-off |
| Overall Shipping Weight | Approx. 249 lb / 113 kg |
| Certifications | cCSAus, NSF |
Utility & installation
- Single point electrical connection — voltage & phase to be specified on order.
- 1 ½" NPT drain connection at rear.
- Cold / hot water stubs provided for optional faucet kits.
- No side or rear clearance required.
Intended for commercial use only • Not for household installation.
Popular factory options (sold separately)
- S-30 stainless steel open-leg stand with sliding shelf or drain pan.
- Single or double pantry faucet with 12" swing spout.
- Single or double rinse spray head with 68" hose.
- Steam pan insert, lift-off stainless steel cover, etched liter markings & more.
