Crown (Middleby) ECT-12 Steam Kettles
Description

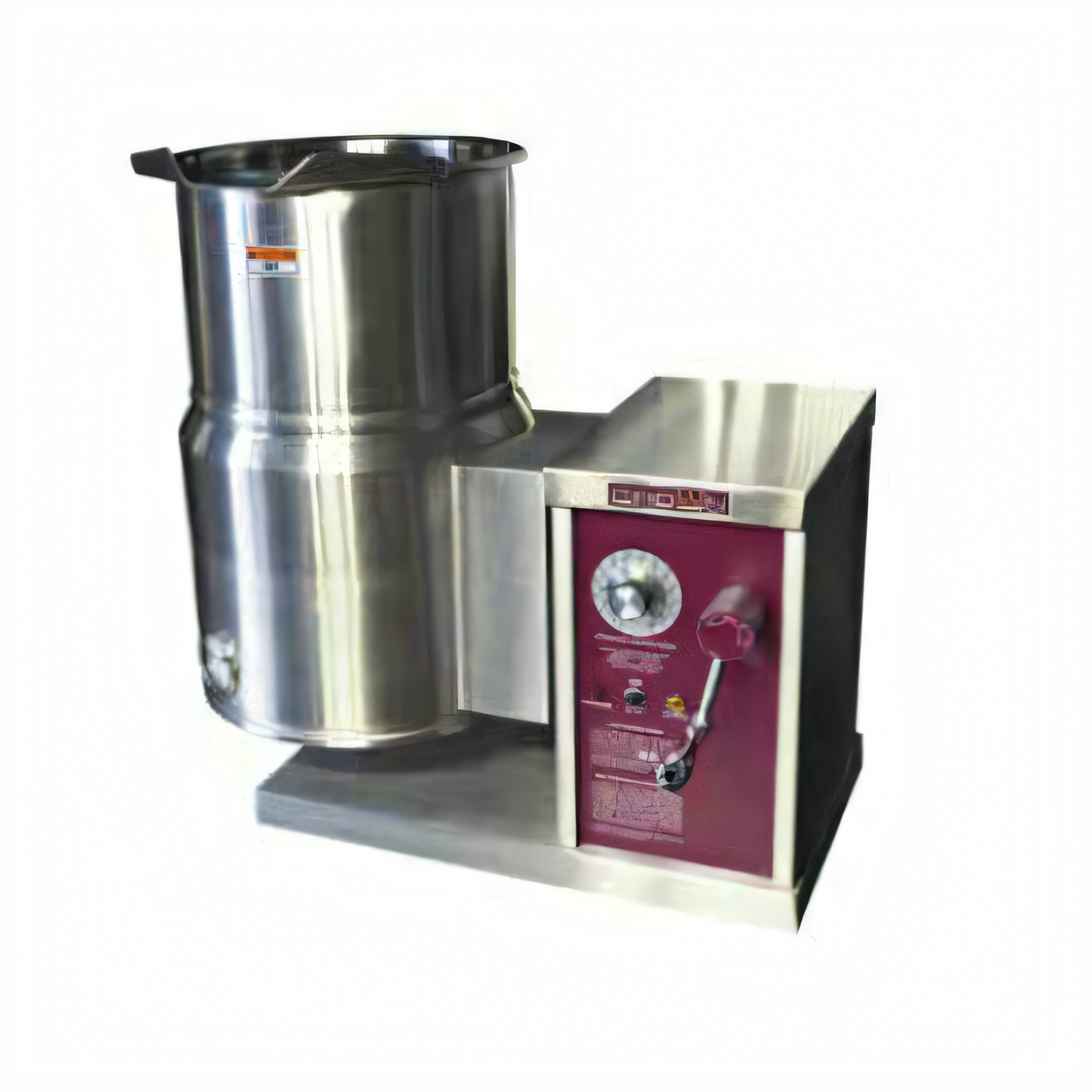

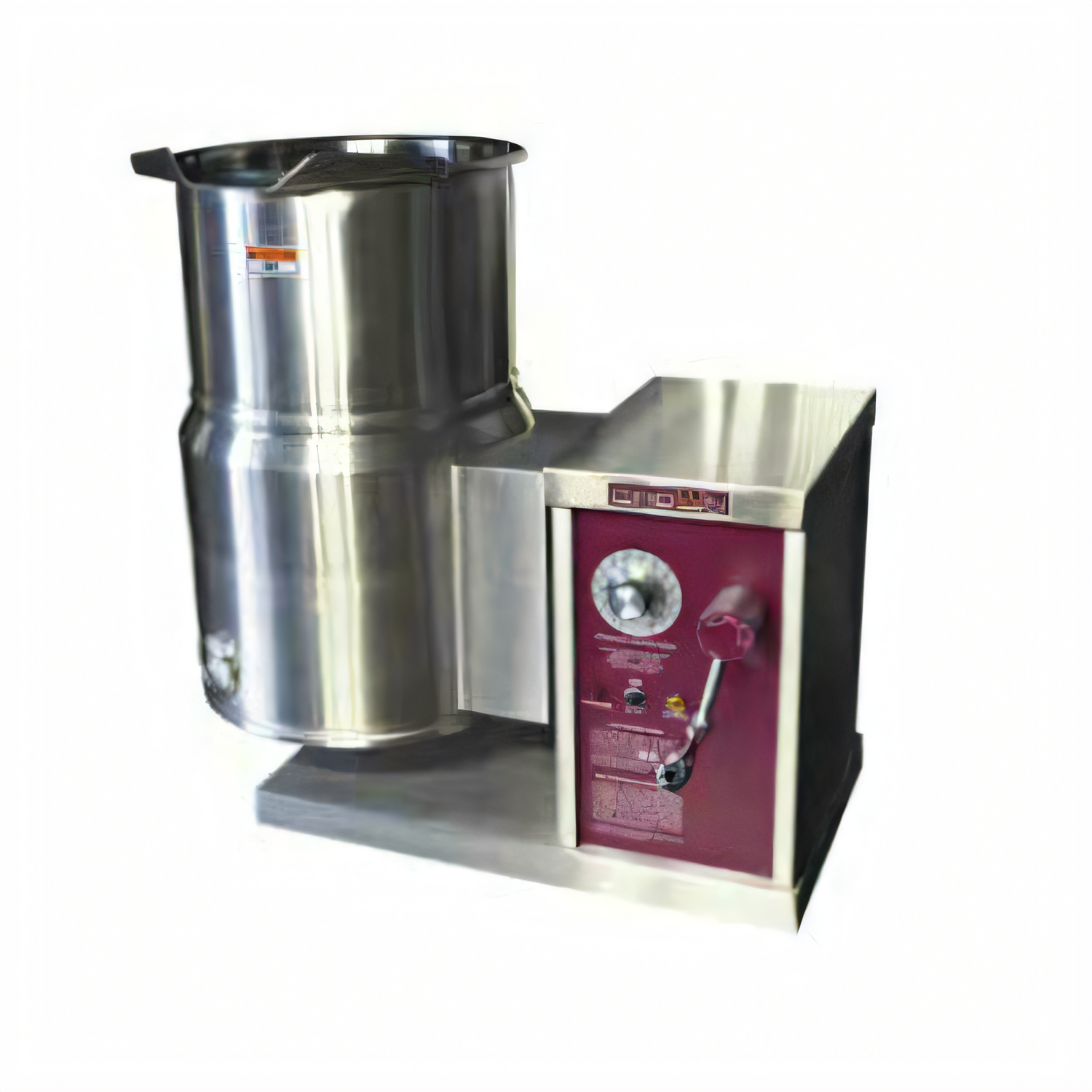

ECT-12 12 Gallon Electric Counter Tilting Kettle
by Crown (a Middleby Brand)Engineered for high-output commercial kitchens, the Crown ECT-12 delivers fast, uniform heating, effortless portioning and rock-solid durability in a space-saving countertop design. Its self-generating 50 PSI steam jacket reaches cooking temperatures up to 285 °F (140 °C), cutting batch times while preserving product quality.
Why You’ll Love It
- 12 gallon (45 L) capacity – perfect for soups, stocks, sauces & signature entrées
- Self-contained 2⁄3 steam jacket; no external boiler or water connection required
- High-pressure 50 PSI system (cCSAus & NSF certified)
- 316 SS kettle liner resists acids & salt for longer life and easier clean-up
- 304 SS console & trunnion with water-resistant construction
- Right-hand hand-crank tilt – smooth, self-locking and tilts past 90° for total draining
- Solid-state thermostat (165 °F–285 °F) with integrally mounted controls

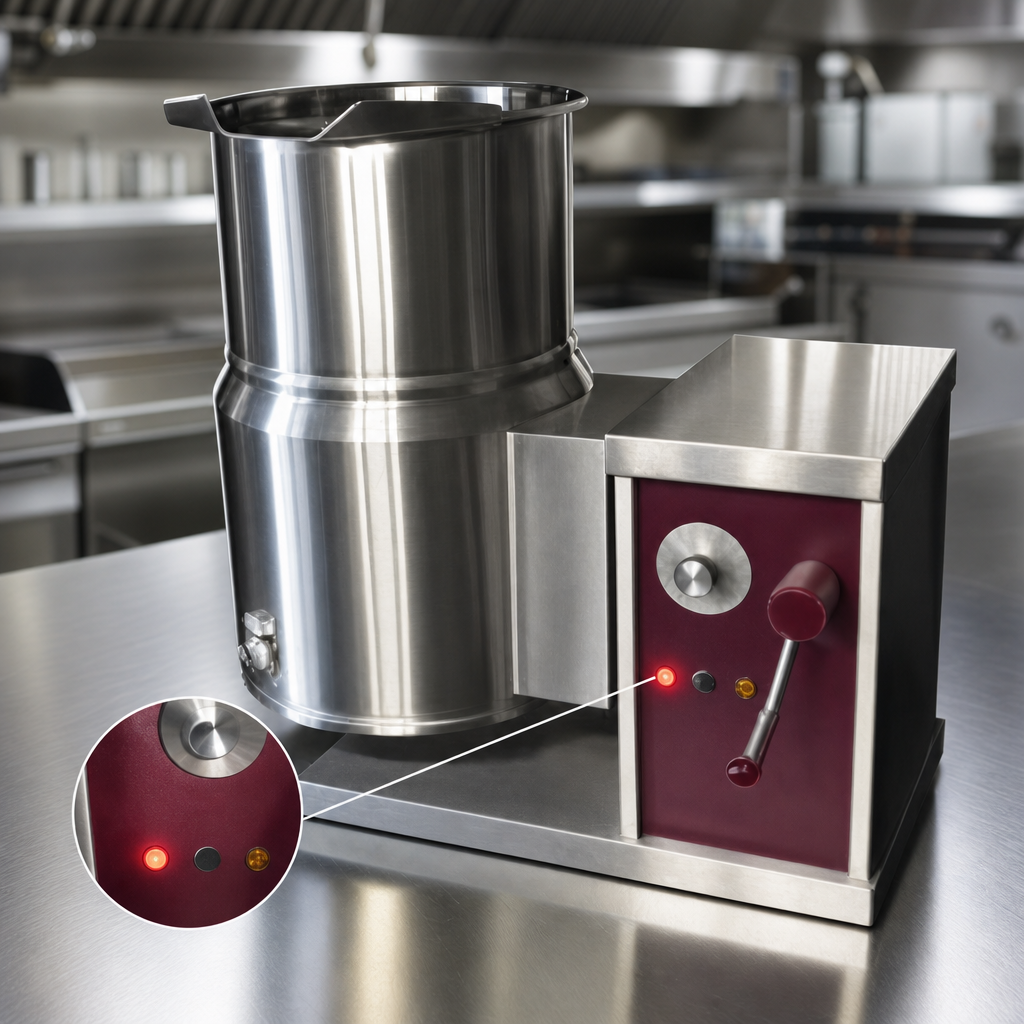

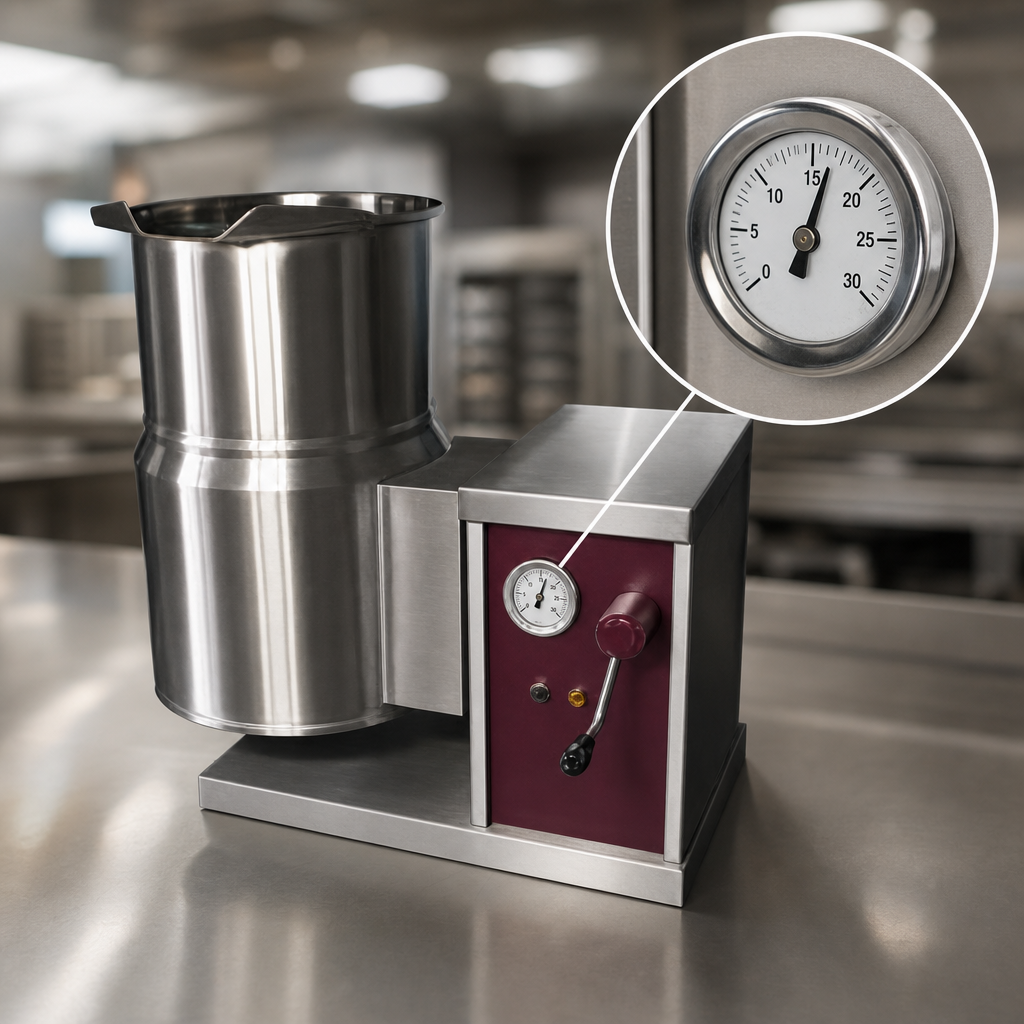

- Built-in safety: low-water cut-off & indicator, pressure gauge, 50 PSI relief valve
- Factory-installed faucet bracket; accepts optional single or double pantry faucets
- Removable heating elements simplify service and reduce downtime
- 10-year hemisphere weld warranty + 1-year parts & labor coverage
Technical Specs
| Capacity | 12 gal | 45 L |
|---|---|
| Steam Jacket | Self-generating, 2⁄3 wrap, factory sealed |
| Operating Pressure | 50 PSI (345 kPa) |
| Temperature Range | 165 °F – 285 °F (74 °C – 140 °C) |
| Heat Input | 12 kW electric |
| Voltage Options (field convertible 1- or 3-phase*) |
208, 220, 240, 380/220, 415/240, 480 or 600 VAC, 50/60 Hz |
| Exterior Dimensions | 16"W × 27.56"D × 30"H (406 × 700 × 762 mm) |
| Shipping Weight | 190 lb (86 kg) |
| Safety Listings | cCSAus, NSF, ASME-coded & NB registered |
| Standard Inclusions | Faucet bracket, pressure gauge, low-water indicator/shut-off, safety relief valve |
*Single-phase available on 208–240 V only. Always specify voltage and phase when ordering.
Popular Options (sold separately)
- Lift-off stainless-steel cover
- Single or double pantry faucet with swing spout
- Graduated gallon or litre etchings
- Perforated product basket &/or pour-lip strainer
- 21" floor stand with sliding drain pan or shelf
