Crown (Middleby) ECT-10 Steam Kettles
Description

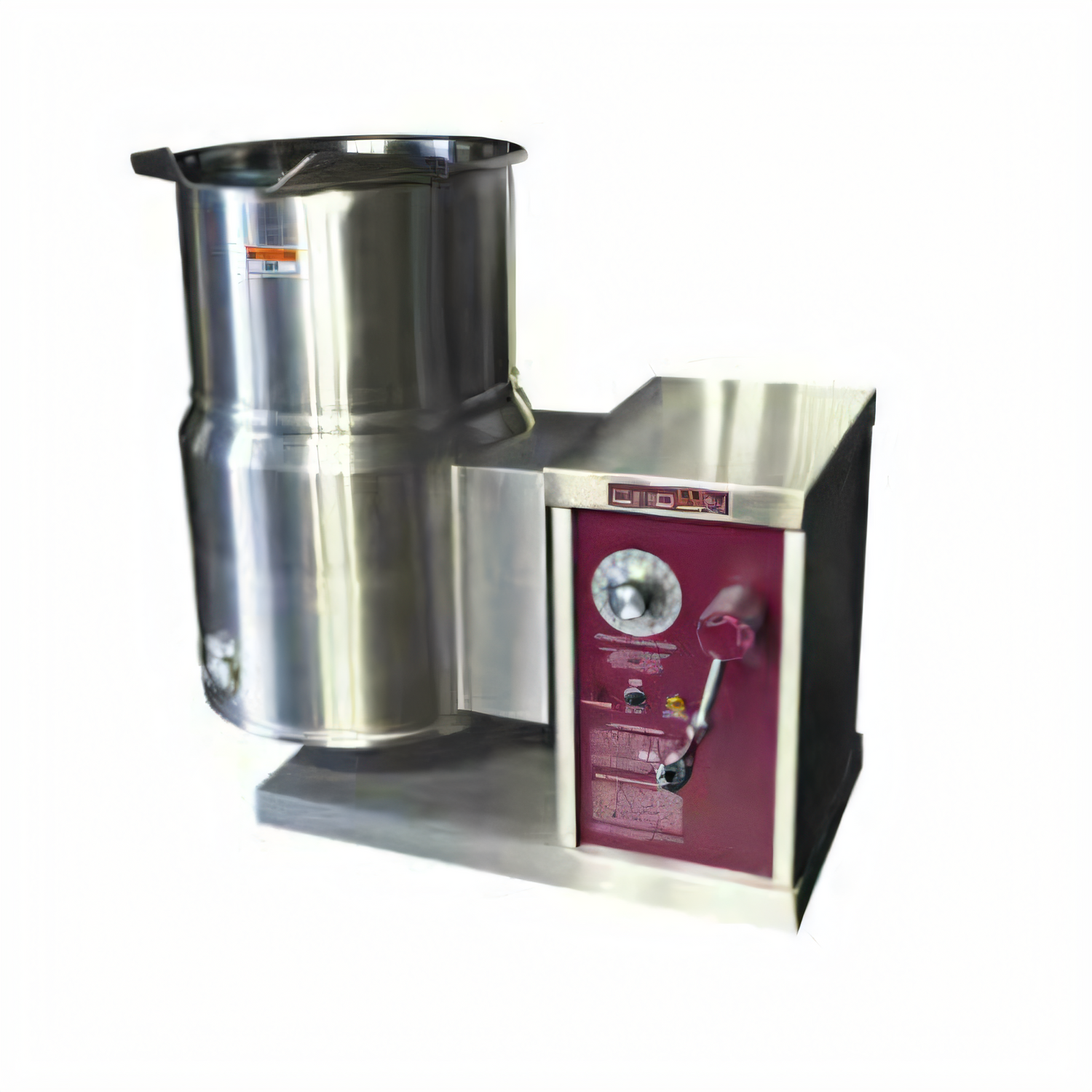

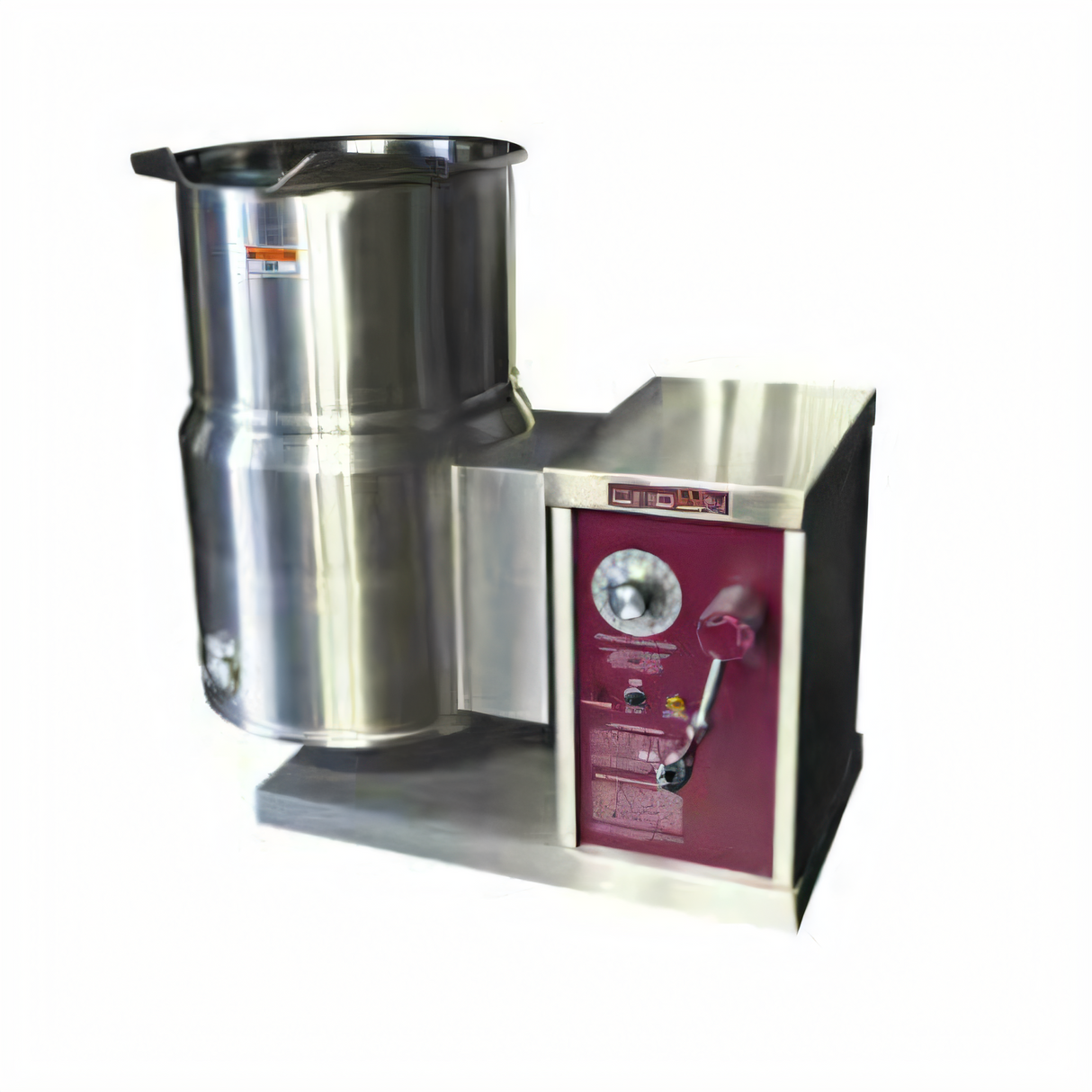

Crown ECT-10 Electric Counter Tilting Kettle
10 gal (38 L) • 12 kW • 50 PSI High-PressureTurbo-charge your production line without giving up precious workspace. The Crown ECT-10 is a self-generating, steam-jacketed countertop kettle that brings 10 gallons of high-performance cooking to any commercial kitchen, then cranks smoothly past 90° for fast, spill-free pouring and effortless clean-up.
Key performance & safety benefits
- Self-contained 12 kW steam system—no external boiler required.
- 50 PSI jacket pressure delivers cooking temperatures up to 285 °F (140 °C) for shorter batch times.
- Type 316 stainless steel interior resists acidic foods and harsh chemicals.
- Right-hand console with hand-crank tilt—self-locking, permanently lubricated gearbox.
- Solid-state thermostat • 165 – 285 °F set-point range with status pilot light.

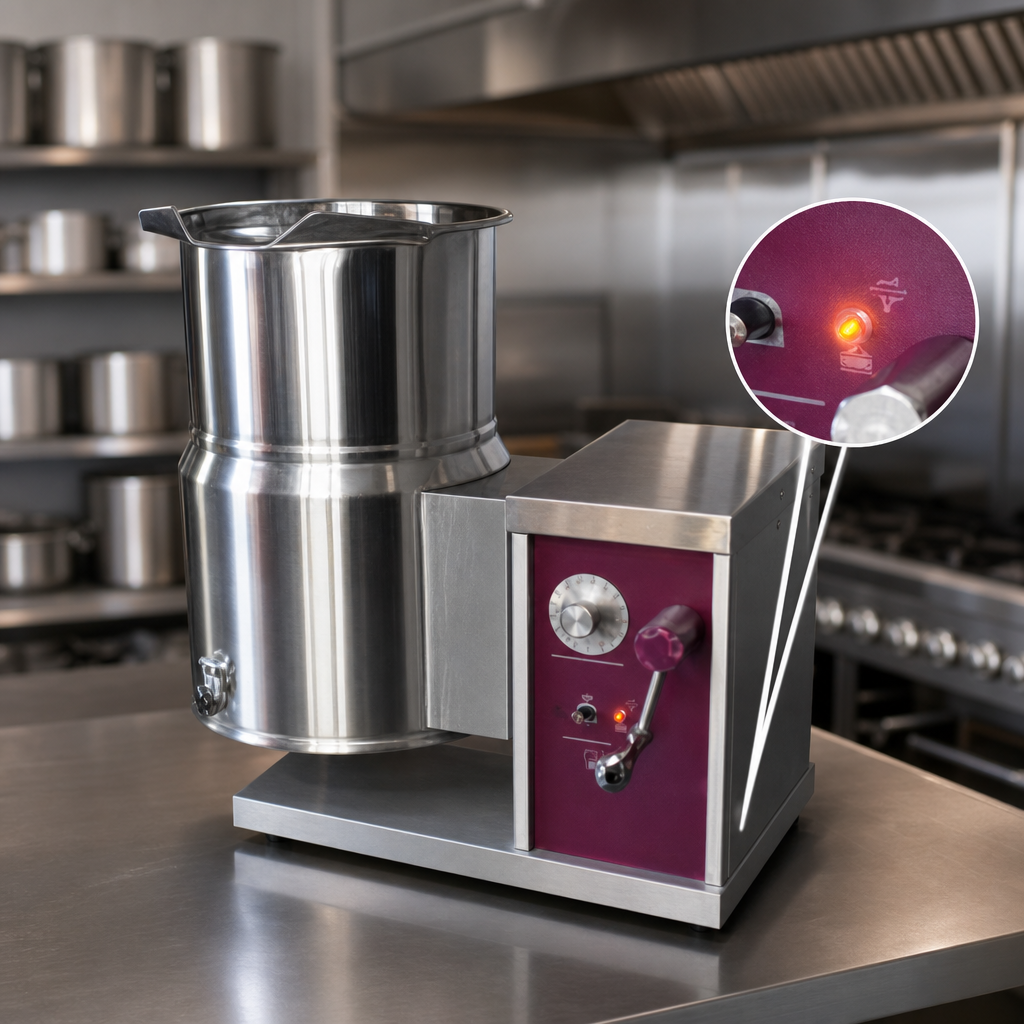

- Low-water cutoff with indicator light prevents element damage and protects operators.

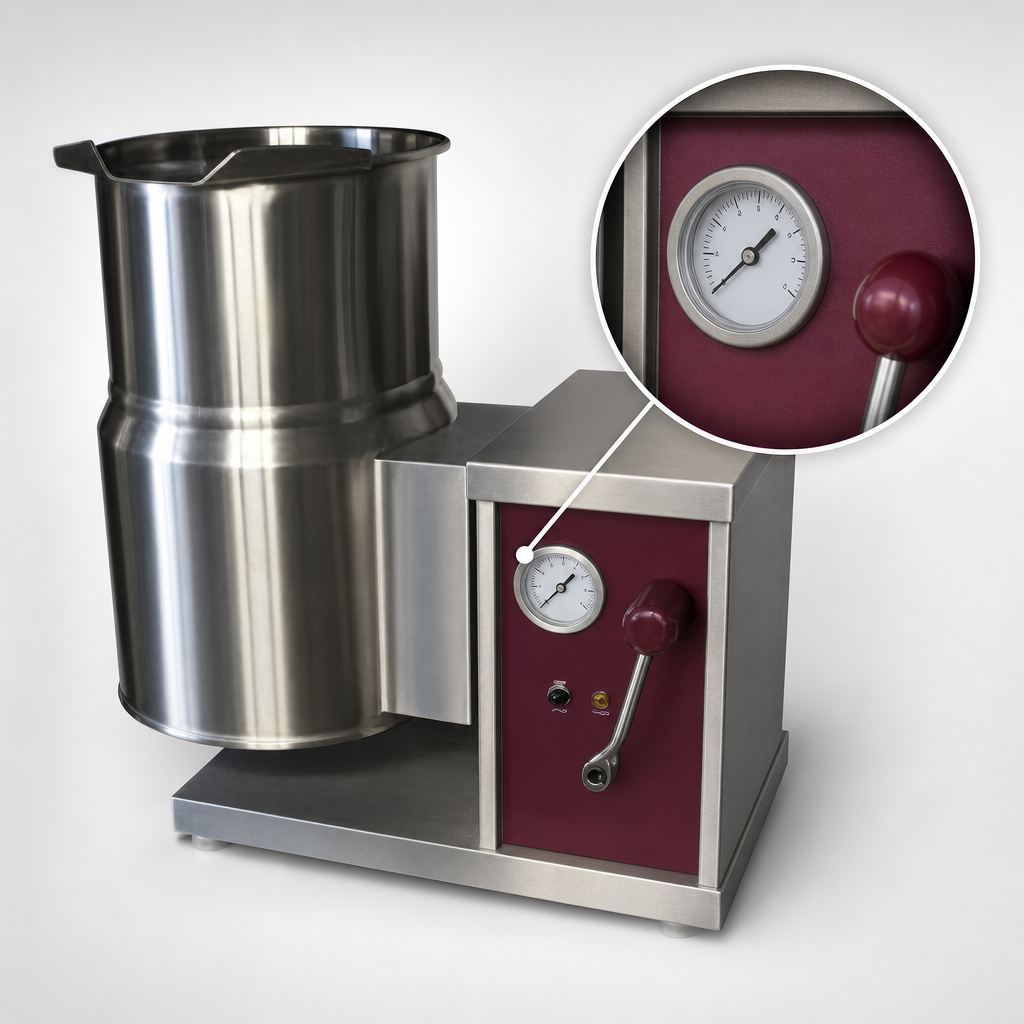

- Integrated pressure gauge and 50 PSI ASME safety relief valve.
- Water-resistant Type 304 stainless console & trunnion built to NSF hygiene standards.
- Factory-sealed distilled-water jacket eliminates daily boiler feed maintenance.
- Faucet bracket included for quick mounting of optional pantry faucets.
- Certified cCSAus, NSF, ASME code stamped & National Board registered.
Technical specifications
| Model | ECT-10 |
|---|---|
| Capacity | 10 US gal / 38 L |
| Jacket | 2/3 steam jacket, factory-sealed distilled water |
| Heat input | 12 kW electric – single or three-phase (field convertible) |
| Voltage options | 208, 220, 240, 380/220, 415/240, 480 or 600 VAC, 50/60 Hz |
| Operating pressure | 50 PSI (345 kPa) |
| Temperature range | 165 – 285 °F (74 – 140 °C) |
| Interior surface | Type 316 stainless steel |
| Exterior / console | #4 finish Type 304 stainless steel |
| Dimensions | 16" Ø kettle • 25.31" D • 28" H (overall) |
| Shipping weight | ≈ 180 lb (82 kg) |
| Clearance (min.) | Right 3" (76 mm) Left 2" (51 mm) Back 0" |
| Certifications | NSF, cCSAus, ASME, NB |
Popular accessories (add-ons)
- S-30 21" stainless equipment stand with sliding shelf & drain pan.
- Single (SF-12) or double (DF-12) pantry faucets with swing spout.
- Lift-off cover, perforated basket, pour-lip strainer or etched gallon/litre markings.
