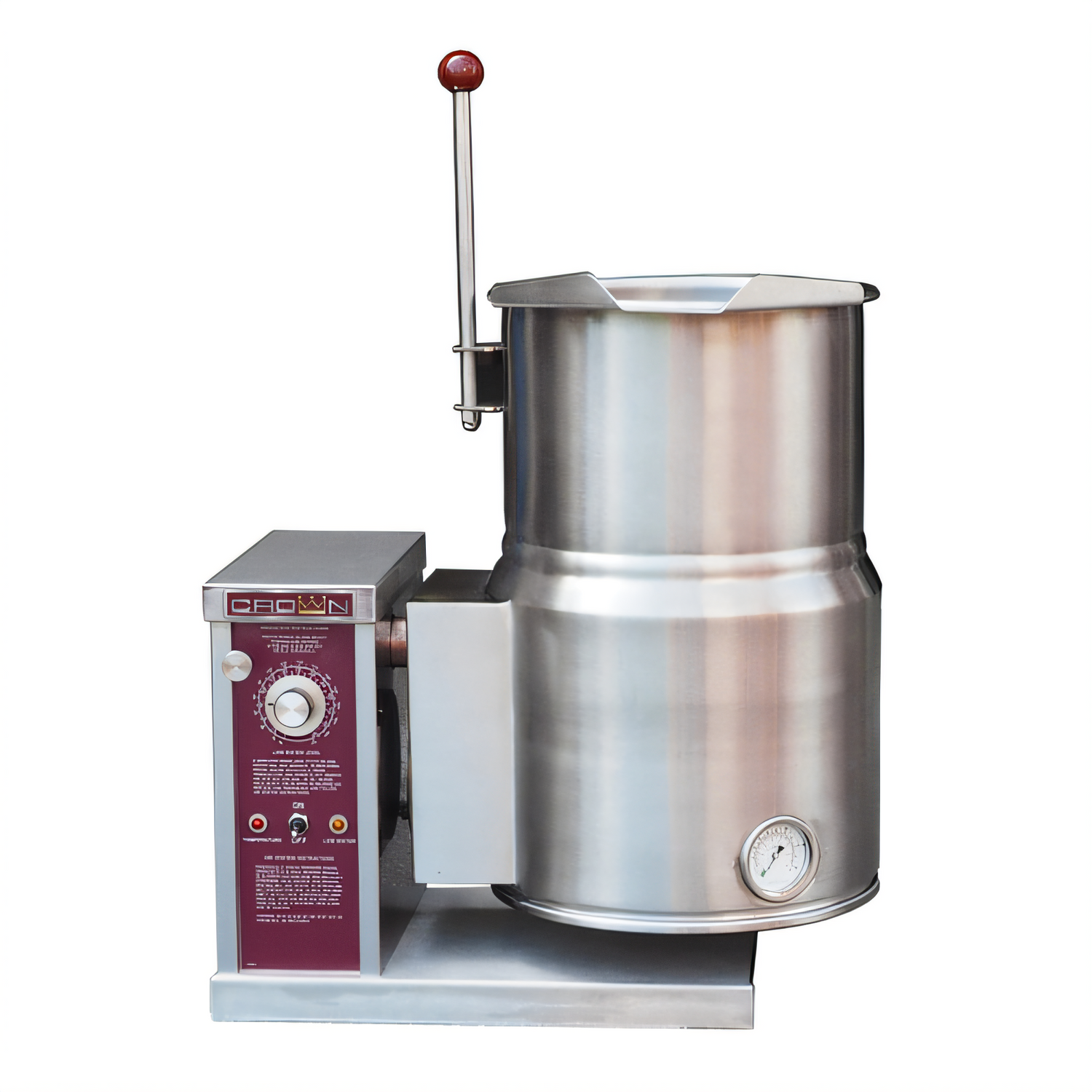

Crown EC-6TWL 6 Gallon Electric Countertop 2/3 Steam Jacketed Tilting Kettle

6 Gallon Capacity, Electric, Countertop, Left-Side Lever Tilt

Experience precise temperature control and efficient cooking with the Crown EC-6TWL, a robust electric countertop tilting kettle designed for commercial kitchens.

  • Efficient self-generating 2/3 steam jacket system for even heating.
  • Durable Type 316 stainless steel interior liner for superior corrosion resistance.
  • Integrated solid state controls with precise temperature adjustments from 165°F to 285°F.
  • Compact countertop design with a left-side console for convenient operation and tilting.
  • High 50 PSI steam pressure operation allows for faster cooking times.
  • Equipped with safety features including a safety relief valve and low water level cut-off with indicator.

Overall Dimensions:

22.25"W x 15.25"D x 33.5"H

Product Weight:

130.0 lb

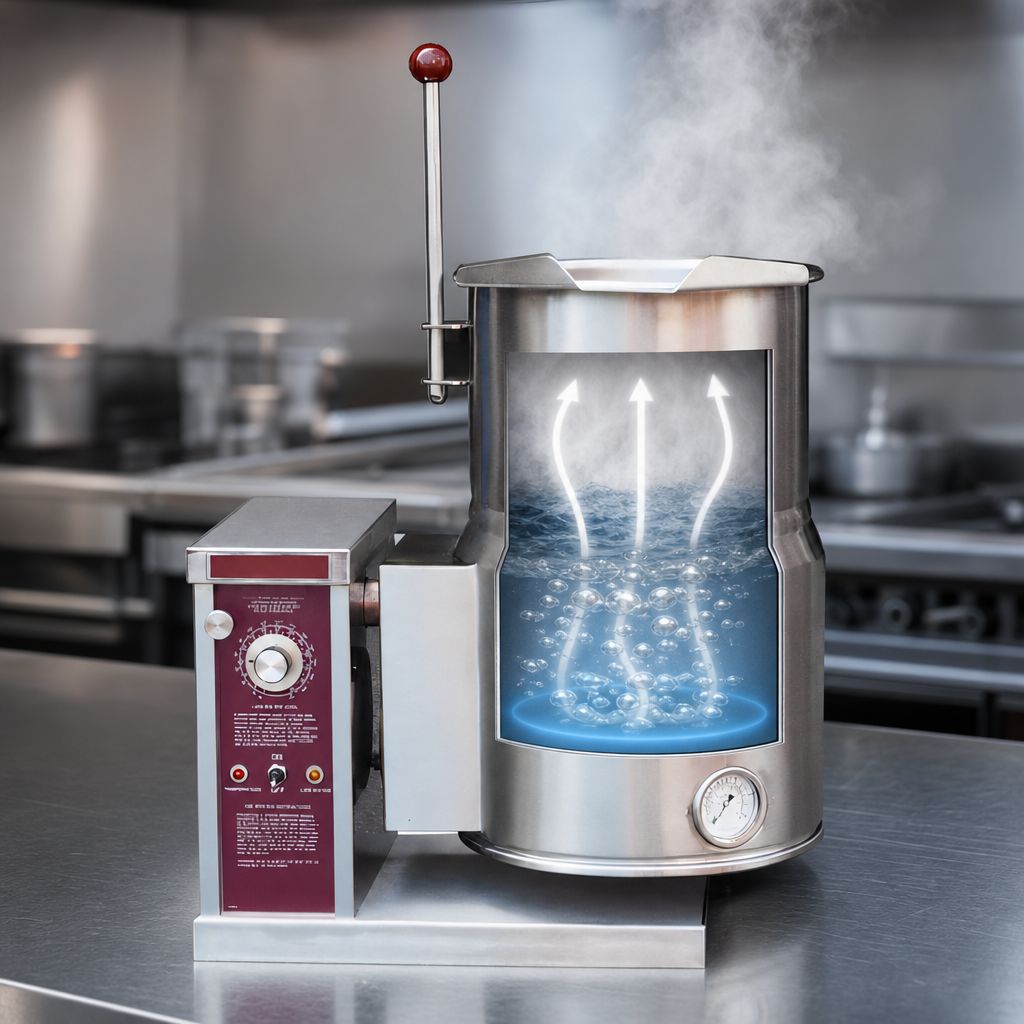

Self-Generating Steam System

Equipped with a closed steam system that generates its own steam, factory-sealed with distilled water, ensuring efficient and consistent heat distribution.

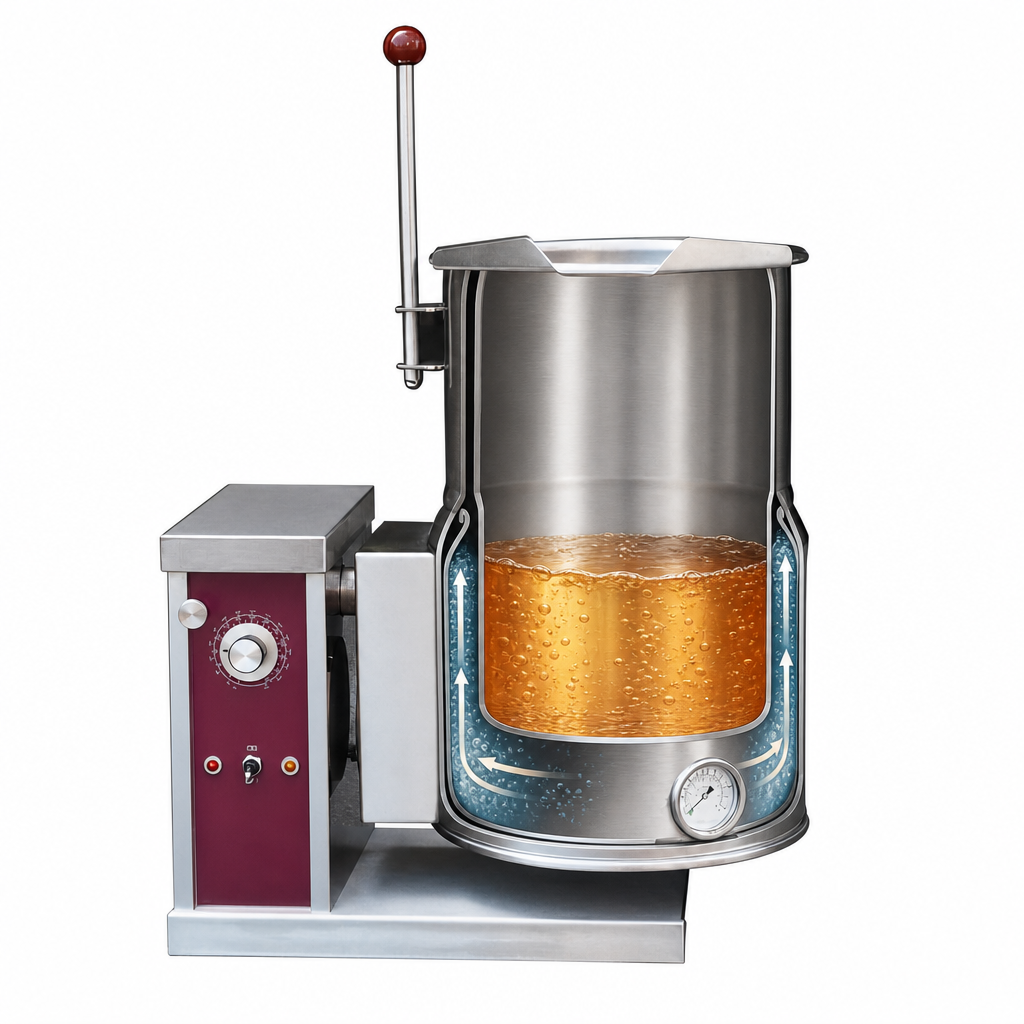

2/3 Steam Jacket

A double wall kettle interior forms a steam jacket around the lower two-thirds of the kettle, providing excellent heat circulation and preventing scorching.

Durable Stainless Steel Construction

The kettle features an interior cooking surface made of Type 316 stainless steel for enhanced corrosion resistance and a Type 304 stainless steel exterior and console for long-lasting durability.

Solid State Temperature Control

Integrally mounted water-resistant controls include a power switch, solid state thermostat, pilot light, vacuum/pressure gauge, safety valve, and low water shut-off with indicator light.

High-Pressure Operation

Operates at a maximum pressure of 50 PSI (345 kPa) to achieve higher cooking temperatures and reduce cooking times.

Lever Tilt Mechanism

Features a console with a lever tilt on the left side, allowing for easy and controlled pouring of contents. Includes a 'Clean Lock' to hold the kettle in cooking position or at 105° for cleaning.

Removable Elements

Designed with removable heating elements for easy maintenance and servicing.

Faucet Bracket

Includes a built-in faucet bracket for convenient installation of an optional faucet.

Type Tilting Kettle
Style Steam Jacketed
Installation Type Countertop
Capacity 6 Gallons (23 Liters)
Compartments 1
Kettle Jacket 2/3 Steam
Kettle Liner 316 Stainless Steel
Interior Finish 316 Stainless Steel
Material 304 Stainless Steel
Controls Solid State Thermostat
Temperature Range 165°F to 285°F
Max Pressure 50 PSI
Watts 7.5 kW
Voltage 208 Volts
Phase 1-Phase
Amps 36.0 Amps (at 208V)
Hertz 50/60 Hz
Water Connection Optional (for faucet)
Water Inlet Size 5/8 Inch O.D. (compression fitting) or 1/2 Inch NPSM (male) for optional faucet
Drain Connection Required (with optional stand/faucet)
Drain Connection Size 1-1/2 Inch NPTM (for optional stand)
Shipping Width 23 Inches
Shipping Depth 16 Inches
Shipping Height 34 Inches
Shipping Weight 130 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Ec-6twl with sd-24 stand PDF Download PDF Installation & operation PDF Download PDF Parts list PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Crown EC-6TWL has a capacity of 6 gallons (23 liters).
This kettle is equipped with integrally mounted, water-resistant solid state controls, including a power switch, thermostat, pilot lights, vacuum/pressure gauge, and low water shut-off.
The EC-6TWL features a 2/3 steam jacket, which means the steam circulates around the lower two-thirds of the kettle to provide even and efficient heating.
The kettle operates within a temperature range of 165°F to 285°F (74°C to 140°C).
The kettle itself does not require direct water connections for its steam system (it's self-generating). However, if an optional faucet is installed, cold and hot water connections (3/8" O.D. tubing or 5/8" O.D. copper tubing / 1/2" NPSM) will be required. If paired with an optional stand (like the SD-24) with a drain pan, a 1-1/2" NPTM drain connection to an open floor drain is required.
