Crown (Middleby) | SKU:
EC-6TW
Crown (Middleby) EC-6TW Steam Kettles
$8,111.50
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Crown (Middleby) EC-6TW Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Crown (Middleby) EC-6TW Steam Kettles
$8,111.50
Unit price
/
Unavailable
Description

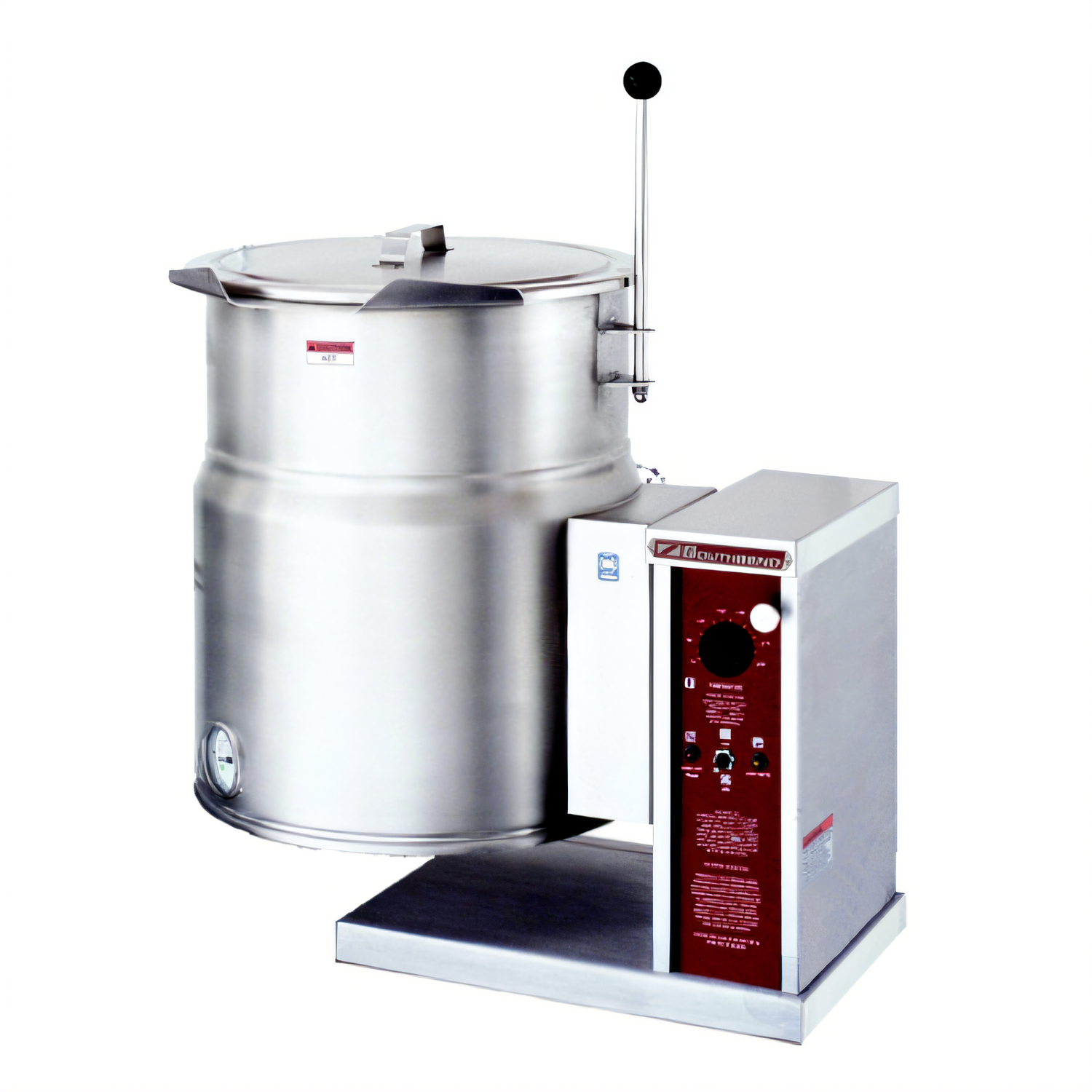

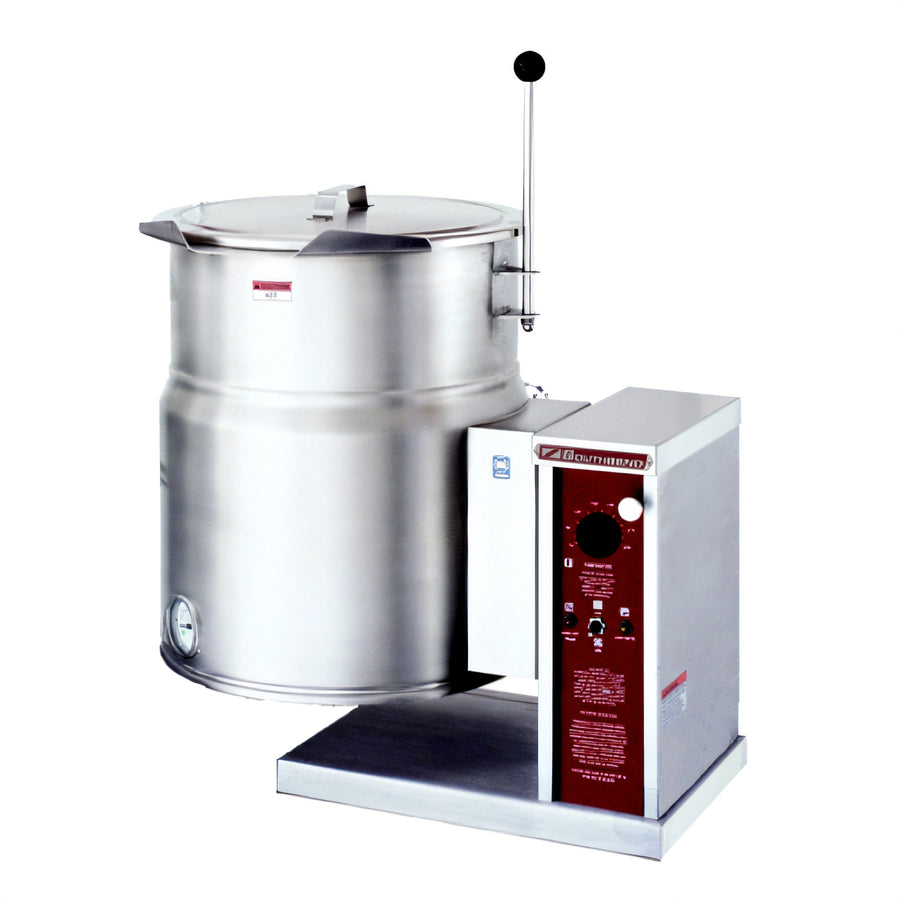

Crown EC-6TW Electric Countertop Tilting Kettle – 6 Gal / 23 L
High-pressure self-generating steam kettle for small-batch, high-output kitchensGet big-kitchen performance in a compact footprint. The Crown EC-6TW packs 50 PSI of steam power into a 6-gallon kettle, letting you braise, boil, stew or simmer faster and more evenly than stock pots—then pour safely with its smooth right-hand lever tilt.
Key performance features

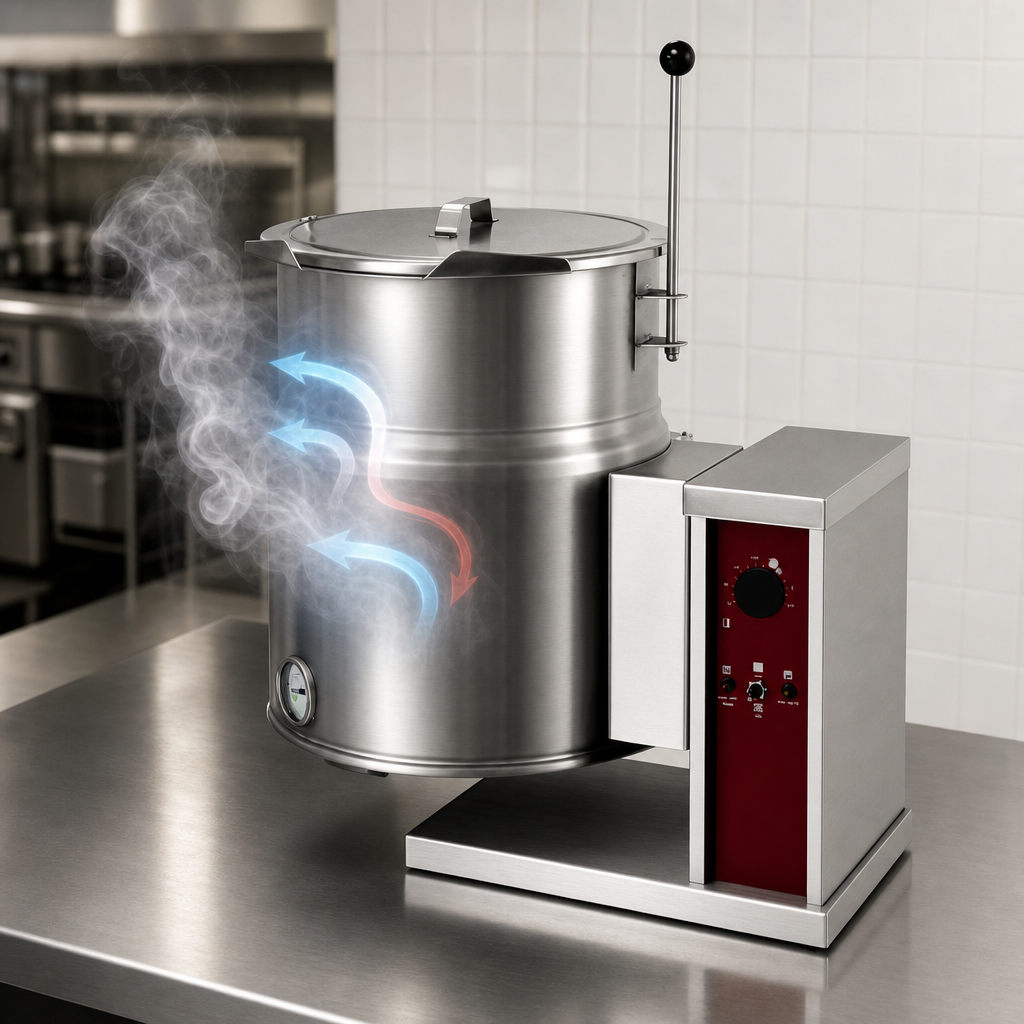

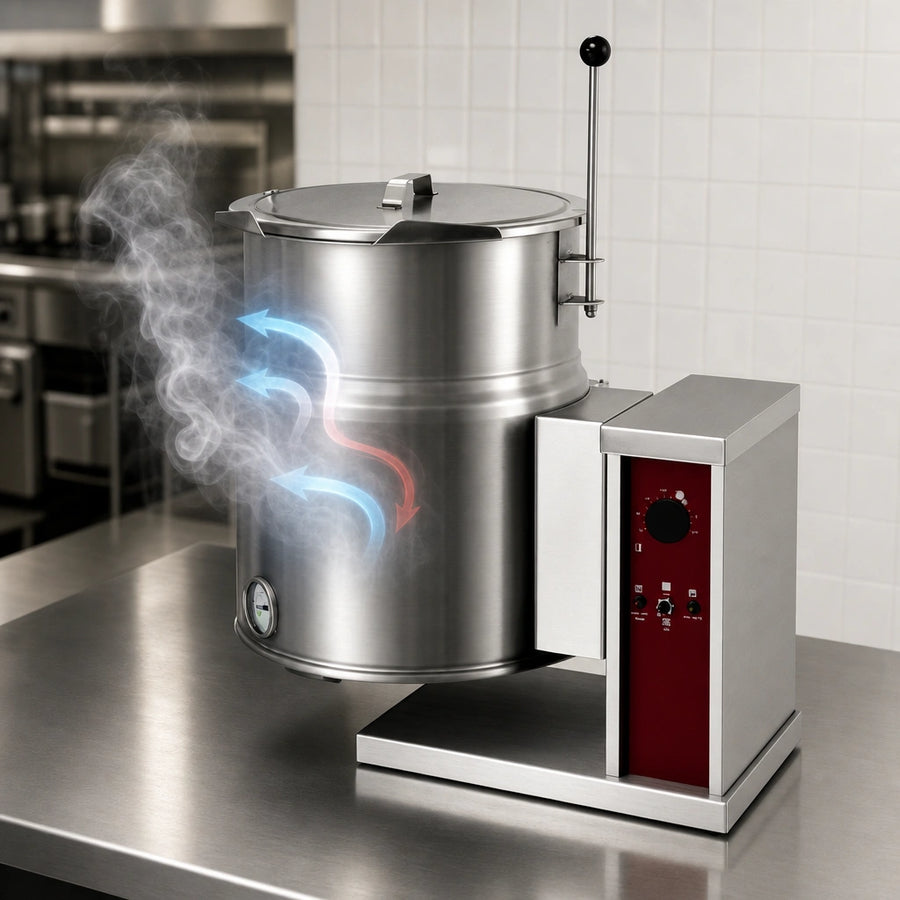

- Self-contained, closed steam system – no external boiler or water feed required.

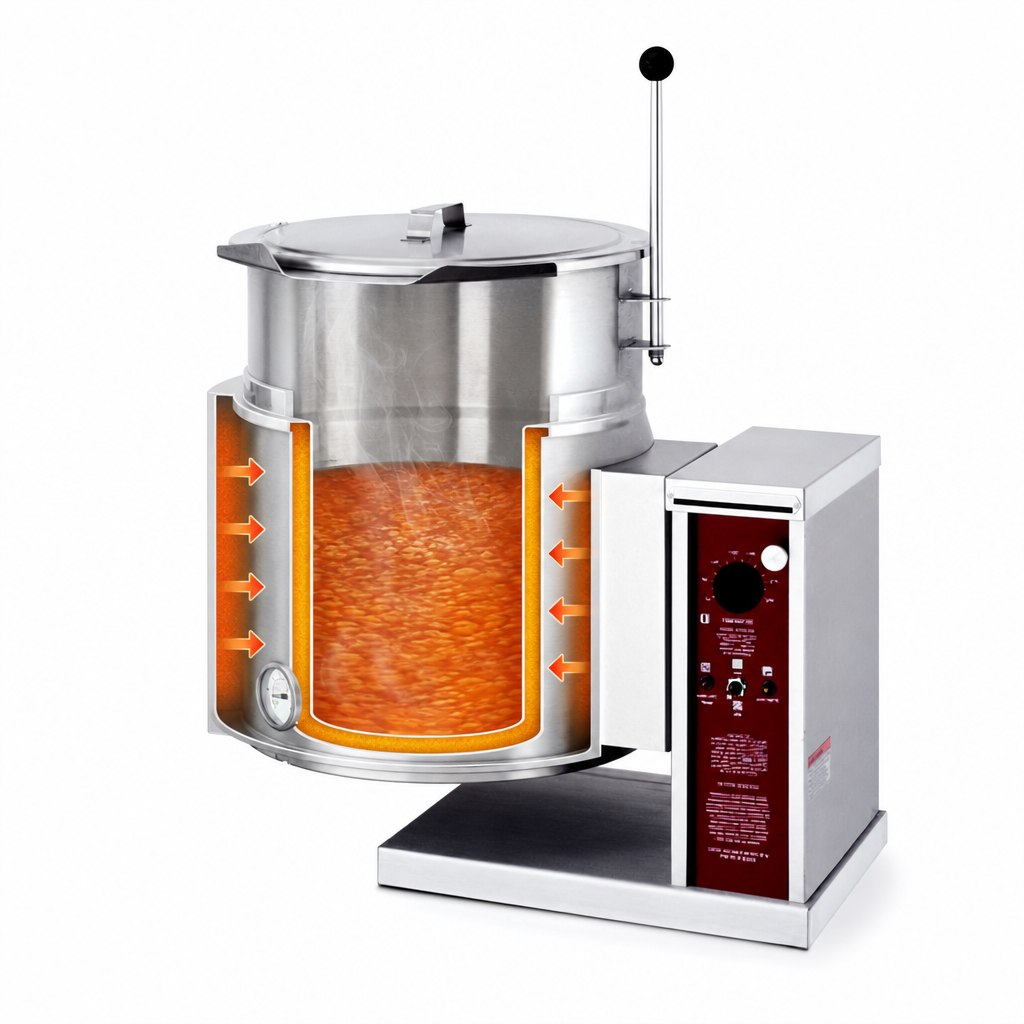

- 2/3 steam jacket surrounds product for rapid, uniform heating up to 285 °F (140 °C).
- Type 316 stainless steel liner resists salt, acid & cleaning chemicals; 304 stainless exterior for lasting good looks.
- 7.5 kW electric elements are removable for simple, low-cost service.
- Solid-state thermostat with low-water light & automatic shut-off protects the heating system.
- “Clean-Lock” positions kettle at 105 ° for safe, hands-free wash-down.
- Integrally mounted console keeps gauges, lights & controls water-resistant and easy to reach.
- Right-hand lever tilt with heat-proof knob gives precise, effortless pouring control.
- NSF & cCSAus certified; ASME code stamped & NB registered pressure vessel.
Perfect for
- Restaurants, hotels & resorts
- Commissary and ghost kitchens
- Catering & banquet production lines
- Healthcare & education foodservice
- Artisan sauce, broth, confectionery or brewery batches
Technical specifications
| Model | EC-6TW (countertop, tilting) |
|---|---|
| Capacity | 6 US gal / 23 L |
| Operating pressure | 50 PSI (345 kPa) |
| Temperature range | 165 °F – 285 °F (74 °C – 140 °C) |
| Power | 7.5 kW electric |
| Voltage / phase | 208 V or 240 V, 1 Ø or 3 Ø (field convertible) |
| Interior liner | 316 stainless steel |
| Exterior / base | 304 stainless steel, rectangular mounting base |
| Tilt mechanism | Lever handle (right-hand) with 0° & 105° lock positions |
| Controls & safety | On/Off switch, solid-state thermostat, pressure gauge, safety relief valve, low-water cut-off & indicator |
| Certifications | cCSAus, NSF, ASME, NB registered |
| Dimensions (W × D × H) | 24″ × 14.38″ × 33.5″ (610 × 365 × 851 mm) |
| Shipping weight | Approx. 120 lb / 54 kg |
| Minimum clearance | Right 3″ (76 mm) | Rear 2.5″ (64 mm) | Left 0″ |
| Included | Faucet bracket, installation & operation manual |
Optional accessories
- SD-24 stainless floor stand with sliding drain pan
- Etched gallon or litre markings
- Stainless steel wire basket set
- Single or double pantry faucet with swing spout
- Pour-lip strainer & graduated measuring strip
- Counter kettle table and other voltage configurations
Commercial use only. Install and operate in accordance with local codes and the supplied manual. Unit must be hard-wired by qualified personnel.
Need more capacity? Ask about the 10-gal and 12-gal EC-TW models.
Features & Specs
Features & Specs
Manufacturer
Crown (Middleby)
Certifications
NSF, cCSAus
Height
33.5in
Width
22.25in
Depth
15.25in
Shipping Weight
120.0lbs
Kettle Liner
316 stainless steel
Support location
right
Kettle Jacket
partial jacket
Capacity
6 gal = 24 qt
Tilt type
arm
Specifications
Tilting Kettle, electric, countertop, 6 gallon capacity, self-generating, 2/3 jacket, solid state thermostat, integrally mounted controls, pressure gauge, safety valve, low water light & shut off, console with lever tilt on right, faucet bracket, 316 stainless steel interior liner, 304 stainless steel exterior, rectangular base, 7.5kW, 50 PSI, cCSAus, NSF
